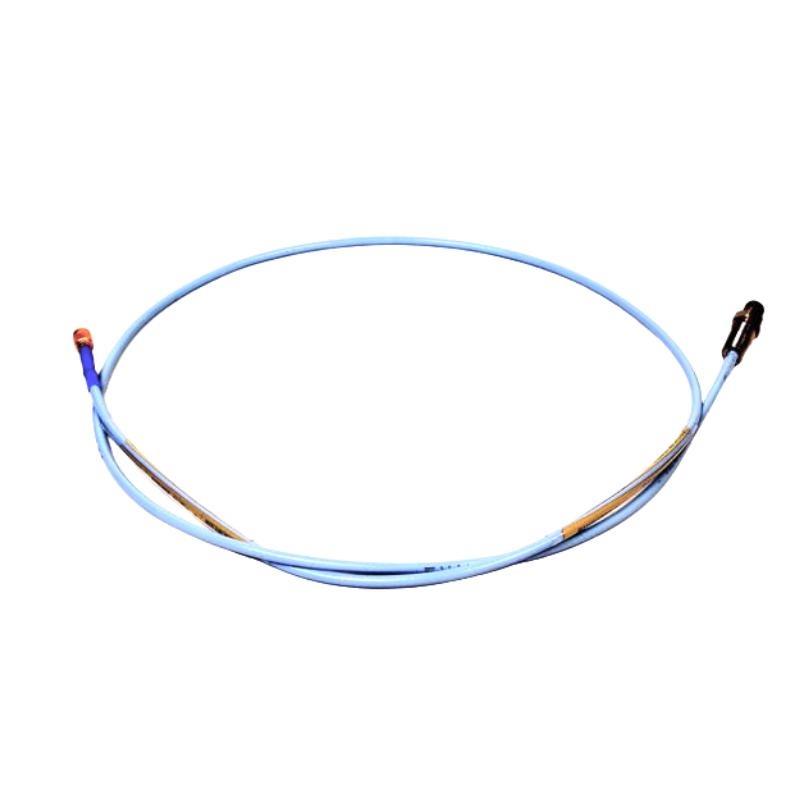

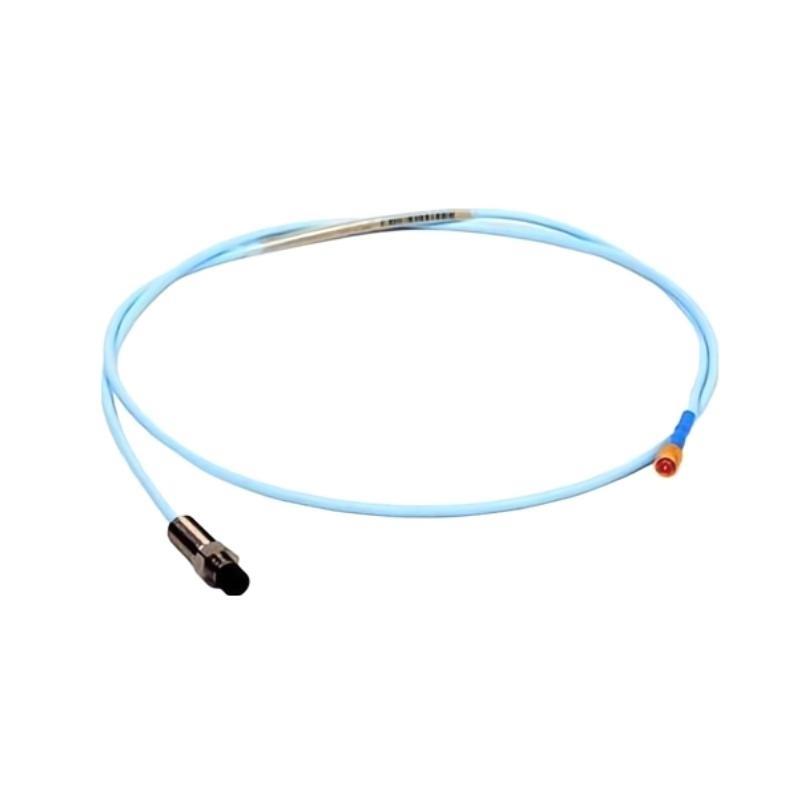

The Bently Nevada 330193-00-04-10-00 3300 XL 8 mm Probe is a high-precision non-contact proximity sensor designed for accurate vibration and shaft displacement monitoring in critical rotating machinery. Part / the trusted 3300 XL series, it delivers reliable and consistent measurements in industrial environments with extreme conditions. Its robust design, high linearity, and eddy-current sensing technology provide precise data for predictive maintenance, machinery protection, and real-time diagnostic systems in power generation, petrochemical plants, and heavy industrial equipment.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル | 330193-00-04-10-00 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Measurement Range | 2 mm (80 mil) linear range |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Tip Diameter | 8 mm |
| Thread Type | M10 × 1 mm |
| Operating Temperature (Probe) | –35 °C to +200 °C |
| Operating Temperature (Cable/Conn.) | –51 °C to +177 °C |
| Frequency Response | 0 to 10 kHz |
| Vibration Tolerance | Up to 20 g, 10–2000 Hz |
| Shock Tolerance | Up to 200 g peak |
| Environmental Protection | IP67 |
| Total Length | 1 meter |
| 重量 | 0.323 kg |
Product Applications
-
Turbines: Continuous monitoring / rotor position and vibration in gas and steam turbines.
-
Compressors & Pumps: Detects rotor imbalance, misalignment, and bearing wear for preventive maintenance.
-
Motors & Generators: Real-time vibration and displacement monitoring for reliable operation.
-
Industrial Process Equipment: Applicable in petrochemical, power generation, and heavy manufacturing for critical machinery diagnostics.
Product Advantages
-
High Accuracy: Maintains stable linear output across the full 2 mm measurement range.
-
Extended Temperature Range: Operates reliably from –35 °C to +200 °C.
-
Robust and Durable: IP67-rated construction ensures protection against dust, moisture, and industrial contaminants.
-
Shielded Design: Reduces electromagnetic interference for consistent signal integrity.
-
Shock and Vibration Resistant: Built to handle high vibration and shock up to 200 g peak.
-
Seamless Integration: Fully compatible with Bently Nevada 3300 XL Proximitor® sensors and monitoring systems.
FAQ
-
What is the nominal sensitivity / the 330193-00-04-10-00 probe?
The probe provides a nominal sensitivity / 7.87 mV/µm (200 mV/mil), allowing precise measurement / shaft vibration and displacement. -
Which monitoring systems support this probe?
It is fully compatible with Bently Nevada 3300 XL Proximitor® sensors and 3500 series monitoring modules. -
What is the operating temperature range / the probe and cable?
The probe operates from –35 °C to +200 °C, while the cable and connector range is –51 °C to +177 °C. -
How is the probe installed securely?
The probe uses an M10 × 1 mm threaded body with a locknut for stable and precise mounting near the rotating shaft. -
What technology does the probe use to measure displacement?
It employs eddy-current sensing, generating a voltage proportional to the gap between the probe tip and the shaft surface. -
What is the maximum continuous vibration the probe can withstand?
The probe tolerates continuous vibration up to 20 g within a frequency range / 10–2000 Hz. -
Does the probe meet environmental protection standards?
Yes, it is rated IP67, /fering protection against dust and temporary water immersion. -
What level / mechanical shock can the probe tolerate?
The probe can endure mechanical shocks up to 200 g peak without degradation in performance. -
How is signal stability maintained over time?
Shielded construction and high-quality materials reduce temperature drift and electromagnetic interference for reliable long-term output. -
Can the probe measure both radial and axial motion?
Yes, it accurately measures radial vibration and can also monitor axial displacement for comprehensive machinery diagnostics.
Related モデルs (Same Series or Similar)
| モデル Number | 説明 |
|---|---|
| 330192-00-30-10-00 | 3300 XL 8 mm ETR Probe for general vibration monitoring |
| 330192-00-70-05-CN | 3300 XL 8 mm ETR Probe with enhanced temperature tolerance |
| 330192-10-80-90-05 | 3300 XL 8 mm ETR Probe for extended industrial use |
| 330192-10-95-90-05 | 3300 XL 8 mm ETR Probe for heavy-duty equipment |
| 330193-00-02-10-00 | 3300 XL 8 mm Probe with alternate length configuration |
| 330192-00-50-05-00 | 3300 XL 8 mm ETR Probe with customized connector design |
Popular Bently Nevada モデルs
| モデル Number | 説明 |
|---|---|
| 3500/22M | Transient Data Interface Module |
| 3300 XL 5 mm | Proximity Probe for compact installation |
| 3500/42M | Proximitor®/Seismic Monitor |
| 330130-040-00 | Standard Proximitor® Sensor |
| 3500/50 | Tachometer Module |
| 330180-90-05 | 3300 XL 11 mm Proximity Probe for large shaft targets |
