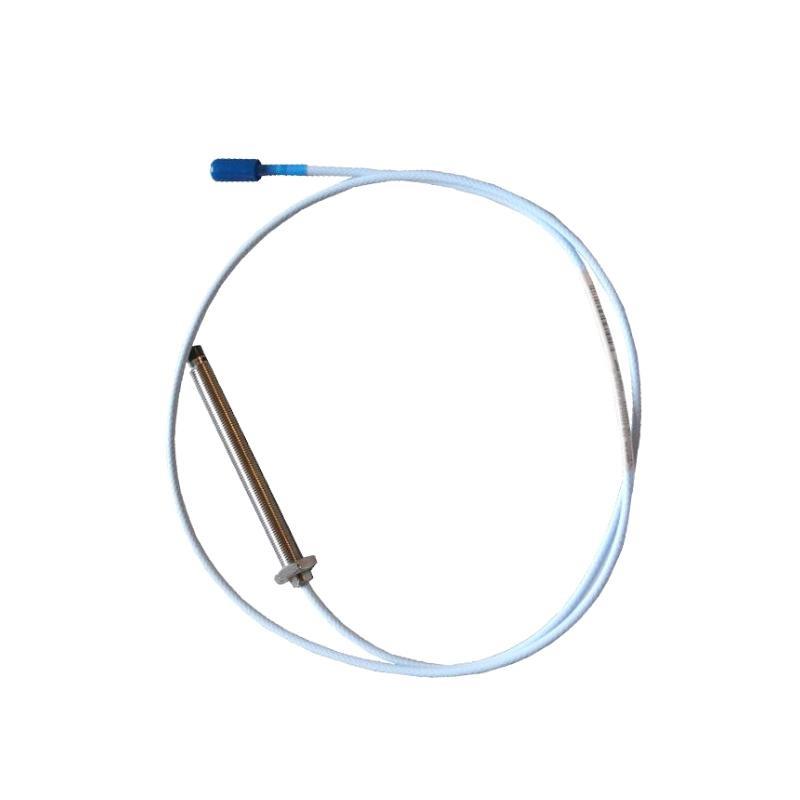

The Bently Nevada 330193-00-04-05-00 3300 XL 8 mm Probe is a precision non-contact proximity sensor engineered for continuous monitoring / shaft vibration, radial displacement, and rotor dynamics in critical rotating machinery. Designed for harsh industrial environments, it forms a key element / the 3300 XL family—renowned for long-term reliability and stable output. Its rugged construction, high linearity, and advanced eddy-current sensing technology provide accurate measurements essential for predictive maintenance and machinery protection systems used in power generation, petrochemical plants, and heavy manufacturing.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル | 330193-00-04-05-00 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Measurement Range | 2 mm (80 mil) linear range |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Tip Diameter | 8 mm |
| Thread Type | M10 × 1 mm |
| Operating Temperature (Probe) | –35 °C to +200 °C |
| Operating Temperature (Cable/Conn.) | –51 °C to +177 °C |
| Frequency Response | 0 to 10 kHz |
| Vibration Tolerance | Up to 20 g, 10–2000 Hz |
| Shock Tolerance | Up to 200 g peak |
| Environmental Protection | IP67 |
| Total Length | 0.5 meter |
| 重量 | 0.162 kg |
Product Applications
-
Turbomachinery: Continuous vibration and displacement monitoring for gas and steam turbines.
-
Compressors & Pumps: Detects bearing wear, rotor imbalance, and shaft misalignment.
-
Electric Motors & Generators: Enables predictive maintenance through real-time vibration analysis.
-
Industrial Process Equipment: Ensures stable operation in petrochemical, mining, and power industries.
Product Advantages
-
High Precision Measurement: Delivers accurate, linear output across the full 2 mm range.
-
Wide Temperature Capability: Maintains stable operation from –35 °C up to +200 °C.
-
Rugged Construction: IP67 sealing protects against dust, oil, and moisture ingress.
-
Low Signal Drift: Advanced shielding reduces electromagnetic interference for reliable data.
-
Shock & Vibration Resistant: Built to endure harsh mechanical conditions up to 200 g peak.
-
Seamless System Integration: Fully compatible with Bently Nevada 3300 XL Proximitor® sensors and monitoring systems.
FAQ
-
What is the electrical sensitivity / this probe?
The probe provides a nominal sensitivity / 7.87 mV/µm (200 mV/mil) for precise vibration and displacement measurements. -
Which monitoring hardware is compatible with the 330193-00-04-05-00 probe?
It integrates directly with Bently Nevada 3300 XL Proximitor® sensors and the full range / 3500 monitoring modules. -
What is the operating temperature range for the probe and its cable?
The probe functions from –35 °C to +200 °C, while the cable and connector operate from –51 °C to +177 °C. -
How is the probe mounted to achieve stable measurements?
Installation is achieved via its M10 × 1 mm threaded body and locknut, allowing secure placement near the rotating shaft. -
What sensing principle does the probe employ?
It uses eddy-current technology to convert shaft-to-probe distance into a proportional voltage signal. -
What level / continuous vibration can the probe withstand?
It is rated for continuous vibration up to 20 g in the 10–2000 Hz frequency range. -
Does the probe meet international protection standards?
Yes, it is IP67-rated, providing dust-tight sealing and protection against temporary water immersion. -
What is the shock tolerance / this model?
The probe assembly can withstand mechanical shocks up to 200 g peak without affecting performance. -
How does the probe maintain signal stability in electrically noisy environments?
Its shielded construction minimizes electromagnetic interference and temperature-related drift. -
Can the probe measure both radial and axial shaft movement?
Yes, it accurately measures radial vibration and can monitor axial displacement for comprehensive diagnostics.
Related モデルs (Same Series or Similar)
| モデル Number | 説明 |
|---|---|
| 330192-00-30-10-00 | 3300 XL 8 mm ETR Probe for standard industrial monitoring |
| 330192-10-80-90-05 | 3300 XL 8 mm ETR Probe with extended industrial features |
| 330192-10-95-90-05 | 3300 XL 8 mm ETR Probe for heavy-duty applications |
| 330193-00-02-10-00 | 3300 XL 8 mm Probe with alternate length configuration |
| 330192-00-50-05-00 | 3300 XL 8 mm ETR Probe with specialized connector design |
| 330192-10-85-90-05 | 3300 XL 8 mm ETR Probe optimized for high-vibration zones |
Popular Bently Nevada モデルs
| モデル Number | 説明 |
|---|---|
| 3500/22M | Transient Data Interface Module |
| 3300 XL 5 mm | Proximity Probe for compact installation |
| 3500/42M | Proximitor®/Seismic Monitor |
| 330130-040-00 | Standard Proximitor® Sensor |
| 3500/50 | Tachometer Module |
| 330180-90-05 | 3300 XL 11 mm Proximity Probe for larger shaft targets |
