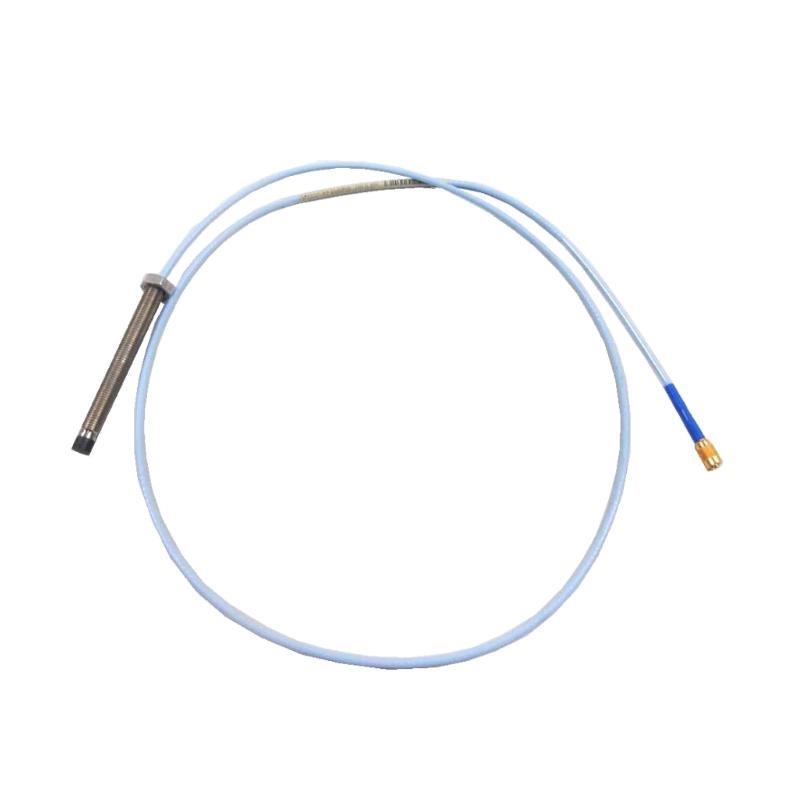

The Bently Nevada 330193-00-02-10-00 3300 XL 8 mm Probe is a precision non-contact proximity sensor engineered for accurate vibration and shaft displacement monitoring in high-speed rotating equipment. As a core component / the 3300 XL series, it ensures reliable, long-term performance in demanding industrial environments such as power generation, petrochemical processing, and heavy manufacturing. Its robust design, excellent linearity, and wide frequency response make it a trusted choice for predictive maintenance and machinery protection systems.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル | 330193-00-02-10-00 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Measurement Range | 2 mm (80 mil) linear range |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Tip Diameter | 8 mm |
| Thread Type | M10 × 1 mm |
| Operating Temperature (Probe) | –35 °C to +200 °C |
| Operating Temperature (Cable/Connector) | –51 °C to +177 °C |
| Frequency Range | 0 to 10 kHz |
| Vibration Tolerance | Up to 20 g, 10–2000 Hz |
| Shock Tolerance | Up to 200 g peak |
| Environmental Protection | IP67 |
| Total Length | 1 meter |
| 重量 | 0.323 kg |
Product Applications
-
Turbines: Continuous monitoring / shaft vibration and rotor position in gas and steam turbines.
-
Compressors and Pumps: Early detection / bearing wear, misalignment, and rotor imbalance.
-
Motors and Generators: Continuous vibration analysis for critical rotating machinery.
-
Industrial Equipment: Reliable displacement measurement in petrochemical, power generation, and heavy industrial applications.
Product Advantages
-
High Precision: Maintains stable linear response with 7.87 mV/µm sensitivity for accurate measurements.
-
Extended Temperature Capability: Withstands a broad temperature range, ensuring reliable operation in extreme environments.
-
Durable and Rugged: IP67-rated construction provides protection from dust, moisture, and industrial contaminants.
-
Seamless Integration: Fully compatible with Bently Nevada 3300 XL Proximitor® sensors and monitoring systems.
-
Superior Signal Integrity: Advanced shielding minimizes electromagnetic interference for dependable data output.
-
Shock and Vibration Resistance: Engineered to handle high vibration and mechanical shock without performance loss.
FAQ
-
What is the nominal sensitivity / the 330193-00-02-10-00 probe?
It delivers a sensitivity / 7.87 mV/µm (200 mV/mil), ensuring precise vibration and displacement measurements. -
Which Bently Nevada monitoring systems are compatible with this probe?
The probe works seamlessly with 3300 XL Proximitor® sensors and associated Bently Nevada monitoring hardware. -
What is the operating temperature range for the probe and cable assembly?
The probe operates between –35 °C and +200 °C, while the cable and connector operate reliably from –51 °C to +177 °C. -
How is the probe mounted securely in machinery?
It uses an M10 × 1 mm threaded body with a locknut, allowing stable and precise installation near rotating shafts. -
What sensing technology is employed in this probe?
It uses eddy-current technology to convert the distance between the probe tip and the shaft surface into a proportional voltage signal. -
What level / continuous vibration can the probe tolerate?
It can withstand continuous vibration up to 20 g across the 10–2000 Hz frequency range. -
Does the probe meet industrial protection standards?
Yes, it is rated to IP67, providing dust-tight sealing and resistance to temporary water immersion. -
What is the maximum shock rating for this probe?
The probe assembly is rated for mechanical shocks up to 200 g peak without performance degradation. -
How does the probe maintain signal stability over time?
High-quality materials and shielded construction minimize temperature drift and electromagnetic interference. -
Can the probe measure both radial and axial shaft motion?
Yes, it accurately measures both radial vibration and axial displacement for comprehensive machinery diagnostics.
