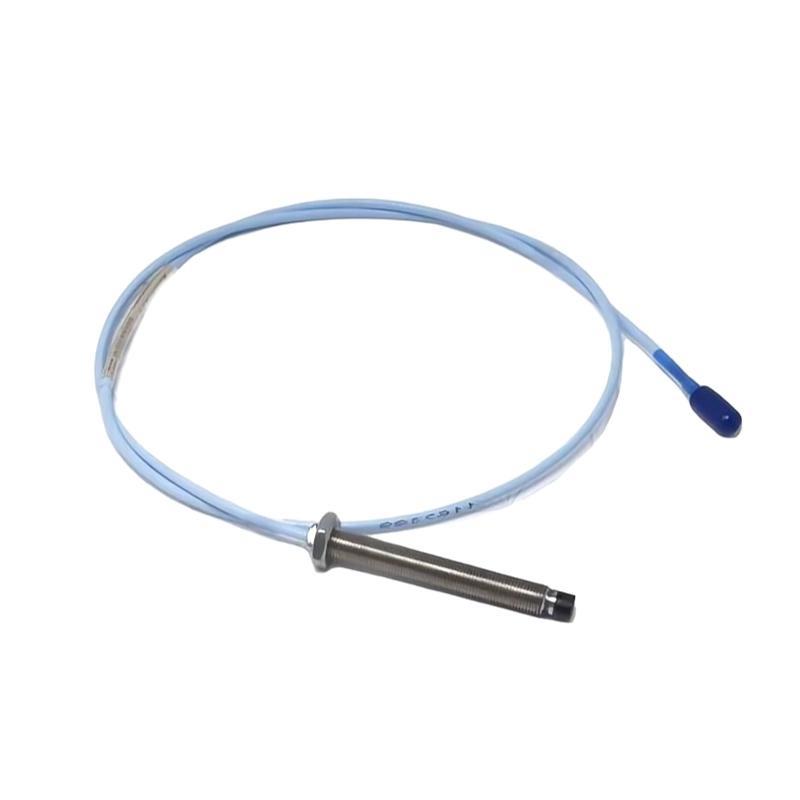

The Bently Nevada 330192-10-95-90-05 3300 XL 8 mm ETR Probe is a premium non-contact proximity sensor designed for precise vibration and displacement measurements in critical rotating equipment. Engineered for demanding industrial environments, it provides exceptional signal fidelity and long-term stability, ensuring accurate monitoring / shaft dynamics, rotor position, and mechanical condition. Built as part / the 3300 XL series, this probe integrates seamlessly with Bently Nevada’s Proximitor® sensors and protection systems, /fering plant operators reliable real-time diagnostics to prevent unplanned downtime.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル | 330192-10-95-90-05 |
| Probe Type | 3300 XL 8 mm ETR (Extended Temperature Range) |
| Measurement Range | 2 mm (80 mil) linear range |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Tip Diameter | 8 mm |
| Thread Type | M10 × 1 mm |
| Operating Temperature (Probe) | –35 °C to +200 °C |
| Operating Temperature (Cable/Connector) | –51 °C to +177 °C |
| Frequency Range | 0 to 10 kHz |
| Vibration Tolerance | Up to 20 g, 10–2000 Hz |
| Shock Tolerance | Up to 200 g peak |
| Environmental Protection | IP67 |
| Total Length | 9 meters |
| 重量 | 2.907 kg |
Product Applications
The 330192-10-95-90-05 probe is extensively used in:
-
Turbomachinery such as gas and steam turbines for shaft vibration and axial position monitoring.
-
Compressors and pumps, ensuring early detection / bearing wear and rotor imbalance.
-
Generators and motors, providing continuous vibration feedback for predictive maintenance.
-
Critical process equipment in power generation, oil & gas, and petrochemical industries where precise displacement measurement is essential.
Product Advantages
-
Exceptional Accuracy: High sensitivity and a linear measurement range deliver precise vibration and displacement data.
-
Wide Temperature Range: Operates in extreme temperatures, ensuring reliability in hot or cold environments.
-
Rugged Construction: IP67-rated housing and shock-resistant design provide durability in harsh industrial conditions.
-
Seamless Integration: Compatible with 3300 XL Proximitor® sensors and Bently Nevada monitoring systems for easy installation.
-
Enhanced Signal Integrity: Shielded design reduces electromagnetic interference and maintains measurement fidelity.
-
Long-Term Stability: High-quality materials ensure consistent performance and minimal drift over time.
FAQ
-
What is the nominal sensitivity / the 330192-10-95-90-05 probe?
The probe provides a nominal sensitivity / 7.87 mV/µm (200 mV/mil), enabling accurate shaft vibration and displacement measurement. -
Which monitoring systems are compatible with this probe?
It integrates directly with Bently Nevada 3300 XL Proximitor® sensors and associated monitoring hardware, simplifying system integration. -
What is the operating temperature range for the probe and cable assembly?
The probe functions from –35 °C to +200 °C, while the extension cable and connector operate reliably from –51 °C to +177 °C. -
How is the probe mounted within machinery?
It features an M10 × 1 mm threaded body with a locknut, ensuring secure placement and stable measurements during high-speed rotation. -
What sensing technology is used in this probe?
The device employs eddy-current technology to generate a voltage proportional to the distance between the probe tip and the shaft surface. -
What levels / continuous vibration can the probe withstand?
It is designed for continuous exposure to vibration levels up to 20 g across a 10–2000 Hz frequency range. -
Does the probe meet environmental protection standards?
Yes, it complies with IP67 standards, ensuring dust-tight sealing and resistance to temporary water immersion. -
What is the maximum shock rating / this probe?
The assembly is rated to handle mechanical shocks / up to 200 g peak without performance degradation. -
How is signal integrity maintained over extended operation?
Shielded cabling and robust construction reduce electromagnetic interference and temperature drift, ensuring stable and accurate output. -
Can the probe monitor both radial and axial motion?
Yes, it can accurately measure both radial vibration and axial shaft position, /fering comprehensive diagnostics for rotating equipment.
Related モデルs (Same Series or Similar)
| モデル Number | 説明 |
|---|---|
| 330192-00-30-10-00 | 3300 XL 8 mm ETR Probe for general vibration monitoring |
| 330192-00-70-05-CN | 3300 XL 8 mm ETR Probe with robust temperature tolerance |
| 330192-10-80-90-05 | 3300 XL 8 mm ETR Probe for extended applications |
| 330192-00-50-05-00 | 3300 XL 8 mm ETR Probe with customized connector configuration |
| 330192-10-60-90-05 | 3300 XL 8 mm ETR Probe optimized for high-speed shafts |
| 330192-10-85-90-05 | 3300 XL 8 mm ETR Probe with high-vibration capability |
