製品紹介

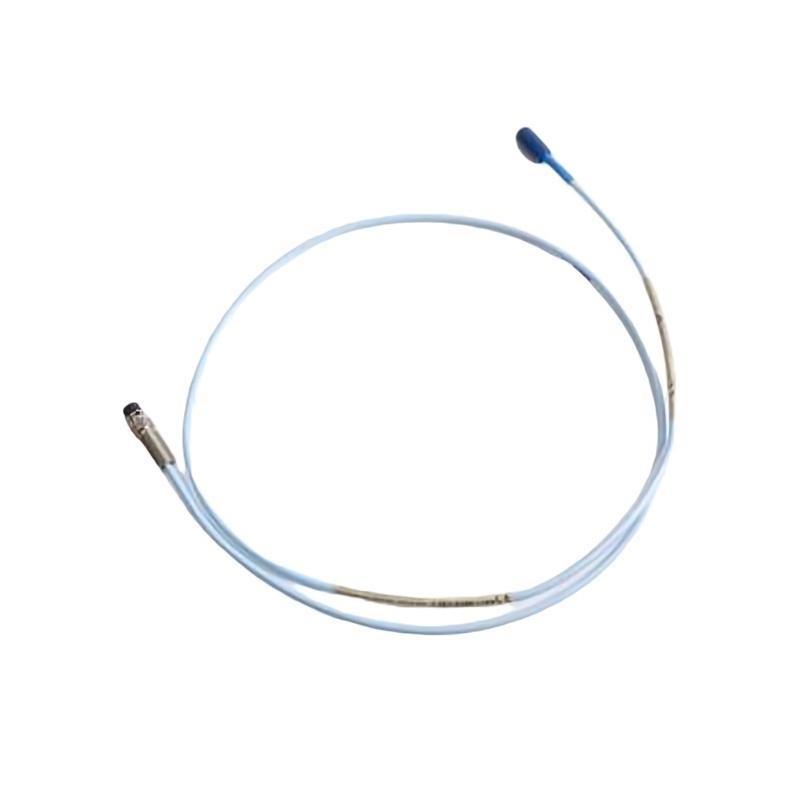

The Bently Nevada 330192-00-12-90-05 3300 XL 8 mm ETR Probe is a high-performance, non-contact proximity probe designed for monitoring shaft vibration and displacement in critical rotating machinery. As part / the 3300 XL series, it delivers superior accuracy, stability, and reliability for industrial applications. With an 8 mm probe tip and a total length / 9.0 meters, it is particularly suitable for installations requiring long cable runs while maintaining high signal fidelity. The probe’s robust design ensures reliable operation under demanding conditions, including high vibration, electromagnetic interference, and wide temperature ranges.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | 330192-00-12-90-05 |
| Product Type | 3300 XL 8 mm ETR Proximity Probe |
| Total Length | 9.0 meters |
| Probe Tip Diameter | 8 mm |
| 重量 | 2.907 kg |
| Linear Range | 2.0 mm (80 mils) nominal |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Pressure Rating | Up to 10 bar |
| Mounting Thread | 3/8-24 UNF standard |
| Insulation Resistance | ≥10 GΩ at 500 VDC |
| Housing Material | Stainless steel with high-dielectric PEEK insulation |
| Compliance | CE, RoHS |
Applications
The 330192-00-12-90-05 probe is ideal for:
-
Steam and Gas Turbines – Detects rotor vibration for predictive maintenance and fault detection.
-
Compressors and Pumps – Monitors shaft displacement to prevent unexpected failures.
-
Electric Motors and Generators – Enables condition monitoring for large rotating machinery.
-
Petrochemical and Refinery Equipment – Performs in high-temperature and corrosive environments.
-
Industrial OEM Installations – サポートs new equipment design and retr/it projects requiring precise vibration monitoring.
Advantages
-
High Accuracy – Maintains precise readings over a 2.0 mm linear range.
-
Long 9 m Cable – Suitable for installations requiring extended distance between probe and monitoring system.
-
Wide Temperature Range – Accurate performance from –35 °C to +177 °C.
-
優良 EMI Imm台y – Coaxial construction minimizes electromagnetic interference.
-
Durable Stainless Steel Housing – Provides corrosion resistance and robust mechanical protection.
-
Pressure Resistant – Operates safely in environments up to 10 bar.
-
Seamless Integration – Compatible with Bently Nevada 3300 XL Proximitor sensors and 3500 series monitoring systems.
-
Low Maintenance – Engineered for continuous operation with minimal calibration drift.
FAQ
-
What is the linear measurement range / this probe?
The probe provides a nominal linear range / 2.0 mm (80 mils) for precise shaft displacement measurement. -
What is the sensitivity specification?
It /fers approximately 7.87 V/mm (200 mV/mil), ensuring highly accurate readings. -
Can this probe be used with 3300 XL Proximitor sensors?
Yes, it is fully compatible and integrates seamlessly with 3300 XL sensors. -
What is the frequency response range / the probe?
It supports DC to 10 kHz, suitable for detecting a wide range / vibration frequencies. -
Which mounting thread is recommended?
A 3/8-24 UNF thread is standard for secure and reliable installation. -
Does the probe require additional EMI shielding?
No, the coaxial cable and internal shielding provide excellent noise imm台y. -
What temperature range can it safely operate in?
It operates reliably between –35 °C and +177 °C. -
What is the maximum pressure the probe can withstand?
The probe is rated for up to 10 bar. -
Is it suitable for use in harsh industrial environments?
Yes, it is designed for high vibration, temperature extremes, and corrosive conditions. -
Can it be integrated into hazardous area monitoring systems?
Yes, when paired with certified Bently Nevada Proximitor systems, it can meet hazardous area compliance standards.
Related モデルs in the Same Series
| モデル Number | 説明 |
|---|---|
| 330192-00-08-90-05 | 3300 XL 8 mm ETR Probe, 8 m cable length |
| 330192-00-10-90-05 | 3300 XL 8 mm ETR Probe, 10 m cable length |
| 330192-01-05-10-02 | 3300 XL 8 mm ETR Probe, high-temperature version |
| 330192-02-10-10-05 | 3300 XL 8 mm ETR Probe, 1 m cable length |
| 330192-00-12-05-05 | 3300 XL 8 mm ETR Probe, 12 m cable length |
| 330192-00-15-90-05 | 3300 XL 8 mm ETR Probe, long-length configuration |
Popular Bently Nevada モデルs
| モデル Number | 説明 |
|---|---|
| 330174-00-06-10-02-00 | 3300 5 mm Proximity Probe, 1 m cable |
| 330174-00-08-90-02-00 | 3300 5 mm Proximity Probe, extended 9 m cable |
| 330178-50-00 | 3300 XL 8 mm Proximity Probe for high-speed rotors |
| 3500/42M | Proximitor Monitor for advanced vibration monitoring |
| 330703-000-040-10-02 | 3500/22M Transient Data Interface Module |
| 330780-90-00 | 3300 XL Extension Cable for proximity probe systems |
