Product Overview

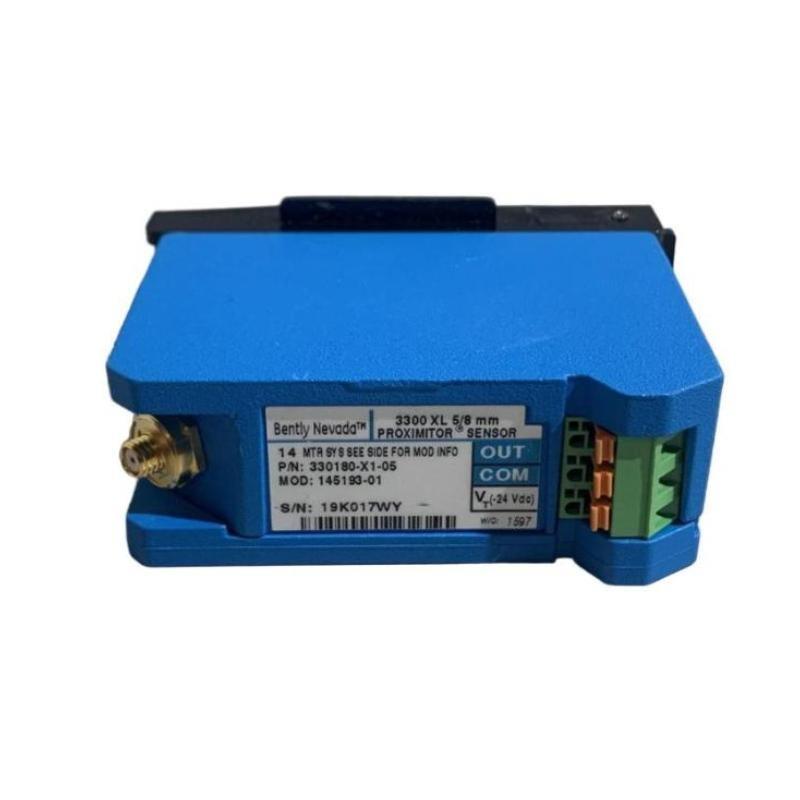

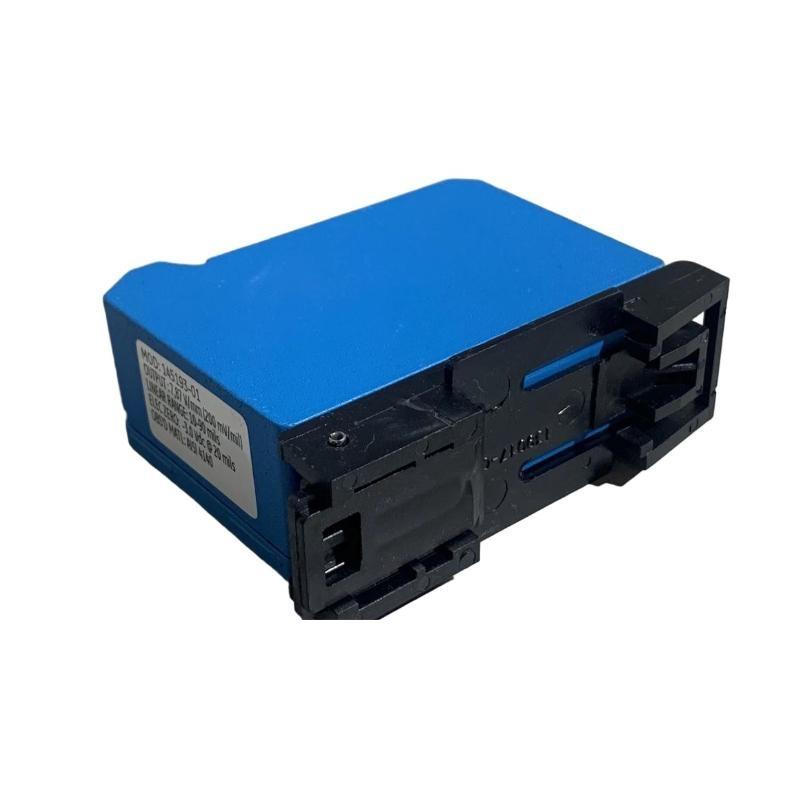

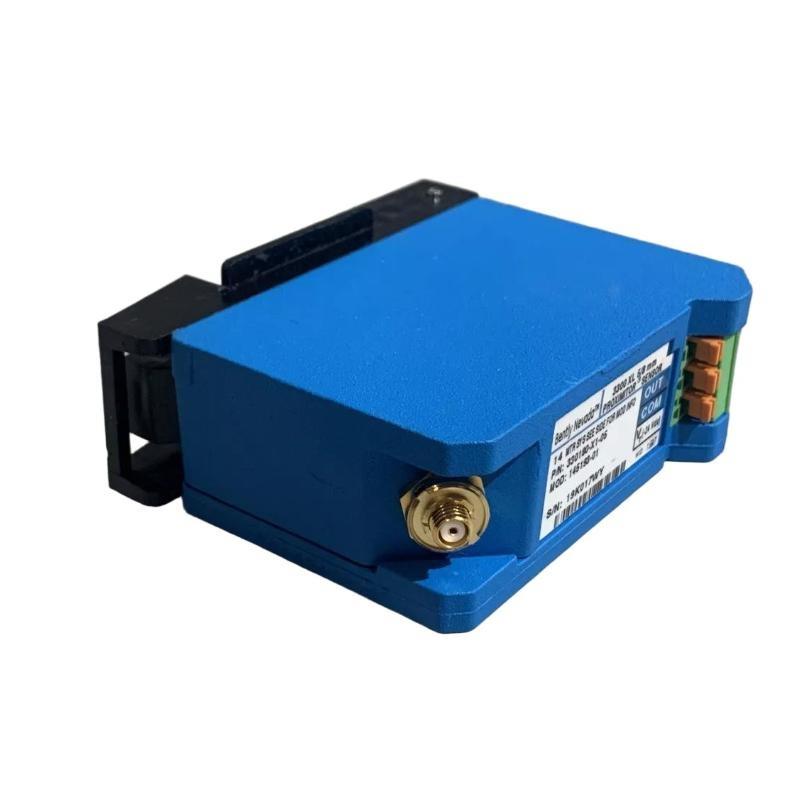

The Bently Nevada 330180-X1-05 145193-01 is a high-performance proximity transducer (Proximitor) sensor that is part / the trusted 3300 XL series. Designed for use with Bently Nevada 8 mm proximity probes and extension cables, this Proximitor sensor delivers accurate, real-time monitoring / shaft position and vibration in critical rotating machinery. Known for its exceptional durability and compliance with API 670, it is a key component in advanced condition monitoring and protection systems across industrial sectors.
Key Features
-
Compatible with Bently Nevada 8 mm 3300 XL proximity probes
-
Factory-calibrated for optimal system performance
-
優良 linearity and dynamic range
-
Suitable for harsh industrial environments
-
Fully compliant with API 670 standards
-
Wide frequency response for high-speed machinery
-
High imm台y to electrical noise and interference
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximitor Sensor (Transducer) |
| モデル Number | 330180-X1-05 |
| 型番 | 145193-01 |
| Series | 3300 XL |
| メーカー | Bently Nevada (Baker Hughes) |
| Probe Compatibility | 8 mm 3300 XL Proximity Probes |
| Measurement Range | 0 to 2 mm (0 to 80 mils) |
| Output Signal | DC voltage (proportional to shaft displacement) |
| Input Connector | Compatible with 330130 Extension Cable |
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -55°C to +125°C |
| Vibration Resistance | 10–2000 Hz @ 30 g |
| Shock Resistance | 100 g, 11 ms duration |
| Enclosure | Epoxy-sealed industrial-grade housing |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| 重量 | 0.246 kg |
Industry Applications
-
Oil and Gas (Compressors, Pumps, and Turbines)
-
Power Generation (Steam and Gas Turbines)
-
Chemical and Petrochemical Plants
-
Pulp and Paper Mills
-
Marine and Offshore Equipment
-
Water Treatment Facilities
-
Mining and Heavy Machinery
Product Advantages
-
Precision monitoring for critical rotating assets
-
Long service life and high field reliability
-
High resistance to electromagnetic interference
-
Easy integration into existing 3300 XL monitoring systems
-
API 670-compliant for industry-standard protection systems
-
Maintenance-free design for reduced operational downtime
よくある質問 (FAQ)
1. What is the function / the 330180-X1-05 145193-01 sensor?
It monitors shaft vibration and displacement in rotating machinery using a non-contact measurement method.
2. What probes is it compatible with?
It is designed for use with Bently Nevada 8 mm 3300 XL proximity probes.
3. Does it comply with industry standards?
Yes, it complies with API 670 for machinery protection.
4. Is the sensor pre-calibrated?
Yes, it comes factory-calibrated for plug-and-play use.
5. What is the typical measurement range?
The sensor supports a range / 0 to 2 mm (0 to 80 mils).
6. Can it be used in high-vibration environments?
Yes, it withstands up to 30 g from 10–2000 Hz.
7. How does it connect to the system?
Via 3300 XL extension cables such as the 330130 series.
8. Is this sensor suitable for outdoor use?
Yes, with proper enclosures, it performs reliably in outdoor/harsh environments.
9. What industries commonly use this sensor?
Oil & gas, power generation, petrochemical, and other heavy industries.
10. What makes it different from other Proximitor sensors?
Its rugged design, long-term stability, and compatibility with the 3300 XL system.
Related モデルs
| モデル Number | 説明 |
|---|---|
| 330180-X1-00 145004-89 | 3300 XL 8mm Proximitor Sensor |
| 330180-X1-00 143416-27 | 3300 XL 8mm Proximitor Sensor |
| 330180-X0-05 145004-05 | 3300 XL 8mm Proximitor Sensor |
| 330130-080-00-00 | 3300 XL Standard Extension Cable |
| 330104-00-12-10-02-05 | 3300 XL 8mm Proximity Probe |
Popular Bently Nevada モデルs
| モデル Number | 説明 |
|---|---|
| 3300/20-12-01-01-00 | 3300 XL Monitor |
| 330104-01-05-50-02-00 | 3300 XL 8mm Proximity Probe |
| 330103-00-05-10-02-00 | Extension Cable for 3300 XL Probes |
| 330101-00-14-10-02-05 | 3300 XL 8mm Proximity Probe |
| 330104-00-11-10-01-00 | 3300 XL 8mm Proximity Probe |
