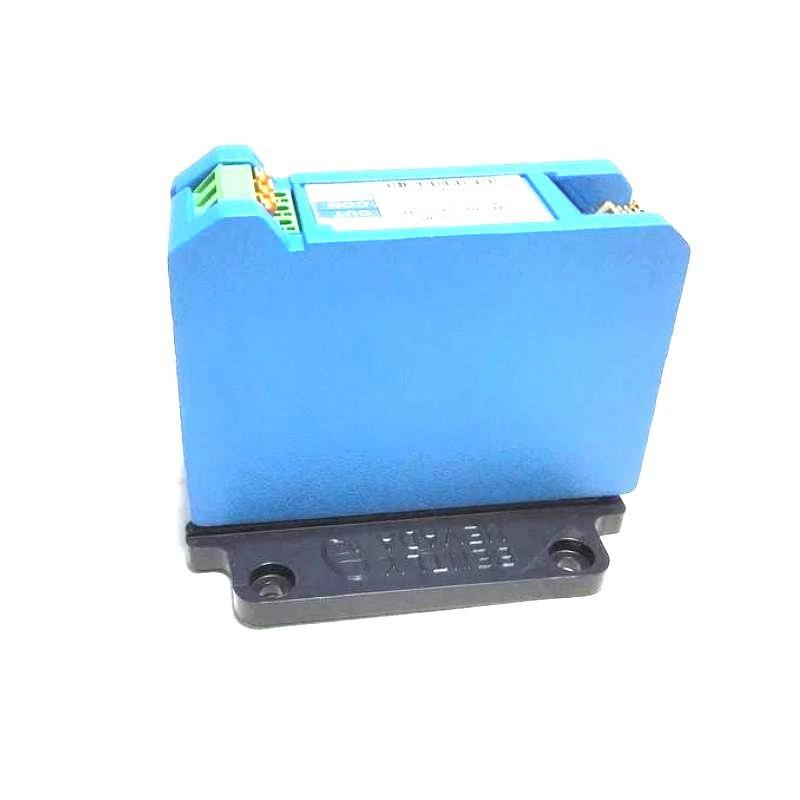

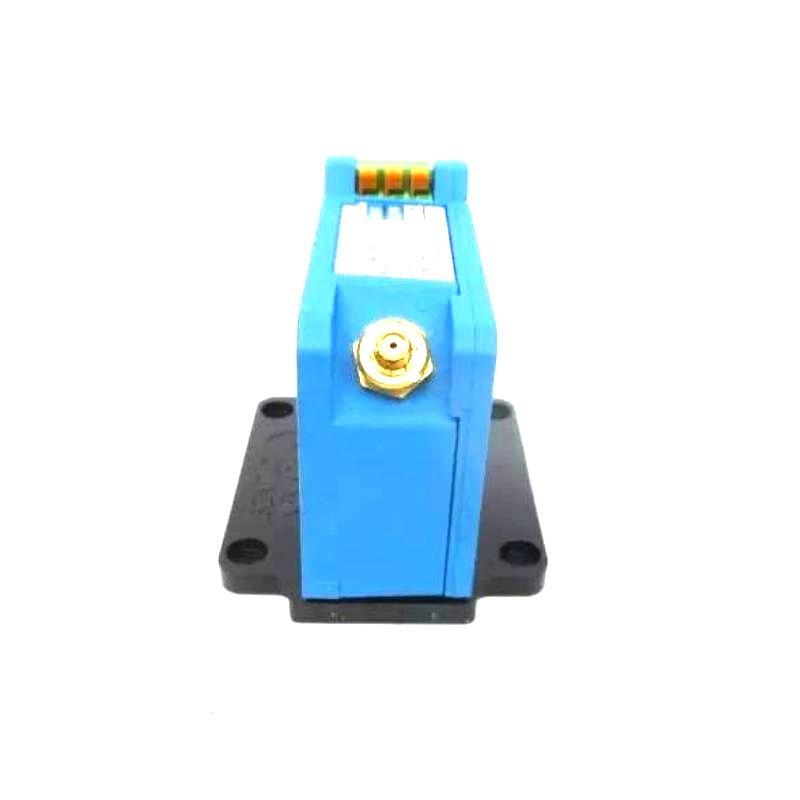

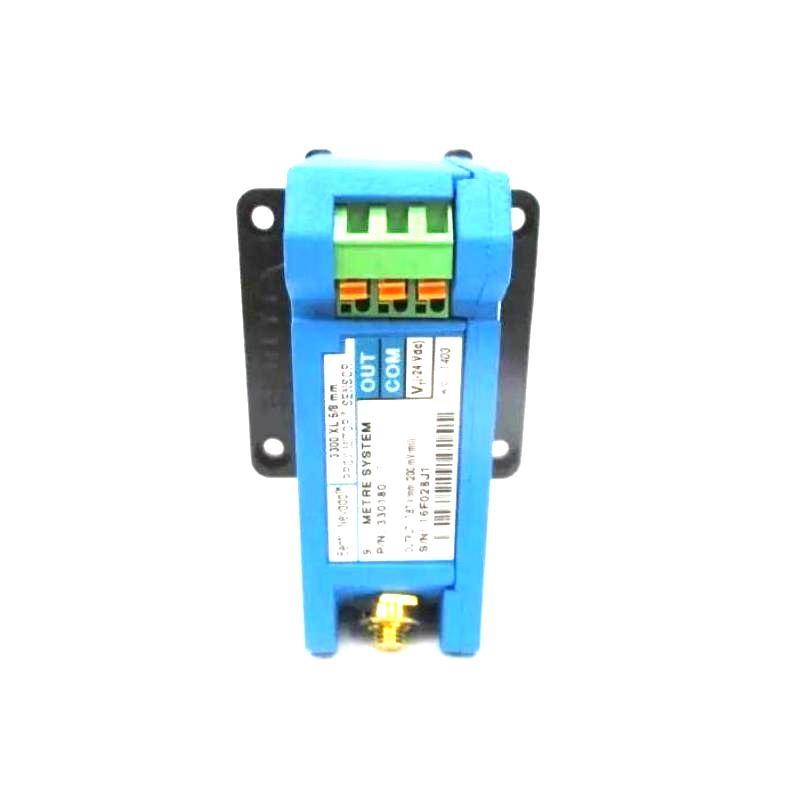

The Bently Nevada 330180-X1-05 145004-94 3300 XL Proximitor Sensor is a key component / the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position measurement on fluid-film bearing machines. It delivers a voltage output directly proportional to the distance between the probe tip and the conductive target surface, enabling accurate monitoring / both static and dynamic conditions.
Its design ensures full compliance with API 670 mechanical configuration, linear range, accuracy, and temperature stability standards, while supporting complete interchangeability with other 3300 XL 8 mm system components.
Technical Specifications
| Parameter | Specification |
|---|---|
| System Length | 5 m standard (other lengths available) |
| Power Supply | -17.5 Vdc to -26 Vdc, max 12 mA |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 Vdc (approx. 1.27 mm / 50 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0–10 kHz, +0, -3 dB |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Humidity | <3% change in ASF at 93% RH for 56 days |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| 重量 | 0.246 kg |
| Compliance | API 670, CE, RoHS, SIL 2/3 |
Applications
-
Vibration monitoring in turbines, compressors, and pumps
-
Shaft position and displacement measurements
-
Keyphasor® reference and rotational speed monitoring
-
状態 monitoring for predictive maintenance in critical rotating equipment
Advantages
-
High Measurement Accuracy – Complies with API 670 requirements for linearity and stability
-
Robust Environmental Protection – RFI/EMI imm台y allows use in non-metallic housings
-
Ease / Installation – SpringLoc terminals and ClickLoc connectors require no special tools
-
Interchangeability – Fully compatible with previous 3300 series 8 mm and 5 mm systems
-
Extended Operating Range – サポートs high-temperature probe and cable options up to 260°C
-
Durable Construction – Corrosion-resistant, gold-plated connectors and strong mechanical housing
FAQ
Q1: What is the primary use / the 330180-X1-05 Proximitor Sensor?
A1: It measures vibration, shaft position, and speed in rotating machinery.
Q2: Is it compatible with older Bently Nevada 3300 series components?
A2: Yes, it is electrically and physically interchangeable with non-XL 3300 8 mm and 5 mm systems.
Q3: Does it meet API 670 standards?
A3: Yes, it fully complies with API 670 mechanical, linear range, accuracy, and stability requirements.
Q4: What is the typical linear range?
A4: 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm from the target surface.
Q5: What is the recommended gap setting?
A5: Approximately -9 Vdc, equivalent to 1.27 mm (50 mils).
Q6: Can it operate in high-temperature environments?
A6: Yes, with Extended Temperature Range (ETR) probe and cable options up to 260°C.
Q7: How is field wiring connected?
A7: Via SpringLoc terminal strips, supporting 0.2 to 1.5 mm² (16–24 AWG) cables.
Q8: What kind / targets can it be calibrated for?
A8: Standard calibration is for AISI 4140 steel; other materials available upon request.
Q9: Does it require special tools for installation?
A9: No, ClickLoc connectors and SpringLoc terminals are tool-free.
Q10: What environmental conditions can it withstand?
A10: It has wide operating and storage temperature ranges and high RFI/EMI imm台y.
Related モデルs in the Same Series
| モデル Number | 説明 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 330180-50-00 | 3300 XL Proximitor Sensor, 5 m, panel mount | 81.3 x 35.1 x 63.5 | 0.246 |
| 330180-90-00 | 3300 XL Proximitor Sensor, 9 m, panel mount | 81.3 x 35.1 x 63.5 | 0.246 |
| 330180-11-05 | 3300 XL Proximitor Sensor, 1 m, DIN mount | 81.3 x 35.1 x 63.5 | 0.246 |
| 330180-51-05 | 3300 XL Proximitor Sensor, 5 m, DIN mount | 81.3 x 35.1 x 63.5 | 0.246 |
| 330180-91-05 | 3300 XL Proximitor Sensor, 9 m, DIN mount | 81.3 x 35.1 x 63.5 | 0.246 |
| 330180-12-00 | 3300 XL Proximitor Sensor, 1 m, no mount | 81.3 x 35.1 x 63.5 | 0.246 |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 330104-00-05 | 3300 XL 8 mm Proximity Probe | 8 mm dia., length varies | ~0.1 |
| 330130-040-00 | 3300 XL Extension Cable, 4 m | Cable OD 3.68 | ~0.05 |
| 3500/42M-01-00 | Proximitor Seismic Monitor | 241 x 25 x 241 | ~0.45 |
| 3500/22M | Transient Data Interface Module | 241 x 25 x 241 | ~0.45 |
| 3500/32M | 4-Channel Relay Module | 241 x 25 x 241 | ~0.45 |
| 330850-50-05 | NSv Proximity Transducer System | varies | ~0.25 |
