Product 説明

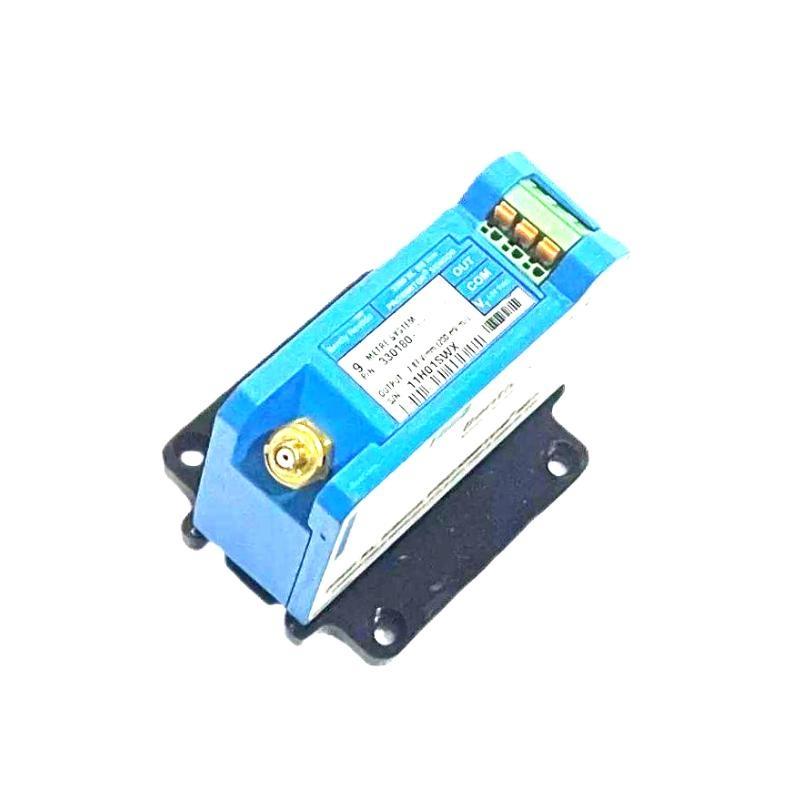

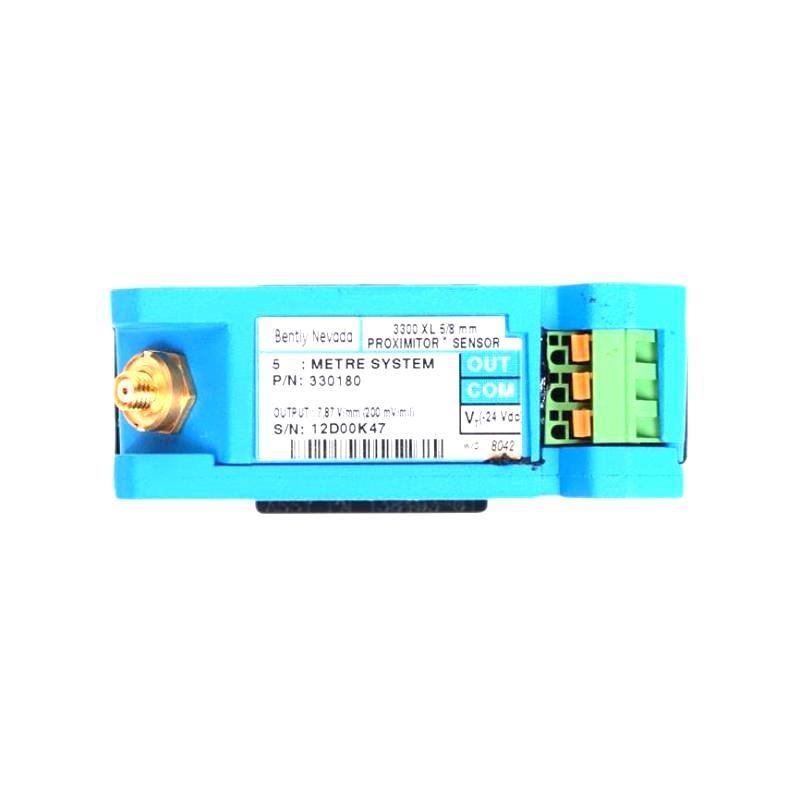

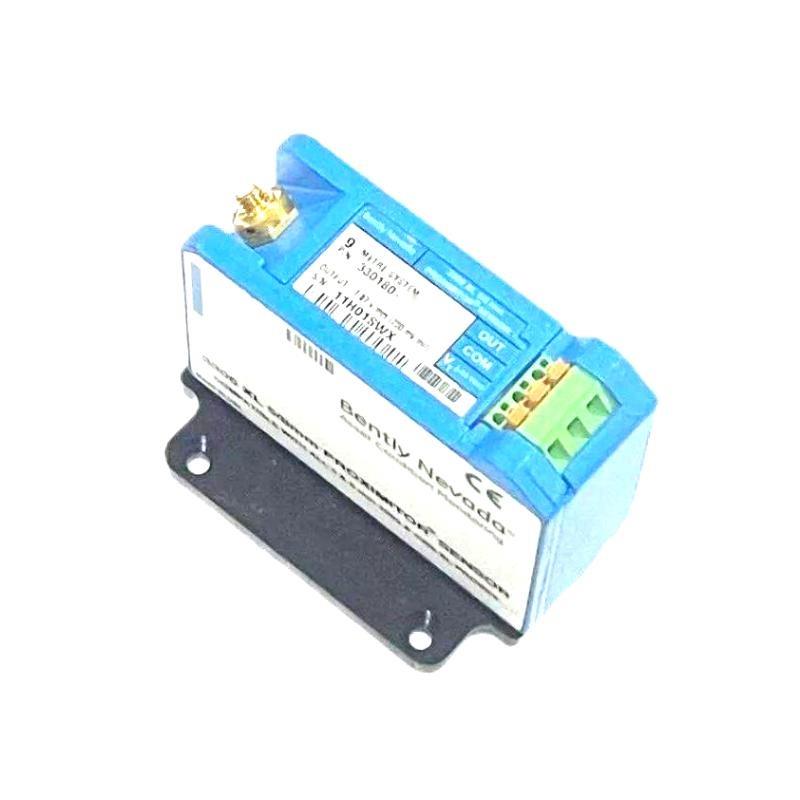

The Bently Nevada 330180-X1-05 145004-137 3300 XL Proximitor Sensor is a critical component / the 3300 XL 8 mm Proximity Transducer System, designed for accurate non-contact measurement / vibration and position in fluid-film bearing machines. It converts the probe signal into a proportional voltage output and is fully compliant with API 670 standards for mechanical configuration, linearity, and temperature stability.
This sensor /fers high imm台y to RFI/EMI interference, supports both DIN-rail and panel mounting, and ensures full interchangeability with other 3300 XL 8 mm system components.
Technical Specifications
| Parameter | Value |
|---|---|
| System Compatibility | 3300 XL 8 mm Proximity Probes and Extension Cables |
| Input Voltage | -17.5 Vdc to -26 Vdc |
| Power Consumption | 12 mA max |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ± 5% |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature | -52°C to +105°C |
| Dimensions | 81.3 × 35.1 × 63.5 mm |
| 重量 | 0.246 kg |
| Mounting Options | DIN rail / Panel mount |
| Compliance | API 670, CE, FCC, RoHS, SIL 2/SIL 3 |
| Hazardous Area Approvals | ATEX, IECEx, CSA, cNRTLus |
Applications
-
Radial and axial vibration monitoring in turbines, compressors, and motors
-
Shaft position measurement
-
Keyphasor reference signal generation
-
Speed and phase measurements
-
状態 monitoring for predictive maintenance in rotating machinery
Advantages
-
High Accuracy: Meets API 670 specifications for precise vibration and position measurement.
-
Full Interchangeability: No need for matched components or recalibration when replacing parts.
-
Improved EMI/RFI Imm台y: Reliable operation in harsh industrial environments without special shielding.
-
Flexible Mounting: サポートs DIN-rail and panel installation.
-
Robust Design: ClickLoc connectors prevent loosening; withstands harsh mechanical conditions.
-
Extended Temperature Options: 対応可能 for applications up to 260°C with ETR variants.
FAQ
Q1: What is the main function / the 330180-X1-05 Proximitor Sensor?
A1: It converts signals from the proximity probe into a voltage output proportional to the distance from the target surface.
Q2: Is this sensor compatible with non-XL 3300 series components?
A2: Yes, it is electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components.
Q3: Can it be mounted on both DIN rail and panels?
A3: Yes, both DIN-rail and panel mounting options are supported.
Q4: Does it meet API 670 standards?
A4: Yes, it complies fully with API 670 for linearity, accuracy, and mechanical configuration.
Q5: What is the recommended operating gap?
A5: The optimal gap is approximately 1.27 mm (50 mils).
Q6: How resistant is it to electromagnetic interference?
A6: It has enhanced RFI/EMI imm台y, meeting CE mark requirements without special shielding.
Q7: What is the linear measurement range?
A7: The linear range is 2 mm (80 mils).
Q8: Is it suitable for hazardous environments?
A8: Yes, it has ATEX, IECEx, CSA, and other hazardous area certifications.
Q9: What is the typical weight / the sensor?
A9: The sensor weighs approximately 0.246 kg.
Q10: Can it be used in high-temperature applications?
A10: Yes, with ETR versions it can handle up to 260°C in cables and 218°C at the probe tip.
Related モデルs (Same Series)
| モデル | 説明 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 330180-X1-00 | 3300 XL Proximitor Sensor, 1 m system | 81.3×35.1×63.5 | 0.246 |
| 330180-X1-50 | 3300 XL Proximitor Sensor, 5 m system | 81.3×35.1×63.5 | 0.246 |
| 330180-X1-90 | 3300 XL Proximitor Sensor, 9 m system | 81.3×35.1×63.5 | 0.246 |
| 330180-X2-05 | ETR version, 5 m system | 81.3×35.1×63.5 | 0.246 |
| 330180-X2-90 | ETR version, 9 m system | 81.3×35.1×63.5 | 0.246 |
| 330181 | Multipurpose housing for Proximitor sensors | 304×228×178 | — |
Popular Bently Nevada モデルs
| モデル | 説明 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | 241×24×241 | 0.7 |
| 3500/42M | Proximitor Seismic Monitor | 241×24×241 | 0.68 |
| 3500/32M | 4-Channel Relay Module | 241×24×241 | 0.66 |
| 3500/60 | Temperature Monitor | 241×24×241 | 0.65 |
| 3500/92 | Communication Gateway Module | 241×24×241 | 0.68 |
| 330104-00-09-10-02-00 | 3300 XL 8 mm Proximity Probe | — | — |
