Product Overview

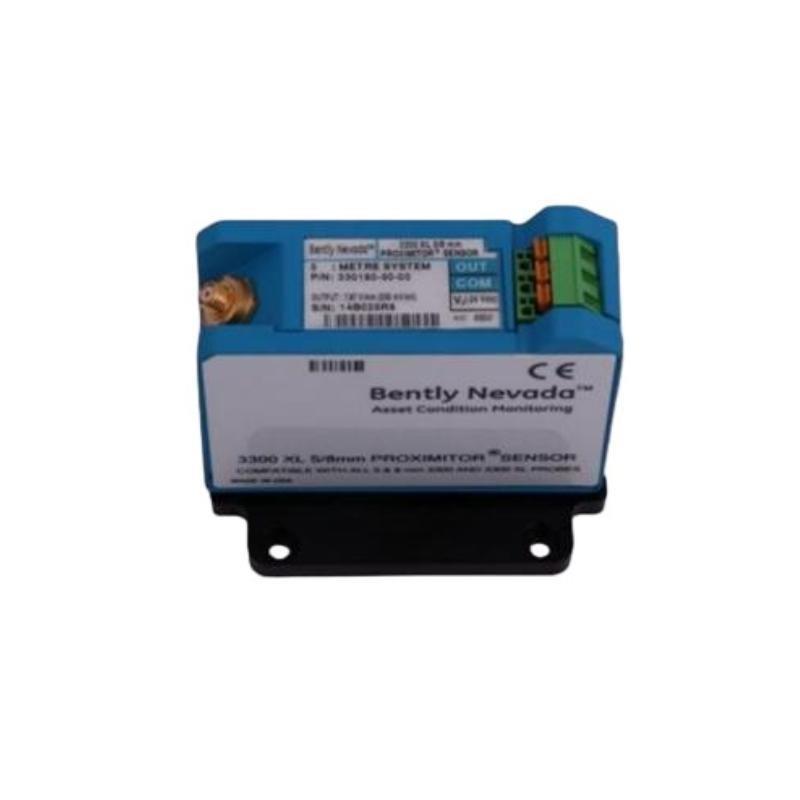

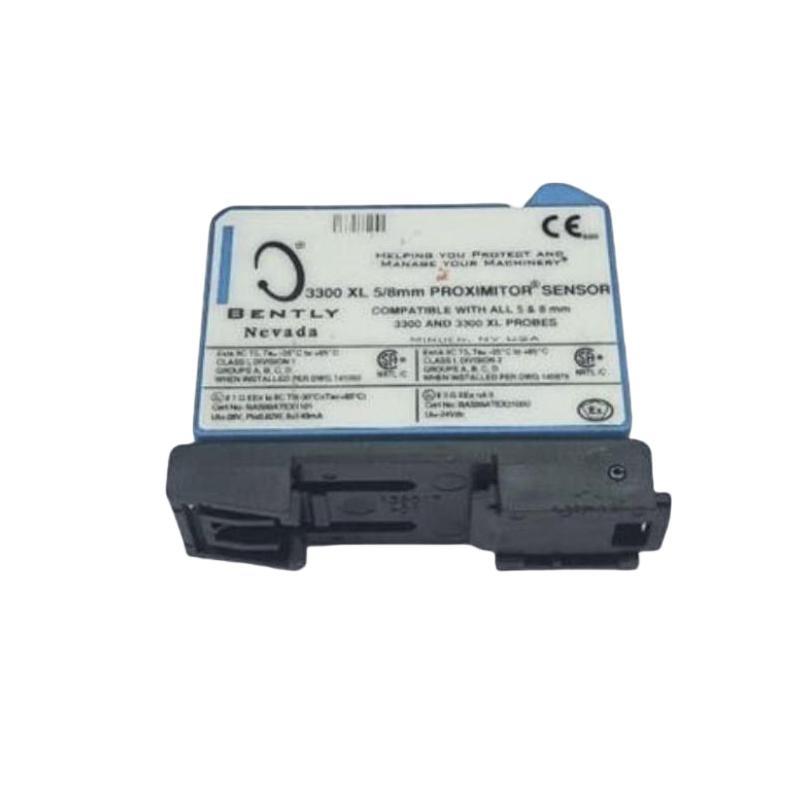

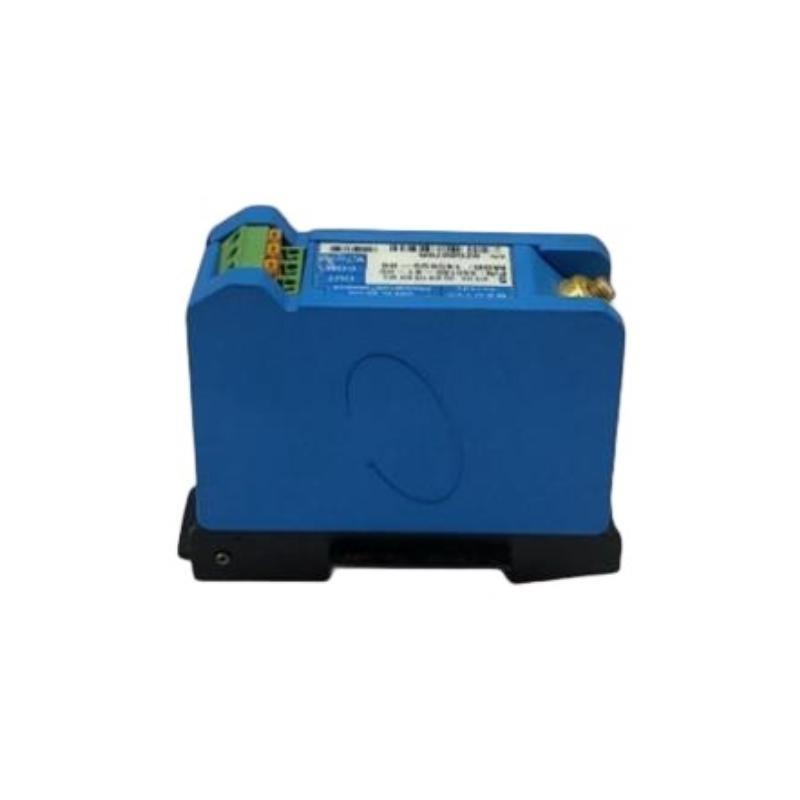

The Bently Nevada 330180-X1-05 143416-49 is a Proximitor sensor from the 3300 XL series, designed to /fer precise non-contact monitoring / shaft vibration and position in critical rotating machinery. Built to function with the 8 mm proximity probe and extension cable system, this Proximitor provides reliable performance in rugged industrial environments and complies with API 670 standards for machinery protection systems. Its high durability and long-term stability make it a preferred choice in industries requiring continuous condition monitoring.
Key Features
-
Compatible with 8 mm Bently Nevada 3300 XL proximity probes
-
Designed for use in high-vibration, high-temperature environments
-
Fully compliant with API 670 specifications
-
Factory-calibrated for optimal accuracy and performance
-
Wide frequency response with high linearity
-
Resistant to electrical noise and harsh environmental conditions
-
Long service life with minimal maintenance
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximitor Sensor (Transducer) |
| モデル Number | 330180-X1-05 |
| 型番 | 143416-49 |
| Series | 3300 XL |
| メーカー | Bently Nevada (Baker Hughes) |
| Probe Compatibility | 3300 XL 8 mm Proximity Probes |
| Measurement Range | 0 to 2 mm (0 to 80 mils) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) typical |
| Output | Voltage output proportional to target distance |
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -55°C to +125°C |
| Frequency Response | Up to 10 kHz |
| Vibration Limit | 30 g peak, 10–2000 Hz |
| Shock Limit | 100 g, 11 ms duration |
| Mounting | DIN rail or panel mount |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| 重量 | 0.246 kg |
Industry Applications
-
Oil and Gas Pipelines and Refineries
-
Power Generation (Gas & Steam Turbines)
-
Petrochemical and Chemical Processing Plants
-
Marine and Offshore Systems
-
Pulp & Paper Manufacturing
-
Mining Equipment
-
Water and Wastewater Treatment
Product Advantages
-
Enables real-time machinery diagnostics
-
Improved plant safety with early fault detection
-
Highly stable output reduces signal drift over time
-
Seamless integration with Bently Nevada monitoring systems
-
Lower maintenance needs due to rugged design
-
優良 performance in electrically noisy environments
よくある質問 (FAQ)
1. What is the function / the 330180-X1-05 143416-49 sensor?
It measures shaft vibration and position using a non-contact displacement method.
2. What proximity probes does it work with?
It is compatible with Bently Nevada 3300 XL 8 mm proximity probes.
3. Is this sensor API 670 compliant?
Yes, it meets the API 670 standard for vibration monitoring systems.
4. Does it require on-site calibration?
No, it is factory-calibrated and ready for integration.
5. What output does it provide?
It provides a voltage signal directly proportional to target distance.
6. Can it be mounted on DIN rails?
Yes, it supports DIN rail and panel mounting options.
7. What is the typical sensitivity / this sensor?
Approximately 200 mV/mil or 7.87 mV/μm.
8. How does it handle electrical interference?
Its design includes high imm台y to electrical noise.
9. Is it suitable for outdoor or harsh environments?
Yes, with appropriate enclosures it performs reliably in harsh environments.
10. What industries benefit most from this sensor?
Industries requiring continuous rotating equipment monitoring, including oil & gas, power, chemical, and marine.
Related モデルs
| モデル Number | 説明 |
|---|---|
| 330180-X1-05 145193-01 | 3300 XL 8mm Proximitor Sensor |
| 330180-X1-00 145004-89 | 3300 XL 8mm Proximitor Sensor |
| 330180-X0-05 145004-05 | 3300 XL 8mm Proximitor Sensor |
| 330130-080-00-00 | 3300 XL Extension Cable |
| 330104-00-12-10-02-05 | 3300 XL 8mm Proximity Probe |
Popular Bently Nevada モデルs
| モデル Number | 説明 |
|---|---|
| 330104-01-05-50-02-00 | 3300 XL 8mm Proximity Probe |
| 330104-00-11-10-01-00 | 3300 XL 8mm Proximity Probe |
| 330101-00-14-10-02-05 | 3300 XL 8mm Proximity Probe |
| 3300/20-12-01-01-00 | 3300 XL Monitor |
| 330103-00-05-10-02-00 | 3300 XL Extension Cable |
