Product Overview

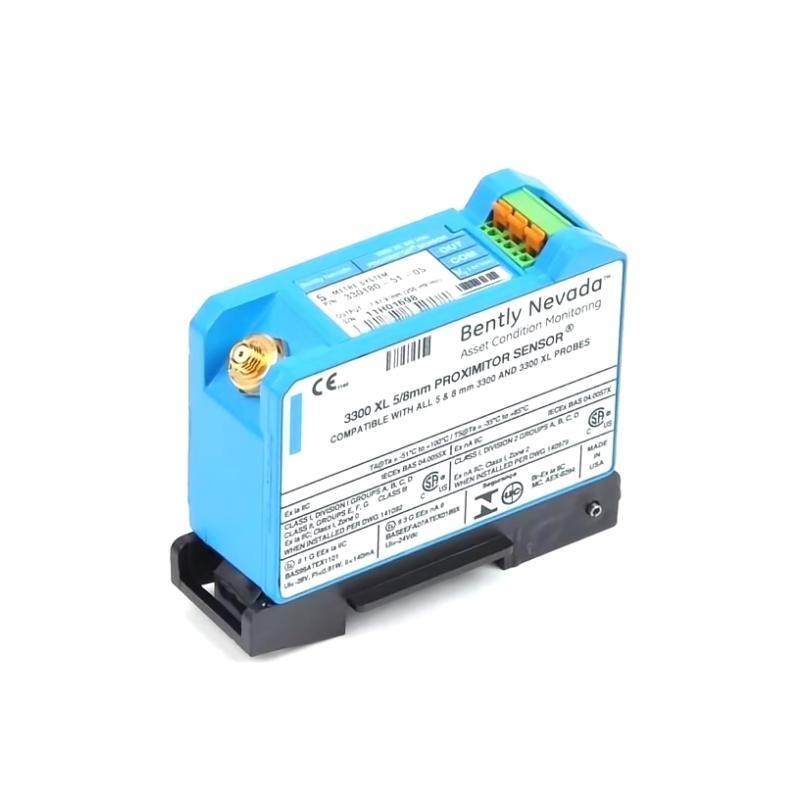

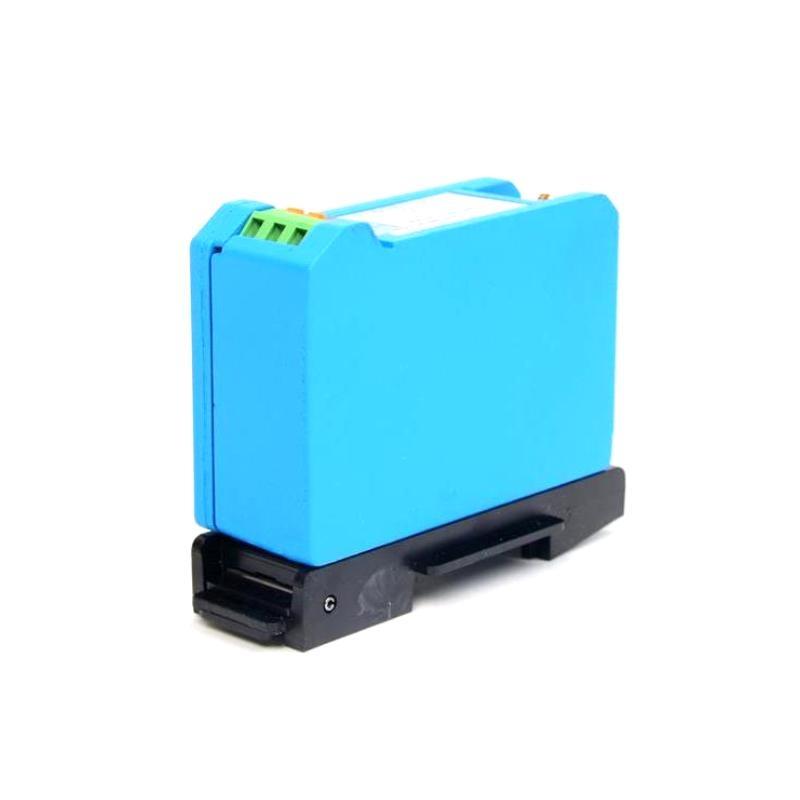

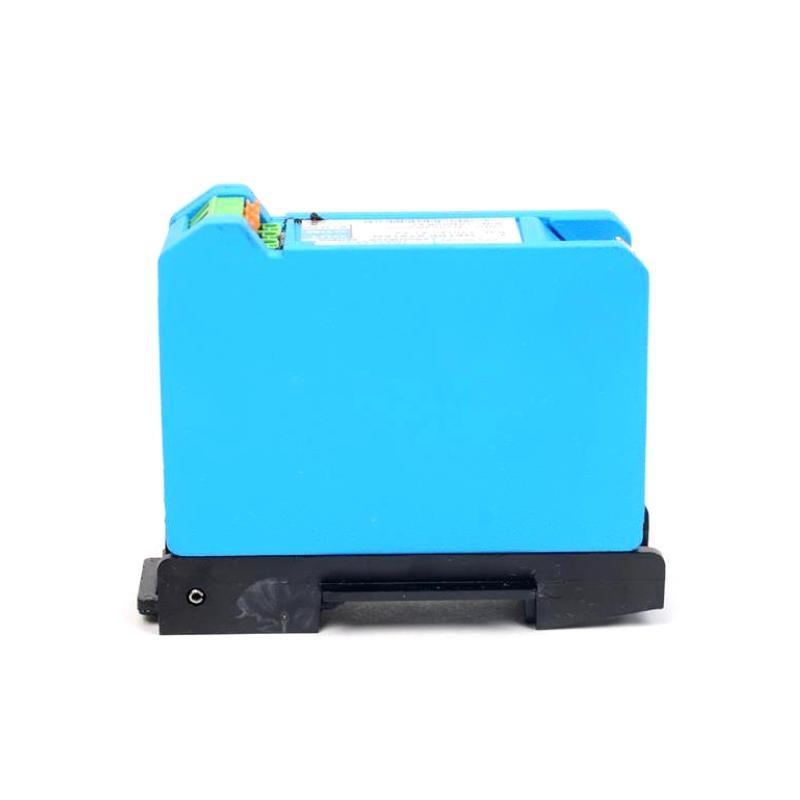

The 330180-51-05 Proximitor Sensor is part / Bently Nevada’s 3300 XL 8mm Proximity Transducer System, which includes a probe, extension cable, and Proximitor sensor. This system measures the distance between the probe tip and the observed surface, delivering critical data for assessing machine health. The 3300 XL series is recognized for its high performance, reliability, and compliance with industry standards, making it a preferred choice for condition monitoring and machinery protection.
製品仕様
The following table outlines the key specifications / the Bently Nevada 330180-51-05 3300 XL 8mm Proximitor Sensor:
| Parameter | Specification |
| Probe Tip Diameter | 8 mm |
| Linear Range | 2 mm (approximately 80 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Power Supply Voltage | -24 VDC nominal |
| Operating Temperature | -35°C to +177°C (-31°F to +350°F) |
| Probe Pressure Rating | Up to 34 bar (500 psi) |
| 重量 | 0.246 kg |
| Total Length | 5 m |
| Connector Type | ClickLoc™ connectors with corrosion-resistant, gold-plated contacts |
Applications
The 330180-51-05 Proximitor Sensor is utilized in a wide range / industrial applications, including:
-
Rotating Equipment Monitoring: Measures shaft position and vibration in turbines, compressors, pumps, and motors.
-
Thrust Position Monitoring: Assesses axial displacement in thrust bearing applications.
-
Eccentricity Measurement: Evaluates shaft eccentricity in large rotating machinery.
-
状態 Monitoring Systems: Integrates with Bently Nevada’s 3500 series machinery protection systems for continuous monitoring.
-
Hydrocarbon Processing Industries: Suitable for use in environments with hazardous gases and liquids.
Advantages
The Bently Nevada 330180-51-05 /fers several notable advantages:
-
High Accuracy and Linearity: Provides precise measurements essential for effective machine diagnostics.
-
Robust Environmental Tolerance: Operates reliably in extreme temperatures and harsh industrial conditions.
-
Enhanced RFI/EMI Imm台y: Minimizes interference from radio frequency and electromagnetic sources, allowing installation in various enclosures without special shielding.
-
Ease / Installation and Maintenance: ClickLoc™ connectors facilitate secure connections without the need for special tools.
-
Interchangeability: サポートs complete interchangeability / probes, extension cables, and Proximitor sensors, eliminating the need for individual component matching or bench calibration.
-
Compliance with Industry Standards: Meets API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability.
よくある質問 (FAQ)
-
What is the primary function / the 330180-51-05 Proximitor Sensor?
-
It measures the distance between the probe tip and a conductive surface, providing data on vibration and position for machinery monitoring.
-
-
Can the 330180-51-05 be used in high-temperature environments?
-
Yes, it operates effectively in temperatures ranging from -35°C to +177°C (-31°F to +350°F).
-
-
Is the sensor compatible with other Bently Nevada systems?
-
Yes, it is designed to integrate seamlessly with Bently Nevada’s 3500 series monitoring systems.
-
-
What type / machinery is the sensor typically used with?
-
It is commonly used with turbines, compressors, pumps, and motors for monitoring shaft position and vibration.
-
-
Does the sensor require special shielding against electromagnetic interference?
-
No, it has enhanced RFI/EMI imm台y, allowing installation without special shielded conduit or metallic housings.
-
-
How is the sensor installed?
-
It features ClickLoc™ connectors for secure, tool-free installation.
-
-
What is the linear measurement range / the sensor?
-
It has a linear range / 2 mm (approximately 80 mils).
-
-
Is the sensor resistant to corrosive environments?
-
Yes, it is designed with materials and construction that withstand corrosive industrial environments.
-
-
Can the sensor be used in hazardous locations?
-
Yes, it is suitable for use in environments with hazardous gases and liquids, common in hydrocarbon processing industries.
-
-
What maintenance is required for the sensor?
-
It requires minimal maintenance; however, regular inspections are recommended to ensure optimal performance.
-
Related モデルs from the Same Series (3300 XL or Similar)
| モデル Number | 説明 |
| 330180-50-00 | 3300 XL 8mm Proximitor Sensor, standard configuration |
| 330180-50-05 | 3300 XL 8mm Proximitor Sensor, 5-meter system length |
| 330180-90-00 | 3300 XL 8mm Proximitor Sensor, non-standard cable configuration |
| 330130-040-00-00 | 3300 XL 8mm Proximity Probe, 4-meter length |
| 330130-080-00-00 | 3300 XL 8mm Proximity Probe, 8-meter length |
| 330105-02-12-05-02-00 | 3300 XL Extension Cable, 5 meters |
| 330106-05-30-10-02-00 | 3300 XL Extension Cable, 10 meters, high-temperature rated |
| 3300/16-12-01-01-00 | 3300 XL Proximitor Monitor, for shaft vibration and position measurements |
Popular Bently Nevada モデルs from the Same ブランド
| モデル Number | 説明 |
| 3500/22M | Transient Data Interface (TDI) Module for 3500 Series Rack |
| 3500/42M | Proximitor Monitor for vibration, position, and thrust measurements |
| 3500/15E | Power Supply Module for 3500 Series |
| 3500/05 | System Rack for mounting monitoring modules |
| 330104-00-05-10-02-05 | 3300 XL 8mm Proximity Probe with 5m cable |
| 3701/40 | Dynamic Motion Monitoring System (DMMS) for reciprocating compressors |
| 330730-040-00-00 | Velomitor Piezo-velocity Sensor |
| 990-04-XX-01-00 | Keyphasor Module for speed and phase reference measurements |
