製品紹介

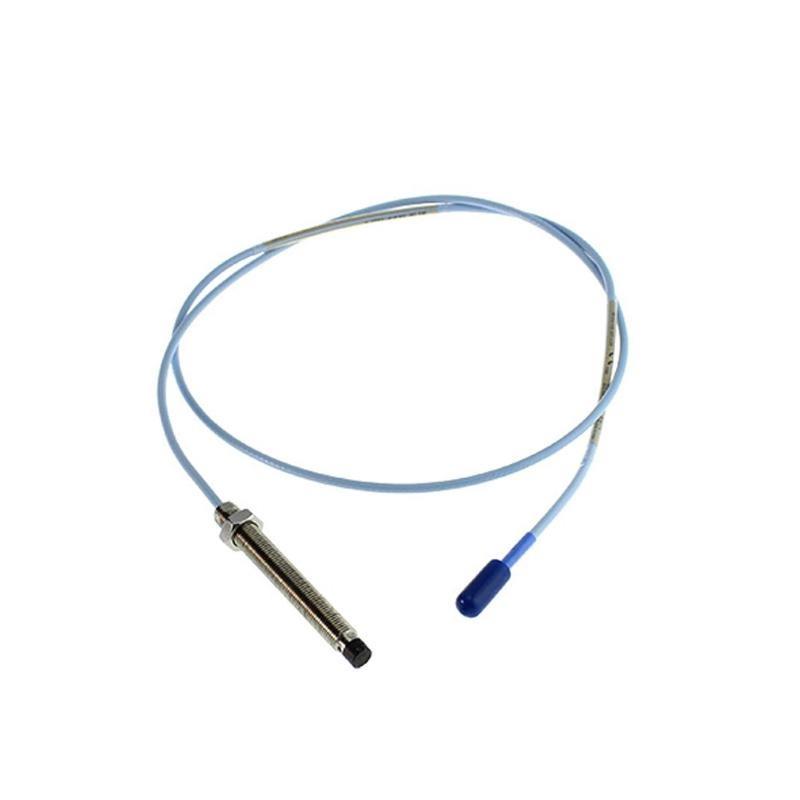

The Bently Nevada 330174-02-15-10-02-05 3300 5mm Proximity Probe is a precision-engineered, non-contact sensor designed for monitoring shaft displacement and vibration in rotating machinery. Part / the Bently Nevada 3300 Series, this probe ensures high accuracy and reliability for industrial condition monitoring.
The probe operates using eddy current technology, allowing it to measure shaft position without physical contact. It is widely utilized in turbines, compressors, generators, and other critical rotating equipment. The robust design ensures stable performance even in harsh industrial environments with extreme temperatures, vibration, and contamination, making it a trusted component for predictive maintenance and machinery health monitoring.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | 330174-02-15-10-02-05 |
| Series | 3300 Proximity Probe |
| Probe Diameter | 5 mm |
| Measurement Principle | Eddy Current |
| Measurement Range | 0–5 mm (standard) |
| Linearity | ≤ ±1% / full scale |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -55°C to +125°C |
| Relative Humidity | 0–95%, non-condensing |
| Protection Class | IP67 |
| Material | Stainless steel probe housing |
| Mounting | Threaded or clamp mounting |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Shock Resistance | 50 g, 11 ms |
| Vibration Resistance | 20 g, 10–2000 Hz |
Applications
The Bently Nevada 330174-02-15-10-02-05 5mm Proximity Probe is used in a wide range / industrial applications:
-
Rotating Machinery Monitoring – Monitors shaft displacement and vibration in turbines, compressors, and generators.
-
状態-Based Maintenance – Detects early signs / misalignment, imbalance, and bearing wear to prevent unexpected downtime.
-
Power Generation – Used in hydro, gas, and steam turbines for precise rotor position measurement.
-
Petrochemical and Refinery Equipment – Monitors pumps, motors, and compressors operating at high speeds.
-
Research and Development – Provides high-precision measurement data for experimental machinery testing.
-
Industrial Automation – Integrated into real-time machinery health monitoring systems.
Advantages
The Bently Nevada 330174-02-15-10-02-05 Probe provides several operational advantages:
-
High Accuracy – Ensures precise measurement / shaft displacement and vibration.
-
Non-お問い合わせ Measurement – Eliminates wear and mechanical interference with moving parts.
-
Fast Response – Detects rapid shaft movements and high-frequency vibrations.
-
Robust Construction – Resistant to industrial shock, vibration, and extreme conditions.
-
Wide Temperature Range – Operates reliably from -40°C to +120°C.
-
IP67 Protection – Prevents ingress / dust and moisture, suitable for harsh environments.
-
Flexible Mounting – サポートs threaded or clamp installation depending on machinery requirements.
-
Industry Standard Compliance – Compatible with Bently Nevada 3300 Series monitoring systems.
FAQ
-
What measurement principle does the 330174-02-15-10-02-05 probe use?
It uses eddy current technology, enabling non-contact measurement / shaft displacement and vibration. -
What is the measurement range / this probe?
The probe measures 0–5 mm, suitable for standard industrial rotating machinery applications. -
What is the frequency response / this probe?
It supports DC to 10 kHz, capturing both slow displacement changes and high-frequency vibrations. -
Can this probe operate in high-temperature environments?
Yes, it is rated to operate reliably from -40°C to +120°C. -
What mounting options are available for this probe?
It can be mounted using either threaded or clamp mechanisms depending on installation requirements. -
Is the probe resistant to shock and vibration?
Yes, it is rated for 50 g shock and 20 g vibration, maintaining stability and accuracy under harsh conditions. -
Does the probe provide continuous measurement for predictive maintenance?
Yes, it continuously monitors shaft displacement and vibration for condition-based maintenance strategies. -
What is the protection rating / this probe?
It has an IP67 rating, providing protection against dust and moisture in industrial environments. -
What type / output signal does the 3300 probe provide?
It provides voltage or current output compatible with Bently Nevada 3300 Series monitoring systems. -
Can this probe be used for high-speed rotating machinery?
Yes, it is designed for high-speed turbines, compressors, and generators, providing accurate real-time data.
Related or Same-Series モデルs
| モデル Number | 説明 |
|---|---|
| 330174-02-15-10-02-01 | 3300 Series 5mm Proximity Probe alternate range |
| 330174-02-15-10-02-03 | 3300 Series 5mm Probe with reinforced housing |
| 330174-02-15-10-02-04 | 3300 Series 5mm High-temperature Probe |
| 330174-02-15-10-02-05 | 3300 Series 5mm Probe optimized for turbines |
| 330174-02-15-10-02-06 | 3300 Series 5mm Probe with extended frequency response |
| 330174-02-15-10-02-07 | 3300 Series 5mm Probe for specialized industrial machinery |
Popular Bently Nevada ブランド モデルs
| モデル Number | 説明 |
|---|---|
| 330174-00-06-10-02-00 | 3300 Series 5mm Proximity Probe, 1-meter length |
| 330174-00-06-20-02-00 | 3300 Series 5mm Proximity Probe, 2-meter length |
| 330174-00-08-90-02-00 | 3300 Series 5mm Proximity Probe, 9-meter length |
| 330175-00-06-10-01-00 | 3300 Series 5mm Probe for high-speed turbines |
| 330175-00-06-10-02-00 | 3300 Series 5mm Probe with analog output |
| 330175-00-06-10-03-00 | 3300 Series 5mm Probe optimized for compressors |
