Bently Nevada 330173-00-02-10-02-05
製品紹介

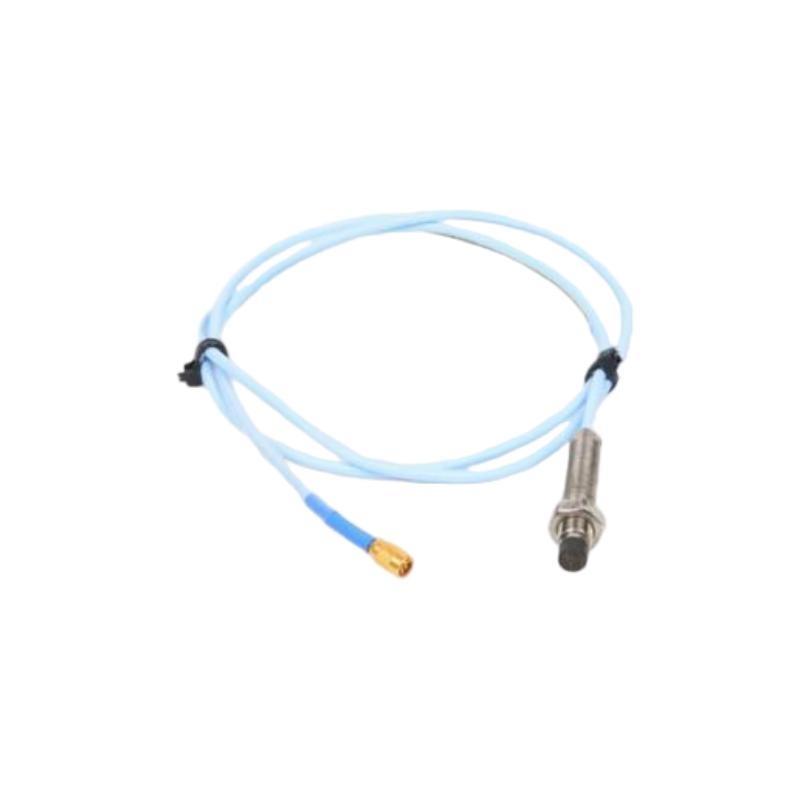

The Bently Nevada 330173-00-02-10-02-05 is a high-precision proximity probe designed for industrial machinery condition monitoring. It belongs to the renowned 3300 series / proximity probes known for reliability, accuracy, and durability in harsh operating environments. This particular model is tailored to measure shaft displacement and vibration in rotating equipment such as turbines, compressors, and motors.
This probe features a rugged design that withstands extreme temperatures, vibration, and contaminants, ensuring consistent performance over long periods. Its precision sensing capabilities allow early detection / mechanical faults, reducing downtime and improving maintenance scheduling.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル Number | 330173-00-02-10-02-05 |
| Sensor Type | Proximity Probe (Eddy Current) |
| Probe Diameter | 5 mm |
| Total Length | 1 m |
| Connector Type | MS3102E-14S-6P (military style) |
| Operating Temperature | -40°C to +120°C |
| 重量 | 0.323 kg |
| Housing Material | Stainless Steel |
| Measurement Range | 0.25 mm to 2.5 mm |
| Output Signal Type | AC Signal |
| Frequency Response | DC to 25 kHz |
| Cable Type | Shielded twisted pair |
| Calibration Standard | Factory Calibrated |
Product Applications
-
Monitoring shaft vibration and displacement in steam turbines, gas turbines, and generators.
-
状態 monitoring for compressors and pumps in oil and gas industries.
-
Detecting shaft position and movement in heavy rotating equipment.
-
Use in power plants, petrochemical refineries, and manufacturing facilities.
-
Critical machinery protection to prevent catastrophic failures.
-
Machinery diagnostic systems requiring high precision proximity sensing.
Product Advantages
-
High Precision and Stability: Delivers reliable shaft position measurements with minimal drift over time.
-
Rugged Construction: Stainless steel housing and sealed design ensure resistance against harsh industrial conditions including dust, moisture, and vibration.
-
Wide Temperature Range: Operates effectively in extreme temperatures from -40°C to +120°C.
-
Easy Installation: Standard 5mm probe diameter and common military-style connectors facilitate straightforward replacement and integration.
-
Long Cable Length: Supplied with a 2-meter shielded cable suitable for flexible installation.
-
Industry Proven Technology: Part / the 3300 series widely adopted for machinery condition monitoring globally.
-
Low Maintenance: Factory calibrated and designed for long operational life with minimal service needs.
-
Compatibility: Fully compatible with Bently Nevada 3300 series monitoring systems and many third-party systems.
よくある質問 (FAQ)
-
Q: What is the typical lifespan / the 330173-00-02-10-02-05 proximity probe?
A: With proper installation and normal operating conditions, this probe typically lasts over 5 years. -
Q: Can this probe be used in explosive atmospheres?
A: It can be used if installed within appropriate explosion-pro/ enclosures meeting local safety standards. -
Q: What type / output signal does the probe generate?
A: It provides an AC signal proportional to the shaft displacement. -
Q: How do I ensure the probe is properly calibrated?
A: It comes factory-calibrated, but field calibration can be performed using compatible calibration tools and systems. -
Q: What is the maximum cable length supported without signal degradation?
A: Typically, cable lengths up to 30 meters are supported; however, longer cables may require signal conditioning. -
Q: Is the probe resistant to moisture and dust?
A: Yes, it features a sealed stainless steel housing that protects against moisture and contaminants. -
Q: What are the connector specifications?
A: It uses a standard MS3102E-14S-6P military-style connector for secure and reliable connections. -
Q: Can this probe be used with non-Bently monitoring systems?
A: Yes, provided the external system supports 5mm proximity probes and AC signal inputs. -
Q: How sensitive is the probe to mechanical shock and vibration?
A: It is designed to withstand industrial vibration and shock levels without compromising measurement accuracy. -
Q: Are spare cables and connectors available for this model?
A: Yes, Bently Nevada provides compatible cables and connectors for replacements or system expansions.
Recommended Related or Same-Series モデルs
| モデル Number | 説明 |
|---|---|
| 330173-00-02-10-02-04 | 5mm Proximity Probe with 1-meter cable |
| 330173-00-02-10-02-10 | 5mm Probe with 10-meter cable |
| 330173-00-02-10-02-15 | 5mm Probe with 15-meter cable |
| 330173-00-02-05-02-05 | 2.5mm Proximity Probe, 2-meter cable |
| 330173-00-02-12-02-05 | 12mm Proximity Probe, 2-meter cable |
| 330173-00-02-20-02-05 | 20mm Proximity Probe, 2-meter cable |
Popular Bently Nevada モデルs (Same ブランド)
| モデル Number | 説明 | Probe Diameter | Cable Length | 重量 |
|---|---|---|---|---|
| 330173-00-02-10-02-05 | Standard 5mm Proximity Probe | 5 mm | 2 meters | 0.1 kg |
| 330173-00-02-10-02-10 | 5mm Proximity Probe with 10m cable | 5 mm | 10 meters | 0.3 kg |
| 330177-00-00-10-02-05 | Velocity Probe | N/A | 2 meters | 0.12 kg |
| 330231-00-01-05-00-00 | 3300 XL Vibration Monitor | N/A | N/A | 1.2 kg |
| 330385-00-01-00-05-00 | 3300 XL Proximitor Sensor | 8 mm | 5 meters | 0.15 kg |
| 330173-00-02-20-02-05 | Heavy Duty 20mm Proximity Probe | 20 mm | 2 meters | 0.2 kg |
| 330170-00-02-02-02-05 | 5mm Probe with High Temperature | 5 mm | 2 meters | 0.11 kg |
| 330224-00-01-00-00-00 | 3300 XL Sensor Interface Module | N/A | N/A | 1.5 kg |
