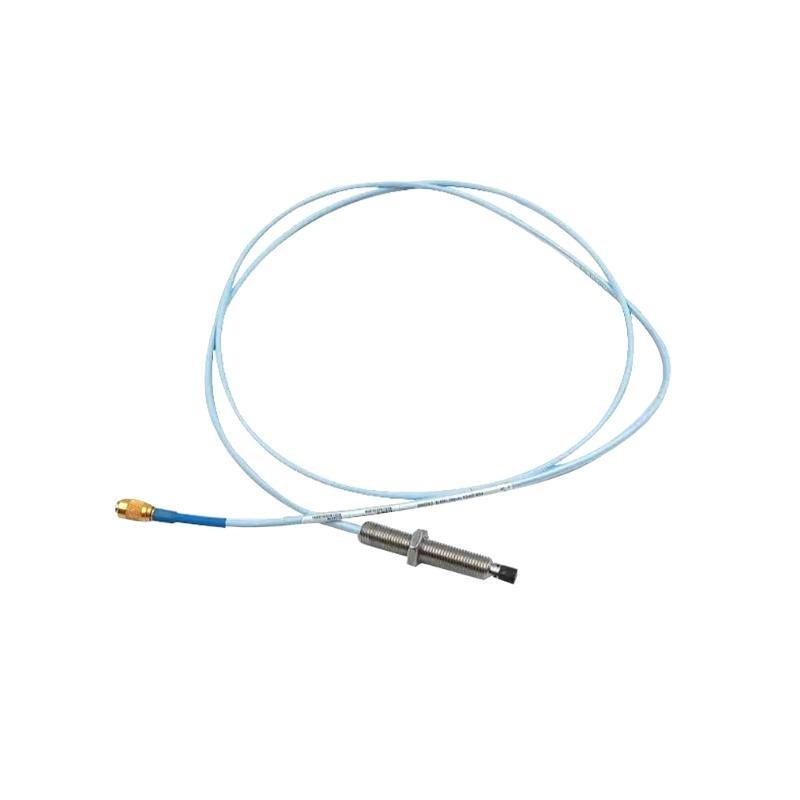

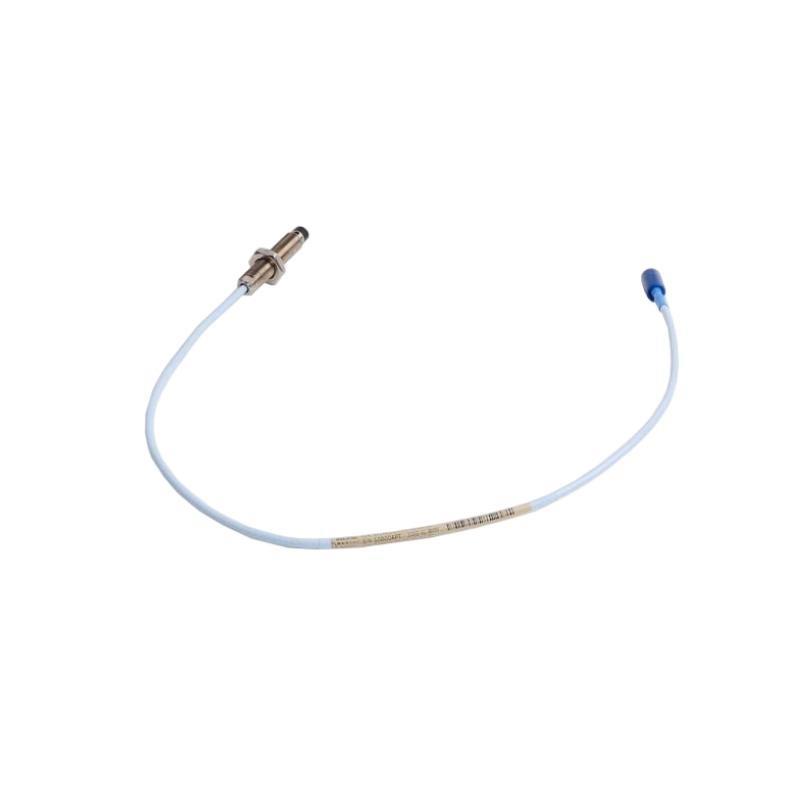

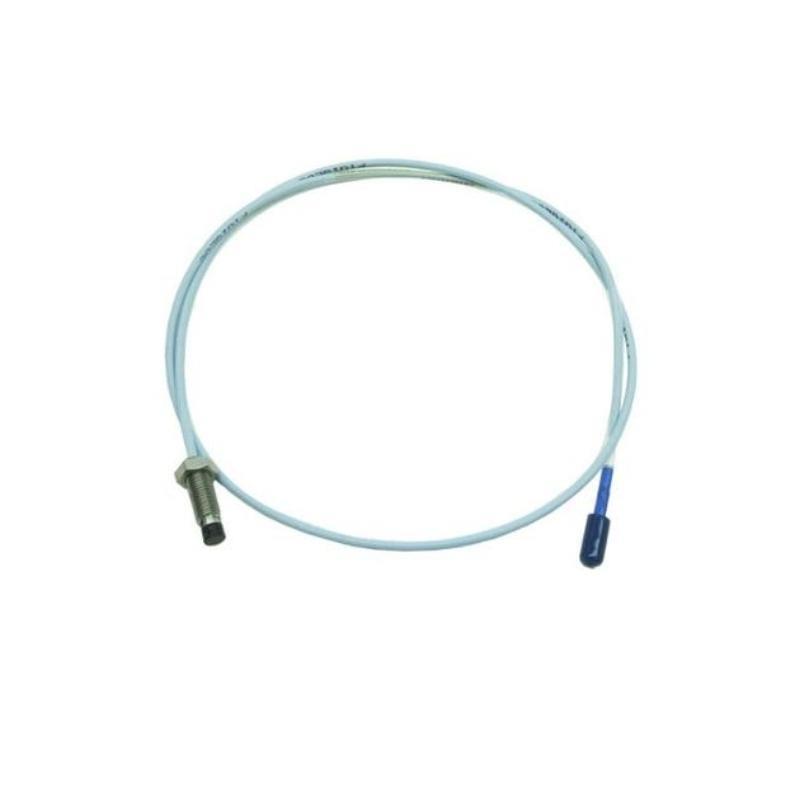

The Bently Nevada 330171-24-32-20-02-05 proximity probe is a high-precision sensor designed for measuring vibration and displacement in rotating machinery. This 5mm probe from the 3300 series is specifically engineered for reliable performance in challenging industrial environments, /fering exceptional accuracy and durability. It is commonly used to monitor the health / critical equipment like pumps, compressors, motors, and turbines.
This proximity probe works in conjunction with Bently Nevada’s 3300 XL Proximitor sensors, providing real-time feedback to operators about the operational status / machinery. By continuously monitoring vibration levels and displacement, the 3300 series proximity probes help detect mechanical imbalances, misalignments, and other faults, enabling predictive maintenance and reducing the likelihood / unexpected failures.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | 330171-24-32-20-02-05 |
| Probe Type | 5mm Proximity Probe |
| Total Length | 2.0 meters |
| 重量 | 0.646 kg |
| Unthreaded Length | 0.0 inches (0.0 mm) |
| Housing Length | 3.0 inches (76.2 mm) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Operating Temperature | -40°C to +120°C |
| Output Signal | 4-20 mA (proportional to vibration or displacement) |
| Power Requirements | -17.5 VDC to -26 VDC, max current 12 mA |
| Linear Range | 2 mm (80 mils) |
| Probe Resistance | 7.45 ± 0.50 Ω (2.0 m length) |
| Target Material | AISI 4140 Steel |
| Mounting | Standard or custom mounting options available |
Applications
The 330171-24-32-20-02-05 5mm proximity probe is used in the following applications:
-
Vibration Monitoring – Essential for detecting mechanical imbalances, misalignments, and other faults in rotating equipment.
-
状態 Monitoring – Continuously tracks the condition / critical machinery like motors, compressors, and pumps.
-
Predictive Maintenance – Allows operators to predict and prevent potential machine failures by identifying early warning signs.
-
Axial Displacement Measurement – Monitors axial movement / rotating machinery to ensure proper alignment and performance.
-
Keyphasor Signal Measurement – Provides reliable keyphasor signals for synchronous measurements / rotational speed and alignment.
-
Compact Installations – The probe’s design is ideal for tight spaces and installations where size and space are constraints.
Advantages
-
High Precision – Provides highly accurate measurements / vibration and displacement to ensure optimal equipment performance.
-
Compact and Robust – Designed for installation in tight spaces, the probe is built to withstand harsh industrial environments.
-
Wide Operating Temperature Range – Functions in temperatures as low as -40°C and as high as +120°C, making it ideal for diverse applications.
-
Easy Integration – The probe is fully compatible with 3300 XL Proximitor sensors, simplifying installation and system integration.
-
Durable and Reliable – Made from high-quality materials, the probe delivers reliable performance and long-lasting durability.
-
Versatile Applications – Suitable for a wide range / industries, including power generation, manufacturing, and petrochemicals.
-
Electromagnetic Interference Resistance – The design ensures stable operation even in environments with significant electrical interference.
-
Cost-Effective Maintenance – By enabling predictive maintenance, the probe helps prevent costly downtime and repairs.
-
Improved Safety – By continuously monitoring equipment, the probe helps detect potential issues before they lead to machine failures or accidents.
-
No Separate Calibration Needed – The probe is fully interchangeable with other 3300 series components without requiring additional calibration.
FAQ
Q1: What type / output signal does this probe provide?
A1: The 330171-24-32-20-02-05 proximity probe provides a 4-20 mA output signal that is proportional to vibration or displacement measurements.
Q2: What is the operating temperature range / the probe?
A2: The probe can operate in temperatures ranging from -40°C to +120°C.
Q3: Is separate calibration required for this proximity probe?
A3: No, the 330171-24-32-20-02-05 probe is fully interchangeable with other 3300 series components and does not require separate calibration.
Q4: What is the linear measurement range / the probe?
A4: The linear measurement range / the probe is 2 mm (80 mils).
Q5: Can this probe be used for axial displacement measurements?
A5: Yes, the 330171-24-32-20-02-05 probe is designed to measure axial displacement in rotating machinery.
Q6: What are the power requirements for this probe?
A6: The probe requires a power supply / -17.5 VDC to -26 VDC, with a maximum current / 12 mA.
Q7: How is the probe mounted?
A7: The probe can be mounted using standard or custom mounting options, depending on the application and installation requirements.
Q8: What is the target material / the probe?
A8: The probe is designed to measure displacement on AISI 4140 steel targets.
Q9: Can this probe be used for high-vibration environments?
A9: Yes, this probe is ideal for high-vibration environments and is commonly used for monitoring large industrial machinery such as turbines and compressors.
Q10: Does the probe have resistance to electromagnetic interference?
A10: Yes, the 330171-24-32-20-02-05 probe is designed to minimize the impact / electromagnetic interference (EMI), ensuring stable operation in electrically noisy environments.
