製品紹介

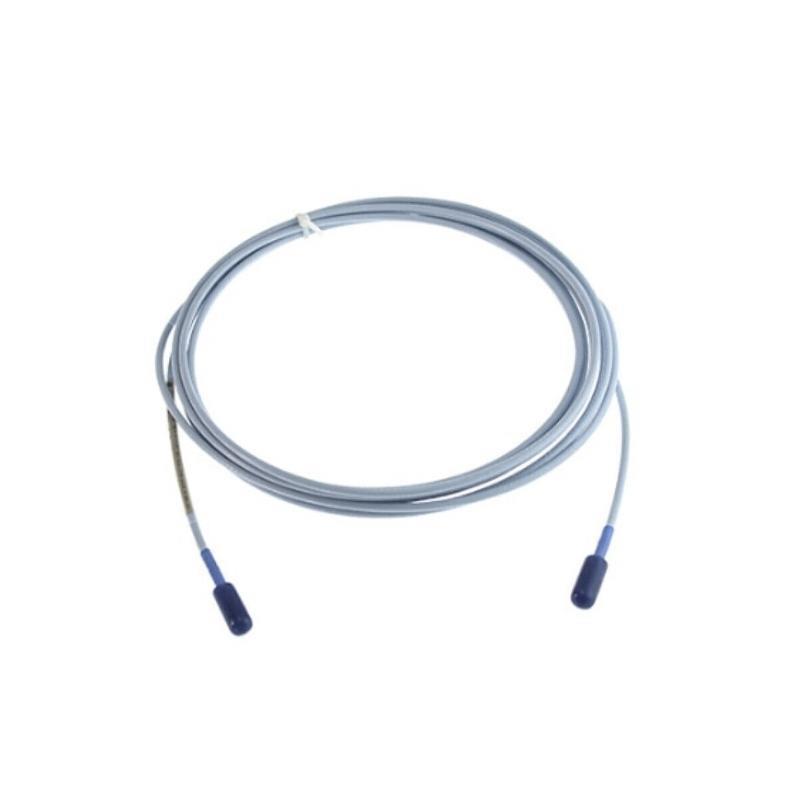

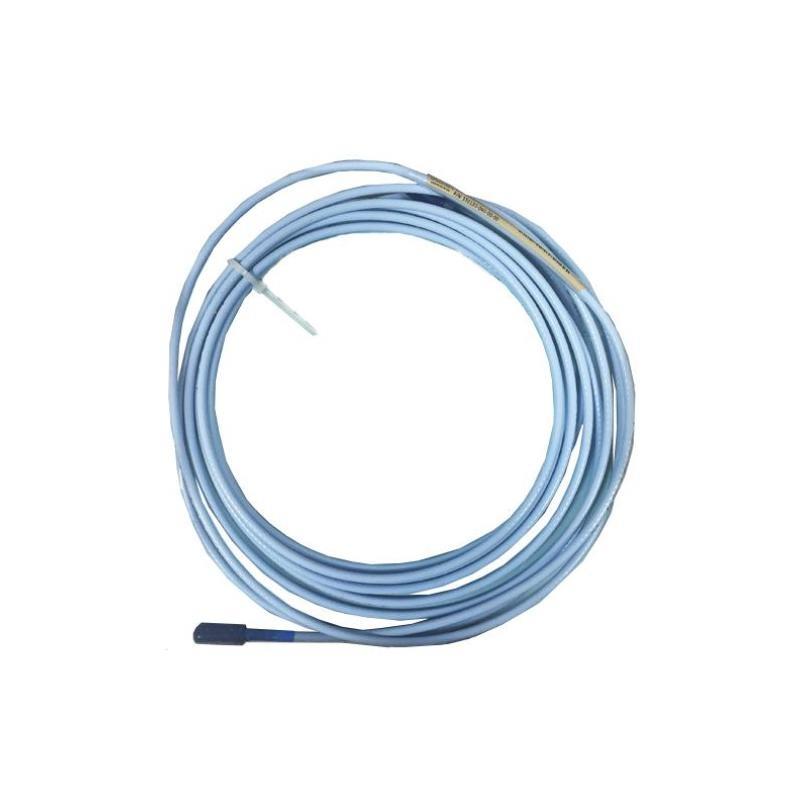

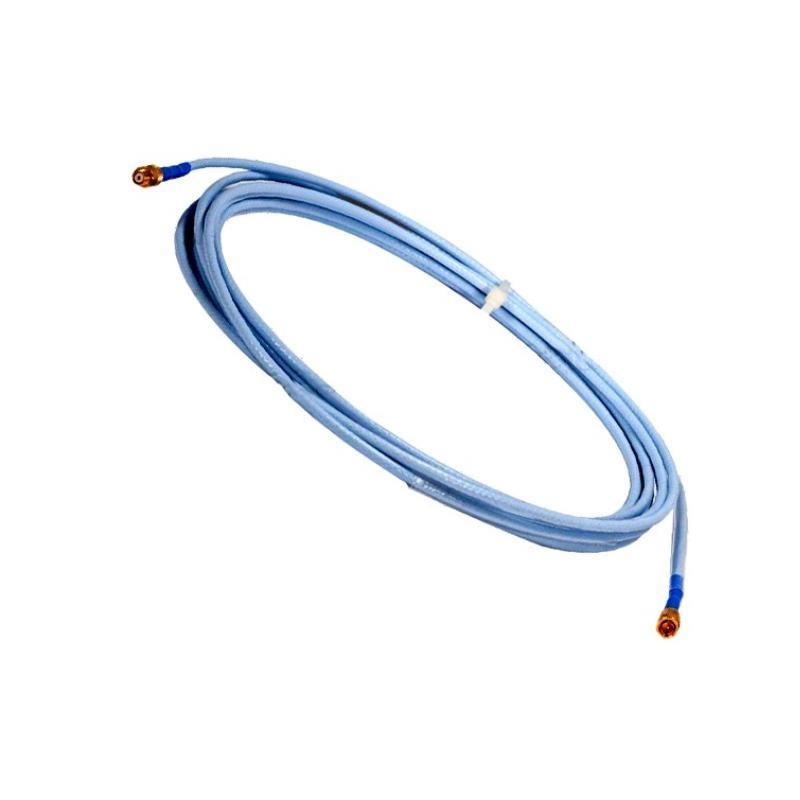

The Bently Nevada 330130-040-10-CN is a high-performance extension cable designed to be used as part / the Bently Nevada 3300 XL Proximity Transducer System. It is specifically engineered to provide accurate, reliable signal transmission between the proximity probe and the Proximitor sensor. With a length / 10 meters and optimized for use in demanding industrial environments, the 330130-040-10-CN ensures signal integrity even under extreme conditions.
The 3300 XL series is recognized across industries for its exceptional durability, electromagnetic compatibility, and superior mechanical construction. The cable is robustly shielded and terminated with rugged connectors to prevent data degradation. This model, marked with the “CN” suffix, indicates that it is a Chinese-market-specific variant, manufactured to meet regional standards.
Product Advantages
-
Reliable Signal Transmission: Maintains excellent signal fidelity over extended lengths, ensuring measurement accuracy.
-
Ruggedized Design: Built to withstand high temperatures, oil exposure, vibration, and mechanical stress in industrial settings.
-
EMI Shielding: Provides superior protection from electromagnetic interference, ensuring noise-free operation.
-
Secure Connections: Factory-molded connectors reduce risk / failure due to improper installations or loose connections.
-
Wide Compatibility: Fully compatible with the 3300 XL probe and Proximitor sensor series.
-
Ease / Installation: Flexible but durable cabling simplifies routing through machinery or conduit systems.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル Number | 330130-040-10-CN |
| Product Type | Extension Cable for Proximity Probe System |
| Cable Length | 10 meters (approx. 32.8 feet) |
| Connector Type | Coaxial, molded, keyed connectors (male/female) |
| Cable Jacket Material | PFA (Perfluoroalkoxy) |
| Insulation Resistance | >10 GΩ @ 500 VDC |
| Operating Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Storage Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Maximum EMI Protection | 200 V/m from 20 Hz to 1000 MHz |
| Cable Diameter | 5.1 mm (0.20 in) |
| Bend Radius (minimum) | 25.4 mm (1 in) |
| 重量 | Approx. 0.42 kg (0.93 lbs) |
| Outer Shield | Braided copper shield |
| Compliance | RoHS, CE, CCC (China Compulsory Certification) |
Product Applications
The 330130-040-10-CN extension cable is utilized in various applications that require precision shaft vibration, position, and speed measurements. It is commonly found in:
-
Turbomachinery Monitoring Systems
-
Power Generation ユニットs (Gas and Steam Turbines)
-
Compressors, Pumps, and Motors
-
Oil & Gas Upstream and Midstream Equipment
-
Paper and Pulp Industry
-
Refineries and Petrochemical Facilities
It is particularly suited for environments with high EMI/RFI, where accurate and uninterrupted signal transmission is critical.
Installation Instructions
-
Confirm system shutdown and ensure safety protocols are followed.
-
Connect the male end / the cable to the proximity probe.
-
Route the cable carefully to avoid sharp bends (respect minimum bend radius).
-
Connect the female end / the cable to the Proximitor sensor.
-
Secure the cable using tie-wraps or conduit if needed.
-
Verify connections are tight and the system is operational by checking sensor readings.
10 よくある質問 (FAQ)
Q1: What is the primary function / the 330130-040-10-CN cable?
A1: It serves as an extension between the proximity probe and Proximitor sensor, ensuring accurate transmission / vibration and displacement signals.
Q2: Is this cable compatible with the 3300 XL series sensors?
A2: Yes, it is fully compatible with Bently Nevada 3300 XL probes and Proximitor sensors.
Q3: Can I install this cable in high-temperature environments?
A3: Yes, it is rated for continuous operation up to 177°C.
Q4: What distinguishes the “CN” version from other 330130-040-10 models?
A4: The “CN” indicates compliance with China-specific regulatory requirements and certifications such as CCC.
Q5: What is the minimum bend radius for this cable?
A5: The minimum bend radius is 25.4 mm (1 inch).
Q6: Does the cable come with factory-terminated connectors?
A6: Yes, both ends have pre-molded, keyed coaxial connectors for secure and reliable connections.
Q7: Is the cable resistant to oil and industrial solvents?
A7: The PFA jacket /fers high resistance to oil, chemicals, and mechanical wear.
Q8: What certifications does this cable meet?
A8: It complies with RoHS, CE, and CCC standards.
Q9: Can this cable be used in environments with strong electromagnetic interference?
A9: Absolutely. It features a braided copper shield for high EMI resistance.
Q10: Is the cable repairable if damaged?
A10: No, it is a sealed 台. If damaged, it must be replaced to maintain performance integrity.
Recommended モデルs from Same Series / Related
-
Bently Nevada 330130-040-00-00
-
Bently Nevada 330130-040-01-00
-
Bently Nevada 330130-040-05-00
-
Bently Nevada 330130-040-02-00
-
Bently Nevada 330130-040-12-00
-
Bently Nevada 330130-040-03-00
Popular モデルs from Same ブランド
| モデル Number | 説明 | Cable Length | 重量 | Compatible Series |
|---|---|---|---|---|
| 330130-040-00-00 | Extension Cable, Standard, 0.5 m | 0.5 m | 0.21 kg | 3300 XL |
| 330130-040-01-00 | Extension Cable, Standard, 1.0 m | 1.0 m | 0.28 kg | 3300 XL |
| 330130-040-05-00 | Extension Cable, Standard, 5.0 m | 5.0 m | 0.36 kg | 3300 XL |
| 330105-02-12-10-02 | Proximity Probe, 8 mm tip | 2.0 m | 0.15 kg | 3300 XL |
| 330180-91-05 | Proximitor Sensor, DIN Rail Mount | – | 0.45 kg | 3300 XL |
| 330106-05-30-10-02-00 | Proximity Probe, 11 mm, High Temp | 5.0 m | 0.22 kg | 3300 XL HT |
