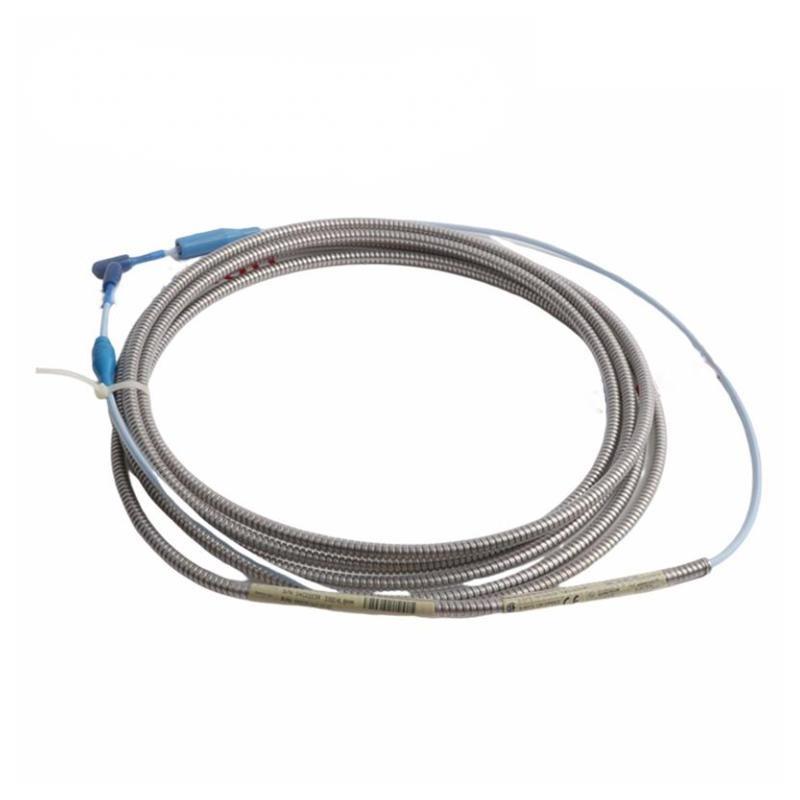

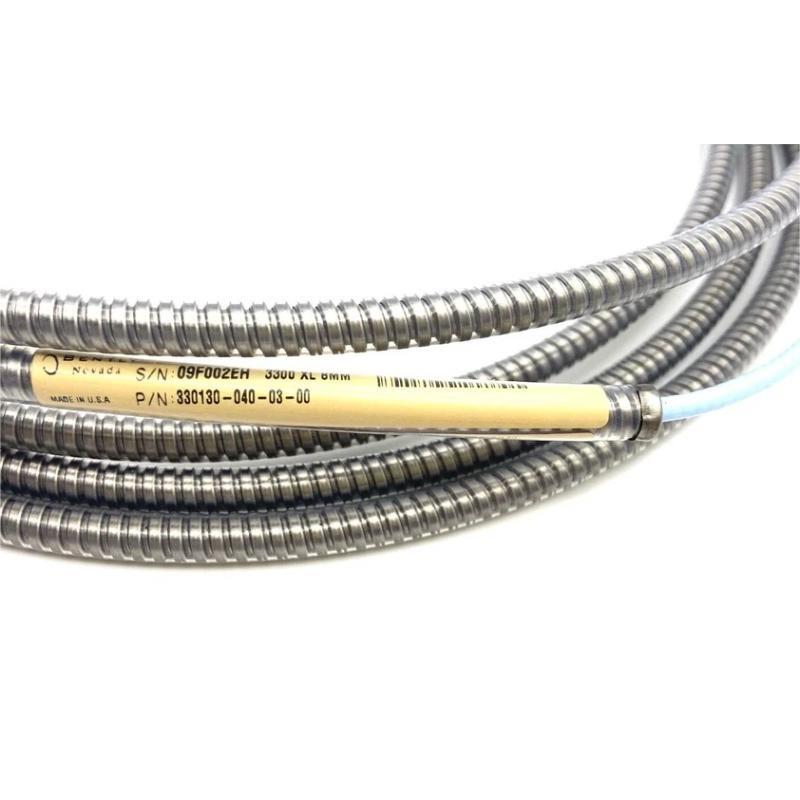

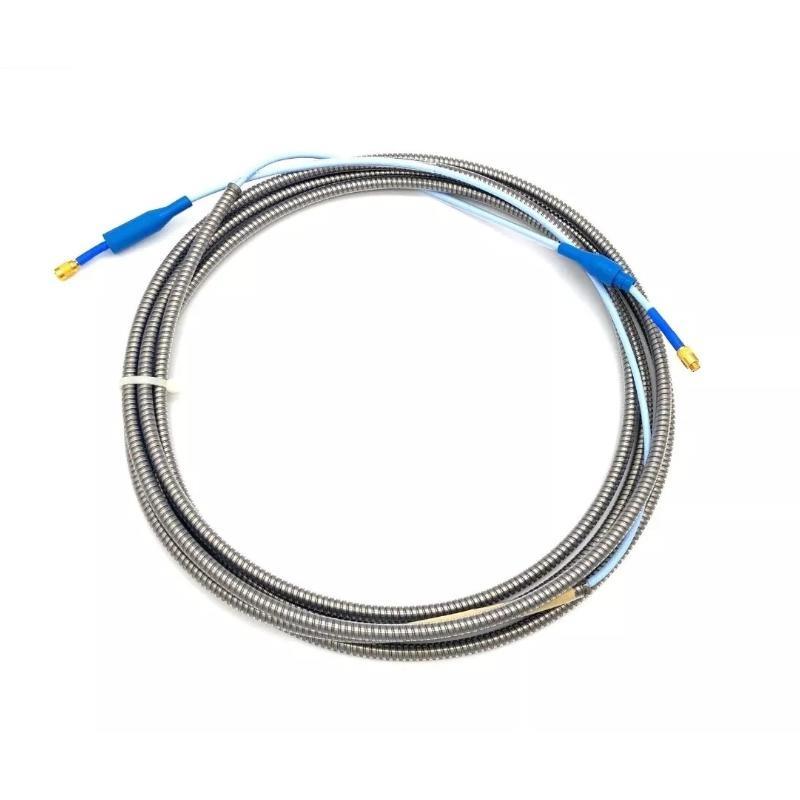

The Bently Nevada 330130-040-03-00 is a standard proximity probe extension cable, part / the 3300 XL series produced by Baker Hughes’ Bently Nevada division. This cable is used in conjunction with proximity transducers and drivers to form a complete proximity measurement system. It is primarily employed in critical machinery condition monitoring systems, /fering reliable signal transmission from the probe to the monitoring system in high-vibration and high-temperature environments. With a length / 4.0 meters (13.1 feet), this extension cable is engineered to maintain signal integrity over distance, supporting accurate displacement and vibration measurements.
Product Advantages
-
Rugged Design: Built to withstand harsh industrial environments including heat, oil, and mechanical stress.
-
Reliable Signal Integrity: Ensures accurate data transmission over long distances with minimal signal loss.
-
Universal Compatibility: Compatible with 3300 XL series proximity probes and drivers, forming part / a fully integrated monitoring system.
-
High Temperature Resistance: Rated for continuous exposure in high-temperature applications without signal degradation.
-
Shielded Construction: Reduces electromagnetic interference, ensuring clean signal output.
-
Proven Industry Use: Used globally in refineries, power plants, and rotating equipment installations.
Technical Specifications
| Parameter | Details |
|---|---|
| モデル Number | 330130-040-03-00 |
| Series | 3300 XL |
| Cable Length | 4 m |
| Connector 1 | Miniature coaxial connector |
| Connector 2 | Male coaxial connector |
| Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Cable Jacket Material | PFA (Perfluoroalkoxy) |
| 重量 | 0.412 kg |
| Compliance | CE marked, RoHS compliant |
Product Applications
The 330130-040-03-00 is typically deployed in the following applications:
-
Steam and Gas Turbines
-
Centrifugal Compressors
-
Hydraulic Pumps and Motors
-
Industrial Fans and Blowers
-
Rotating Machinery in Power Generation
-
Refinery Equipment
-
Petrochemical Plants
-
Nuclear and Thermal Power Stations
This extension cable is an essential component in proximity transducer systems, enabling remote monitoring / shaft position, vibration, and displacement in dynamic industrial environments.
Installation Notes
-
Ensure that the cable connectors are fully engaged with the probe and driver ends.
-
Use appropriate strain relief to prevent excessive tension on the cable.
-
Avoid routing the cable near high-voltage lines or sources / electrical interference.
-
Observe minimum bend radius requirements to avoid internal wire damage.
-
Installation in high-temperature zones should not exceed specified thermal limits.
よくある質問 (FAQs)
Q1: What is the function / the 330130-040-03-00 cable?
A1: It serves as the extension between the proximity probe and driver, transmitting the signal accurately across a distance.
Q2: Is this cable compatible with all Bently Nevada probes?
A2: It is designed specifically for use with the 3300 XL series and is not guaranteed to be compatible with older or different series.
Q3: What is the maximum operating temperature / this cable?
A3: The cable can operate continuously in environments up to 177°C (350°F).
Q4: Can this cable be used outdoors?
A4: While it has good chemical and thermal resistance, additional environmental protection is recommended for outdoor exposure.
Q5: How should the cable be routed to avoid interference?
A5: Route it away from high-voltage lines, use shielding, and follow proper cable management to prevent signal degradation.
Q6: Can I cut and re-terminate the cable to a different length?
A6: 番号 These cables are factory terminated and cutting may compromise signal integrity and void compliance.
Q7: What’s the difference between -01-00 and -03-00 suffixes?
A7: The suffix typically denotes connector type or configuration. -03-00 includes specific end connectors suited for direct system compatibility.
Q8: Is the cable resistant to oil and chemicals?
A8: Yes, the PFA jacket /fers strong resistance to oils, solvents, and industrial chemicals.
Q9: Does the cable have shielding?
A9: Yes, it features shielding to protect against electromagnetic interference (EMI).
Q10: What’s the purpose / the miniature coaxial connector?
A10: It ensures tight, reliable electrical connection with minimal loss, suitable for precision signal transfer.
Recommended モデルs – Same Series or Related
-
330130-080-03-00 – 8.0 meter version / the same extension cable
-
330130-020-03-00 – 2.0 meter version, used in compact configurations
-
330130-XXX-12-00 – With alternative connector configuration
-
330105-02-12-10-02-00 – 3300 XL 8 mm probe
-
330106-05-30-10-02-00 – 3300 XL 11 mm reverse mount probe
-
330180-91-00 – Standard proximity driver, compatible with the cable
Popular モデルs from Bently Nevada
| モデル Number | 説明 | Length / Size | 重量 | Voltage Range |
|---|---|---|---|---|
| 330130-040-01-00 | 4.0 m Extension Cable, alternate config | 4.0 m | 0.12 kg | Signal only |
| 330105-02-12-10-02-00 | 8 mm Proximity Probe | 91 mm body length | 0.18 kg | -24 VDC nominal |
| 330106-05-30-10-02-00 | Reverse Mount Probe, 11 mm | 76 mm | 0.20 kg | -24 VDC nominal |
| 330180-91-00 | Proximitor Driver Module | Panel mount | 0.35 kg | ±15 VDC |
| 3500/22M-01-01-00 | Keyphasor Module for Speed Measurement | 2-channel | 0.5 kg | +24 VDC |
| 3500/42M-01-00 | Vibration Monitor Module | 4-channel | 0.6 kg | +24 VDC |
