Product Overview

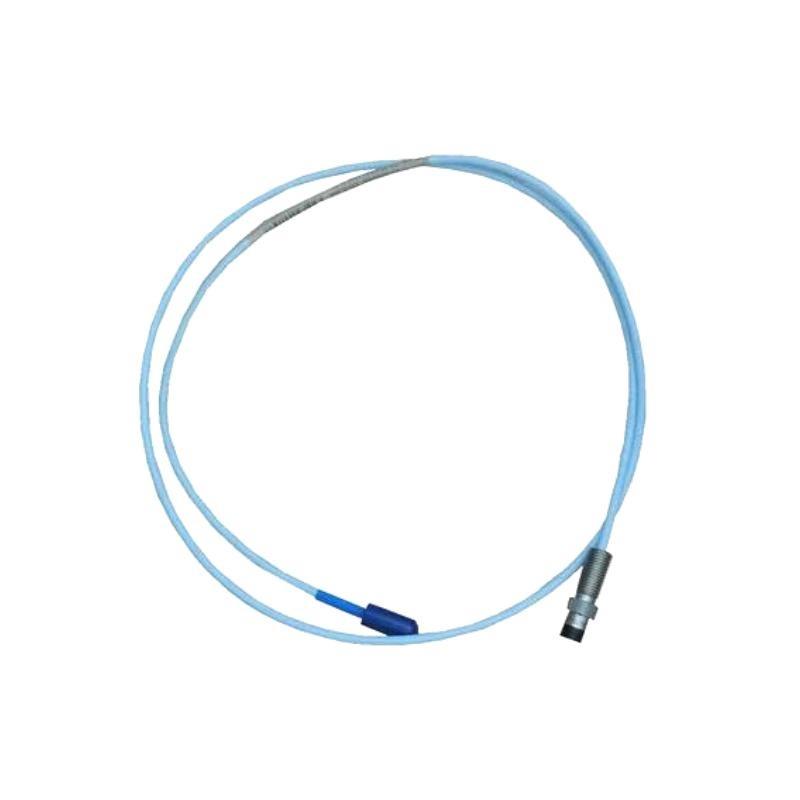

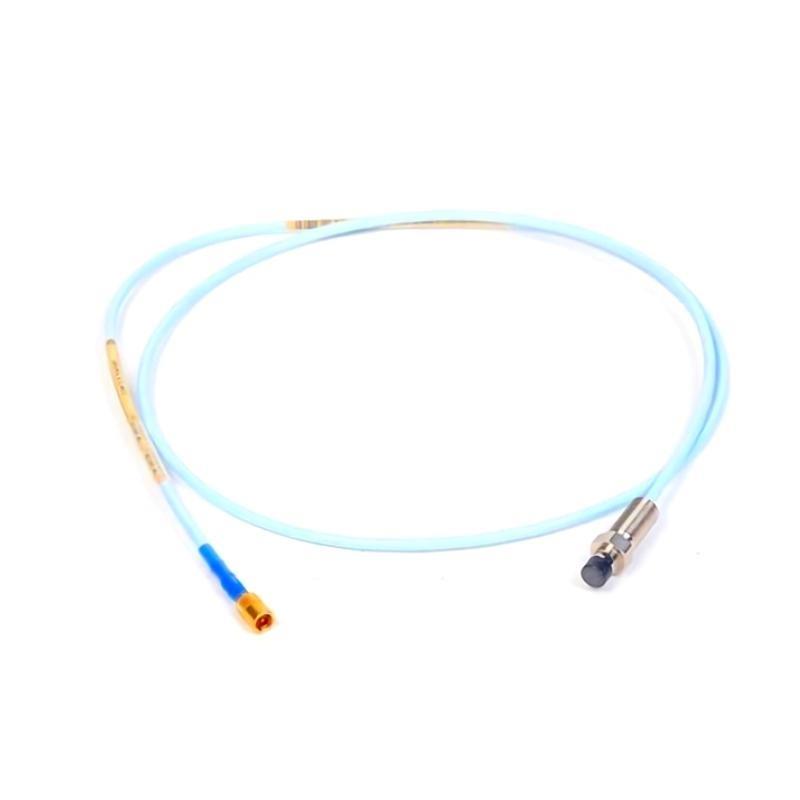

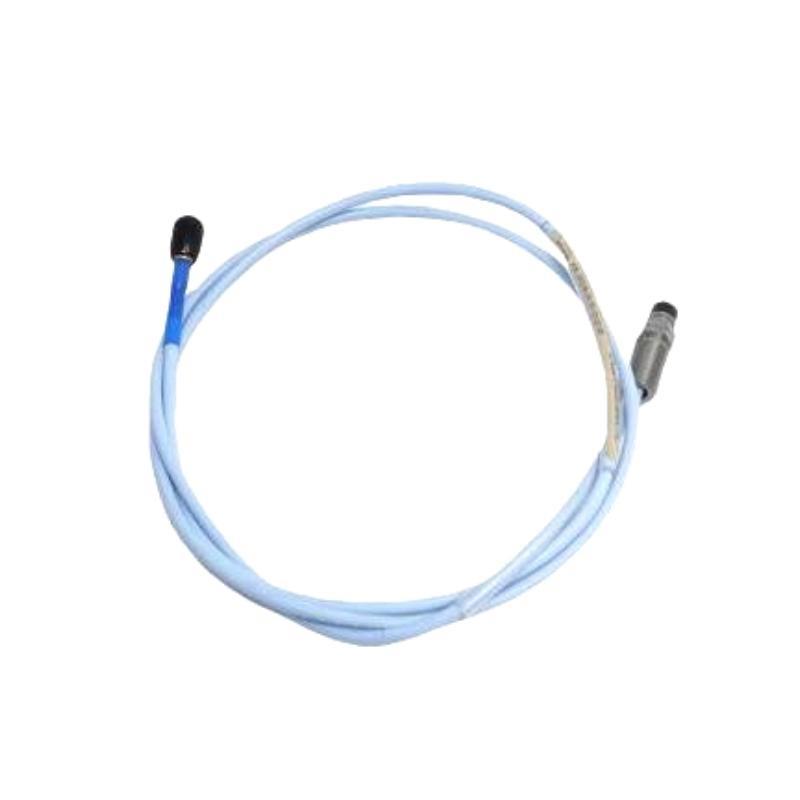

The Bently Nevada 330105-02-12-20-02-05 is a premium-grade 3300 XL 8mm Reverse Mount Proximity Probe, engineered for high-accuracy, non-contact measurement / shaft vibration and position in critical rotating machinery. As part / the 3300 XL series, it is fully compliant with API 670 standards, making it suitable for turbomachinery protection systems in the most demanding industrial environments.
This model features a reverse mount configuration with a probe length / 200 mm, making it ideal for installations where access to the front side / the mounting surface is restricted. The probe uses eddy current technology to deliver accurate measurements / both static and dynamic conditions on metallic targets, typically shaft rotors made / 4140 steel.
Key Features
-
Reverse-mount design for difficult-to-access or blind-side installations
-
8mm probe tip with consistent linear response
-
200 mm probe length for deep-set measurement points
-
Compatible with 3300 XL Proximitor® sensors and extension cables
-
API 670 compliant for critical machine protection systems
-
High resistance to EMI/RFI interference
-
Factory-calibrated for superior linearity and interchangeability
-
IP68 rated when properly connected
-
Corrosion-resistant stainless steel body
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 3300 XL 8mm Reverse Mount Proximity Probe |
| モデル Number | 330105-02-12-20-02-05 |
| Probe Type | Reverse mount |
| Sensing Technology | Eddy current, non-contact |
| Tip Diameter | 8 mm |
| Thread Type | M10 × 1 (metric) |
| Probe Length | 200 mm |
| Cable Length (Integral) | 2 meters (probe to extension cable connection) |
| Connector Type | Miniature coaxial, click-lock style |
| Target Material | Typically 4140 steel or other ferromagnetic materials |
| Linear Range | 2 mm (80 mils) |
| System Accuracy | ±0.07 mm (±2.8 mils), with matched system |
| Frequency Response | 0 to 10 kHz dynamic; static measurement supported |
| Temperature Range (Operation) | -35°C to +177°C |
| Temperature Range (Storage) | -51°C to +177°C |
| Environmental Rating | IP68 (when mated properly) |
| Housing Material | Stainless steel (AISI 303/304) |
| Dimensions | Total Length : 2.0 meters |
| 重量 | 0.646 kg |
| System Compatibility | 3300 XL extension cable + Proximitor sensor (e.g., 3300 XL 330180-91-05) |
Industry Applications
The 330105-02-12-20-02-05 probe is designed for critical condition monitoring and protection / rotating equipment across multiple industries:
-
Oil & Gas: Axial/radial vibration and position monitoring / turbines, compressors, and pumps
-
Power Generation: Shaft monitoring in steam turbines and large generators
-
Petrochemicals & Refineries: Equipment protection in high-temperature, high-pressure environments
-
Steel & Mining: Monitoring crushers, conveyors, and rolling equipment
-
Marine Propulsion Systems: Vibration monitoring in ship propulsion shafts
-
Water & Wastewater: Long-term pump and blower shaft monitoring
Product Advantages
-
Deep-reach capability: 200 mm probe length enables access to recessed monitoring points
-
API 670 compliance: Suitable for critical machine protection applications
-
Superior EMI imm台y: Ensures clean signal in high-noise environments
-
Plug-and-play integration: Pairs with standard 3300 XL system components
-
Wide operating temperature: Suitable for extreme thermal conditions
-
Durable and corrosion-resistant: Stainless steel body ensures longevity in harsh conditions
-
Non-contact sensing: No physical wear, ideal for long-term reliability
-
Factory calibration: Ensures consistent and accurate measurement out / the box
よくある質問 (FAQ)
1. What is the use / this reverse mount probe?
It measures shaft vibration and position without requiring access to the front side / the mounting surface.
2. How long is the probe?
The probe length is 200 mm, making it suitable for deep or recessed installations.
3. Is this probe compatible with all Bently Nevada systems?
It is specifically designed to work with 3300 XL extension cables and Proximitor® sensors.
4. Does it support high-speed machinery?
Yes, the system’s frequency response and linearity are optimized for high-speed applications.
5. Can this probe be used in hot environments?
Yes, it supports temperatures up to +177°C for both operating and storage conditions.
6. What does the “05” in the model number signify?
It typically refers to system configuration or cable connector options—refer to the product matrix for full breakdown.
7. Is the cable field-replaceable?
No, the probe and its 2-meter integral cable are factory-assembled and not meant for separation.
8. What is the measurement range?
Linear range is 2 mm (80 mils) for typical proximity applications.
9. What kind / materials can it measure?
It works with ferromagnetic materials, such as 4140 steel.
10. What thread size is used for mounting?
It uses M10 × 1 metric threading.
Related モデルs in the 3300 XL 8mm Reverse Mount Series
| モデル | 説明 |
|---|---|
| 330105-02-12-15-02-CN | 150 mm probe, 2 m cable, China-compliant configuration |
| 330105-02-12-10-02-00 | 100 mm probe, 2 m cable |
| 330105-02-12-05-02-00 | 50 mm probe, 2 m cable |
| 330130-045-00-00 | Standard 4.5 m Extension Cable for 3300 XL |
| 330180-91-05 | 3300 XL Proximitor Sensor for use with 8 mm probes |
| 330104-00-05-10-02-00 | Forward mount 8 mm probe, 100 mm length, 2 m cable |
Popular Bently Nevada Monitoring System Components
| モデル | 説明 |
|---|---|
| 3500/40M 176449-01 | Proximitor Monitor for radial/axial vibration |
| 3500/15 127610-01 | Power Supply Module for the 3500 system |
| 3500/65-02-00 172109-01 | 16-Channel Temperature Monitor |
| 3500/92 136180-01 | Communication Gateway Module for data integration |
| 3500/93 135799-01 | Display Interface Module |
| 991-01-XX-01 | Velomitor DIN-rail Vibration Transmitter |
