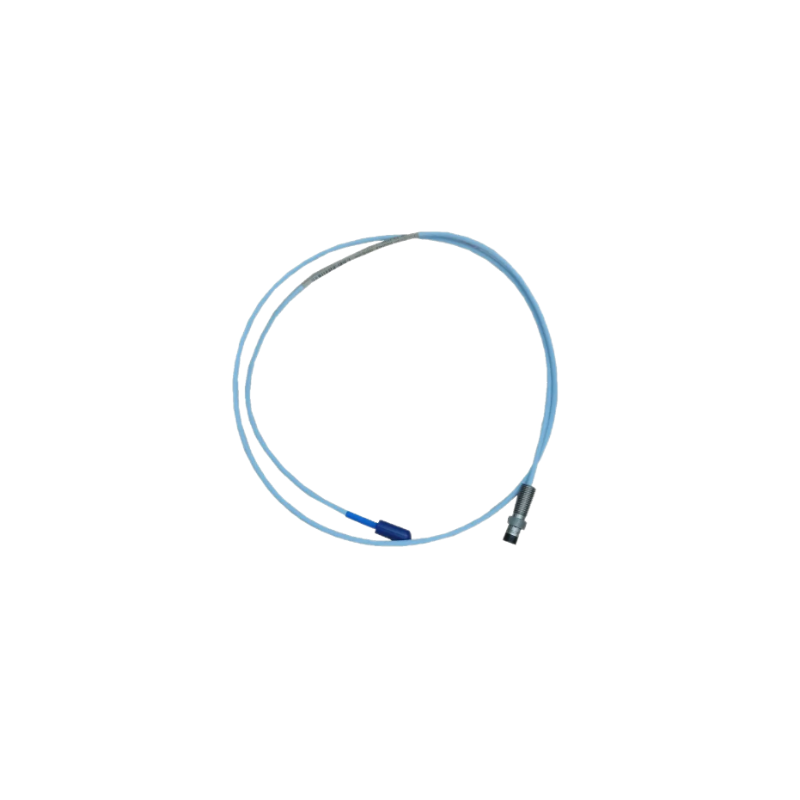

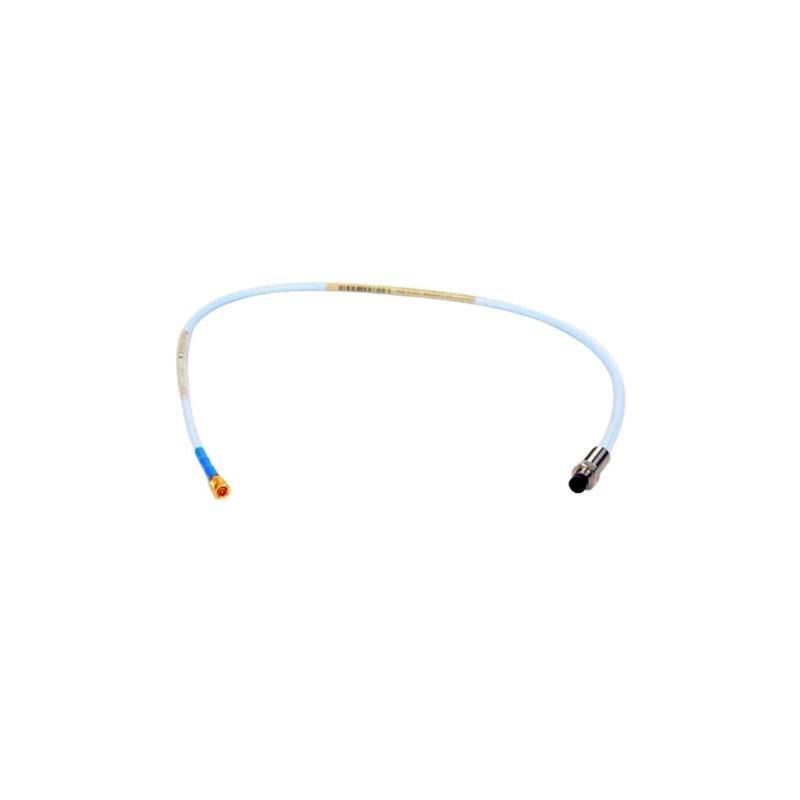

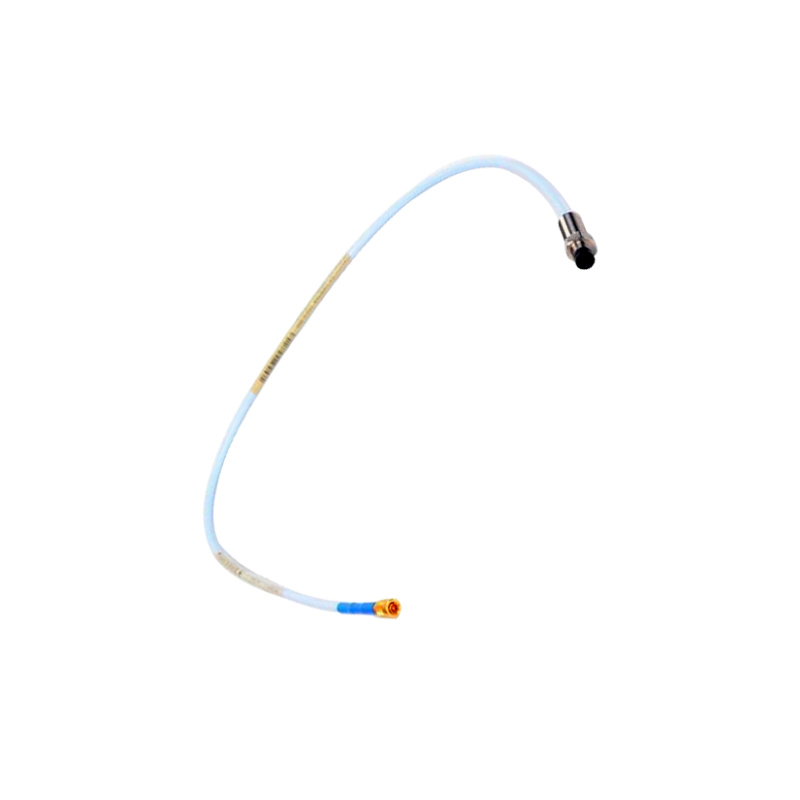

The Bently Nevada 330105-02-12-10-02-00 is a highly reliable extension cable used in conjunction with the Bently Nevada 3300 XL series / proximity transducer systems. Designed for vibration and position monitoring applications, it is a critical component in machinery protection systems across industrial environments. This particular model is engineered to operate with 3300 XL probes and proximity transducers, maintaining signal integrity across long distances. The cable is factory-configured with molded connectors and specified length, ensuring precision and compatibility with standard Bently Nevada systems.
Product Advantages
-
Stable Signal Transmission: Ensures high-fidelity transmission / vibration signals across extended distances.
-
Robust Environmental Protection: Built to withstand harsh conditions including oil, moisture, and temperature variations.
-
Plug-and-Play Compatibility: Designed specifically for seamless integration with Bently Nevada 3300 XL series components.
-
High-Quality Shielding: Reduces electrical noise and interference.
-
Durable Construction: Molded connectors and rugged cable sheathing contribute to long service life.
-
Backed by GE’s Proven Reliability: Built under Bently Nevada’s strict manufacturing standards to support mission-critical applications.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル Number | 330105-02-12-10-02-00 |
| Cable Length | 1m |
| Cable Type | Coaxial extension cable |
| Probe Compatibility | 3300 XL Proximity Probes |
| Connector Type | Molded, 90-degree probe and straight end |
| Temperature Range | –51°C to +177°C (–60°F to +350°F) |
| 重量 | 0.7 kg |
| Outer Sheath Material | FEP (Fluorinated Ethylene Propylene) |
| Insulation Resistance | >10 GΩ at 500 VDC |
| Vibration Tolerance | 10 g pk from 10 Hz to 2 kHz |
| EMI Shielding | 95% coverage, braided copper |
Product Applications
The 330105-02-12-10-02-00 is widely used in industries that rely on continuous machinery condition monitoring and protection. Common applications include:
-
Steam and gas turbines
-
Centrifugal and axial compressors
-
Electric motors
-
Pumps and fans
-
Gearboxes
-
Critical rotating machinery in petrochemical, power generation, and paper industries
This cable connects the proximity probe to the extension cable or proximity transducer, forming part / the signal path for detecting shaft displacement or vibration.
Installation Notes
-
Verify cable compatibility with existing proximity probe and monitor system.
-
Connect the molded 90° end to the proximity probe.
-
Route the cable to minimize exposure to excessive heat or physical damage.
-
Avoid sharp bends to maintain signal integrity.
-
Connect the straight end to the proximitor or monitor input.
-
Secure cable using cable ties or clamps where necessary.
10 Product FAQs
Q1: What type / proximity probes is this extension cable compatible with?
A1: It is specifically designed for the Bently Nevada 3300 XL series proximity probes.
Q2: Can this cable be used in high-temperature environments?
A2: Yes, it can operate in environments up to +177°C (350°F).
Q3: What is the main function / this extension cable?
A3: It transmits the signal between the proximity probe and proximitor or monitor.
Q4: Does the cable have EMI shielding?
A4: Yes, it includes braided copper shielding with 95% coverage.
Q5: Can I cut or shorten the cable length?
A5: No, the cable length is factory-set and cutting may compromise signal quality and warranty.
Q6: What’s the difference between this model and 330105-02-12-05-02-00?
A6: The difference lies in connector configuration or cable build; always verify compatibility with system specs.
Q7: Is the cable flexible for installation in tight spaces?
A7: Yes, the cable has a flexible sheath, but bending radius limits must be respected.
Q8: What is the part’s country / origin?
A8: Typically manufactured in the USA under GE Bently Nevada’s quality system.
Q9: Can this model be used with older Bently 7200 systems?
A9: Not recommended. It is optimized for 3300 XL systems only.
Q10: How do I confirm signal continuity after installation?
A10: Use a Bently Nevada monitor to verify probe readings and ensure proper signal loop performance.
6 Related or Same-Series モデルs
-
330105-02-12-05-02-00 – 5 ft cable variant, same series
-
330105-02-18-10-02-00 – 18 ft cable length, same specs
-
330105-02-24-10-02-00 – 24 ft version for longer reach
-
330104-00-12-10-02-00 – Extension cable with straight connectors
-
330130-040-00-00 – Short adapter cable for close-proximity use
-
330106-05-30-10-02-00 – Special rugged version for harsh environments
6 Popular モデルs from the Same ブランド (Bently Nevada)
| モデル Number | 説明 | Length | 重量 | Voltage Tolerance |
|---|---|---|---|---|
| 330105-02-12-10-02-00 | 12-ft extension cable, molded connectors | 12 ft | 0.35 kg | ±24 V |
| 330104-00-05-10-02-00 | 5-ft straight-to-straight cable | 5 ft | 0.25 kg | ±24 V |
| 330130-080-00-00 | Adapter cable for 3300 XL to legacy systems | 0.8 m | 0.10 kg | ±18 V |
| 330400-02-05-10-02-00 | Accelerometer cable, 5-ft | 5 ft | 0.30 kg | ±30 V |
| 330103-00-05-10-02-00 | Proximity probe with 5-ft integral cable | 5 ft | 0.40 kg | ±24 V |
| 330180-91-05 | Terminal housing for proximity system | N/A | 1.2 kg | N/A |
