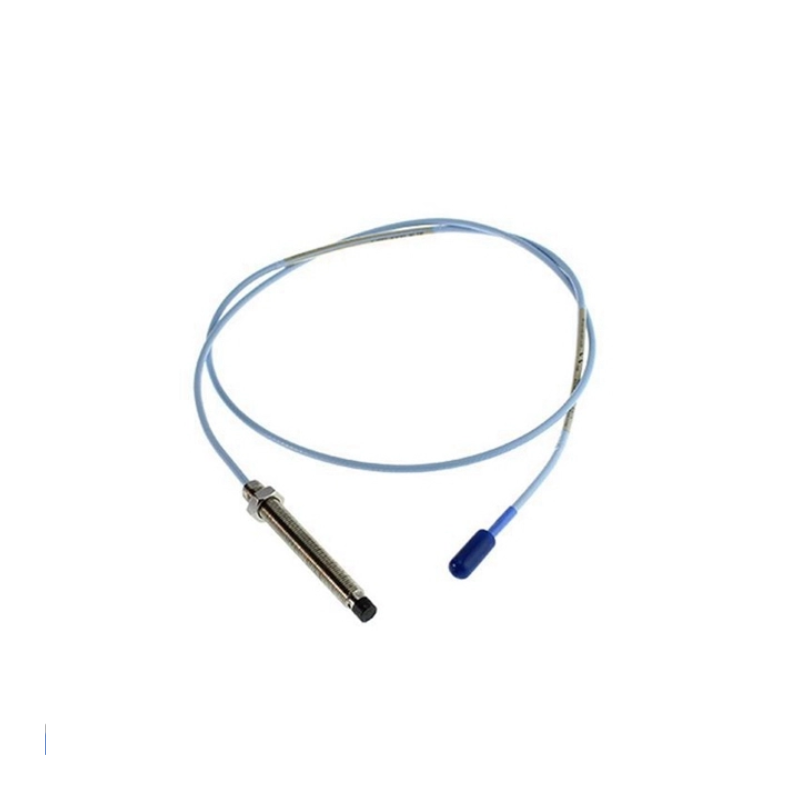

Bently Nevada 330105-02-12-05-02-01 3300 XL 8mm Reverse Mount Probe

製品紹介

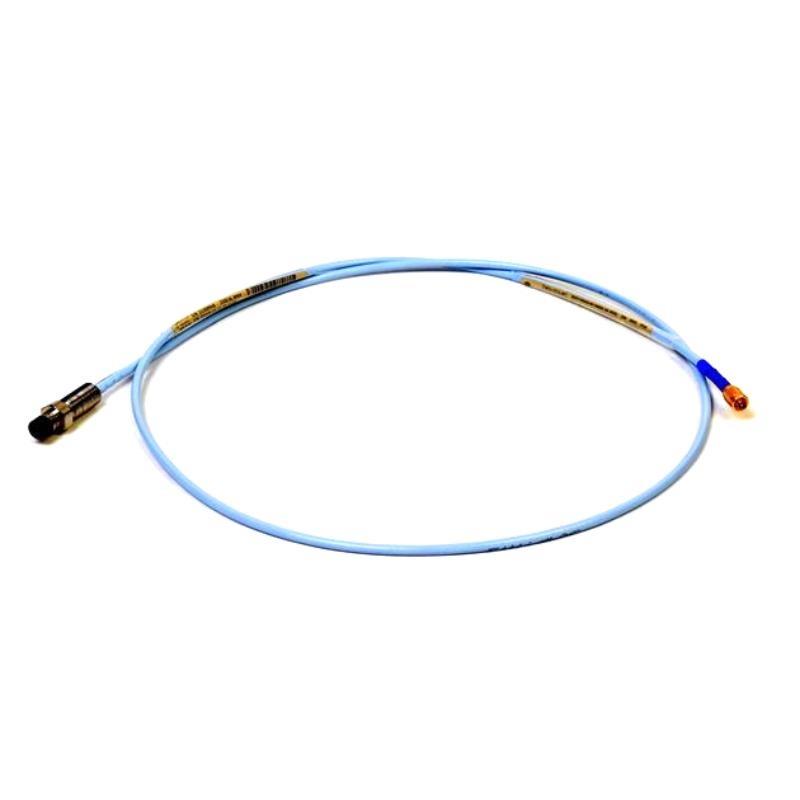

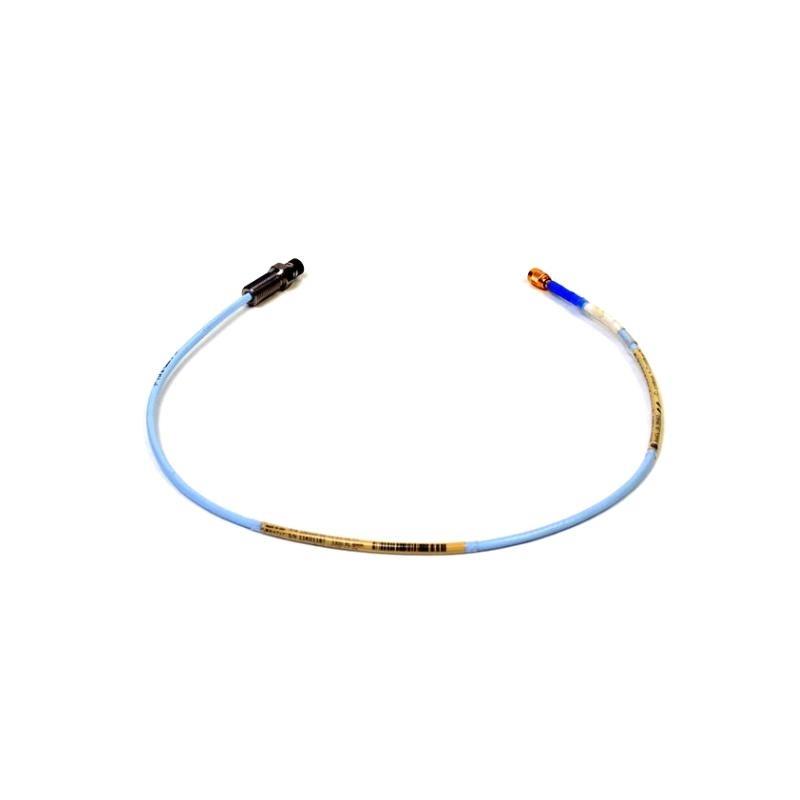

The Bently Nevada 330105-02-12-05-02-01 is a high-performance extension cable designed for use with the 3300 XL series proximity transducer systems. It plays a vital role in transmitting the signal from the proximity probe to the monitoring system with exceptional accuracy and minimal signal loss. Manufactured by Bently Nevada, a trusted name in industrial vibration monitoring, this extension cable is engineered to meet stringent reliability and durability standards in critical machine condition monitoring applications.

It is typically installed in systems that require precise gap measurements for rotating machinery, such as turbines, compressors, and pumps. The 330105 series cables are known for their robust construction, EMI/RFI shielding, and ease / integration into complex industrial environments.

Product Advantages

• High Signal Integrity: Designed for minimum signal degradation over long distances, ensuring accurate vibration and position measurements.

• Durable Construction: Features rugged insulation and shielding, ideal for harsh industrial environments including high-temperature and high-vibration zones.

• Standardized Compatibility: Fully compatible with Bently Nevada 3300 XL probes and extension systems.

• Flexible Length Options: Offers multiple cable length options (in this case, 12 feet) to suit different installation needs.

• Corrosion-Resistant Connectors: Fitted with sealed and corrosion-resistant connectors to ensure long service life.

• Plug-and-Play Design: Pre-terminated ends simplify installation and reduce setup time.

Technical Specifications

Product Applications

• Turbomachinery Monitoring: Used extensively in steam turbines, gas turbines, and hydro turbines to measure shaft vibration and position.

• Compressor Systems: Integral to vibration monitoring systems in large centrifugal or reciprocating compressors.

• Pumps and Motors: Deployed in mission-critical pump and motor systems to detect bearing wear or rotor misalignment.

• Gearboxes and Generators: A key component in gearbox diagnostics and generator condition monitoring systems.

• OEM Machinery Integration: Incorporated by original equipment manufacturers (OEMs) into their diagnostic subsystems.

Installation Instructions

1. Preparation: Ensure the system is powered down and all safety protocols are followed.

2. Routing: Carefully route the extension cable from the proximity probe to the monitoring cabinet. Avoid sharp bends.

3. Connection: Connect the male end to the proximity probe and the female end to the monitor extension interface.

4. Securing Armor: Use appropriate clamps to secure armored sections, avoiding stress on connectors.

5. Testing: Perform a system check for signal continuity and accuracy using a calibration tool.

6. Documentation: Record cable serial and installation path for future maintenance.

10 Product FAQs (Q&A Format)

Q1: What is the function / the 330105-02-12-05-02-01 cable?
A1: It serves as an extension cable between the proximity probe and the monitor in vibration measurement systems.

Q2: Can this cable be used in high-temperature environments?
A2: Yes, it is rated for operation up to +177°C (350°F), suitable for most industrial applications.

Q3: Is this cable compatible with non-Bently Nevada systems?
A3: It is specifically designed for Bently Nevada 3300 XL series systems and may not function correctly with third-party equipment.

Q4: Does the cable come pre-terminated?
A4: Yes, it is pre-terminated with factory-fitted male and female connectors for easy installation.

Q5: What is the advantage / the armored version?
A5: The stainless-steel armor provides additional mechanical protection and EMI shielding in harsh environments.

Q6: Can the cable be cut or shortened?
A6: No, cutting or modifying the cable will void its warranty and compromise signal integrity.

Q7: What maintenance is required for the cable?
A7: Periodic visual inspections and ensuring that connectors remain tightly secured are generally sufficient.

Q8: Is this model available in different lengths?
A8: Yes, the 330105 series is available in lengths such as 5, 9, 12, and 15 feet.

Q9: What standards does the cable comply with?
A9: It complies with CE, RoHS, and ISO 9001 quality standards.

Q10: Can I use this cable outdoors?
A10: While it is rugged, it should be used in environments that are dry and shielded from direct exposure unless specifically rated for outdoor installation.

Recommended Related or Same Series モデルs (6 ユニットs)

1. 330105-02-05-05-02-01 – 5 ft armored extension cable

2. 330105-02-09-05-02-01 – 9 ft armored extension cable

3. 330105-02-15-05-02-01 – 15 ft armored extension cable

4. 330104-00-12-10-02-00 – 12 ft proximity probe

5. 330106-05-30-10-02-00 – 30 ft extension cable with straight connectors

6. 330130-040-00-00 – BNC adapter cable for buffered output
