製品紹介

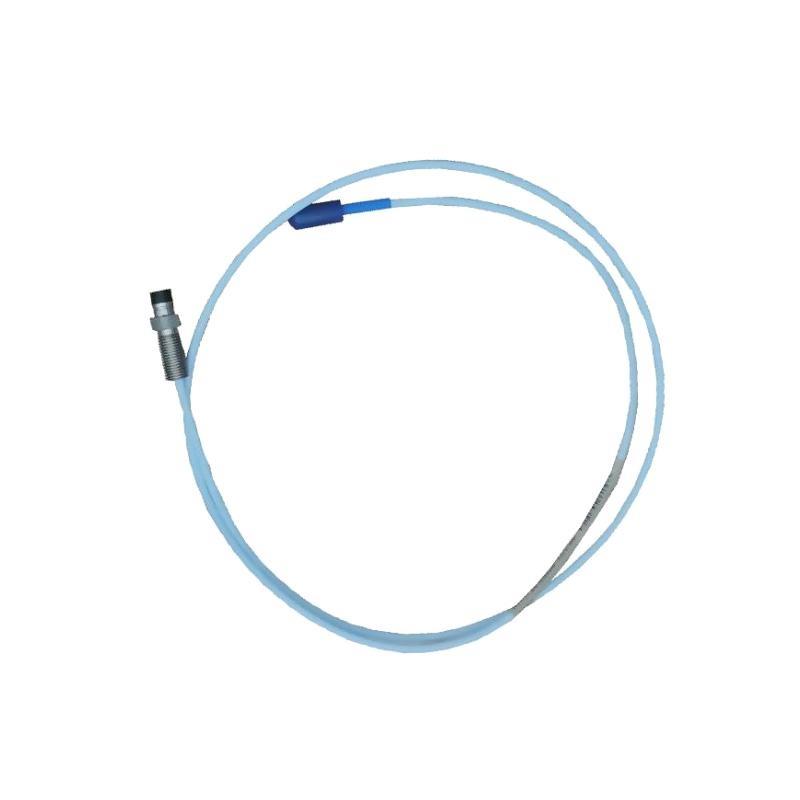

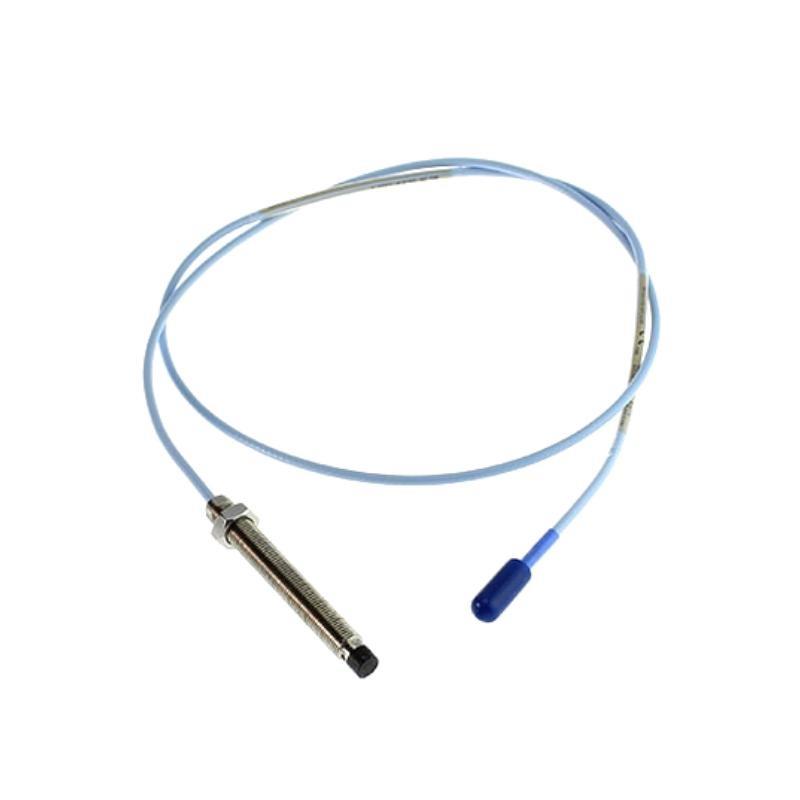

The Bently Nevada 330104-08-16-05-02-05 3300 XL 8mm Proximity Probe is a highly precise sensor developed to measure the displacement and vibration / rotating machinery shafts. This probe is part / the trusted 3300 XL series, which is widely recognized for its rugged design and superior measurement accuracy in industrial condition monitoring applications.
Featuring an 8mm probe tip length, this device provides an optimal sensing distance for shaft position monitoring, allowing early detection / mechanical faults such as imbalance, misalignment, and wear. Constructed with stainless steel housing and utilizing eddy current technology, the probe is designed to endure harsh operating environments, including wide temperature ranges and mechanical shocks, making it suitable for critical machinery protection in power generation, oil and gas, manufacturing, and other industries.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | 330104-08-16-05-02-05 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Probe Tip Length | 8 mm |
| Probe Diameter | 12.7 mm (0.5 inches) |
| Total Length | 0.5 meter |
| Operating Temperature | -40°C to 120°C (-40°F to 248°F) |
| Output Signal Type | AC Voltage Signal |
| Sensing Technology | Eddy Current |
| Housing Material | Stainless Steel |
| Connector Type | 2-pin military-style connector |
| 重量 | 0.161 kg |
| Shock Resistance | 100 g (11 ms half sine) |
| Vibration Resistance | 10 g (20 Hz to 2 kHz) |
Applications
The 330104-08-16-05-02-05 proximity probe is widely employed in industries where continuous and accurate monitoring / rotating equipment is critical, including:
-
Power Generation: Shaft vibration monitoring in turbines, generators, and motors to prevent failures and extend equipment life.
-
Oil and Gas: Protection / compressors, pumps, and drilling machinery by early fault detection.
-
Aerospace: Monitoring engine shafts and rotary components for safe operation.
-
Manufacturing: Ensuring the integrity / high-speed spindles, gearboxes, and conveyor systems.
-
Mining and Metals: Monitoring harsh environment machinery such as crushers, mills, and conveyors.
-
Chemical Processing: Reliable vibration monitoring for pumps and agitators in continuous operation.
Advantages
-
High Precision Measurement: Eddy current sensing technology delivers accurate and stable displacement and vibration data.
-
Robust and Durable: Stainless steel construction protects against corrosion and mechanical wear.
-
Wide Temperature Range: Suitable for demanding industrial environments from -40°C to 120°C.
-
Seamless System Integration: Fully compatible with Bently Nevada 3300 XL series monitoring modules.
-
Easy Installation and Maintenance: Compact size and standard connectors reduce downtime during replacement or servicing.
-
Stable Signal Output: Provides consistent AC voltage signals, minimizing measurement errors.
-
Shock and Vibration Resistance: Designed to withstand intense mechanical stress.
-
Flexible Cabling Options: Cable lengths can be customized to suit specific installation needs.
よくある質問 (FAQ)
-
What is the main function / the 330104-08-16-05-02-05 probe?
It measures shaft vibration and displacement to help detect mechanical issues early. -
Is this probe compatible with the Bently Nevada 3300 XL system?
Yes, it is designed to integrate seamlessly with 3300 XL monitoring components. -
What type / signal output does this probe provide?
The probe outputs an AC voltage signal proportional to shaft displacement. -
Can the total length be customized?
Yes, the standard length is 0.5 meter, but custom lengths are available upon request. -
What temperature range does the probe support?
It operates reliably between -40°C and 120°C. -
Does the probe require external power?
No, it operates without external power, relying on eddy current technology. -
How /ten should this probe be inspected or calibrated?
Routine inspections and annual calibration are recommended for optimal performance. -
Is this probe suitable for high-speed rotating machinery?
Yes, it is designed for accurate monitoring / high-speed shafts. -
What should I do if the probe cable is damaged?
The cable should be replaced promptly to ensure accurate signal transmission. -
Can this probe detect shaft misalignment?
Yes, by monitoring displacement and vibration data, it can identify misalignment issues.
Related and Recommended モデルs
| Related モデルs (3300 XL Series) | 説明 |
|---|---|
| 330104-08-16-05-02-05 | 8mm Proximity Probe (Current モデル) |
| 330103-17-22-10-02-05 | 8mm Proximity Probe Alternate Specification |
| 330103-15-23-05-02-CN | 8mm Proximity Probe Alternate モデル |
| 330101-00-44-10-02-05 | 8mm Proximity Probe |
| 330102-13-23-05-02-00 | 12mm Proximity Probe |
| 330130-00-00-00-10-02 | Probe Extension Cable |
| Popular モデルs from Bently Nevada ブランド | 説明 |
|---|---|
| 330104-08-16-05-02-05 | 8mm Proximity Probe (Current モデル) |
| 3500/05/01-01 | 3500 Series Monitor Module |
| 73011-00-00-10-00-00 | 3300 XL Monitor Amplifier |
| 330104-00-00-10-05-02 | 18mm Proximity Probe |
| 330101-00-44-10-02-05 | 8mm Proximity Probe |
| 330121-00-00-05-00-02 | Vibration Sensor |
