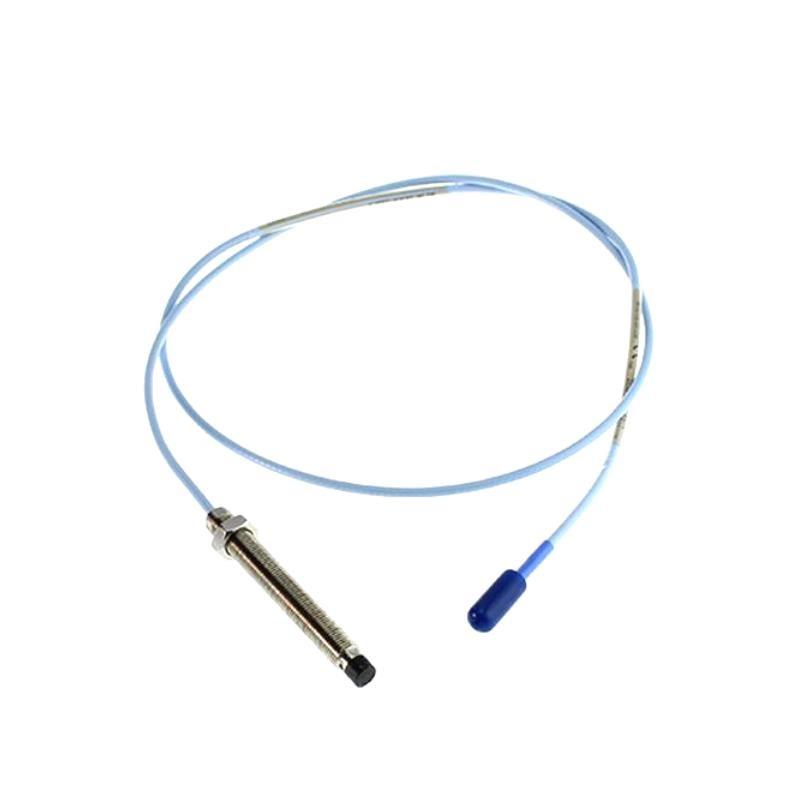

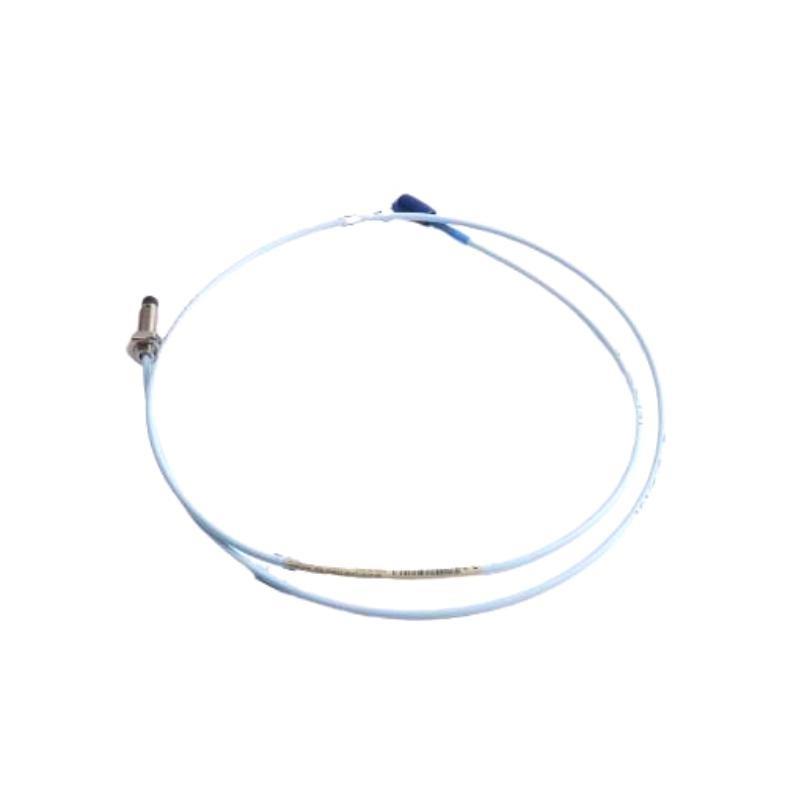

The Bently Nevada 330104-02-25-10-01-00 3300 XL 8 mm Proximity Probe is a precision eddy-current sensor designed for highly reliable vibration and position monitoring in rotating machinery. It is part / the 3300 XL series, which is widely used in critical applications such as turbines, generators, compressors, and motors.
The probe /fers robust performance under extreme operating conditions, providing accurate measurements for machinery protection and predictive maintenance. Its 8 mm diameter sensing tip allows for easy installation in standard probe holders and targets tight mechanical clearances.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 330104-02-25-10-01-00 |
| Sensing Tip Diameter | 8 mm |
| Measurement Range | 0.25 mm typical |
| Probe Type | 3300 XL Eddy-Current Proximity Probe |
| Total Length | 1 m |
| 重量 | 0.323 kg |
| Cable Type | Shielded coaxial cable |
| Output Signal | AC voltage proportional to gap |
| Operating Temperature | -40°C to +125°C |
| Vibration Resistance | 20 g, 5–500 Hz |
| Tip Material | Stainless steel |
| Housing Material | Stainless steel |
Applications
-
Continuous vibration monitoring in turbines, compressors, and pumps.
-
Rotor position measurement in high-speed machinery.
-
状態 monitoring for predictive maintenance programs.
-
Critical machinery protection in power generation plants.
-
Integration with Bently Nevada 3300 XL monitoring systems.
-
Measurement / shaft displacement for hydrodynamic bearing systems.
Advantages
-
High Accuracy: Provides precise measurement / shaft vibration and position under extreme conditions.
-
Rugged Design: Resistant to shock, vibration, and harsh environmental conditions.
-
Wide Temperature Range: Operates reliably from -40°C to +125°C.
-
Interchangeable: Compatible with 3300 XL series monitoring systems and standard probe holders.
-
Predictive Maintenance: Helps in early detection / machinery faults to prevent unplanned downtime.
-
Compact Sensing Tip: 8 mm diameter allows installation in tight spaces.
-
Shielded Cable: Reduces signal noise and interference for accurate measurements.
FAQ
-
Q1: What type / signal does this probe output?
A1: The 3300 XL 8 mm Proximity Probe outputs an AC voltage signal proportional to the target gap. -
Q2: Can this probe be used in high-speed turbine applications?
A2: Yes, the probe is designed for high-speed rotating machinery, including turbines and generators. -
Q3: Is the probe compatible with the 3300 XL monitoring system?
A3: Yes, it is fully compatible with all Bently Nevada 3300 XL monitoring modules. -
Q4: What is the typical measurement range / this probe?
A4: The typical range is 0.25 mm, suitable for standard clearance monitoring. -
Q5: Can the probe operate in extreme temperatures?
A5: Yes, it operates between -40°C and +125°C. -
Q6: Does the cable have shielding to prevent electrical noise?
A6: Yes, the probe comes with a shielded coaxial cable to reduce interference. -
Q7: Can this probe measure shaft displacement in hydrodynamic bearings?
A7: Yes, it is suitable for continuous shaft position monitoring in hydrodynamic bearing systems. -
Q8: How resistant is the probe to mechanical shock and vibration?
A8: It can withstand up to 50 g shock and 20 g vibration in the 5–500 Hz range. -
Q9: What material is the probe tip made /?
A9: The sensing tip is made / durable stainless steel. -
Q10: Can this probe be replaced with other 3300 XL series probes without system modifications?
A10: Yes, the probe is designed to be interchangeable with other 3300 XL series probes.
