Product Overview

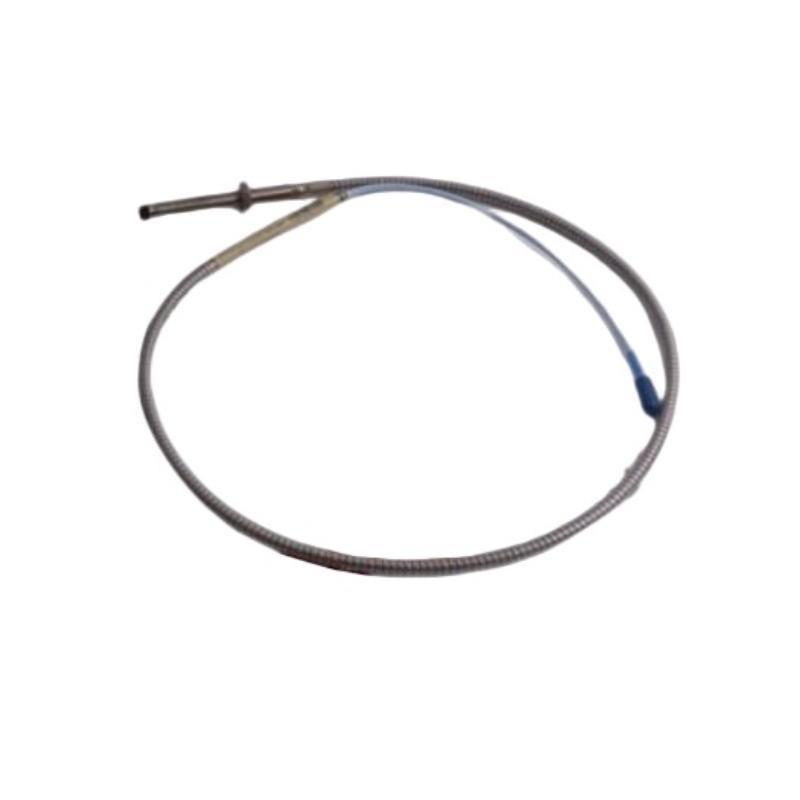

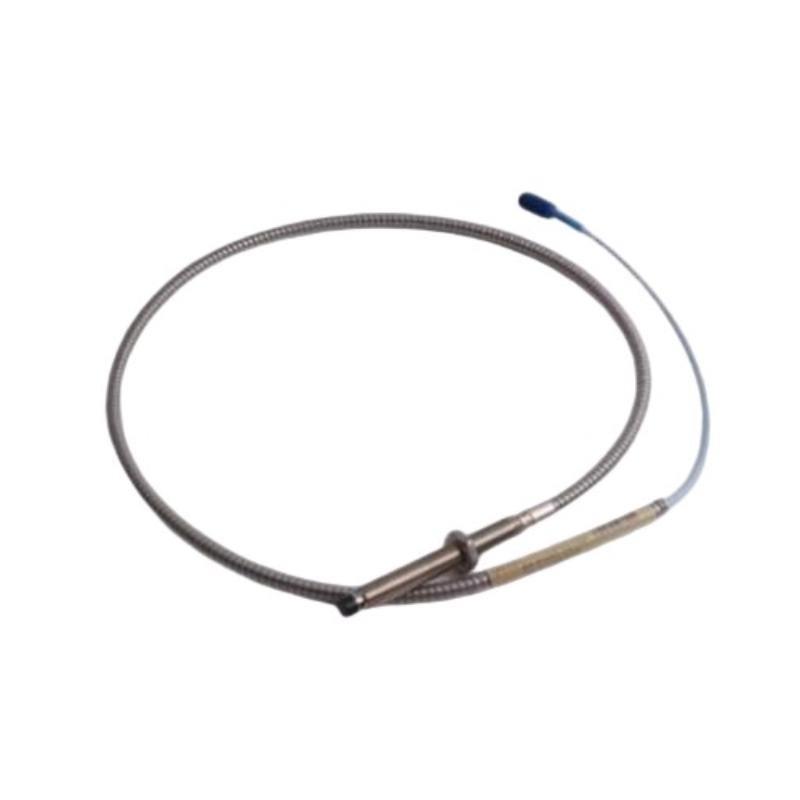

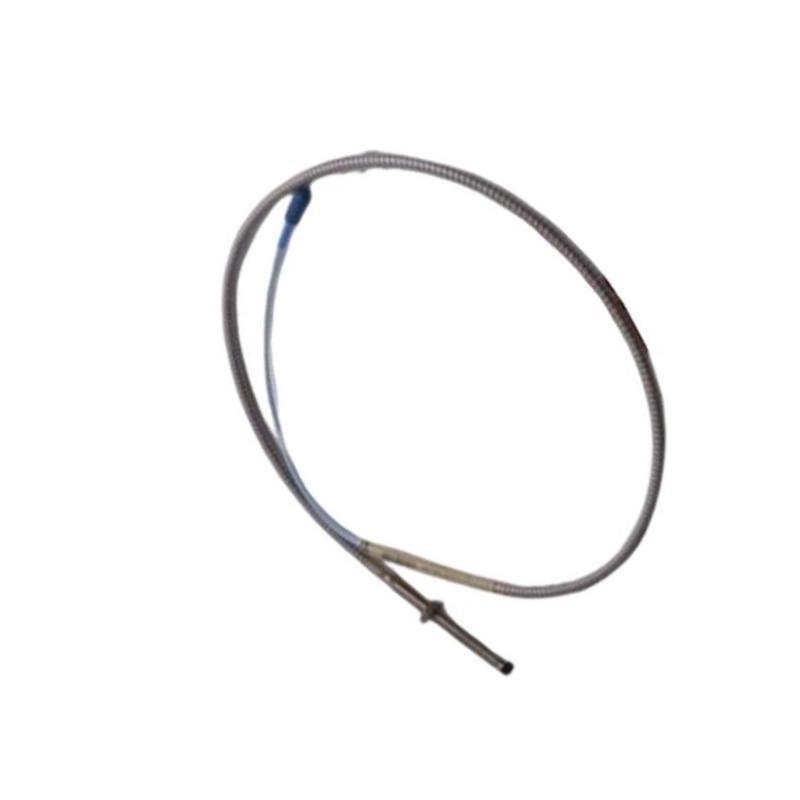

The Bently Nevada 330104-00-22-10-02-00 3300 XL 8 mm Proximity Probe is part / the industry-leading 3300 XL series, engineered for accurate, non-contact vibration and displacement measurements. With a rugged stainless steel housing and high environmental protection, it /fers long-term stability in challenging industrial settings.
This model includes a 22-meter probe, a 10-meter extension cable, and a 2-meter connector cable, making it ideal for installations where long-distance connectivity is required. It is commonly deployed in power plants, refineries, and process industries for condition monitoring / rotating machinery.
Technical Specifications
| Specification | 説明 |
|---|---|
| モデル Number | 330104-00-22-10-02-00 |
| Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| Measurement Principle | Eddy Current (Non-contact displacement) |
| Linear Range | 0.25 mm to 2.0 mm |
| Sensitivity | -200 mV/mm (typical) |
| Output Voltage | -200 mV to -22 V |
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -51°C to +177°C |
| Environmental Protection | IP68 (hermetically sealed) |
| Housing Material | AISI 304 Stainless Steel |
| Target Material | Calibrated for 4140 Steel |
| Connector Type | 3-slot male connector |
| Dimensions | Total Length : 1.0 meter |
| 重量 | 0.323 kg |
| Compliance | CE, RoHS; optional ATEX version available |
Industry Applications
-
Oil & Gas – Turbine, compressor, and pump monitoring
-
Power Generation – Shaft vibration analysis in steam/gas turbines
-
Chemical & Petrochemical – Real-time diagnostics / rotating machinery
-
Water Utilities – Motor and pump performance tracking
-
Mining & Metals – Equipment condition monitoring in harsh conditions
-
Pulp & Paper – Preventive maintenance for high-speed systems
Key Advantages
-
Extended Probe Reach – 22-meter probe suitable for long-distance installations
-
High Accuracy – Industry-standard -200 mV/mm sensitivity
-
Rugged Construction – Corrosion-resistant and IP68-rated for reliability
-
Flexible Cable Options – Long extension and connector cables included
-
System Compatibility – Seamless integration with 3300 XL and other Bently Nevada systems
-
Reliable Measurements – Stable output over time and temperature range
-
Ease / Installation – Modular design with quick-connect features
-
Industry-Proven – Used worldwide in critical rotating machinery applications
よくある質問 (FAQ)
-
What are the included cable lengths?
This model includes a 22 m probe, 10 m extension cable, and a 2 m connector cable. -
Is it compatible with all 3300 XL systems?
Yes, it is designed for full compatibility with Bently Nevada 3300 XL monitoring systems. -
What is the probe’s sensing range?
It measures displacement from 0.25 mm to 2.0 mm. -
Is it suitable for hazardous environments?
Yes, ATEX-certified versions are available for explosive atmospheres. -
What is the output signal type?
It outputs -200 mV/mm, linear with respect to shaft position. -
Can it be submerged in liquid environments?
Yes, it has an IP68 rating and is hermetically sealed. -
What is the probe’s construction material?
It uses AISI 304 stainless steel for corrosion resistance. -
What shaft material is it calibrated for?
It is factory-calibrated for 4140 steel targets. -
How does this model differ from shorter-cable versions?
It is optimized for long-distance applications requiring extended reach. -
What is the typical operating temperature range?
It operates reliably between -40°C and +100°C.
Recommended Related モデルs
| モデル Number | 説明 |
|---|---|
| 330104-00-20-10-11-05 | 20 m probe / 10 m extension / 11 m connector |
| 330104-00-18-10-02-CN | 18 m probe / 10 m extension / 2 m connector |
| 330104-00-12-10-02-05 | 12 m probe / 10 m extension / 2 m connector |
| 330104-00-10-05-01-CN | 10 m probe / 5 m extension / 1 m connector |
| 330101-00-14-10-02-05 | 8 mm Probe with 14 m cable |
| 330130-045-01-05 | 4.5 m Extension Cable for XL Proximity System |
