Product 説明

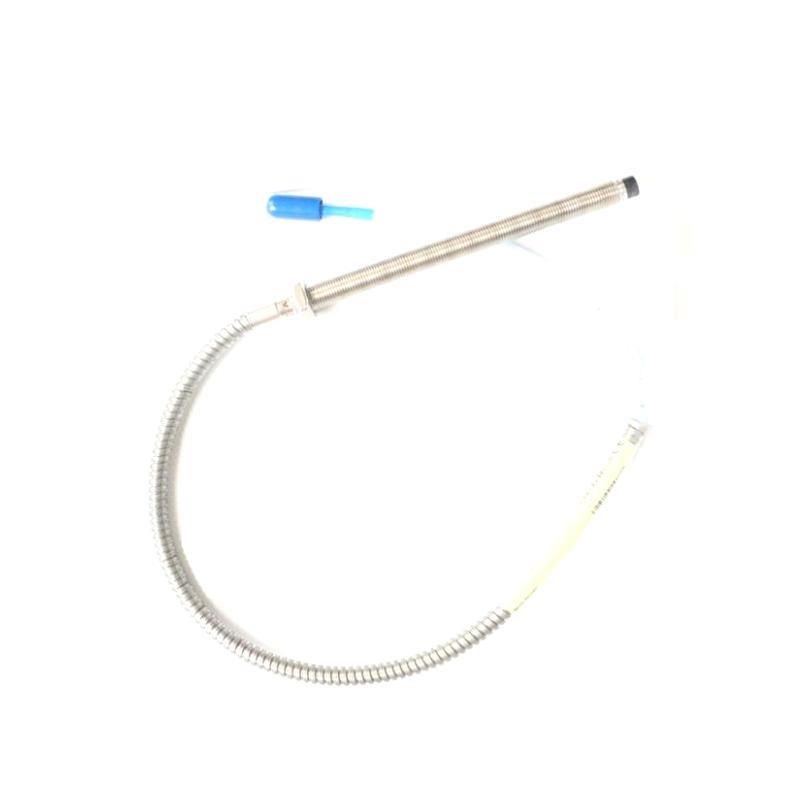

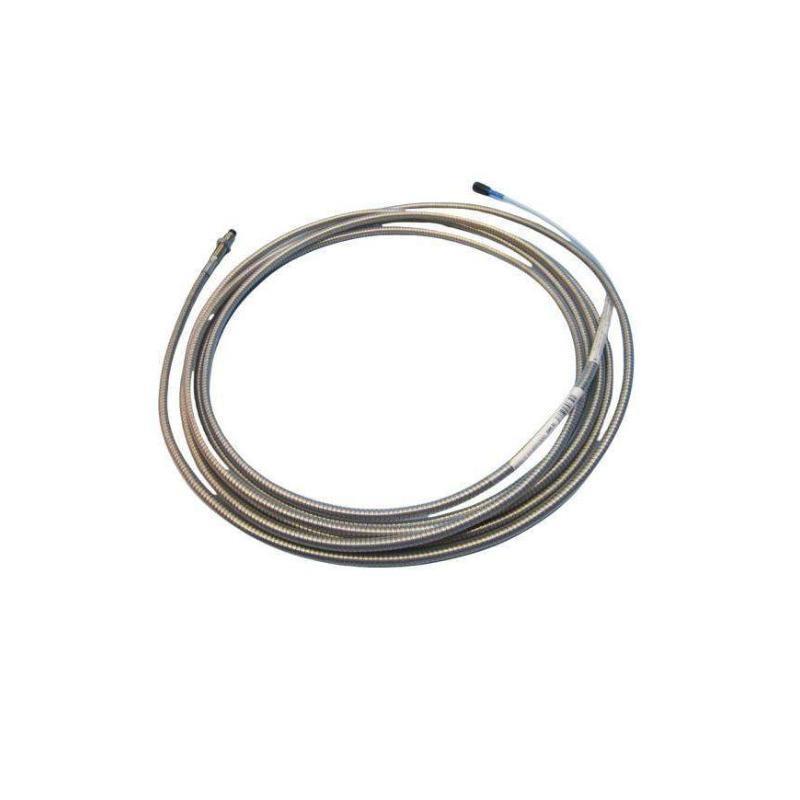

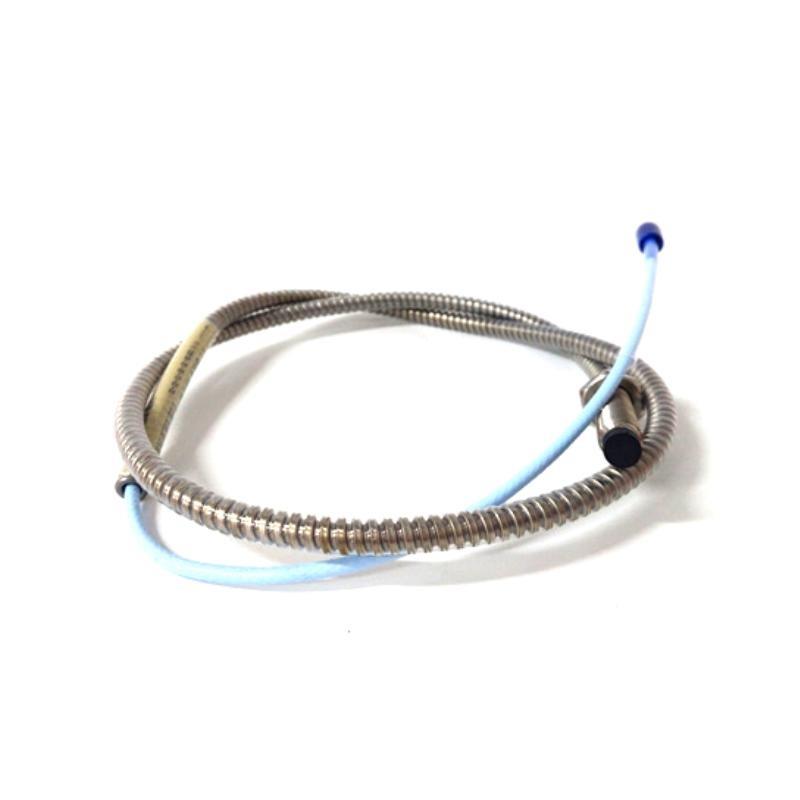

The Bently Nevada 330104-00-14-05-02-00 is part / the 3300 XL 8 mm Proximity Transducer System, designed for accurate static (position) and dynamic (vibration) measurements. It features advanced performance, durability, and compliance with API 670 standards. The system provides high interchangeability and robust mechanical construction for critical machinery monitoring.
Product Features
-
Complies with API 670 standards
-
Rugged PPS encapsulated probe tip
-
FluidLoc and CableLoc technology for environmental sealing
-
Backward-compatible with non-XL 3300 8 mm systems
-
Immune to RFI/EMI
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 0.5 m (1.6 ft) |
| 重量 | 0.162 kg (0.36 lb) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
| Extended Temp. Option | Up to +218°C (+425°F) for probe tip |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0–10 kHz (+0/-3 dB) |
| Recommended Gap | ~1.27 mm (50 mils) |
| Minimum Shaft Diameter | 50.8 mm (2 in), recommended ≥76.2 mm |
| RFI/EMI Imm台y | High |
| Certifications | CSA, ATEX, IECEx, RoHS, CE |
Applications
-
Vibration monitoring on fluid-film bearing machines
-
Shaft position and Keyphasor reference signals
-
Speed and overspeed detection
-
Industrial rotating equipment in harsh environments
Advantages
-
Advanced linearity and temperature stability
-
Completely interchangeable components
-
Fast installation with ClickLoc connectors
-
High mechanical robustness
-
Reduced installation cost with no need for special conduit
FAQ
Q1: What is the linear range / this probe?
A1: The linear measurement range is approximately 2 mm (80 mils).
Q2: Is this probe compatible with older 3300 series systems?
A2: Yes, it is backward-compatible with non-XL 3300 8 mm components.
Q3: What is the operating temperature range?
A3: Standard probes operate from -52°C to +177°C, with an extended option up to +218°C.
Q4: Does the probe require calibration to specific materials?
A4: By default, it is calibrated to AISI 4140 steel; other materials require request.
Q5: How is environmental protection ensured?
A5: Features like FluidLoc and connector protectors prevent oil ingress and environmental contamination.
Q6: What shaft diameter is recommended?
A6: Minimum 50.8 mm (2 in), but ≥76.2 mm (3 in) is recommended for accuracy.
Q7: What is the frequency response?
A7: 0 to 10 kHz with ±3 dB response.
Q8: Can it be used in hazardous areas?
A8: Yes, it has ATEX, IECEx, and CSA approvals for hazardous locations.
Q9: Are special tools required for connectors?
A9: No, ClickLoc connectors are finger-tight and do not need tools.
Q10: Does it meet API 670 requirements?
A10: Yes, it fully complies with API 670 specifications.
Related モデルs in the Same Series
| モデル Number | 説明 | Length | 重量 |
|---|---|---|---|
| 330101-00-08-05-02-00 | 3300 XL 8 mm Probe, UNF thread, armored | 0.5 m | 0.162 kg |
| 330102-00-12-10-02-00 | 3300 XL 8 mm Probe, UNF thread, armored | 1.0 m | 0.19 kg |
| 330103-00-02-10-02-05 | 3300 XL 8 mm Probe, metric thread | 0.5 m | 0.162 kg |
| 330105-02-12-05-02-00 | 3300 XL 8 mm Reverse Mount Probe, UNF | 0.5 m | 0.162 kg |
| 330106-05-30-10-02-00 | 3300 XL 8 mm Reverse Mount Probe, metric | 1.0 m | 0.19 kg |
| 330140-00-05-50-02-00 | 3300 XL 8 mm Smooth Case Probe | 0.5 m | 0.162 kg |
