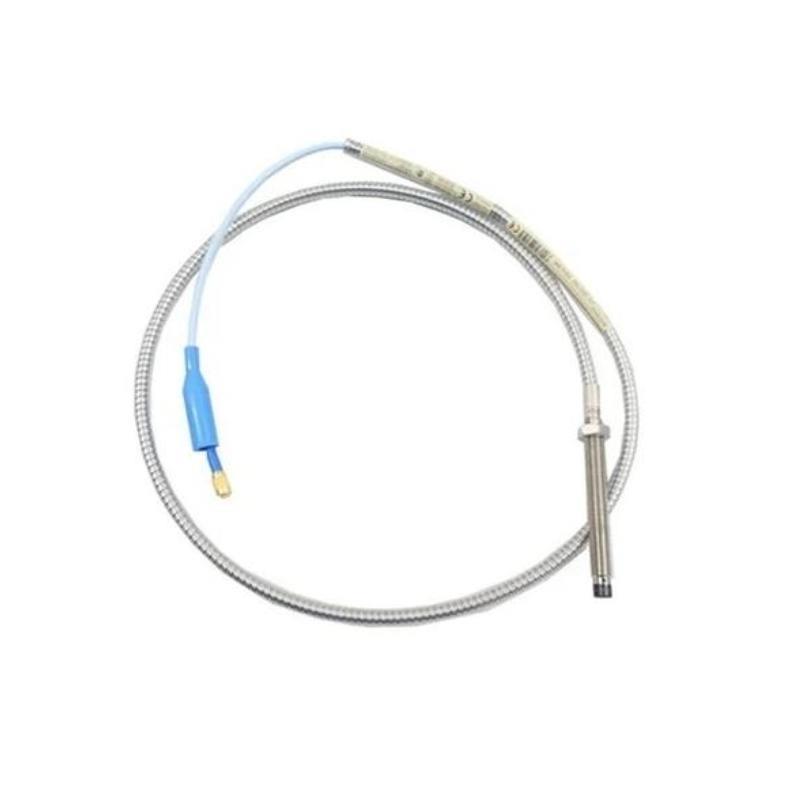

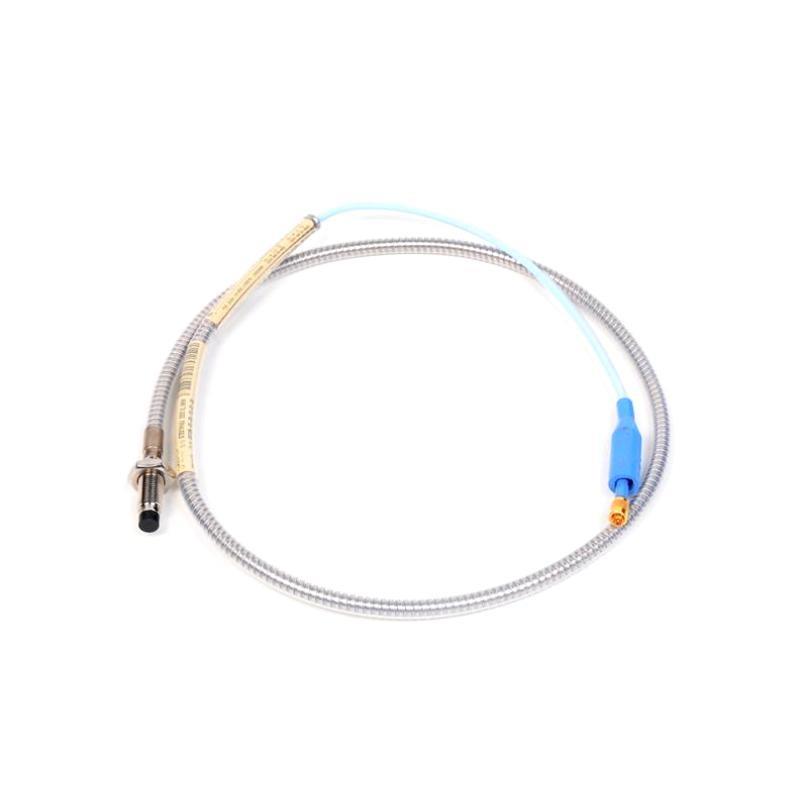

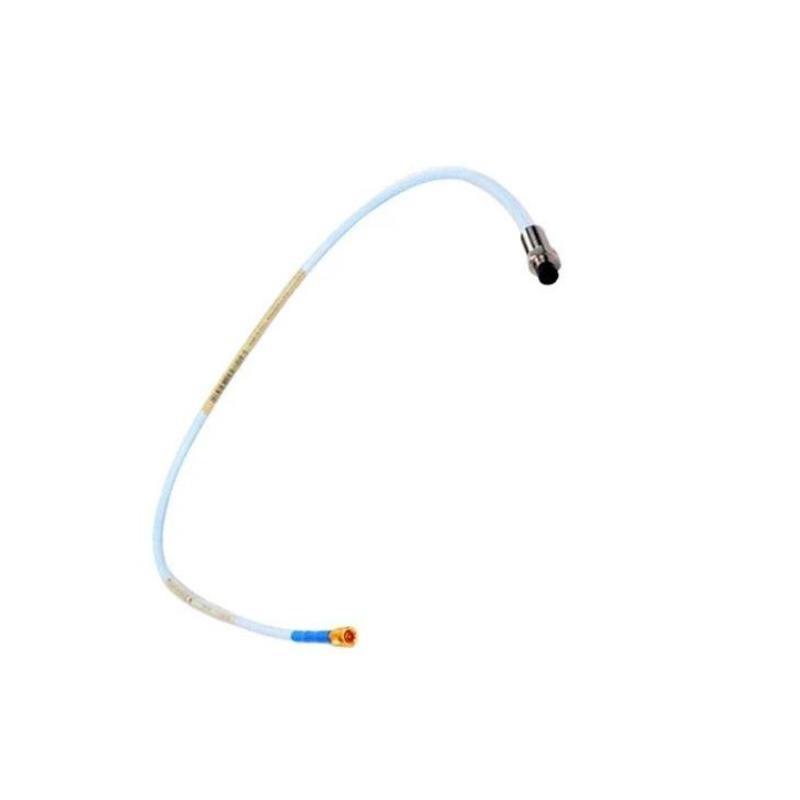

The Bently Nevada 330104-00-08-05-02-CN is a high-precision 8 mm proximity probe, part / the 3300 XL series. It provides accurate non-contact measurement / shaft position and vibration in rotating machinery. This model features an armored M10 x 1 threaded case and a total cable length / 0.5 meters.
Features and Advantages
-
API 670 Compliance: Meets standard for mechanical configuration and performance
-
High Durability: PPS molded tip with robust stainless-steel body
-
ClickLoc Connectors: Tool-free locking with gold-plated, corrosion-resistant design
-
FluidLoc Cable Option: Prevents oil migration through the cable
-
Interchangeability: Compatible with XL and non-XL 3300 series components
-
High Temperature Tolerance: Extended Temperature Range models available up to 260°C
Applications
-
Steam, gas, and hydro turbines
-
Compressors and expanders
-
Industrial pumps and motors
-
Gearboxes
-
Critical rotating machinery requiring vibration and axial position monitoring
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | 330104-00-08-05-02-CN |
| Probe Diameter | 8 mm |
| Thread Size | M10 x 1 |
| Total Length | 0.5 meter |
| 重量 | 0.162 kg (probe only) |
| Cable Type | Armored, standard coaxial |
| Connector | Miniature coaxial ClickLoc |
| Operating Temp. (Probe) | -52°C to +177°C (Standard), up to +218°C (ETR version) |
| Material (Probe Tip/Case) | PPS / AISI 303 or 304 Stainless Steel |
| Linear Range | 2 mm (80 mils) from 0.25 mm to 2.3 mm (–1 to –17 Vdc) |
| Incremental Scale Factor (ISF) | 7.87 V/mm ±5% |
| Minimum Shaft Diameter | 50.8 mm (recommended: ≥76.2 mm) |
| Pressure Sealing | Viton® O-ring |
| EMC/Approvals | CE, RoHS, CSA, ATEX, IECEx, SIL 2/SIL 3 certifications |
FAQs
Q1: What does the 330104-00-08-05-02-CN model measure?
A1: It measures shaft vibration and position using eddy current technology.
Q2: Is the probe suitable for hazardous environments?
A2: Yes, it has ATEX, IECEx, and CSA approvals for use in hazardous zones.
Q3: What is the thread type / this model?
A3: M10 x 1 metric thread.
Q4: Can I use this probe in high-temperature conditions?
A4: Yes, standard probes support up to 177°C; ETR versions go up to 218°C or higher.
Q5: What is the probe’s cable length?
A5: This specific model has a 0.5-meter total cable length.
Q6: Is it compatible with older Bently Nevada systems?
A6: Yes, it is fully compatible with non-XL 3300 series components.
Q7: Does it require special tools for installation?
A7: No, it uses ClickLoc connectors that only require finger-tight installation.
Q8: What is the recommended gap setting?
A8: Approximately -9 Vdc, which corresponds to 1.27 mm (50 mils).
Q9: Is there any protection against oil leakage?
A9: Yes, FluidLoc cable options prevent internal fluid migration.
Q10: Is a Proximitor sensor included with the probe?
A10: No, it must be purchased separately as part / the full transducer system.
Recommended Related モデルs (Same Series)
| モデル Number | Thread Type | Cable Length | Armor | 重量 |
|---|---|---|---|---|
| 330101-00-08-05-02 | 3/8-24 UNF | 0.5 m | Yes | 0.162 kg |
| 330104-00-06-10-02 | M10 x 1 | 1.0 m | Yes | 0.185 kg |
| 330104-01-05-50-02 | M10 x 1 | 5.0 m | Yes | 0.275 kg |
| 330104-00-06-10-02 | M10 x 1 | 1.0 m | Yes | 0.185 kg |
| 330105-02-12-05-02 | 3/8-24 UNF | 0.5 m | No | 0.145 kg |
| 330106-05-30-10-02 | M10 x 1 | 1.0 m | No | 0.148 kg |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Function | 重量 |
|---|---|---|---|
| 330180-50-05 | 3300 XL Proximitor Sensor, 5 m | Signal conditioning | 0.246 kg |
| 330130-030-00-00 | 3300 XL Extension Cable, 3 m | Cable interface | 0.102 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration monitoring | 0.58 kg |
| 3500/15-05-01-00 | System Power Supply | Power supply module | 0.77 kg |
| 3500/22M-01-01 | Transient Data Interface | System communication | 0.63 kg |
| 3500/25-01-01-00 | Keyphasor Module | Shaft phase reference | 0.45 kg |
