Product 説明

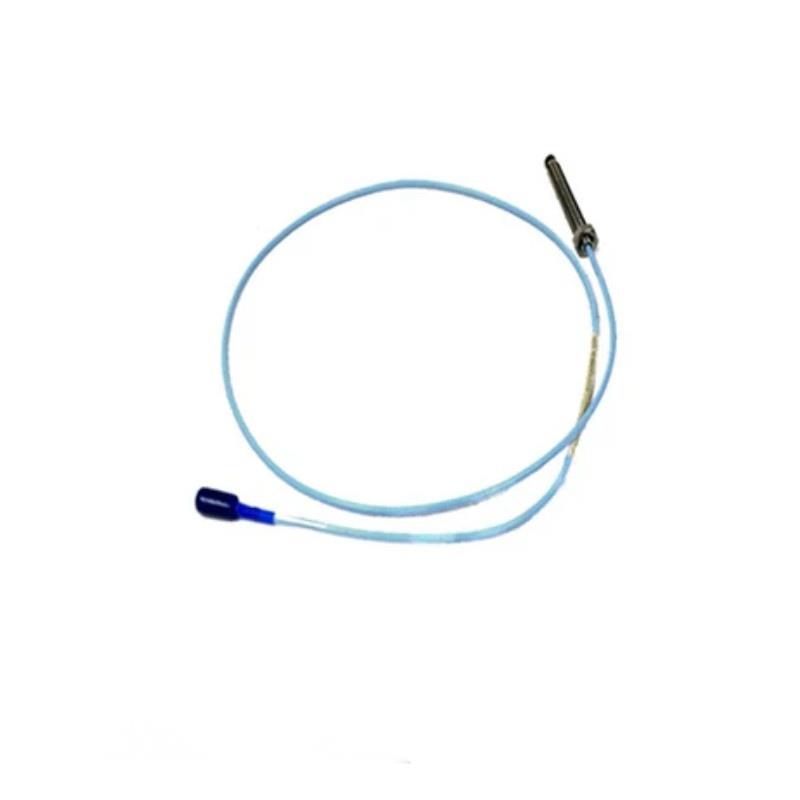

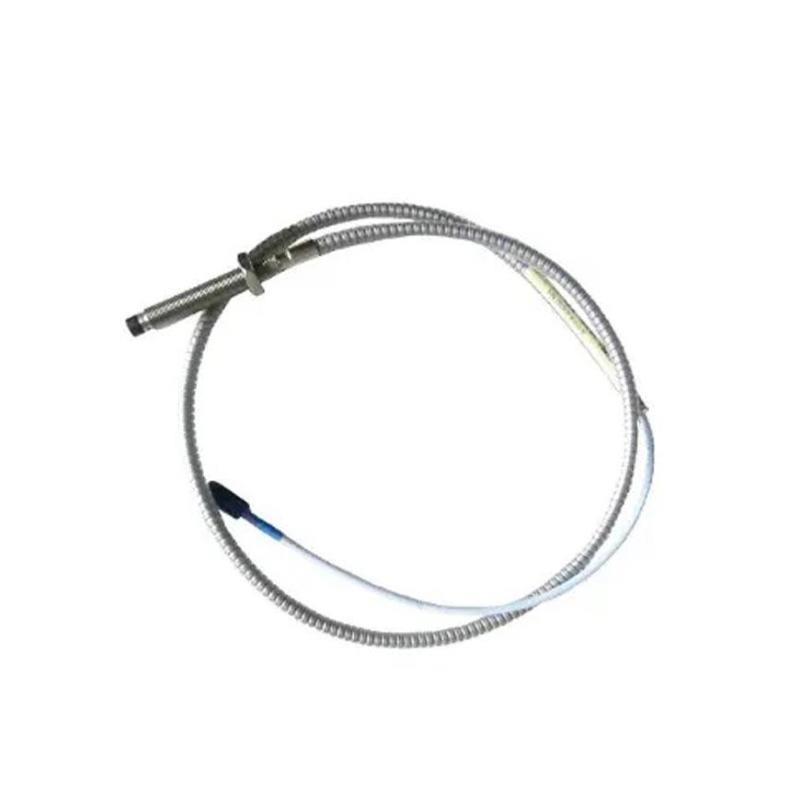

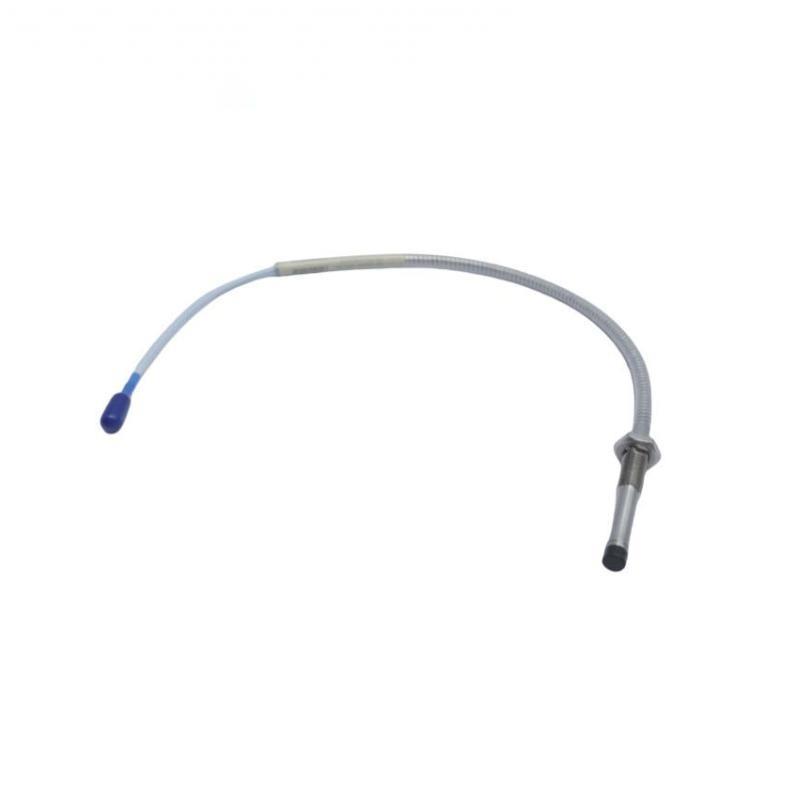

The Bently Nevada 330104-00-06-20-01-00 is part / the 3300 XL 8 mm Proximity Transducer System. It features an M10x1 thread and armored construction, providing high-precision measurements / shaft position and vibration in rotating machinery. The system includes a probe, extension cable, and a Proximitor sensor, delivering voltage proportional to the gap between the probe tip and the observed conductive target surface.
Product Applications
-
Turbomachinery radial vibration and thrust position monitoring
-
Shaft position and vibration monitoring in compressors, turbines, and motors
-
Overspeed and Keyphasor reference signal detection
-
状態 monitoring in fluid-film bearing machines
-
Integration into API 670 compliant systems
Product Advantages
-
Compliant with API 670 Standard
-
Enhanced RFI/EMI imm台y (CE mark compliant)
-
Durable molded PPS tip and armored cable for high reliability
-
FluidLoc and CableLoc options to prevent leakage and enhance cable retention
-
Full interchangeability across the 3300 XL 8 mm product line
-
サポートs extended temperature applications up to 218°C
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 330104-00-06-20-01-00 |
| Probe Diameter | 8 mm |
| Thread Type | M10 x 1 |
| Cable Type | Armored |
| Total Length | 2.0 meters |
| 重量 | 0.646 kg (typical system) |
| Case Material | AISI 303/304 Stainless Steel |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Temperature Range (Probe) | -52°C to +177°C (Standard) |
| Linear Range | 2 mm (0.25 to 2.3 mm gap) |
| Frequency Response | 0–10 kHz, ±3 dB |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) ±5% |
| Recommended Gap | 1.27 mm (50 mils) |
| Minimum Target Diameter | 15.2 mm |
| Recommended Shaft Diameter | ≥76.2 mm |
| Connector Type | ClickLoc Miniature Coaxial |
FAQs
Q1: What is the main function / the 330104-00-06-20-01-00 probe?
A1: It measures shaft vibration and position in rotating equipment using non-contact eddy current sensing.
Q2: Is this probe compliant with API 670?
A2: Yes, it meets the API 670 requirements for linearity, mechanical configuration, and performance.
Q3: Can the probe be used in high-temperature environments?
A3: Yes, up to 177°C standard or up to 218°C with extended temperature range (ETR) variants.
Q4: What type / machines typically use this probe?
A4: Turbines, compressors, pumps, and large motors.
Q5: Does this model include an extension cable?
A5: It supports extension cables but they must be ordered separately unless part / a full system kit.
Q6: Is the probe interchangeable with other 3300 XL components?
A6: Yes, all 3300 XL 8 mm system components are fully interchangeable.
Q7: What type / connector does the probe use?
A7: A gold-plated, corrosion-resistant ClickLoc coaxial connector.
Q8: Is it suitable for hazardous environments?
A8: Yes, it has ATEX, CSA, and IECEx approvals for hazardous area use.
Q9: How is the probe mounted?
A9: It is typically mounted using threaded mounting brackets or clamp brackets depending on the configuration.
Q10: What is the recommended minimum shaft diameter?
A10: 76.2 mm is recommended to minimize scale factor error and cross-talk.
Related モデルs from the Same Series
| モデル Number | Thread Type | Cable Type | Total Length | Temp Range |
|---|---|---|---|---|
| 330101-00-20-10-02-00 | 3/8-24 UNF | Standard | 2.0 m | -52°C to +177°C |
| 330102-00-20-10-02-00 | 3/8-24 UNF | Armored | 2.0 m | -52°C to +177°C |
| 330103-00-20-10-02-00 | M10 x 1 | Standard | 2.0 m | -52°C to +177°C |
| 330105-02-12-10-02-00 | 3/8-24 UNF | FluidLoc | 2.0 m | Up to 218°C |
| 330140-00-20-10-02-00 | Smooth Case | Standard | 2.0 m | -52°C to +177°C |
| 330191-00-20-10-02-05 | 3/8-24 UNF | ETR | 2.0 m | Up to 218°C |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Application | Interface | 重量 |
|---|---|---|---|---|
| 3300/16-12-01-01-00 | Proximitor Monitor | Vibration Monitoring | 4–20 mA/Buffered | 0.9 kg |
| 330104-00-06-20-01-00 | 8 mm Proximity Probe | Shaft Vibration Measurement | Coaxial | 0.646 kg |
| 330180-91-05 | Proximitor Sensor | Position & Vibration Sensing | Voltage Output | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Machinery Protection | Rack-mounted | 0.75 kg |
| 3500/22M | Transient Data Interface Module (TDIM) | Data Collection | System Interface | 1.1 kg |
| 3500/20 | Rack Interface Module | System Communications | Serial/Ethernet | 0.8 kg |
