Product Overview

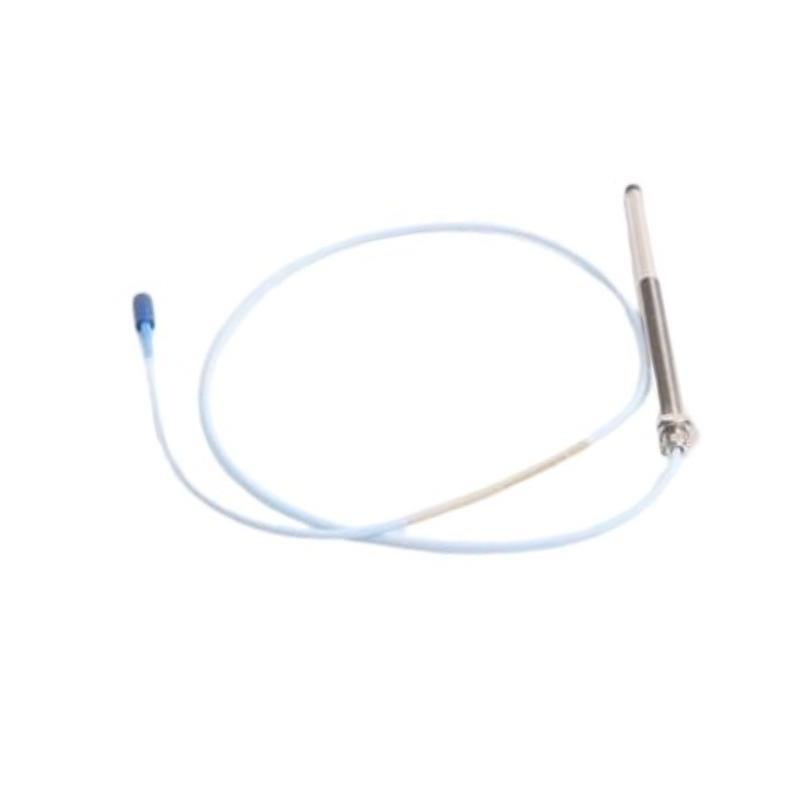

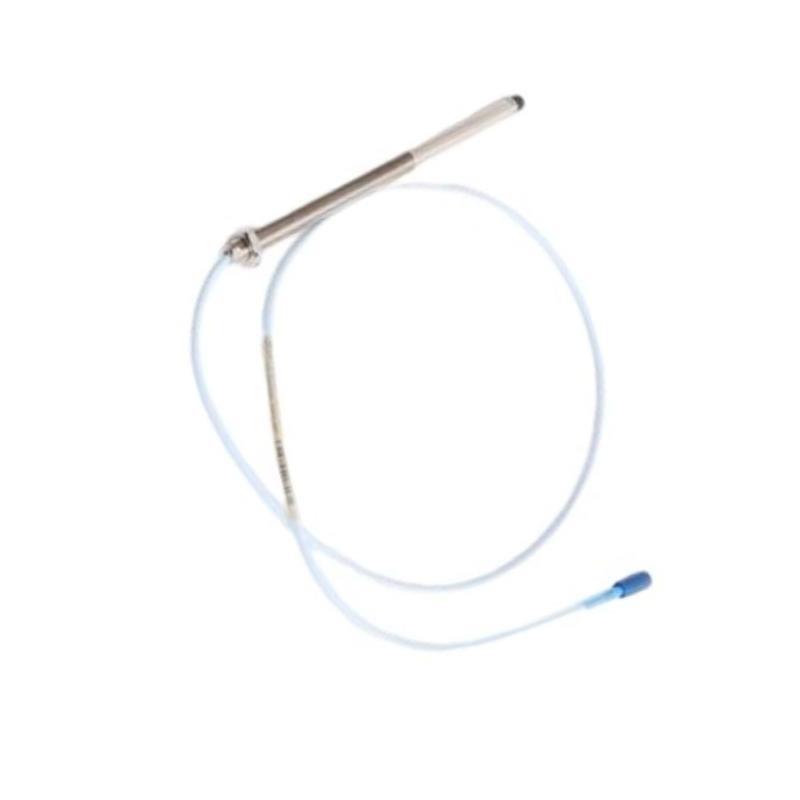

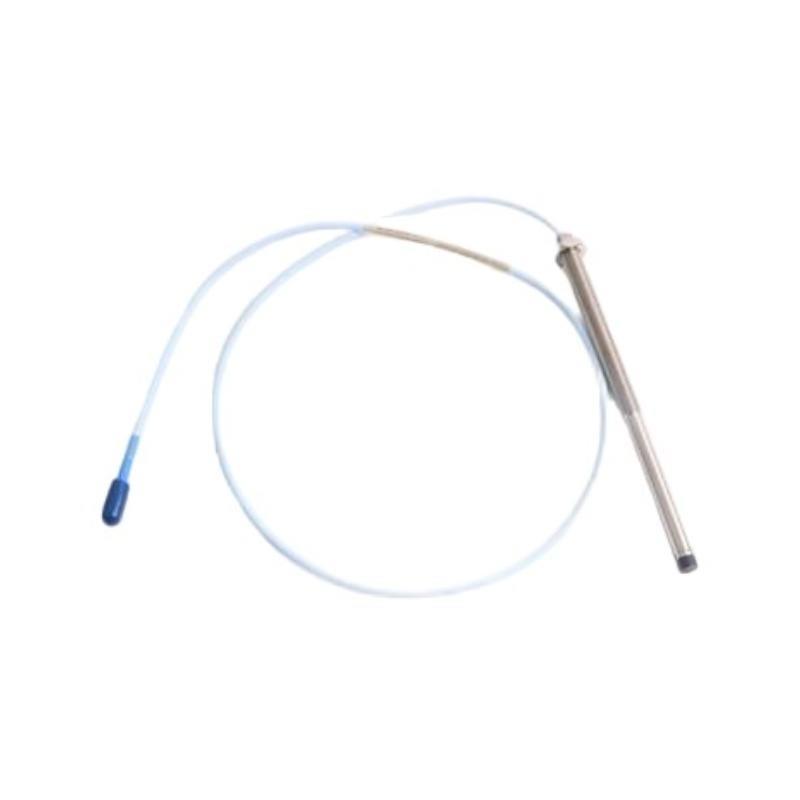

The Bently Nevada 330103-07-18-10-02-00 is a robust 8 mm proximity probe from the 3300 XL series, designed to provide high-accuracy vibration and position measurement for rotating machinery. With an 18-foot (5.49 meters) molded coaxial cable, this model is perfect for applications requiring medium-to-long cable reach without compromising the signal integrity.
Constructed from corrosion-resistant stainless steel and featuring a polyphenylene sulfide (PPS) probe tip, the 3300 XL series proximity probes are built to endure harsh industrial environments. The probe integrates seamlessly with Bently Nevada’s 3300 XL Proximitor® sensor systems, making it an excellent choice for machinery protection and predictive maintenance in industrial sectors like power generation, petrochemical, and manufacturing.
Key Features
-
8 mm probe tip for precision shaft vibration and position measurement
-
18-foot (5.49 m) molded coaxial cable for extended reach
-
Stainless steel probe body ensures durability and resistance to corrosion
-
High imm台y to EMI/RFI ensures clean, accurate signals
-
Reverse polarity and overvoltage protection
-
IP68-rated for protection against dust and water ingress
-
Compliant with API 670 for machinery protection standards
-
CE and RoHS certified for global regulatory compliance
Technical Specifications
| Item | Specification |
|---|---|
| Product モデル | 330103-07-18-10-02-00 |
| Product Family | 3300 XL 8 mm Proximity Probe |
| Sensing Range | 0.5 to 2.0 mm (20 to 80 mils) |
| Probe Tip Diameter | 8 mm |
| Cable Length | 18 feet (5.49 meters) |
| Connector Type | Molded miniature coaxial connector |
| Probe Body Material | AISI 303 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Thread Type | M10 × 1.0 or 3/8-24 UNF (application-dependent) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g peak, 10-2000 Hz |
| Shock Limit | 1000 g, 1 ms, ½ sine wave |
| Environmental Protection | IP68 (probe only) |
| 重量 | 0.323 kg |
| Dimensions | Total Length : 1.0 meters |
Industry Applications
-
Gas and steam turbines
-
Compressors, pumps, and rotating equipment
-
Electric motors and generators
-
Gearboxes and drive systems
-
Petrochemical and chemical plants
-
Power generation plants
-
Marine propulsion systems
-
Manufacturing machinery and heavy equipment monitoring
Product Advantages
-
Extended Cable Length: The 18-foot (5.49 m) cable allows for more flexible installations in medium-to-long-range applications.
-
Corrosion Resistance: Stainless steel housing /fers excellent protection in harsh, corrosive environments.
-
Signal Integrity: High imm台y to EMI/RFI ensures clean, reliable data transmission.
-
Durability: IP68 protection guarantees resistance to dust, moisture, and other environmental factors.
-
Compatibility: Seamlessly integrates with 3300 XL Proximitor® sensors for comprehensive machinery protection.
-
Enhanced Monitoring: Ideal for use in machinery protection and predictive maintenance systems.
-
Compliance: Meets API 670 standards, making it suitable for critical safety and monitoring applications.
-
Versatility: Suitable for a wide range / industries, including power generation, petrochemical, and manufacturing.
よくある質問 (FAQ)
-
What is the cable length / this probe?
This model comes with a standard 18-foot (5.49 meters) molded coaxial cable. -
Can this probe be used in outdoor environments?
Yes, the probe is rated IP68, making it suitable for both dust and water exposure. -
What is the sensing range / this proximity probe?
The sensing range is 0.5 to 2.0 mm (20 to 80 mils), providing high precision. -
Is this probe compatible with other Bently Nevada systems?
Yes, it is compatible with all Bently Nevada 3300 XL Proximitor® sensor systems. -
What materials are used for the body and tip / the probe?
The probe body is made / stainless steel (AISI 303) and the tip is made / polyphenylene sulfide (PPS). -
What is the maximum temperature for operation?
It can operate in temperatures ranging from -35°C to +177°C. -
Does this probe feature any protection from electrical damage?
Yes, it includes reverse polarity and overvoltage protection for reliable performance. -
What type / thread does this probe use?
It uses either M10 × 1.0 or 3/8-24 UNF threads, depending on the specific application. -
Is factory calibration required?
The probe comes factory-calibrated, though field verification is always recommended. -
What industries are best suited for this proximity probe?
It is ideal for use in power generation, petrochemical, gas turbines, and general machinery monitoring.
