Product Overview

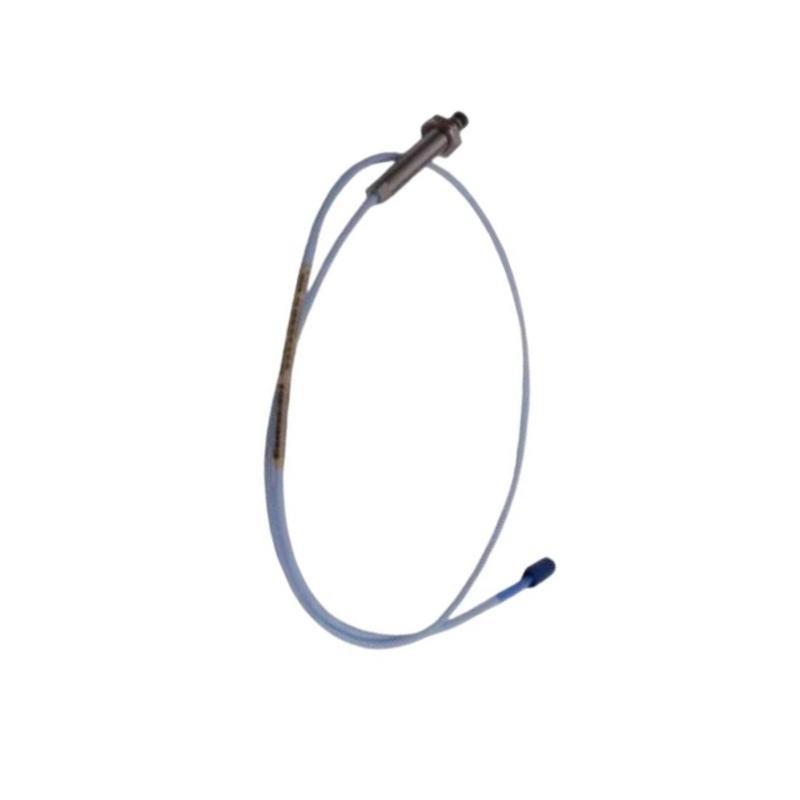

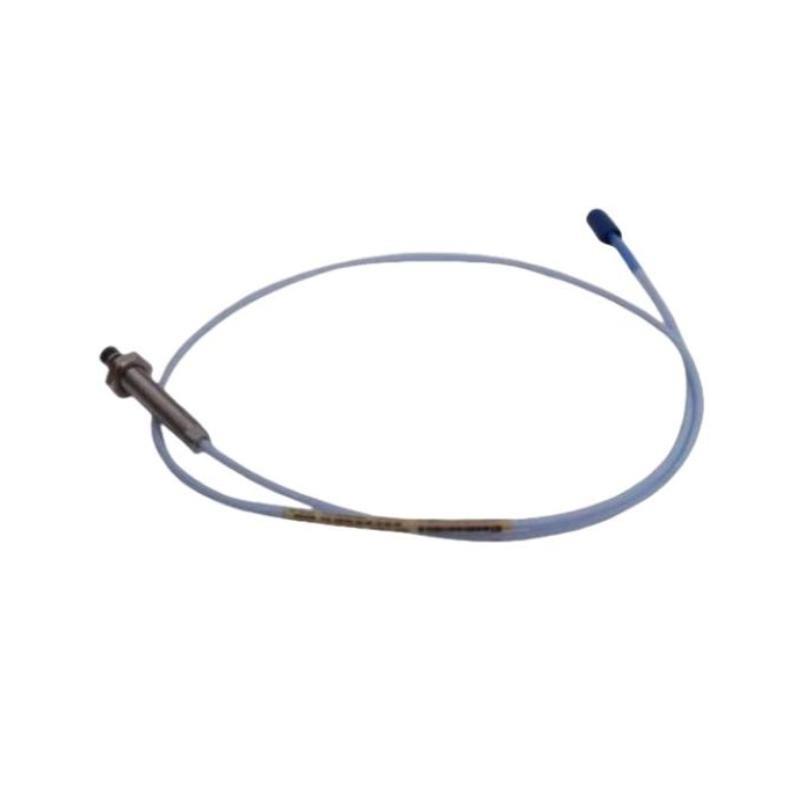

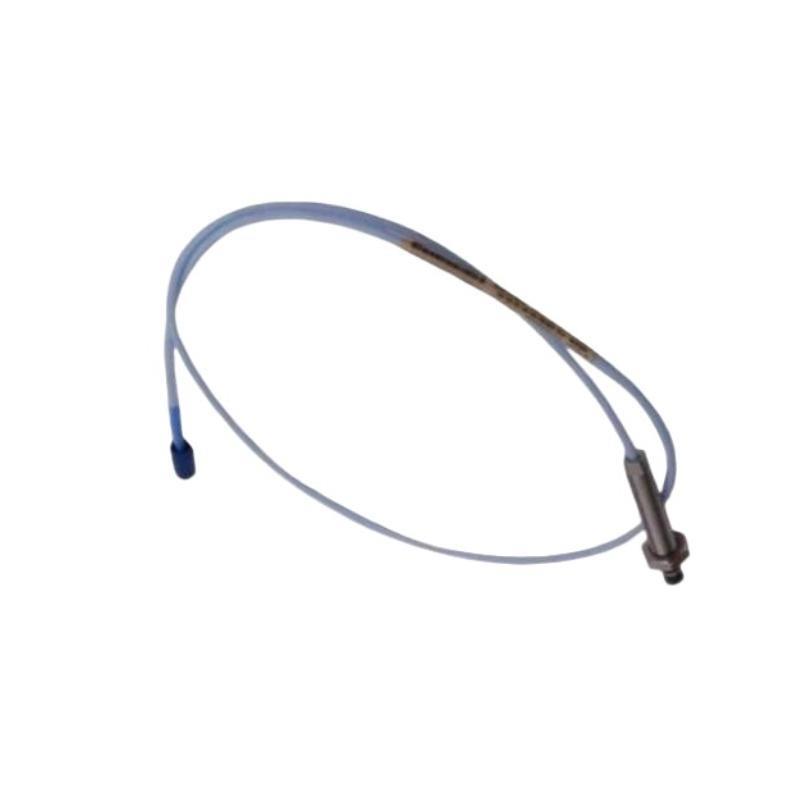

The Bently Nevada 330103-07-16-05-02-00 is a high-performance 8 mm proximity probe from the renowned 3300 XL series, designed to deliver accurate shaft displacement, vibration, and position measurements in critical rotating equipment. With a 16-foot (4.87 meters) probe cable, this model is ideal for applications requiring extended cable reach without signal degradation.
Built for durability and performance in industrial environments, the probe features a corrosion-resistant stainless steel body and a polyphenylene sulfide (PPS) tip. It is fully compatible with the 3300 XL Proximitor® sensor and extension cables, forming part / a reliable condition monitoring and machinery protection system.
Key Features
-
8 mm probe tip with advanced shielding
-
16-foot (4.87 m) molded coaxial cable for long-distance installations
-
Rugged stainless steel housing and high-temperature operation capability
-
優良 EMI/RFI imm台y for clean, stable signal output
-
Designed to comply with API 670 standards for machinery protection
-
Compatible with all 3300 XL extension cables and Proximitor® sensors
-
IP68-rated for harsh industrial and hazardous environments
-
Factory-calibrated for optimal performance
Technical Specifications
| Item | Specification |
|---|---|
| モデル Number | 330103-07-16-05-02-00 |
| Series | Bently Nevada 3300 XL |
| Sensing Range | 0.5 to 2.0 mm (20 to 80 mils) |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF-2A |
| Cable Length | 16 feet (4.87 meters) |
| Connector Type | Miniature coaxial molded connector |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Body Material | AISI 303 Stainless Steel |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g peak, 10 to 2000 Hz |
| Shock Limit | 1000 g peak, 1 ms duration, ½ sine |
| Environmental Rating | IP68 (when properly installed) |
| Compliance | API 670, CE, RoHS |
| 重量 | 0.161 kg |
| Dimensions | Total Length : 0.5 meter |
Industry Applications
-
Turbine shaft position and vibration monitoring
-
Compressors and centrifugal pumps
-
Industrial motors and generators
-
Gearboxes and gear-driven systems
-
Petrochemical refineries
-
Offshore platforms and marine engines
-
Power generation and utility monitoring
-
Manufacturing and steel processing plants
Product Advantages
-
Long Cable Length: Ideal for installations where extended reach is required without compromising signal quality.
-
API 670 Compliance: Ensures compatibility with global machinery protection standards.
-
High Reliability: Rugged design and durable materials withstand aggressive industrial conditions.
-
優良 Signal Integrity: EMI/RFI shielding minimizes electrical noise interference.
-
Versatility: Works seamlessly with other 3300 XL Proximitor sensors and extension cables.
-
Environment-Ready: IP68 protection ensures functionality in dust, oil, and moisture-prone environments.
-
Predictive Maintenance: Enables early fault detection to minimize unplanned outages.
-
Easy Integration: Standard thread and connector types streamline field installation.
-
Low Lifecycle Cost: Durable design reduces the frequency / replacements.
-
Factory-Calibrated: Ready for plug-and-play deployment in compatible systems.
よくある質問 (FAQ)
-
What is the cable length / this probe?
This model includes a 16-foot (4.87 m) molded coaxial cable. -
Is it compatible with other Bently Nevada systems?
Yes, it is fully compatible with the 3300 XL Proximitor® and extension cables. -
Can it be used in outdoor or wet conditions?
Yes, the probe is rated IP68 for dust and water protection. -
What machinery is it best suited for?
Ideal for turbines, compressors, motors, and other rotating equipment. -
What is the sensing range / this proximity probe?
The standard sensing range is 0.5 to 2.0 mm (20 to 80 mils). -
What materials are used for the probe tip and body?
The tip is PPS plastic; the body is stainless steel (AISI 303). -
Does this probe support reverse polarity protection?
Yes, like other 3300 XL probes, it features built-in protection. -
What thread size does it use?
It uses a standard 3/8-24 UNF thread for mounting. -
Is recalibration required after installation?
Factory calibration is provided, but field verification is recommended. -
What standard does it follow for safety and performance?
It complies with API 670, CE, and RoHS standards.
Related モデルs
| モデル Number | 説明 |
|---|---|
| 330103-00-13-10-12-05 | 13 ft probe with 8 mm tip, molded connector |
| 330103-00-16-10-01-00 | 16 ft probe, standard configuration |
| 330103-00-20-50-02-00 | 20 ft probe with 50 mm tip, straight thread |
| 330104-00-04-10-02-05 | 4 ft cable length probe, 3300 XL series |
| 330104-00-06-10-02-CN | 6 ft cable, molded coaxial probe |
| 330104-00-08-10-01-CN | 8 ft molded cable probe with API conformance |
Popular Bently Nevada モデルs
| モデル Number | 説明 |
|---|---|
| 330105-02-12-05-02-00 | Proximitor Sensor for 3300 XL systems |
| 330130-045-00-05 | 4.5 m standard extension cable |
| 3500/22M-01-01-00 | 3500 Communication Gateway Module |
| 3500/42M-01-00 | 4-channel Vibration Monitor Module |
| 330180-91-00 | DIN-rail mount Proximitor Sensor |
| 330106-05-30-10-02-00 | 3300 XL 5 mm Proximity Probe |
