Product Overview

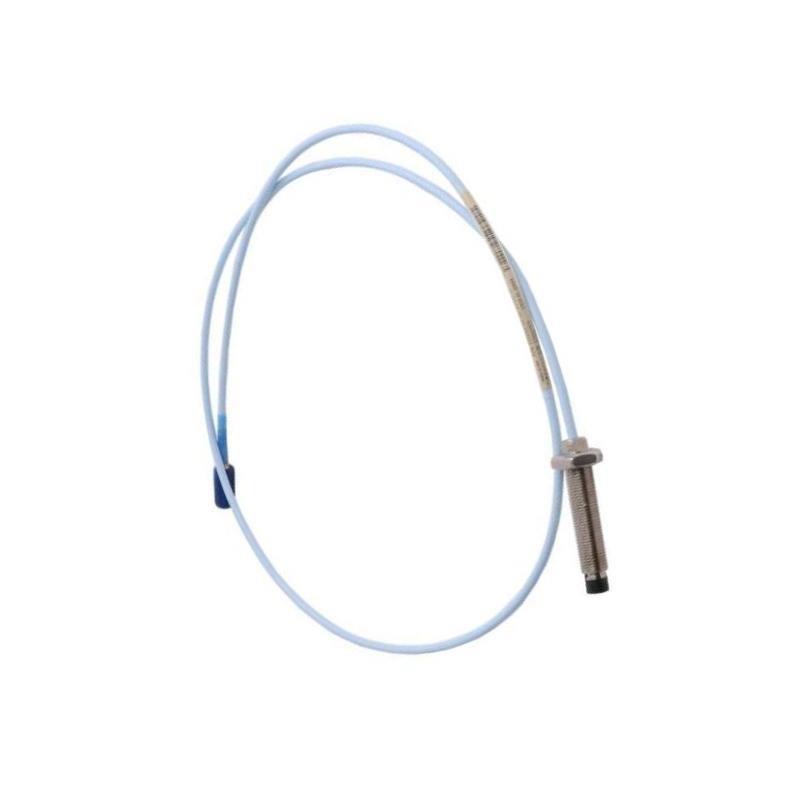

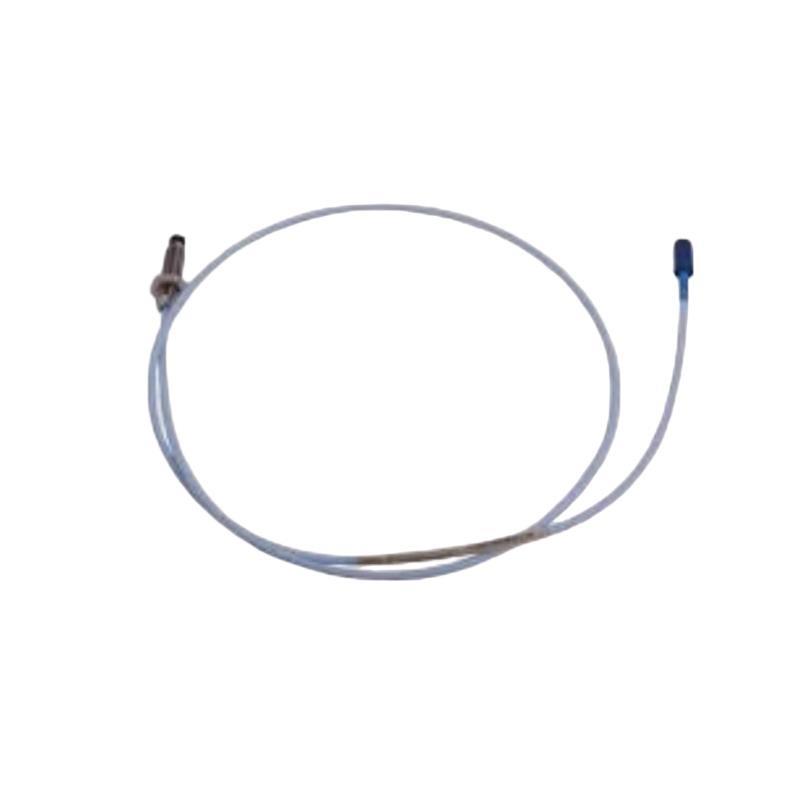

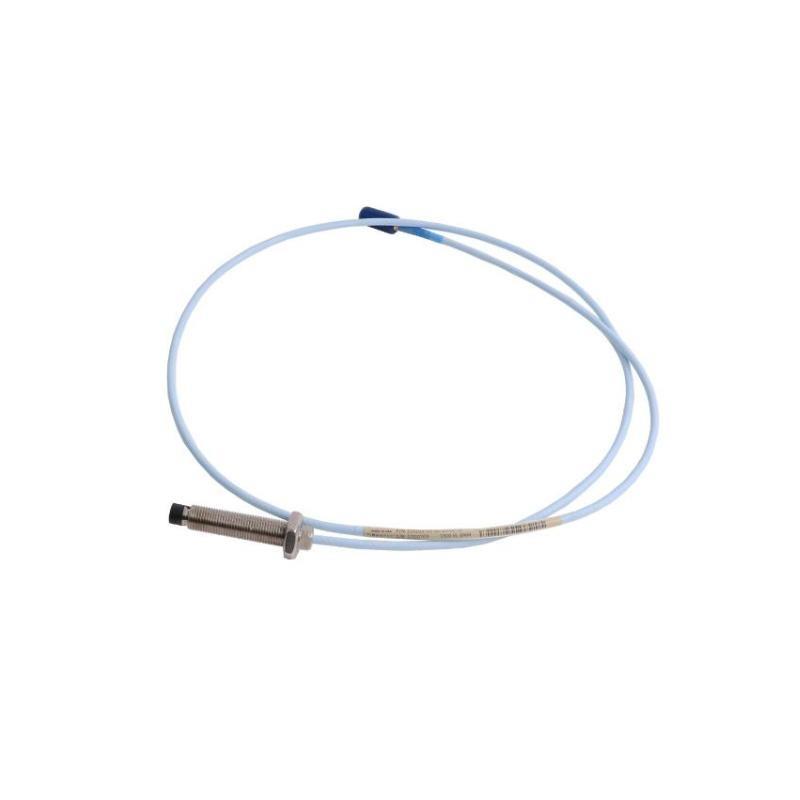

The Bently Nevada 330103-02-04-10-02-05 is a precision-engineered proximity probe from the 3300 XL 8 mm series. Designed for high-reliability, non-contact measurement / shaft vibration and position, this probe is optimized for critical rotating machinery applications. The rugged construction and factory-matched cable configuration ensure long-term stable performance even under severe industrial conditions.
It is compatible with the Bently Nevada 3300 XL system, providing API 670-compliant condition monitoring and protection for turbines, compressors, pumps, and motors.
Key Features
-
Eddy current, non-contact sensing technology
-
8 mm diameter probe tip with PPS tip material
-
Stainless steel body for durability and corrosion resistance
-
Factory-matched armored cable system for improved signal integrity
-
Designed for compatibility with 3300 XL Proximitor sensors
-
High sensitivity and linear response across a 2 mm range
-
Compliance with API 670, CE, and RoHS standards
-
Capable / operating in temperatures from -35°C to +177°C
Technical Specifications
| Item | Specification |
|---|---|
| モデル Number | 330103-02-04-10-02-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Sensing Principle | Eddy current (non-contact) |
| Probe Tip Diameter | 8 mm (0.315 in) |
| Tip Material | PPS (Polyphenylene sulfide) |
| Body Material | AISI 304 Stainless Steel |
| Thread Type | 1/4-28 UNF-2A |
| Target Material | AISI 4140 steel or equivalent |
| Sensitivity | 7.87 mV/μm (200 mV/mil) ±5% |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0 to 10 kHz |
| Temperature Range | -35°C to +177°C (-31°F to +351°F) |
| Vibration Limit (Probe) | 50 g pk-pk @ 5–2000 Hz |
| 重量 | 0.323 kg |
| Dimensions | Total Length : 1.0 meter |
| Connector Type | Miniature coaxial |
| Cable Type | Armored |
| Compliance | API 670, CE, RoHS |
Industry Applications
This probe is ideal for monitoring critical rotating equipment in:
-
Steam and gas turbines
-
Centrifugal and reciprocating compressors
-
Industrial pumps and blowers
-
Electric motors and generators
-
Gearboxes and couplings
-
状態-based maintenance in petrochemical, power generation, and manufacturing sectors
Product Advantages
-
High accuracy and repeatability with factory-matched components
-
Robust stainless steel construction for harsh industrial environments
-
Armored cable provides enhanced protection and signal integrity
-
Wide operating temperature and vibration range
-
API 670 compliance ensures suitability for mission-critical machinery protection
-
Compact design for easy installation in tight spaces
-
No field calibration needed due to factory matching
よくある質問 (FAQ)
-
What is the diameter / the probe tip?
The probe tip diameter is 8 mm (0.315 in). -
Is the cable armored or unarmored?
This model comes with an armored cable for extra protection. -
What is the maximum temperature rating?
The probe operates within -35°C to +177°C (-31°F to +351°F). -
Does this probe require field calibration?
No, the probe and cable are factory-matched to eliminate field calibration. -
What sensing technology does this probe use?
It uses eddy current non-contact sensing. -
Is the probe API 670 compliant?
Yes, it meets API 670 standards for machinery protection. -
What type / connector does it use?
It uses a miniature coaxial connector. -
What is the probe’s linear sensing range?
The linear range is 2 mm (80 mils). -
Can this probe be used in hazardous environments?
Yes, when properly installed with the correct intrinsic safety equipment. -
What material is the probe calibrated for?
It is calibrated for AISI 4140 steel or equivalent.
Related モデルs
| モデル Number | 説明 |
|---|---|
| 330103-02-12-10-02-05 | 8 mm probe, armored cable, 12 mm thread length |
| 330103-02-18-10-02-05 | 8 mm probe, armored cable, 18 mm thread length |
| 330103-01-15-05-01-00 | 8 mm probe, unarmored cable, 15 mm thread length |
| 330103-00-10-10-02-05 | 8 mm probe, armored cable, 10 m cable length |
| 330103-00-05-10-02-00 | 8 mm probe, armored cable, 5 m cable length |
Popular モデルs
| モデル Number | 説明 |
|---|---|
| 330104-00-12-10-02-05 | 3300 XL 8 mm probe, armored cable, 10 m system |
| 330130-045-01-05 | 3300 XL extension cable, 45 ft, armored |
| 330180-91-05 | 3300 XL Proximitor sensor, 5 m system |
| 3500/42M-01-00 | 3500/42M Proximitor monitor |
| 3500/22M-01-01-00 | 3500/22M transient data interface module |
| 144181-01 | Seismic velocity transducer |
