Product Overview

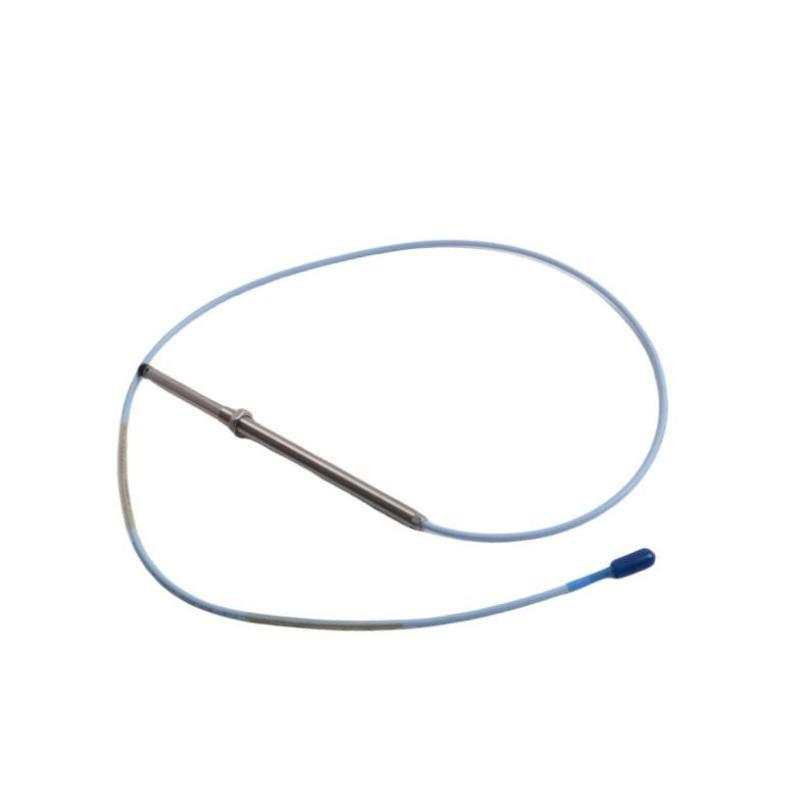

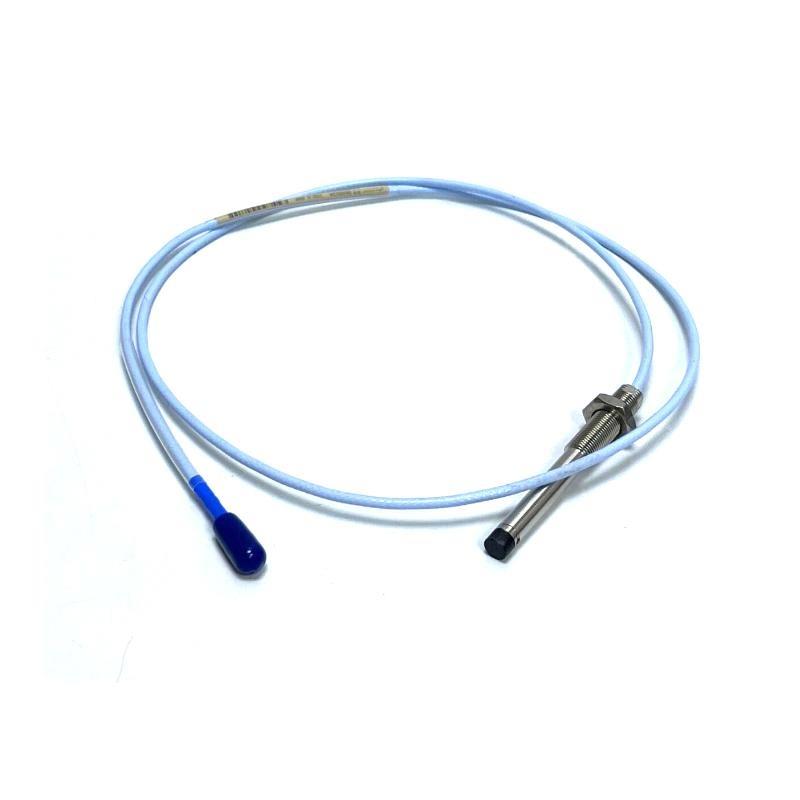

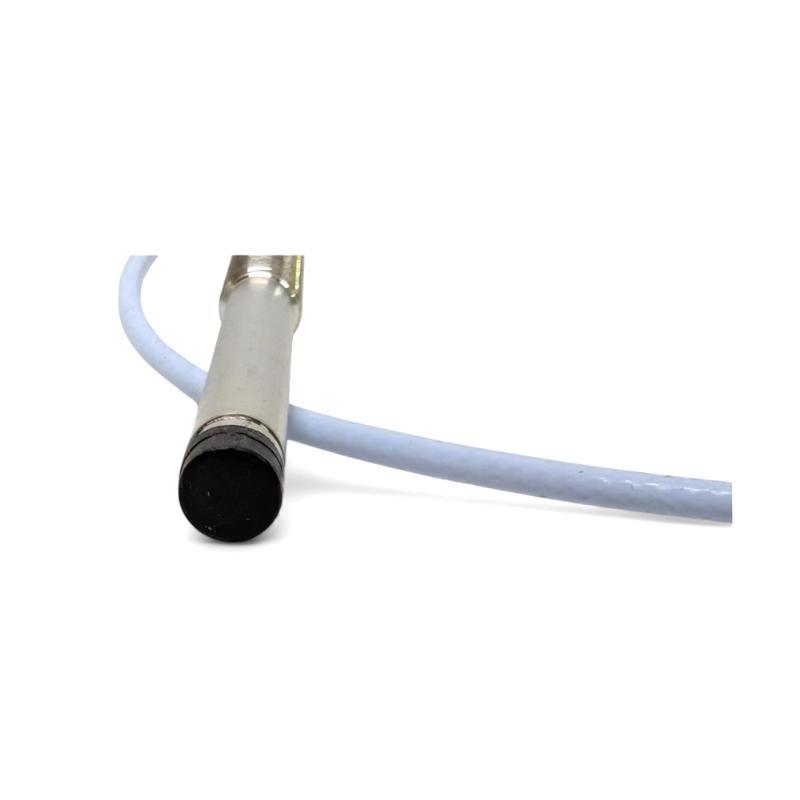

The Bently Nevada 330103-00-18-10-02-00 is part / the 3300 XL 8 mm Proximity Probe system, designed for precise non-contact measurement / shaft vibration and position in rotating machinery. It provides accurate data required for machinery protection and condition monitoring systems, fully compliant with API 670 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル Number | 330103-00-18-10-02-00 |
| Probe Type | 3300 XL 8 mm Proximity Probe (eddy-current) |
| Unthreaded Length | 0 mm |
| Case Length | 180 mm |
| Total Cable Length | 1.0 meter |
| Connector Type | Miniature coaxial ClickLoc™ connector |
| Cable Type | Standard cable |
| Agency Approval | Not required |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Compliance | API 670, 4th Edition |
| Durability Features | TipLoc™ molding, CableLoc™ attachment, optional FluidLoc® sealing |
Applications
The 3300 XL 8 mm probe is engineered for a wide range / industrial applications:
-
Vibration Monitoring: Measures shaft dynamic motion in turbines, compressors, and pumps.
-
Position Measurement: Detects shaft axial and radial position for accurate machine alignment.
-
Keyphasor®/Speed Sensing: Provides reliable reference signals for phase and speed measurements.
-
Machinery Protection: Integral component / Bently Nevada protection systems to prevent critical failures.
-
Fluid-Film Bearing Machines: Specifically designed for turbines, motors, and other rotating machines using fluid-film bearings.
Advantages
-
High Accuracy: Provides consistent and linear response across a wide measurement range.
-
Robust Design: TipLoc™ probe encapsulation and CableLoc™ strain relief ensure long-term durability.
-
Easy Connectivity: ClickLoc™ connectors provide secure, corrosion-resistant, and tool-free connections.
-
Environmental Resistance: Optional FluidLoc® variant prevents fluid ingress for harsh industrial settings.
-
System Compatibility: Fully interchangeable with other Bently Nevada 5 mm and 8 mm probes and extension cables without calibration.
-
API Compliance: Meets industry standards for safety, reliability, and performance.
よくある質問 (FAQ)
Q1: What is the main function / the 330103-00-18-10-02-00 probe?
A1: It measures shaft vibration and position in rotating machinery using eddy-current technology.
Q2: Can this probe be used for Keyphasor® applications?
A2: Yes, it supports Keyphasor® reference and speed measurements.
Q3: Does it meet API 670 requirements?
A3: Yes, the 3300 XL 8 mm system is fully compliant with API 670 (4th edition).
Q4: What is the durability feature / this probe?
A4: It incorporates TipLoc™ molding and CableLoc™ attachment to withstand mechanical stress and pull forces up to 330 N.
Q5: Is the probe compatible with older Bently Nevada 3300 series?
A5: Yes, it is backward compatible and interchangeable with earlier systems.
Q6: What is the typical installation length / the probe?
A6: This model features a 180 mm case length with a 1.0 m cable.
Q7: How does the probe resist environmental factors?
A7: It uses gold-plated ClickLoc™ connectors and an optional FluidLoc® sealing system.
Q8: What is the total weight / the probe?
A8: The probe weighs 0.323 kg.
Q9: Can it be used in high-temperature environments?
A9: Yes, it is designed for industrial machinery operating under wide temperature ranges.
Q10: What makes the 3300 XL system superior to older probe designs?
A10: It /fers improved linearity, temperature stability, and enhanced mechanical robustness compared to legacy systems.
Related モデルs (Same Series / Alternatives)
| モデル Number | 説明 | Cable Length | Case Length | 重量 |
|---|---|---|---|---|
| 330103-00-15-10-02-00 | 3300 XL 8 mm Probe, 1.5 m cable | 1.5 m | 150 mm | 0.340 kg |
| 330103-00-20-10-02-00 | 3300 XL 8 mm Probe, 2.0 m cable | 2.0 m | 200 mm | 0.360 kg |
| 330103-00-08-10-02-00 | 3300 XL 8 mm Probe, 0.8 m cable | 0.8 m | 80 mm | 0.310 kg |
| 330103-00-25-10-02-00 | 3300 XL 8 mm Probe, 2.5 m cable | 2.5 m | 250 mm | 0.380 kg |
| 330103-00-12-10-02-00 | 3300 XL 8 mm Probe, 1.2 m cable | 1.2 m | 120 mm | 0.320 kg |
| 330103-00-30-10-02-00 | 3300 XL 8 mm Probe, 3.0 m cable | 3.0 m | 300 mm | 0.400 kg |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Application | 重量 |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | Vibration & position measurement | 0.310 kg |
| 330105-02-12-05-02-00 | 3300 XL 11 mm Proximity Probe | Heavy-duty machinery monitoring | 0.450 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor (Chinese version) | Probe system interface | 0.250 kg |
| 3500/22M | Transient Data Interface Module | Machinery protection system | 0.800 kg |
| 3500/42M | Proximitor/Seismic Monitor | Multi-channel vibration monitor | 1.200 kg |
| 3500/93 | System Rack | Centralized monitoring system | 2.500 kg |
