Product 説明

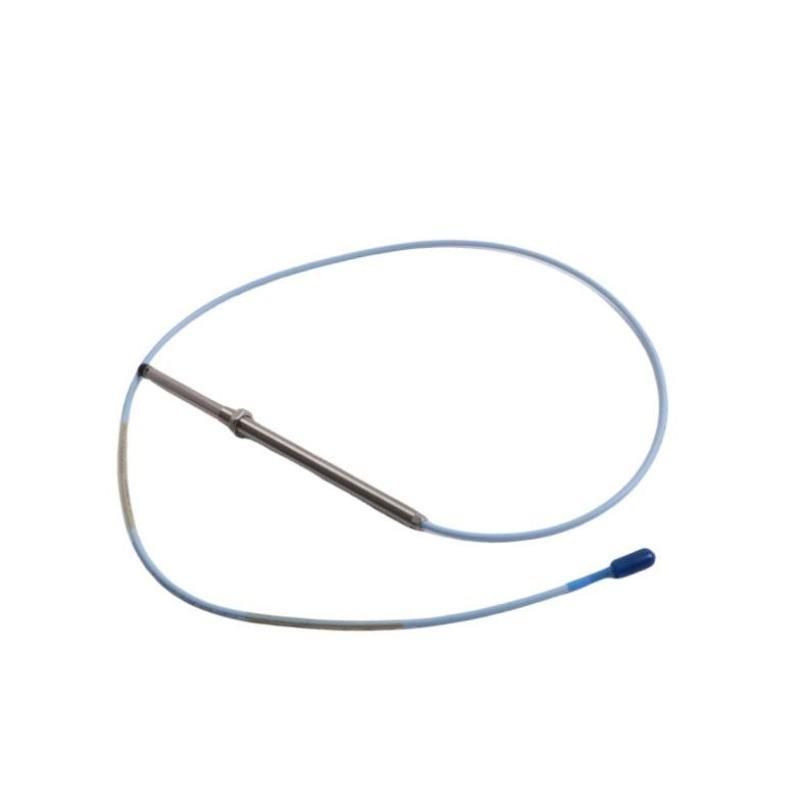

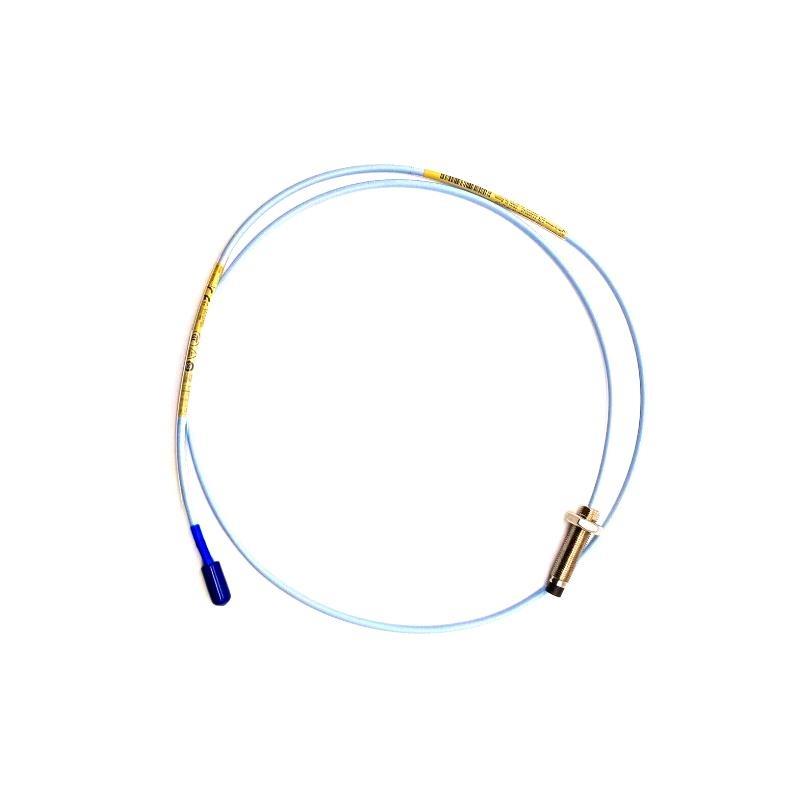

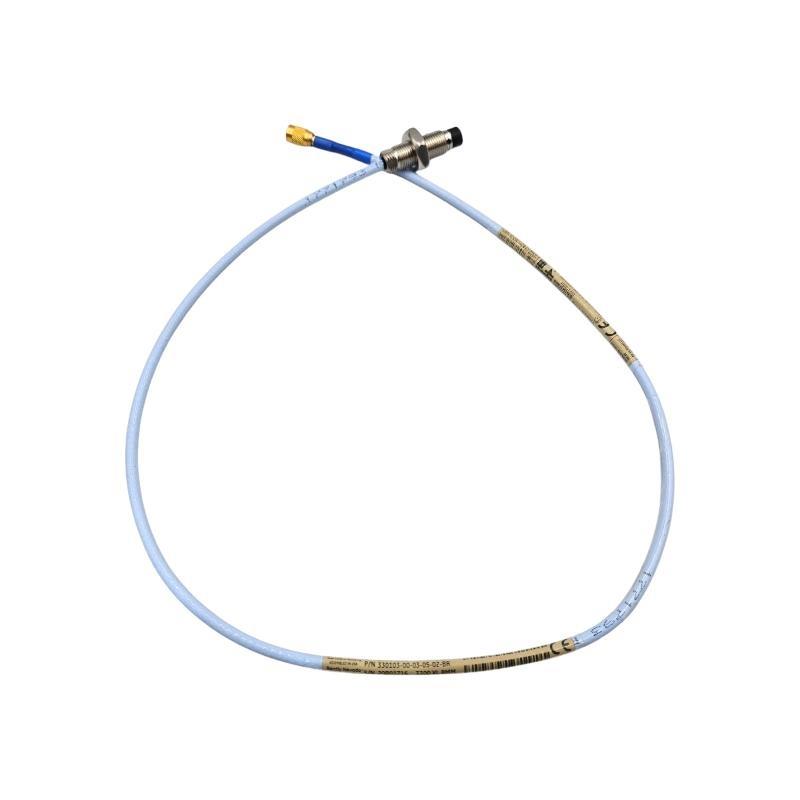

The Bently Nevada 330103-00-16-50-02-00 is part / the 3300 XL 8 mm Proximity Transducer System. It measures static and dynamic displacement (position and vibration) / rotating machinery, providing high accuracy and reliability. Designed to meet API 670 standards, it is fully interchangeable with other 3300 XL components, ensuring flexibility and ease / installation without recalibration. This model features a 5-meter cable length and robust construction suitable for demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル Number | 330103-00-16-50-02-00 |
| System Length | 5.0 meters (16.4 ft) |
| 重量 | Approx. 1.615 kg |
| Probe Tip Diameter | 8 mm |
| Thread Size | M10 x 1 |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Operating Temperature | -52°C to +177°C (standard), up to +218°C (ETR) |
| Cable Bend Radius | ≥25.4 mm (1.0 in) |
| Mounting Torque | 7.5–11.2 Nm (66–100 in·lbf) |
| Compliance | API 670, CE Mark, SIL 2/3, RoHS, ATEX, IECEx |
Applications
-
Vibration and position monitoring on fluid-film bearing machines
-
Keyphasor reference and speed measurements
-
Turbine, compressor, pump, and motor condition monitoring
-
High-density panel and DIN-rail installations
Advantages
-
Fully API 670-compliant performance
-
Interchangeable components minimize downtime
-
Extended temperature range options available
-
Robust connectors and cable designs prevent loosening and leakage
-
High imm台y to electromagnetic interference
-
Rugged probe tip for harsh environments
よくある質問 (FAQ)
Q1: What is the linear measurement range / the 330103 probe?
A1: It measures from approximately 0.25 mm to 2.3 mm (10–90 mils).
Q2: Is this probe compliant with API 670?
A2: Yes, it fully meets API 670 mechanical and performance standards.
Q3: Can the probe withstand high temperatures?
A3: The standard probe operates up to +177°C, with an ETR version rated up to +218°C.
Q4: Is calibration needed when replacing components?
A4: No, components are fully interchangeable without bench calibration.
Q5: Does it support both radial and axial measurements?
A5: Yes, it is suitable for both vibration and position (axial) monitoring.
Q6: How does it handle electromagnetic interference?
A6: It has improved RFI/EMI imm台y for reliable performance.
Q7: What type / connector does it use?
A7: It uses corrosion-resistant, gold-plated ClickLoc connectors.
Q8: What is the recommended gap voltage setting?
A8: Approximately -9 VDC, equivalent to 1.27 mm (50 mils).
Q9: Are there armored cable options?
A9: Yes, armored versions are available for enhanced durability.
Q10: Can it be installed in hazardous areas?
A10: Yes, it carries ATEX, IECEx, and other hazardous area certifications.
Related モデルs
| モデル Number | 説明 | Length | 重量 |
|---|---|---|---|
| 330101-00-08-10-02-00 | 8mm probe, UNF thread, 1.0m | 1.0m | ~0.8 kg |
| 330102-00-20-10-02-00 | 8mm probe, UNF thread, armored, 2.0m | 2.0m | ~1.0 kg |
| 330104-00-06-10-02-00 | 8mm probe, M10 thread, armored, 0.6m | 0.6m | ~0.7 kg |
| 330105-02-12-10-02-00 | 8mm reverse mount probe, UNF, 1.0m | 1.0m | ~0.8 kg |
| 330140-00-05-10-02-00 | 8mm smooth case probe, 0.5m | 0.5m | ~0.7 kg |
| 330193-00-20-10-02-00 | 8mm ETR probe, M10 thread, 2.0m | 2.0m | ~1.0 kg |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Length | 重量 |
|---|---|---|---|
| 3300/16-10-01-00 | Proximitor Sensor, 1m | 1.0m | ~0.5 kg |
| 330130-040-00-00 | Extension Cable, 4m | 4.0m | ~0.3 kg |
| 3300/20-10-01-00 | Proximitor Sensor, 2m | 2.0m | ~0.6 kg |
| 330104-01-05-50-02-00 | 8mm probe, armored, 5m | 5.0m | ~1.6 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | N/A | ~0.7 kg |
| 3500/44M-02-00 | Aeroderivative Vibration Monitor Module | N/A | ~0.7 kg |
