製品紹介

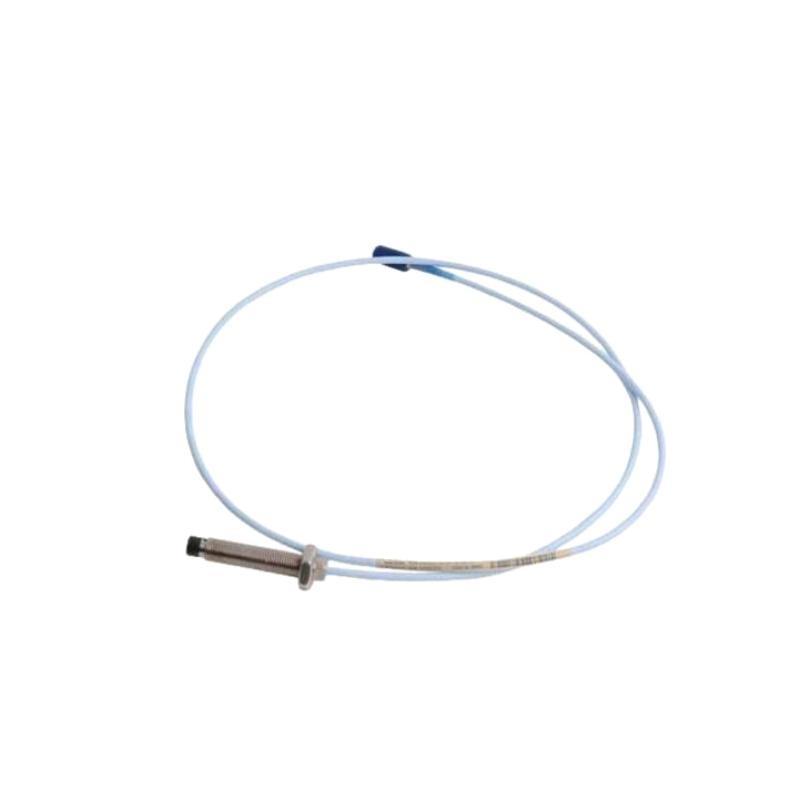

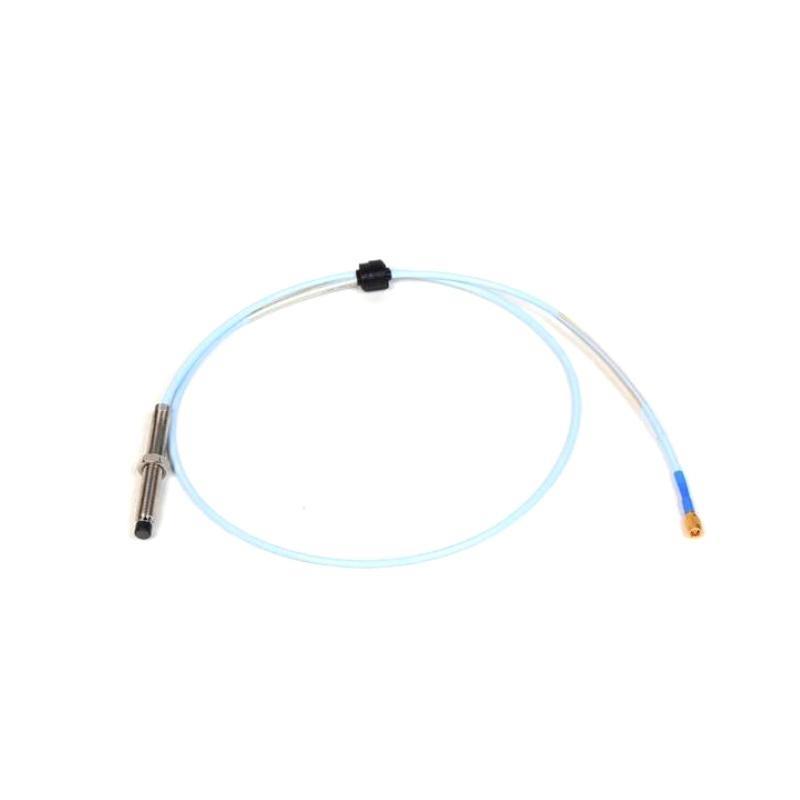

The Bently Nevada 330103-00-16-10-02-05 is part / the industry-standard 3300 XL 8mm Proximity Transducer System, designed and manufactured by Bently Nevada, a globally recognized leader in condition monitoring and machinery protection systems. This particular probe is engineered to /fer highly reliable, accurate, and durable performance in demanding industrial environments, especially in rotating machinery applications such as turbines, compressors, pumps, and motors.
The 330103-00-16-10-02-05 model represents a with a 1.0 meter total length and a Proximitor Sensor, all tailored to the API 670 standard and optimized for ruggedness, electrical integrity, and long-term stability. The 3300 XL Proximity Probe System is fully interchangeable and compatible with other Bently Nevada monitoring systems, ensuring flexible integration into a variety / setups.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | 330103-00-16-10-02-05 |
| Series | 3300 XL 8mm Proximity Probe System |
| メーカー | Bently Nevada |
| Sensing Principle | Eddy Current (non-contact measurement) |
| Target Material | Ferromagnetic (typically 4140 steel or similar) |
| Probe Tip Diameter | 8 mm |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Body Thread Type | 3/8-24 UNF-2A |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Frequency Response | Up to 10 kHz |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linearity | ±0.25 V over the linear range |
| Standard Compliance | API 670, CE, RoHS |
| Mounting Thread Options | 3/8-24 UNF, M10x1, or customer-specified |
| Connector Type | ClickLoc™ Keyed Connector (for secure locking) |
| System Compatibility | Compatible with 3300 XL Proximitor sensors and other Bently Nevada systems |
Applications
The 330103-00-16-10-02-05 proximity probe is primarily utilized in applications requiring precision, high reliability, and rugged performance under extreme environmental and mechanical conditions. Typical use cases include:
-
Steam, gas, and hydro turbines
-
Centrifugal and axial compressors
-
Electric motors and large industrial fans
-
Gearboxes and generators
-
Reciprocating machinery monitoring
-
Predictive and preventive maintenance systems
-
API 670 compliant machine protection systems
-
OEM machine building and retr/it projects
Its robust design and superior signal integrity make it ideal for both vibration monitoring and shaft position measurements, particularly in high-speed or critical rotating equipment.
Product Advantages
-
High Accuracy and Sensitivity: Delivers consistent 7.87 mV/μm sensitivity across the measurement range.
-
Robust Design: Engineered for harsh environments with high temperatures and vibration levels.
-
API 670 Compliance: Meets strict industry standards, making it ideal for safety-critical installations.
-
ClickLoc™ Connector System: Ensures secure and error-free connections, minimizing signal loss.
-
Full System Compatibility: Seamless integration with all Bently Nevada 3300 series systems.
-
Corrosion-Resistant Materials: Long-lasting performance in corrosive industrial environments.
-
Field Proven Reliability: Installed globally across industries for decades with strong performance track records.
-
Ease / Installation: Multiple mounting options, flexible cable lengths, and interchangeable sensor heads.
よくある質問 (FAQ)
-
Q: What does the model number 330103-00-16-10-02-05 signify?
A: It indicates the 3300 XL 8mm probe with a 1.0 meter total length, and specified connector/mounting thread options. -
Q: Is this proximity probe compatible with older Bently Nevada systems?
A: Yes, the 3300 XL series is designed for backward compatibility with legacy systems. -
Q: What is the typical linear range / this probe?
A: The linear range is approximately 2 mm (80 mils) for standard applications. -
Q: Can this probe be used in high-temperature environments?
A: Yes, it supports continuous operation up to 177°C (350°F). -
Q: What is the function / the Proximitor sensor in the system?
A: It conditions the raw signal from the probe and converts it into a standardized output for monitoring systems. -
Q: Does it support vibration and axial position measurements?
A: Yes, it is suitable for both radial vibration and axial position monitoring. -
Q: What industries typically use this probe?
A: Power generation, oil & gas, petrochemical, pulp & paper, and mining industries. -
Q: How do I ensure proper mounting depth?
A: A thread-matching probe driver tool is used to maintain proper insertion depth and spacing. -
Q: Are custom lengths or thread types available?
A: Yes, Bently Nevada supports customer-specific configurations for cable length and mounting threads. -
Q: Is field calibration required?
A: Typically no, as the system is pre-calibrated; however, calibration may be required in certain regulatory environments.
Related モデルs from the Same Series
| モデル Number | Cable Length | 説明 |
|---|---|---|
| 330103-00-05-10-02-00 | 5 ft | Standard 8mm probe with 5 ft cable and no extension |
| 330103-00-10-10-02-00 | 10 ft | 8mm probe with 10 ft cable, no extension |
| 330103-00-20-10-02-00 | 20 ft | Extended 8mm probe for long-reach installations |
| 330104-00-12-10-02-05 | 12 ft | Alternative length version with full Proximitor set |
| 330130-040-00-00 | N/A | Extension cable for 3300 XL 8mm systems |
| 330180-91-05 | N/A | Proximitor sensor module for 3300 XL 8mm systems |
Popular モデルs from the Same ブランド (Bently Nevada)
| モデル Number | Product Type | Key Feature |
|---|---|---|
| 3500/22M | System Interface Module | TDI module for 3500 monitoring systems |
| 3500/42M | Vibration Monitor Module | 4-channel monitor for proximity or velocity |
| 330180-50-05 | Proximitor Sensor | Standard 8mm proximitor sensor |
| 330106-05-30-10-02-00 | 5mm Proximity Probe | Shorter tip for smaller installation spaces |
| 330400-01-05 | Velocity Sensor | For casing vibration monitoring |
| 146031-01 | Power Supply for 3500 Series | Delivers stable power to Bently Nevada racks |
