Product Overview

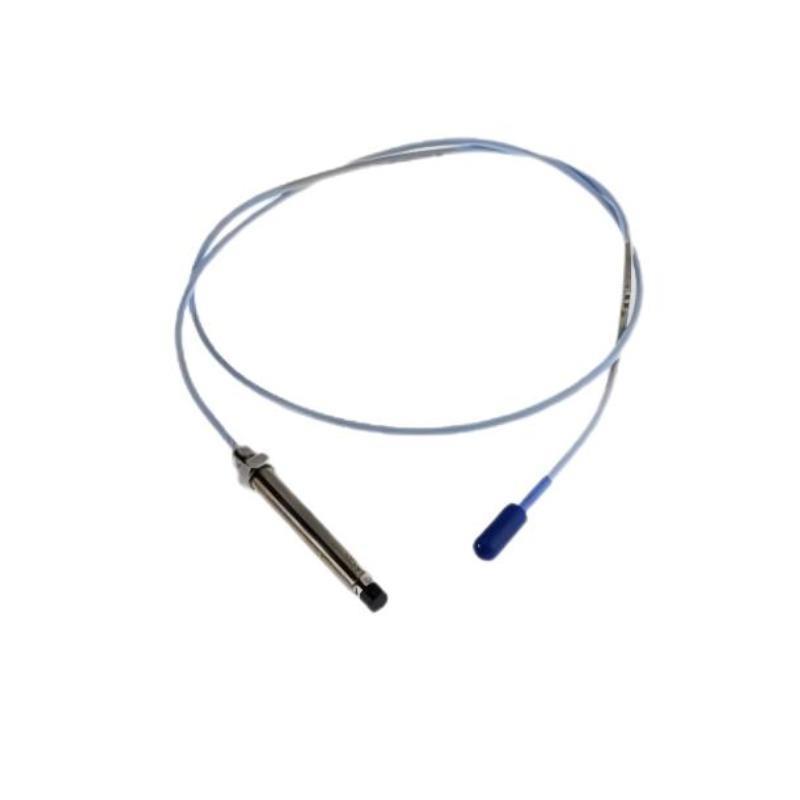

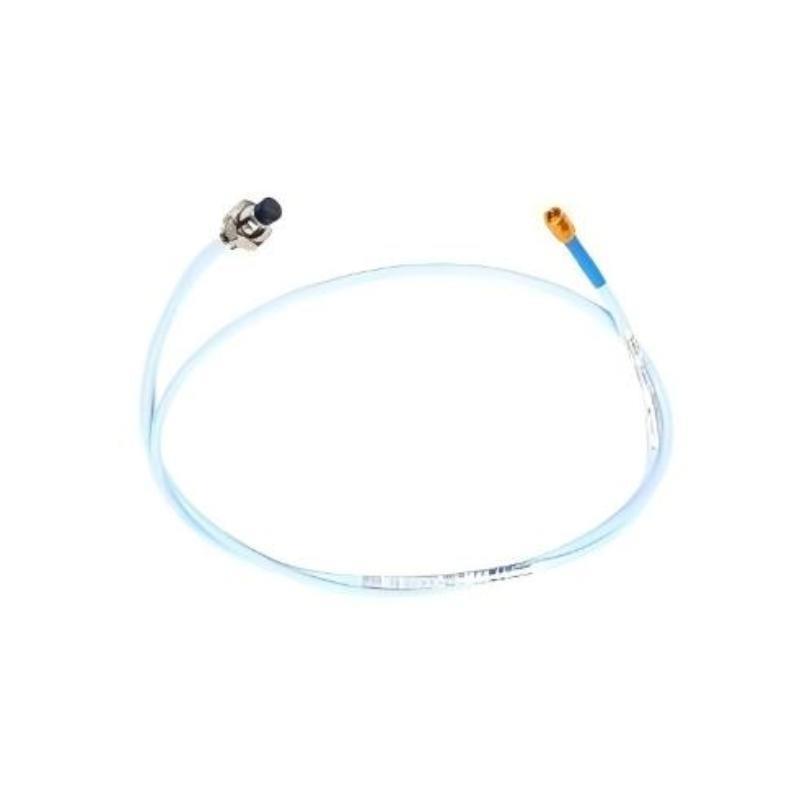

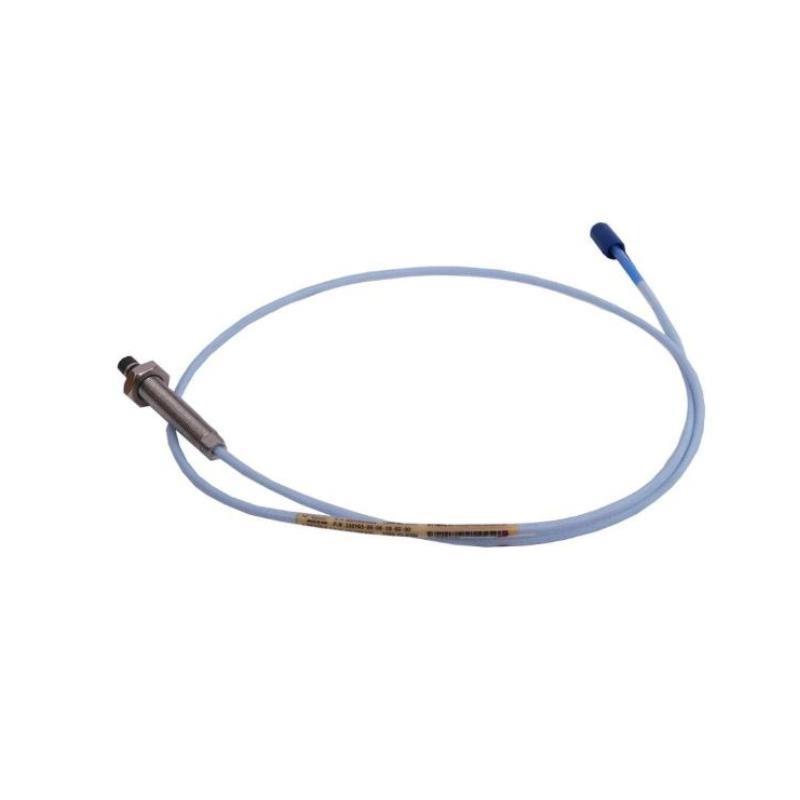

The Bently Nevada 330103-00-16-10-02-00 is part / the 3300 XL 8 mm Proximity Transducer System, engineered for precise, non-contact vibration and position measurements in rotating machinery. Designed for superior signal integrity and durability, this probe operates in conjunction with extension cables and Proximitor sensors, forming a complete system for condition monitoring.
Widely adopted in critical industrial equipment like turbines, compressors, and pumps, this probe meets stringent API 670 standards and ensures early fault detection, maximizing machine uptime and safety.
Key Features
-
Non-contact displacement and vibration measurement
-
Full compatibility with 3300 XL Proximitor sensors and extension cables
-
Rugged stainless steel construction with EMI shielding
-
Factory-calibrated with high linearity and repeatability
-
Designed to meet API 670 industry standards
-
High-temperature and vibration resistance
-
Plug-and-play integration with existing systems
-
Dust and water ingress protection (IP66 rated)
-
Side-exit coaxial connector for installation flexibility
-
Proven performance in harsh industrial conditions
Technical Specifications
| Item | Specification |
|---|---|
| 型番 | 330103-00-16-10-02-00 |
| Series | 3300 XL |
| Tip Diameter | 8 mm (Standard XL tip) |
| Mounting Thread | 3/8-24 UNF |
| Connector Type | Miniature male coaxial, side exit |
| Cable Length | 16 feet (4.87 meters) |
| System Compatibility | Works with 3300 XL Extension Cables & Proximitor Sensors |
| Calibration Range | 0 to 2 mm (80 mils) |
| Frequency Response | Up to 10 kHz |
| Temperature Range (Op.) | -35°C to +177°C (-31°F to +351°F) |
| Temperature Range (Storage) | -51°C to +177°C (-60°F to +351°F) |
| Insulation Resistance | >10 MΩ |
| Ingress Protection | IP66 (dust-tight and water jet-resistant) |
| Material | Stainless steel housing with polymer encapsulated tip |
| Electrical Isolation | Electrically isolated from casing |
| Dimensions | Total Length : 1.0 meter |
| 重量 | 0.323 kg |
Industry Applications
The 330103-00-16-10-02-00 proximity probe is widely utilized in critical industrial environments where real-time vibration and shaft position monitoring is essential:
-
Oil & Gas: Compressors, turbines, pumps
-
Power Generation: Steam turbines, gas turbines
-
Petrochemical Processing: Rotating machines, fans, blowers
-
Pulp & Paper Industry: Large electric motors and bearings
-
Mining & Metals: Conveyor drives, crushers
-
General Manufacturing: Precision rotating equipment, gearboxes
Product Advantages
-
API 670 Compliance: Ensures adherence to global safety and monitoring standards
-
Long-Term Reliability: Engineered to withstand extreme temperatures, vibration, and EMI
-
Simplified Integration: Fully compatible with existing 3300 XL system infrastructure
-
Accurate & Repeatable: Delivers high-resolution measurements with minimal drift
-
Corrosion-Resistant Construction: Stainless steel housing for harsh environments
-
High Signal Integrity: Maintains performance over long cable runs
-
Low Maintenance: Factory calibration reduces service downtime
-
IP66 Rated Protection: Withstands dust and high-pressure washdowns
-
Broad Application Range: Suitable for critical monitoring / shafts, bearings, and casings
-
Trusted Globally: Proven in thousands / installations worldwide
よくある質問 (FAQ)
-
Q: What is the purpose / this proximity probe?
A: It measures the gap between the probe and a rotating shaft to monitor vibration and shaft position without physical contact. -
Q: Is this model compatible with all 3300 XL systems?
A: Yes, it is fully compatible with 3300 XL Proximitor sensors and extension cables. -
Q: Can it be used in high-temperature environments?
A: Absolutely. It is rated for continuous operation up to 177°C (351°F). -
Q: What does the part number indicate?
A: “16” indicates cable length (16 ft), “10” for side-exit connector, “02” for thread type, and “00” for approvals. -
Q: Is field calibration necessary?
A: 番号 The probe is factory-calibrated and requires no additional calibration during installation. -
Q: What shaft material is recommended for best performance?
A: AISI 4140 steel is the standard target material for accurate calibration. -
Q: Can I use this in /fshore applications?
A: Yes, with appropriate approvals, it is suitable for /fshore oil and gas applications. -
Q: How should the probe be mounted?
A: It should be mounted perpendicular to the shaft surface with proper alignment and clearance as specified. -
Q: What is the typical service life / the probe?
A: With correct installation and normal use, the service life can exceed 5 years. -
Q: Does the probe resist electrical interference?
A: Yes, it is designed with EMI shielding to operate reliably in high-noise environments.
Related モデルs
| モデル Number | 説明 |
|---|---|
| 330103-00-13-10-12-05 | 13 ft cable, side exit, standard 8 mm probe |
| 330103-00-16-10-01-00 | 16 ft cable, straight connector |
| 330103-00-10-10-01-05 | 10 ft cable, straight connector |
| 330104-00-02-10-02-05 | 2 ft cable, 11 mm probe, side connector |
| 330104-00-03-05-02-CN | 3 ft cable, 11 mm probe, China-certified |
| 330101-00-16-05-02-05 | 16 ft cable, 8 mm probe, legacy 3300 system compatible |
Popular Bently Nevada モデルs
| モデル Number | 説明 |
|---|---|
| 330180-91-05 | Proximitor Sensor, 3300 XL |
| 330106-05-30-10-02-00 | Extension Cable, 5 m, 3300 XL |
| 330130-045-01-05 | Standard Extension Cable, 45 ft |
| 3500/22M-01-01-00 | Transient Data Interface (TDI) Module |
| 3500/42M-01-00 | Vibration Monitor for Proximitor and Seismic Inputs |
| 330400-02-18-10-02-00 | Velocity Seismic Transducer, 3300 XL |
