Product 説明

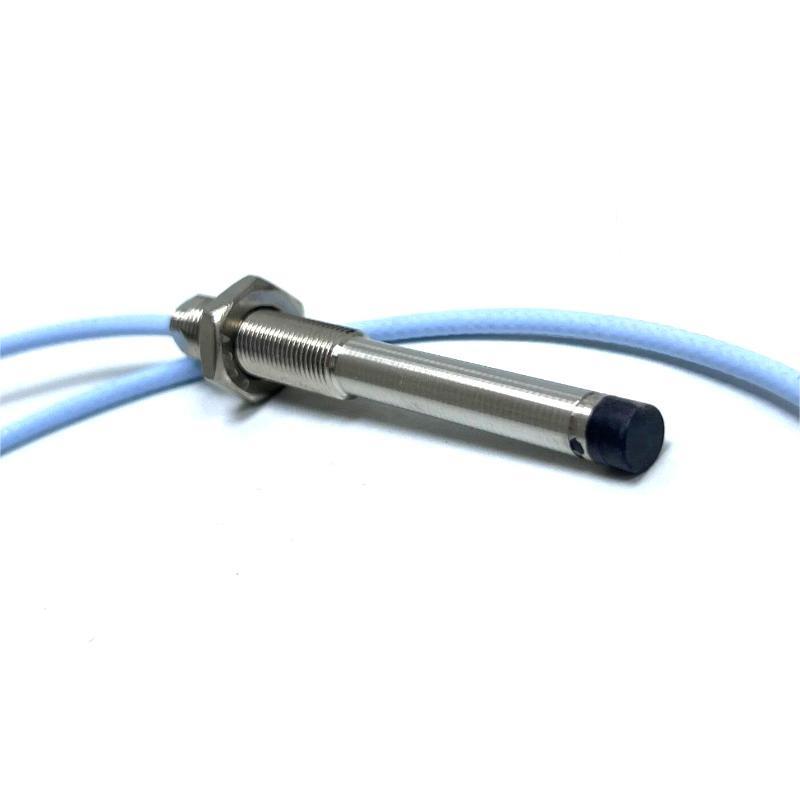

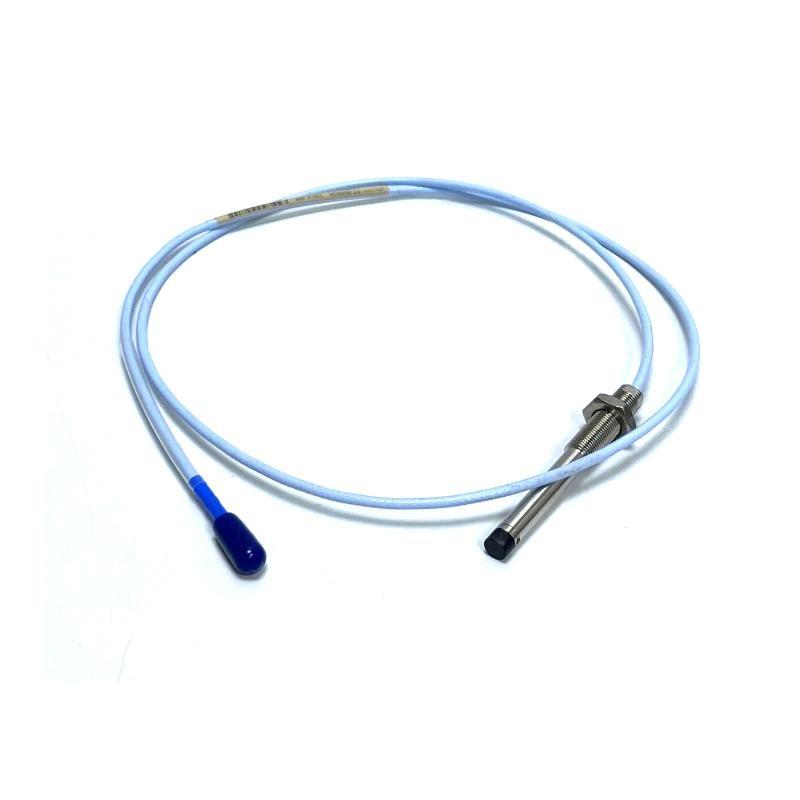

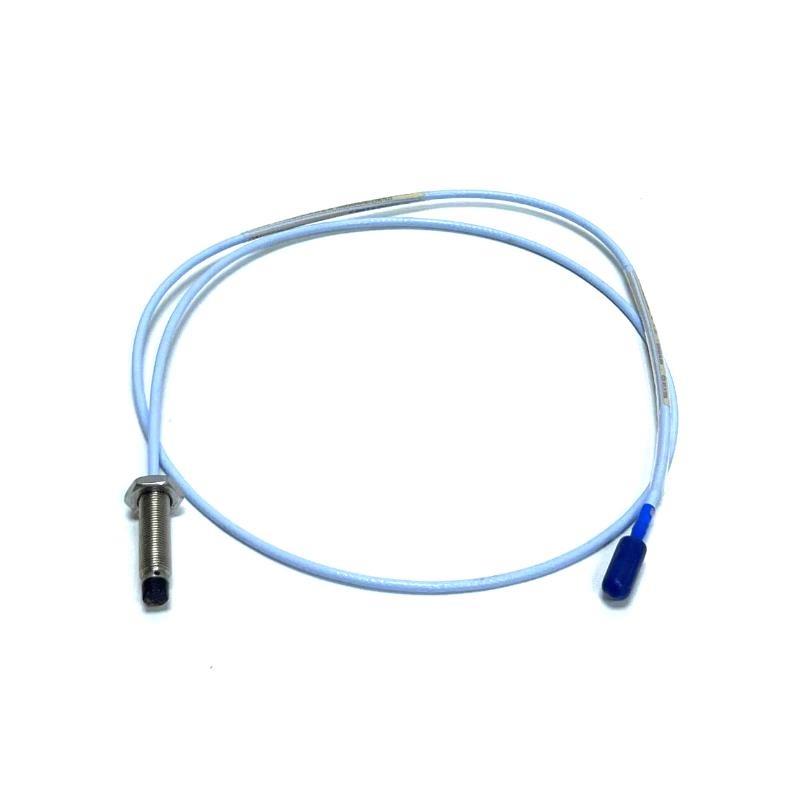

The Bently Nevada 330103-00-14-10-12-05 is part / the 3300 XL 8 mm proximity probe series, engineered for reliable vibration and displacement measurement in rotating machinery. This probe provides precise non-contact measurement using eddy-current technology, delivering a linear voltage output proportional to the distance from a conductive target surface. Built with robust stainless steel housing, FluidLoc cable, and ClickLoc connectors, it ensures stable operation in demanding industrial environments and complies with API 670 standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | 330103-00-14-10-12-05 |
| Thread Type | M10 × 1, unarmored |
| Case/Unthreaded Length | Option “14” (specific length defined in system configuration) |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Connector Type | Miniature ClickLoc with FluidLoc cable |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303/304) |
| Sealing | Viton® O-ring differential pressure seal |
| Hazardous Area Approvals | CSA, ATEX, IECEx |
| System Compliance | API 670 (4th Edition) |
| Interchangeability | Fully compatible with 3300 XL extension cables and Proximitor® sensors |
Applications
-
Vibration monitoring in steam turbines, gas turbines, and compressors
-
Shaft position and radial vibration measurement in rotating machinery
-
Thrust position monitoring in large turbomachinery
-
Bearing health monitoring for predictive maintenance
-
High-reliability condition monitoring in hazardous industrial environments
Advantages
-
High Accuracy: Delivers precise measurements with API 670 compliance.
-
Rugged Construction: Stainless steel housing and PPS tip ensure durability.
-
Interchangeability: Compatible with other 3300 XL probes, sensors, and extension cables.
-
Enhanced Reliability: FluidLoc cable reduces contamination ingress, improving long-term stability.
-
Hazardous Area Certification: Suitable for installation in CSA, ATEX, and IECEx classified areas.
-
Maintenance Efficiency: ClickLoc connectors allow secure and quick connections.
FAQ
Q1: What is the primary function / the 330103-00-14-10-12-05 probe?
A1: It measures shaft vibration and position by converting displacement into a proportional voltage signal.
Q2: How does it differ from the armored 330104 version?
A2: The 330103 is unarmored, while the 330104 includes stainless steel armor for cable protection.
Q3: Is this probe compliant with API 670?
A3: Yes, it meets API 670 (4th Edition) requirements for linear range, accuracy, and mechanical design.
Q4: Can it be mixed with other 3300 XL probes and sensors?
A4: Yes, the probe is fully interchangeable with other 3300 XL system components without recalibration.
Q5: What environments is this probe suitable for?
A5: It is certified for hazardous areas with CSA, ATEX, and IECEx approvals.
Q6: How does the FluidLoc cable improve performance?
A6: The FluidLoc design prevents moisture ingress, ensuring measurement stability and reducing failures.
Q7: What is the typical linear range / this probe?
A7: The 8 mm probe typically provides a linear range / up to 2 mm with high accuracy.
Q8: How is the probe installed on machinery?
A8: It uses an M10 × 1 threaded case for mounting, with optional mounting brackets or housings.
Q9: What materials are used in construction?
A9: Stainless steel case (AISI 303/304), PPS tip, and Viton® O-ring sealing.
Q10: Does it require periodic recalibration?
A10: No, when used with compatible Bently Nevada Proximitor® sensors and extension cables, no recalibration is needed.
Related モデルs in the Same Series
| モデル | 説明 | Total Length | 重量 |
|---|---|---|---|
| 330103-00-07-10-02-05 | 3300 XL 8 mm Probe, unarmored, 0.7 m | 0.7 m | 0.30 kg |
| 330103-00-05-10-12-00 | 3300 XL 8 mm Probe, unarmored, 0.5 m | 0.5 m | 0.29 kg |
| 330103-00-10-10-12-05 | 3300 XL 8 mm Probe, unarmored, 1.0 m | 1.0 m | 0.32 kg |
| 330104-00-05-10-12-05 | 3300 XL 8 mm Probe, armored, 0.5 m | 0.5 m | 0.34 kg |
| 330104-00-07-10-12-05 | 3300 XL 8 mm Probe, armored, 0.7 m | 0.7 m | 0.35 kg |
| 330104-00-10-10-12-05 | 3300 XL 8 mm Probe, armored, 1.0 m | 1.0 m | 0.36 kg |
Popular Bently Nevada モデルs
| モデル | 説明 | Application |
|---|---|---|
| 330180-91-CN | 3300 XL Proximitor® Sensor | Probe signal conditioning |
| 3500/22M | 3500 Series Transient Data Interface (TDI) | Machinery protection and diagnostics |
| 3500/42M | 3500 Series Proximitor®/Seismic Monitor | Vibration monitoring |
| 330850-90-05 | Extension Cable for 3300 XL Proximity Probes | Probe-sensor interconnection |
| 3500/32M | 3500 Series 4-Channel Relay Module | Machinery trip and relay control |
| 3500/05 | 3500 System Rack | Multi-channel monitoring system chassis |
