Product 説明

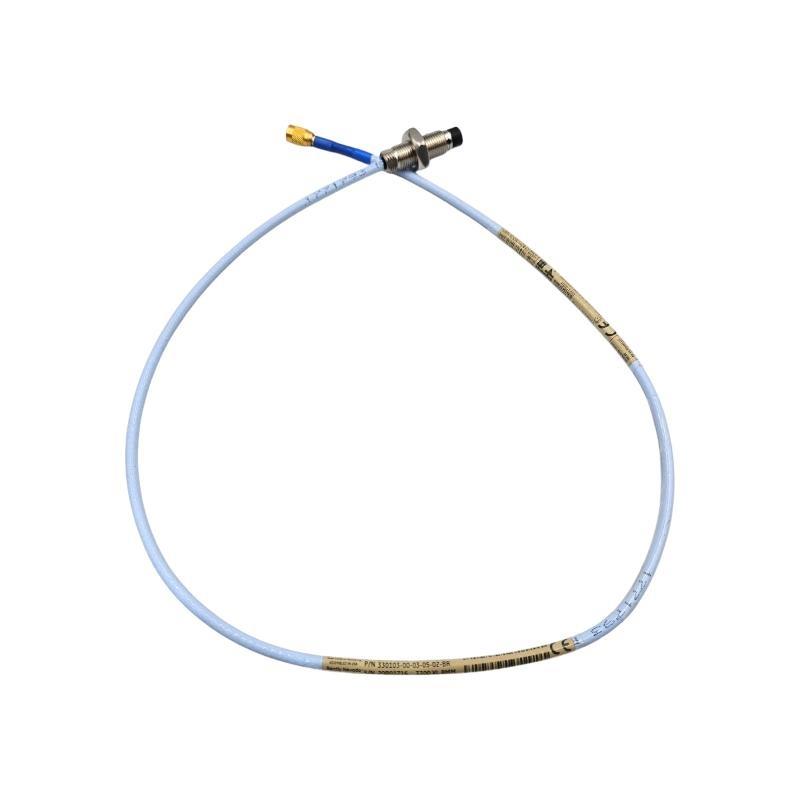

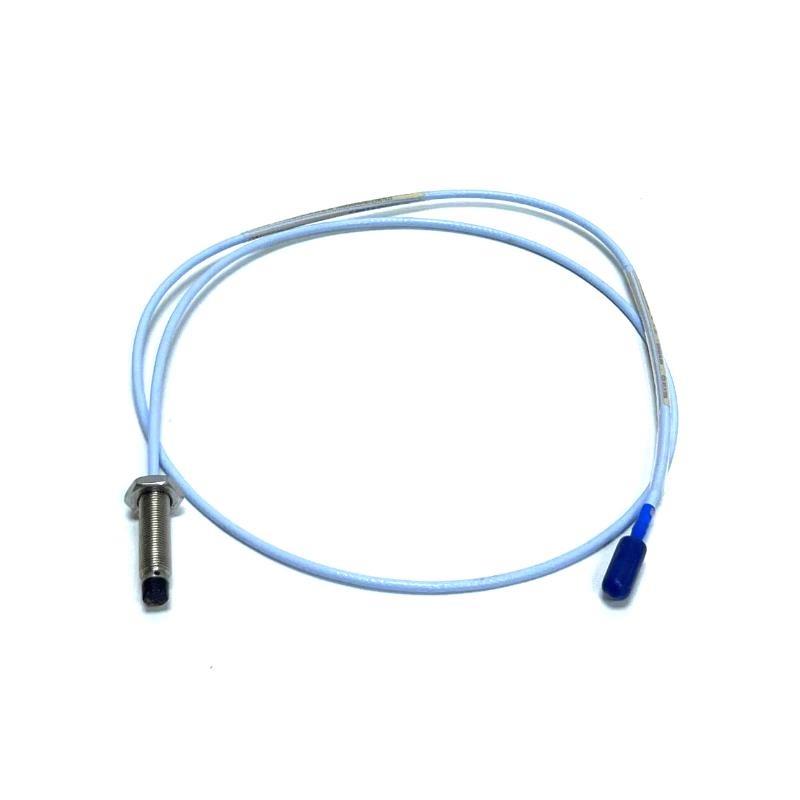

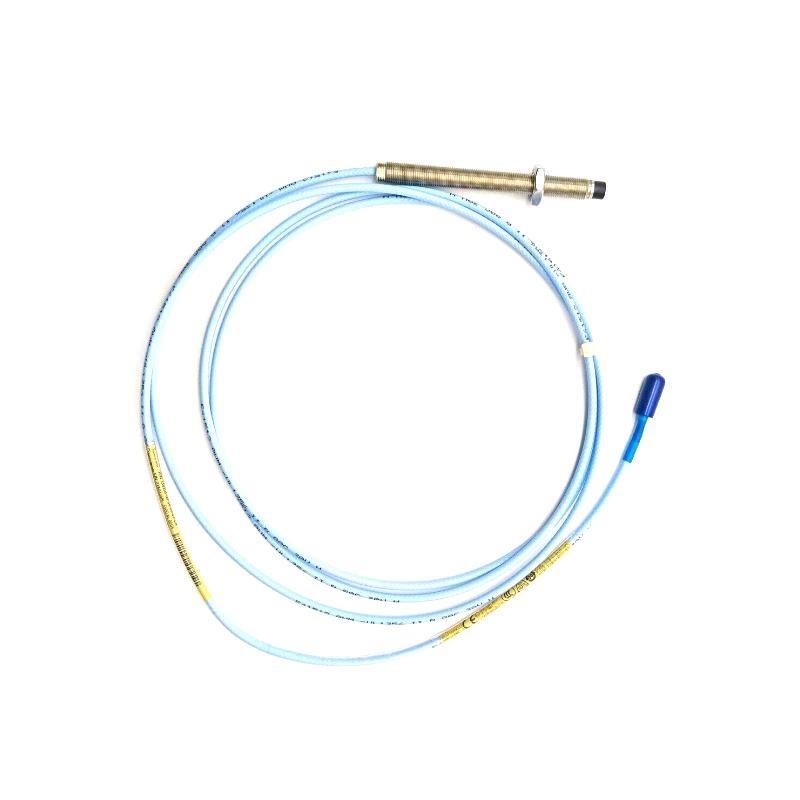

The Bently Nevada 330103-00-14-10-02-05 is a high-performance 8 mm proximity probe from the 3300 XL series. It is engineered to measure both static position and dynamic vibration / rotating machinery. This probe features advanced robustness with improved RFI/EMI imm台y, ensuring stable operation in harsh industrial environments. The modular design guarantees full interchangeability with other 3300 series components, simplifying maintenance.
Applications
-
Vibration monitoring on fluid-film bearing machinery
-
Shaft position measurements
-
Keyphasor reference and speed detection
-
Turbine and compressor monitoring
-
Applications requiring extended temperature ranges
Advantages
-
Fully compliant with API 670 standards
-
Backward compatible and interchangeable with 3300 series
-
Robust construction with TipLoc and CableLoc for durability
-
High imm台y to electromagnetic interference
-
Easy installation with ClickLoc connectors
-
Suitable for both panel and DIN-rail mounting configurations
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless Steel AISI 303 or 304 |
| Total Length | 1.0 meter (3.3 feet) |
| 重量 | 0.323 kg (0.71 lb) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Shaft Diameter (Min/Recommended) | 50.8 mm (2 in) / 76.2 mm (3 in) |
| Operating Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Extended Temperature Option | Up to +218°C (+425°F) |
| Probe Cable | 75 Ω triaxial, FEP insulated |
| Maximum Tensile Strength | 330 N (75 lbf) probe to cable |
| Connectors | Gold-plated, ClickLoc |
FAQ
Q1: What is the primary function / this probe?
A1: It measures static position and dynamic vibration / machine shafts.
Q2: Is it compatible with older 3300 series components?
A2: Yes, it is fully backward compatible with 3300 5 mm and 8 mm systems.
Q3: Does it comply with API standards?
A3: Yes, it meets API 670 requirements for linearity, accuracy, and stability.
Q4: What is the recommended shaft diameter?
A4: The recommended minimum shaft diameter is 76.2 mm (3 inches).
Q5: Can this probe be used at high temperatures?
A5: Yes, with the ETR option, it supports up to 218°C (425°F).
Q6: Are special tools required to install the connectors?
A6: No, the ClickLoc connectors require only finger-tight installation.
Q7: What mounting options are available?
A7: It can be panel-mounted or DIN-rail mounted using compatible sensors.
Q8: What kind / cables are used?
A8: Standard FEP-insulated triaxial cables, with optional FluidLoc for liquid sealing.
Q9: What is the linear measurement range?
A9: The linear range is 2 mm (80 mils) with high accuracy.
Q10: Does it resist electromagnetic interference?
A10: Yes, it has improved RFI/EMI imm台y and complies with CE standards.
Related モデルs (Same Series)
| モデル Number | 説明 | Length | 重量 |
|---|---|---|---|
| 330101-00-08-10-02-05 | 8 mm Probe, UNF Thread, armored | 1.0 m | 0.33 kg |
| 330102-00-12-10-02-05 | 8 mm Probe, UNF Thread, armored | 1.0 m | 0.34 kg |
| 330104-00-06-10-02-00 | 8 mm Probe, M10 Thread, armored | 1.0 m | 0.33 kg |
| 330105-02-12-10-02-05 | 8 mm Reverse Mount, UNF Thread | 1.0 m | 0.32 kg |
| 330106-05-30-10-02-05 | 8 mm Reverse Mount, M10 Thread | 1.0 m | 0.32 kg |
| 330140-00-10-02-05 | 8 mm Smooth Case, no armor | 1.0 m | 0.30 kg |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Length | 重量 |
|---|---|---|---|
| 330180-91-CN | 3300 XL Proximitor Sensor, DIN | 1.0 m | 0.25 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | – | 0.50 kg |
| 3500/44M | Aeroderivative GT Vibration Monitor | – | 0.45 kg |
| 3500/22M | Transient Data Interface Module | – | 0.42 kg |
| 330104-00-06-10-02-00 | 8 mm Probe, M10 Thread, armored | 1.0 m | 0.33 kg |
| 330130-03-00 | Standard Extension Cable | 3.0 m | 0.11 kg |
