Product 説明

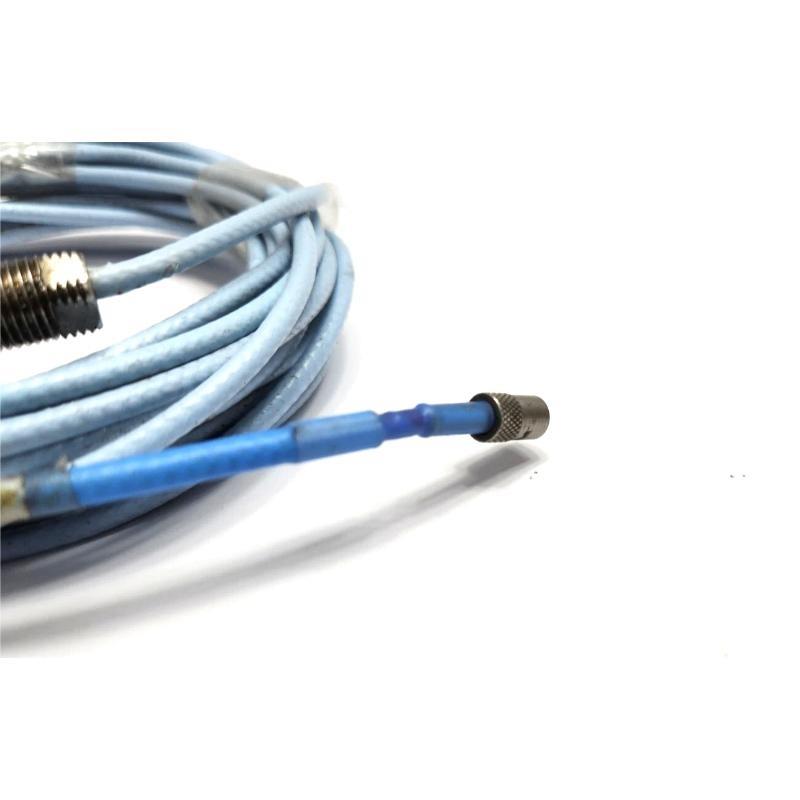

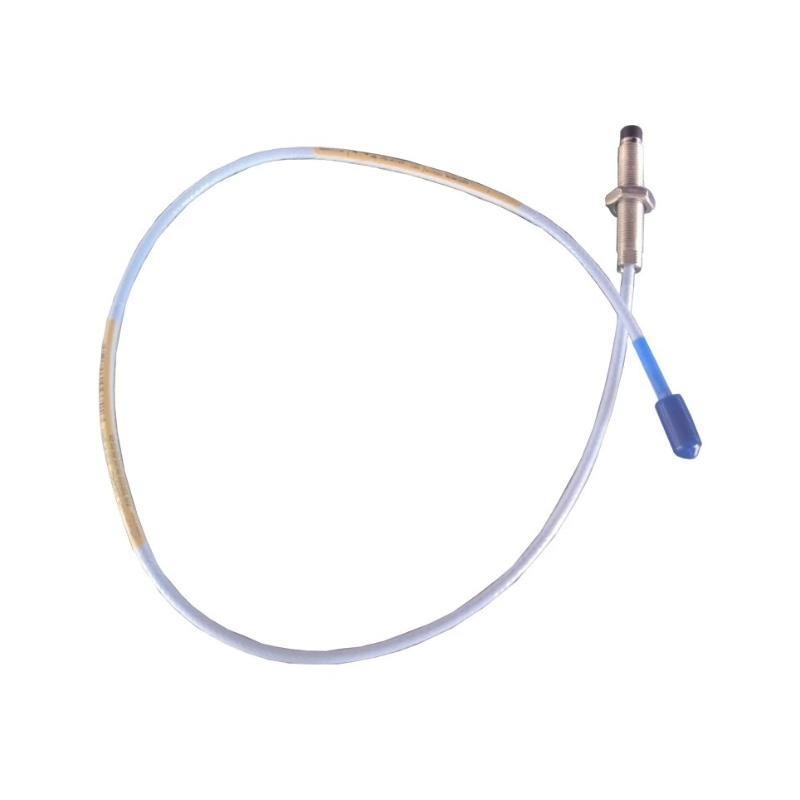

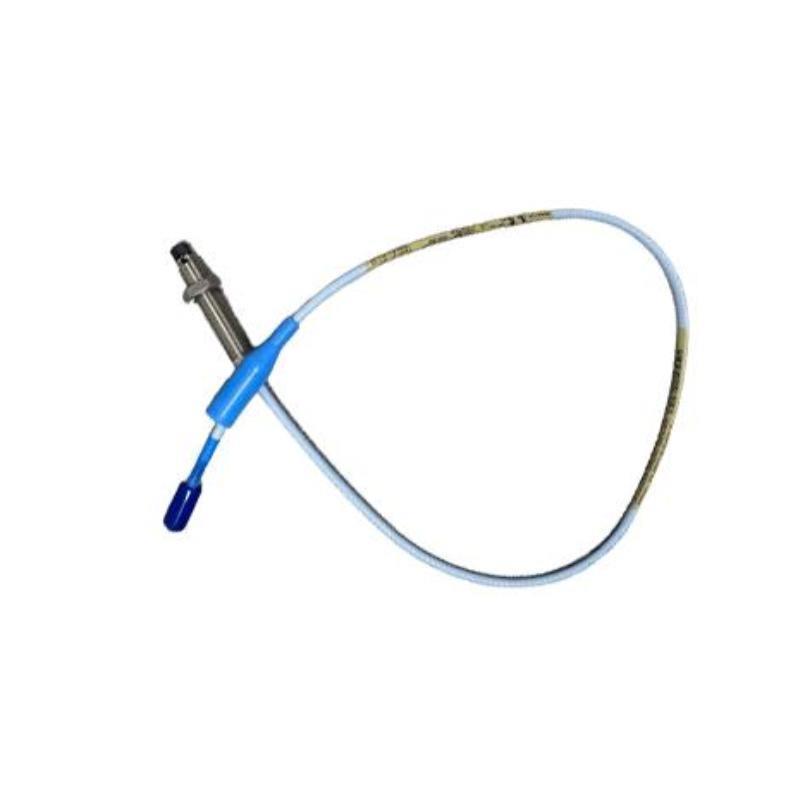

The Bently Nevada 330103-00-14-05-02-00 3300 XL 8 mm Proximity Probe is part / the advanced 3300 XL 8 mm Proximity Transducer System. It measures static and dynamic displacement (vibration and position) by providing an output voltage proportional to the distance between the probe tip and the conductive target. Typical uses include monitoring fluid-film bearing machines, providing Keyphasor reference signals, and measuring shaft speed and position.
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 0.5 meter |
| 重量 | 0.162 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel AISI 303 or 304 |
| Cable Type | 75Ω triaxial, FEP insulated |
| Minimum Shaft Diameter | 50.8 mm (recommended ≥76.2 mm) |
| Linear Range | 2 mm (80 mils) |
| Operating Temperature (probe) | -52°C to +177°C standard |
| Storage Temperature (probe) | Same as operating |
| Frequency Response | 0 to 10 kHz, ±3 dB |
| Recommended Gap Setting | ~1.27 mm (50 mils) at -9 Vdc |
Applications
-
Vibration and position monitoring on turbines, compressors, pumps, and motors
-
Keyphasor and overspeed signal generation
-
Shaft position and displacement measurements
-
Fluid-film bearing condition monitoring
Advantages
-
Fully API 670 compliant
-
Backward compatible and interchangeable with previous 3300 series
-
Enhanced RFI/EMI imm台y for reliable operation in industrial environments
-
Patented TipLoc and CableLoc designs improve mechanical robustness
-
Optional FluidLoc prevents oil leakage through cables
-
No calibration required when replacing individual system components
FAQ
Q1: What is the primary use / the 330103-00-14-05-02-00 probe?
A1: It is used to monitor vibration, displacement, and position / rotating machinery shafts.
Q2: Is this probe compatible with older 3300 series systems?
A2: Yes, it is fully backward compatible and interchangeable with 3300 non-XL 8 mm and 5 mm components.
Q3: What is the linear measurement range / the probe?
A3: The linear range is approximately 2 mm (80 mils).
Q4: Can the probe withstand high temperatures?
A4: The standard version operates up to +177°C. Extended temperature versions are also available.
Q5: Does the probe require special tools for connector installation?
A5: No, the gold-plated ClickLoc connectors are finger-tightened and click when secure.
Q6: Is calibration necessary when replacing a probe?
A6: No, components are fully interchangeable without the need for bench calibration.
Q7: What is the recommended gap setting?
A7: Approximately 1.27 mm (50 mils) corresponding to -9 Vdc output.
Q8: Does it meet API 670 requirements?
A8: Yes, it fully complies with API 670 for mechanical configuration, linearity, and stability.
Q9: Can it operate in high humidity?
A9: Yes, it shows less than 3% variation in scale factor even at 93% relative humidity.
Q10: Are different lengths available?
A10: Yes, lengths from 0.5 m to 9 m are available to suit installation needs.
Recommended Related モデルs (Same Series)
| モデル Number | 説明 | Length | 重量 |
|---|---|---|---|
| 330101-00-08-05-02-00 | 3300 XL 8mm Probe, UNF thread | 0.5 m | 0.162 kg |
| 330102-00-20-05-02-00 | 3300 XL 8mm Probe with armor | 2.0 m | 0.200 kg |
| 330104-00-06-10-02-00 | 3300 XL 8mm Probe, M10 thread w/armor | 0.6 m | 0.180 kg |
| 330105-02-12-05-02-00 | 3300 XL 8mm Reverse Mount Probe | 1.2 m | 0.190 kg |
| 330106-05-30-05-02-00 | 3300 XL 8mm Reverse Mount M10 thread | 3.0 m | 0.220 kg |
| 330140-05-05-02-00 | 3300 XL 8mm Smooth Case Probe | 0.5 m | 0.160 kg |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Length | 重量 |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | N/A | 0.45 kg |
| 3500/22M-01-01 | Transient Data Interface Module | N/A | 0.50 kg |
| 3500/60-01-01 | Temperature Monitor Module | N/A | 0.40 kg |
| 3500/32M-01-00 | Relay Module | N/A | 0.35 kg |
| 330180-50-05 | 3300 XL Proximitor Sensor, 5m Panel | 5.0 m | 0.70 kg |
| 330130-030-00-00 | 3300 XL Standard Extension Cable | 3.0 m | 0.10 kg |
