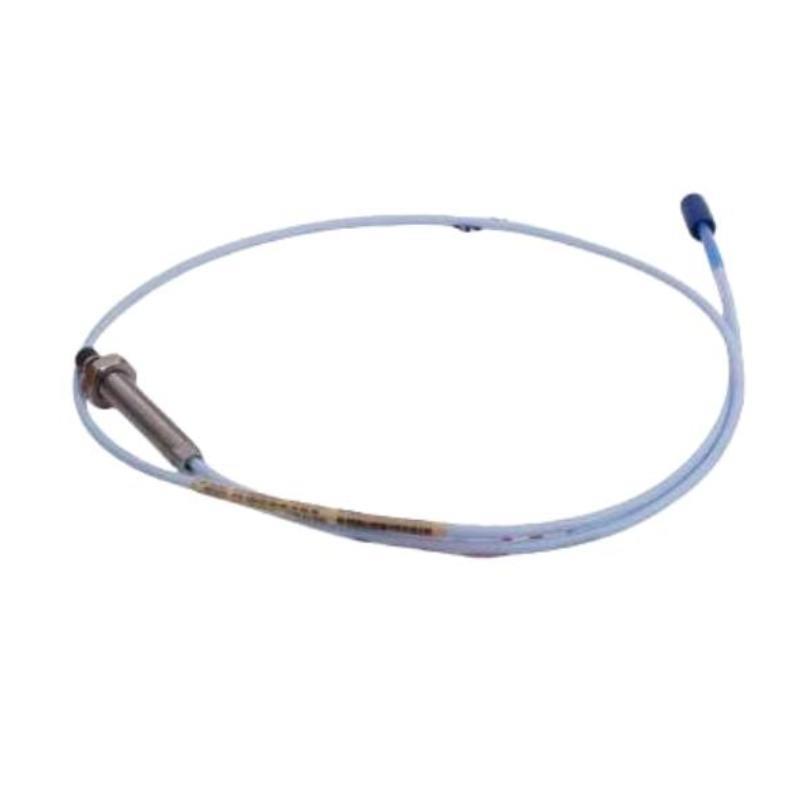

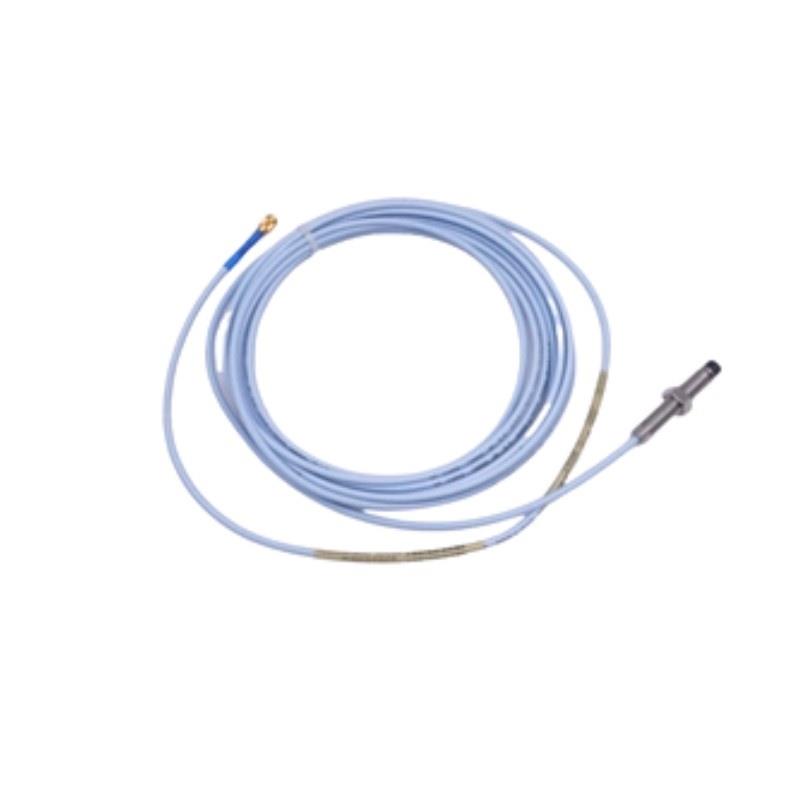

The Bently Nevada 330103-00-09-50-02-00 3300 XL 8 mm Proximity Probe is a high-precision proximity sensor designed for industrial machinery monitoring. Part / the renowned 3300 XL Series, this probe /fers superior reliability for critical rotating equipment, including turbines, compressors, generators, and motors. Engineered to provide accurate displacement and vibration measurements, it is suitable for continuous operation in challenging industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル | 330103-00-09-50-02-00 |
| Series | 3300 XL |
| Probe Type | Proximity Sensor / Eddy-Current |
| Probe Tip Diameter | 8 mm |
| Cable Length | Standard 15 ft (custom lengths available) |
| Housing Material | Stainless Steel |
| Operating Temperature Range | -40°C to 120°C (-40°F to 248°F) |
| 重量 | 1.615 kg |
| Total Length | 5 m |
| Connector Type | 2-Pin LEMO or compatible |
| Compatible System | 3300 XL Monitoring System |
| Measurement Range | 0–1.5 mm |
| Output Type | AC Voltage / Differential |
| Response Time | <1 ms |
| Insulation Resistance | >100 MΩ |
Product Applications
-
Monitoring high-speed rotating machinery in power plants, including turbines and generators.
-
Vibration analysis / compressors and pumps in petrochemical and refinery applications.
-
Rotor displacement measurement for industrial motors and gearboxes.
-
Integration with machine protection systems to prevent catastrophic failures.
-
Continuous machinery health monitoring for predictive maintenance programs.
-
Use in harsh environments, including high temperature, vibration, and electromagnetic interference.
Product Advantages
-
High Accuracy: The 8 mm probe ensures precise displacement measurements for critical machinery.
-
Durable Construction: Stainless steel housing and rugged design resist wear and environmental challenges.
-
Wide Temperature Range: Operates reliably in extreme conditions from -40°C to 120°C.
-
Vibration Resistant: Designed to withstand high mechanical vibrations up to 20 g.
-
System Compatibility: Fully compatible with the Bently Nevada 3300 XL Monitoring System.
-
Fast Response Time: Less than 1 millisecond response ensures accurate real-time monitoring.
-
Reliable Output: AC voltage and differential outputs provide consistent, low-noise signals.
-
Flexible Installation: Standard 15 ft cable length with optional custom lengths for industrial requirements.
FAQ
Q1: What is the maximum vibration the probe can withstand without signal degradation?
A1: The 330103-00-09-50-02-00 probe is rated for mechanical vibrations up to 20 g.
Q2: Can this probe operate in environments with electromagnetic interference?
A2: Yes, the probe is designed with EMI-resistant materials and shielding for industrial applications.
Q3: What is the response time / the probe?
A3: The response time is less than 1 millisecond.
Q4: Which monitoring systems is this probe compatible with?
A4: It is fully compatible with the Bently Nevada 3300 XL Monitoring System.
Q5: What is the maximum measurement range / the probe?
A5: The probe provides a measurement range up to 1.5 mm.
Q6: Does the probe provide AC or DC output?
A6: It provides AC voltage and differential outputs for accurate signal transmission.
Q7: Is this probe suitable for high-temperature applications?
A7: Yes, it operates reliably between -40°C and 120°C (-40°F to 248°F).
Q8: What type / connector does the probe use?
A8: It uses a 2-Pin LEMO connector or compatible alternatives.
Q9: Can the cable length be customized?
A9: Yes, custom cable lengths can be provided beyond the standard 15 ft.
Q10: Is the probe resistant to chemical exposure or moisture?
A10: The stainless steel housing provides excellent resistance to moisture and many industrial chemicals.
Related モデルs
| モデル Number | 説明 |
|---|---|
| 330103-00-09-50-02-05 | 3300 XL 8 mm Proximity Probe, extended cable |
| 330103-00-08-50-12-00 | 3300 XL 8 mm Proximity Probe, standard configuration |
| 330103-00-08-05-12-05 | 3300 XL 8 mm Proximity Probe, high-temp version |
| 330103-00-08-10-12-RU | 3300 XL 8 mm Proximity Probe, Russian variant |
| 330103-00-08-05-01-CN | 3300 XL 8 mm Proximity Probe, Chinese variant |
| 330103-00-08-15-02-05 | 3300 XL 8 mm Proximity Probe, extended range |
