製品紹介

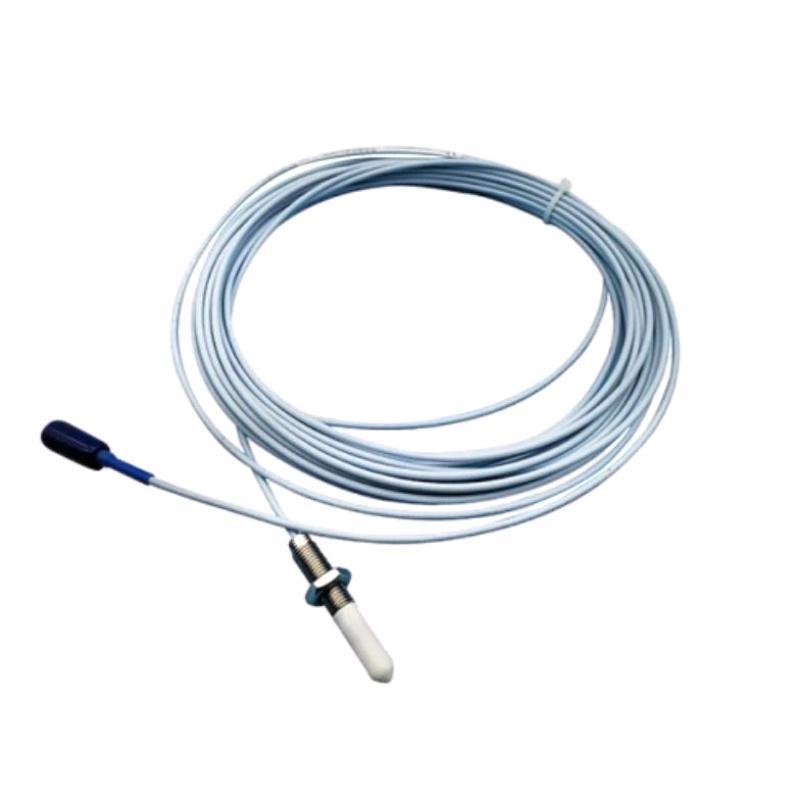

The Bently Nevada 330103-00-08-50-12-00 3300 XL 8 mm Proximity Probe is a high-precision displacement sensing element designed for use within the 3300 XL series proximity measurement system. It provides accurate and stable measurements / shaft position and vibration in rotating machinery such as turbines, compressors, pumps, and motors.
This probe is engineered to withstand challenging industrial environments, delivering reliable performance in conditions involving high temperature, electromagnetic interference, and mechanical stress. Its rugged construction and optimized sensing technology make it a core component / condition monitoring systems used in predictive maintenance and machine protection.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル Number | 330103-00-08-50-12-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Thread Size | M10 × 1 |
| 重量 | 1.615 kg |
| Total Length | 5 m |
| Material | Stainless steel body, Teflon insulated cable |
| Sensitivity | –7.87 V/mm (typical) |
| Frequency Response | 0 to 10 kHz (within linear range) |
| Maximum Temperature | +177 °C (probe and cable rating) |
| Minimum Temperature | –35 °C |
| Insulation Resistance | > 10 MΩ at 500 VDC |
| Compatibility | Works with 3300 XL Proximitor sensors and extension cables |
Product Applications
-
Steam and gas turbines for shaft vibration and axial displacement monitoring.
-
Centrifugal compressors for detecting rotor instability or misalignment.
-
Large motors and generators for bearing condition monitoring.
-
Pumps and fans where shaft displacement can indicate imbalance or wear.
-
Critical process machinery in petrochemical, power generation, and refining sectors where early fault detection reduces downtime.
Product Advantages
-
High Accuracy – Provides consistent displacement and vibration readings with minimal calibration drift.
-
Robust Design – Stainless steel probe body with excellent resistance to corrosion and mechanical wear.
-
Wide Temperature Range – Operates reliably from –35 °C to +177 °C, suitable for extreme operating conditions.
-
Enhanced Compatibility – Integrates seamlessly with Bently Nevada’s 3300 XL Proximitor sensors and extension cables.
-
Electromagnetic Imm台y – Designed to minimize interference from surrounding electrical equipment.
-
Long Service Reliability – Proven track record in continuous industrial operation, reducing the risk / unexpected shutdowns.
FAQ
Q1: How does the 330103-00-08-50-12-00 proximity probe measure displacement?
A1: It operates on eddy current principles, generating a voltage proportional to the distance between the probe tip and the conductive shaft surface.
Q2: What is the optimal installation gap for this probe?
A2: The recommended nominal gap is 2.0 mm, which ensures linear operation within the specified measurement range.
Q3: Can this probe be used with extension cables / different lengths?
A3: Yes, it supports extension cables, but they must match Bently Nevada’s 3300 XL specifications to maintain system calibration.
Q4: How does temperature affect measurement accuracy?
A4: The probe is temperature compensated within its operating range, ensuring minimal variation in sensitivity even at high temperatures.
Q5: Is the probe immune to electromagnetic interference?
A5: The coaxial cable design and shielding provide strong resistance to EMI, making it suitable for electrically noisy environments.
Q6: What Proximitor sensor is compatible with this probe?
A6: It is designed to work with the Bently Nevada 3300 XL Proximitor Sensor (model 3300 5 mm/8 mm systems).
Q7: How should the probe be mounted for optimal performance?
A7: It should be threaded securely into a rigid mount, perpendicular to the shaft surface, ensuring stable and repeatable measurements.
Q8: What is the maximum shaft speed this probe can monitor?
A8: While there is no fixed speed limit, it reliably monitors vibration frequencies up to 10 kHz, suitable for high-speed machinery.
Q9: How does cable length affect signal accuracy?
A9: Only specified probe, extension cable, and proximitor combinations ensure calibrated performance; mismatched lengths may cause scale factor errors.
Q10: Can this probe be used in hazardous area installations?
A10: Yes, when paired with certified proximitor sensors and installed according to Bently Nevada’s guidelines for hazardous locations.
Related モデルs
| モデル Number | 説明 |
|---|---|
| 330103-00-08-10-02-00 | 3300 XL 8 mm probe, 1 m cable length |
| 330103-00-08-15-02-05 | 3300 XL 8 mm probe, 1.5 m cable length |
| 330103-00-08-25-02-05 | 3300 XL 8 mm probe, 2.5 m cable length |
| 330103-00-08-50-02-05 | 3300 XL 8 mm probe, 5 m cable length |
| 330103-00-10-05-02-BR | 3300 XL 8 mm probe with 10 m cable |
| 330103-00-09-10-11-00 | 3300 XL 8 mm probe, 9 m cable with special termination |
Popular モデルs from the Same ブランド
| モデル Number | 説明 |
|---|---|
| 330104-00-08-10-02-00 | 3300 XL 11 mm Proximity Probe |
| 330105-02-12-10-02-00 | 3300 XL 25 mm Proximity Probe |
| 330130-040-00-00 | Extension Cable for 3300 XL Probes |
| 330180-50-00 | 3300 XL Proximitor Sensor, 5 m |
| 330850-90-05 | Seismic Vibration Transducer |
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3500/22M | Transient Data Interface Module |
| 3500/15 | Power Supply Module for 3500 Rack |
