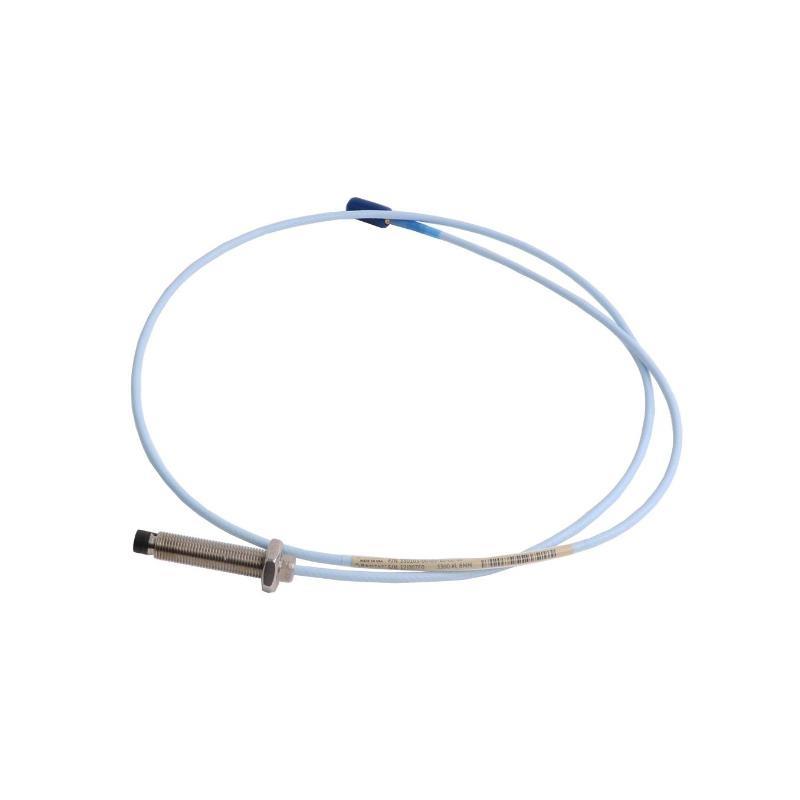

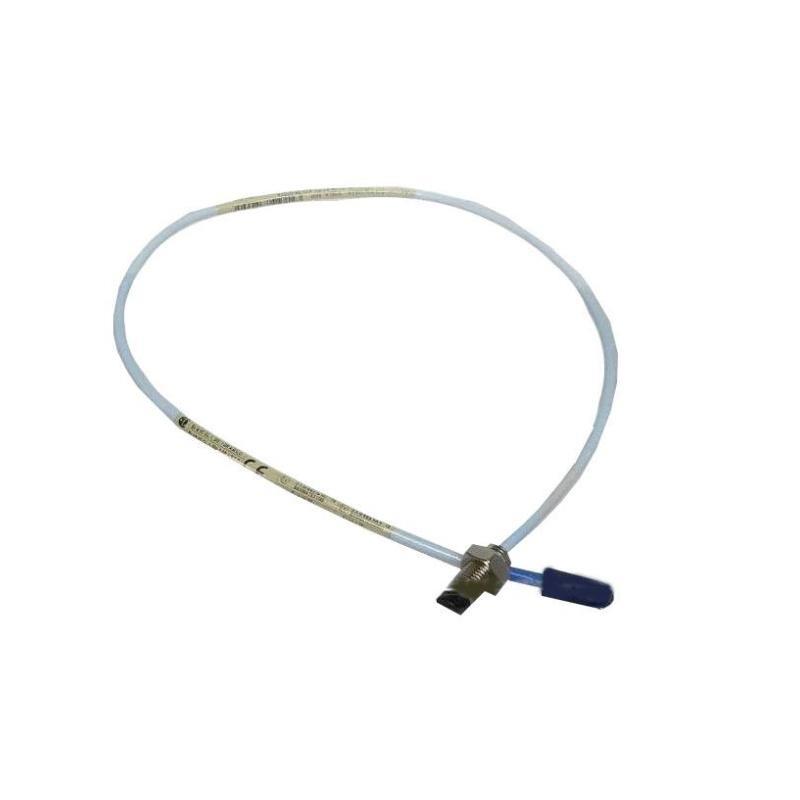

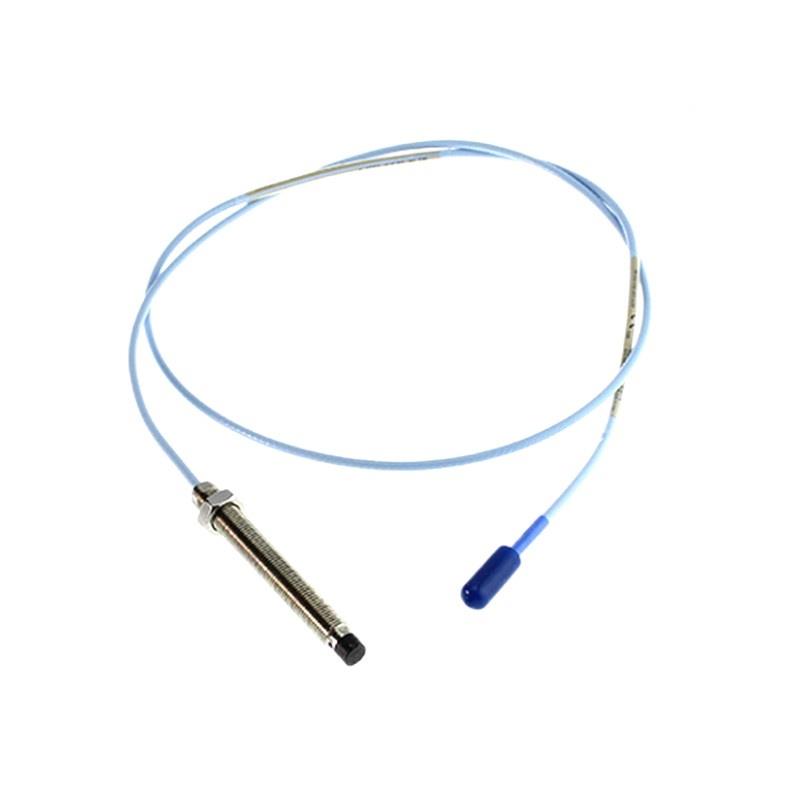

The Bently Nevada 330103-00-08-15-02-05 3300 XL 8 mm Proximity Probe is a precision-engineered sensor designed for accurate and reliable measurement / shaft vibration, axial position, and other critical machine dynamics. It is part / the 3300 XL series, which has set the global standard for machinery protection and condition monitoring in industries such as power generation, oil & gas, refining, and heavy manufacturing.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル | 330103-00-08-15-02-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Total Length | 1.5 m |
| Thread Type | M14 × 1.5 |
| Material | Stainless steel housing with rugged cable |
| 重量 | 0.484 kg |
| Operating Voltage | -24 V DC to -28 V DC (from driver) |
| Gap Measurement Range | 2 mm (80 mils) |
| Linear Range | 0.25 mm to 2.0 mm |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Operating Temperature | -35 °C to +180 °C |
| Humidity | 95% non-condensing |
| Compliance | API 670 standard for machinery protection |
Product Applications
-
Turbomachinery monitoring (steam turbines, gas turbines, compressors)
-
Pumps and fans for vibration and bearing condition detection
-
Gearbox monitoring for early fault identification
-
Axial thrust position measurement in turbines and compressors
-
Machine condition monitoring in refineries and petrochemical plants
-
Balance and alignment checks in critical rotating equipment
Product Advantages
-
High accuracy and repeatability: Ensures precise measurement / shaft displacement and vibration.
-
Extended linear range: Delivers reliable readings over a wide measurement span.
-
Rugged construction: Resistant to harsh environments such as high temperature and humidity.
-
Compatibility: Fully compatible with Bently Nevada 3300 XL systems and machinery protection monitors.
-
Easy installation and replacement: Standardized connectors and flexible cable lengths simplify field work.
-
Global industry acceptance: Widely used in critical industries meeting API 670 requirements.
-
Reduced downtime: Provides early warning / machine faults, preventing costly failures.
FAQ
Q1: What is the typical output signal / the 330103-00-08-15-02-05 probe?
A1: The probe generates a signal with a sensitivity / 200 mV/mil (7.87 mV/μm), proportional to shaft displacement.
Q2: Can this probe be directly connected to a monitor without a driver?
A2: No, it requires a matching 3300 XL driver or extension cable to function correctly.
Q3: How does the probe handle electromagnetic interference?
A3: The cable and probe assembly are shielded to minimize EMI, ensuring stable measurement signals.
Q4: What type / material can this probe detect?
A4: It is designed to measure the distance to conductive metallic surfaces, typically rotating shafts.
Q5: Can the probe be used in hazardous areas?
A5: Yes, it can be installed in hazardous or classified areas when used with approved accessories.
Q6: How is linearity maintained over the operating range?
A6: The probe and driver are factory-calibrated as a matched set, ensuring linearity within 0.25 mm to 2.0 mm.
Q7: What is the typical system frequency response?
A7: The probe system supports frequencies up to 10 kHz, suitable for most rotating machinery applications.
Q8: Does it comply with API 670 standards?
A8: Yes, the probe system is designed to fully comply with API 670 machinery protection requirements.
Q9: How is temperature compensation achieved?
A9: The probe materials and driver circuitry are designed to minimize signal drift across wide temperature ranges.
Q10: Can the probe cable be replaced independently?
A10: No, the probe and cable are a single integrated assembly and should be replaced together for accuracy.
