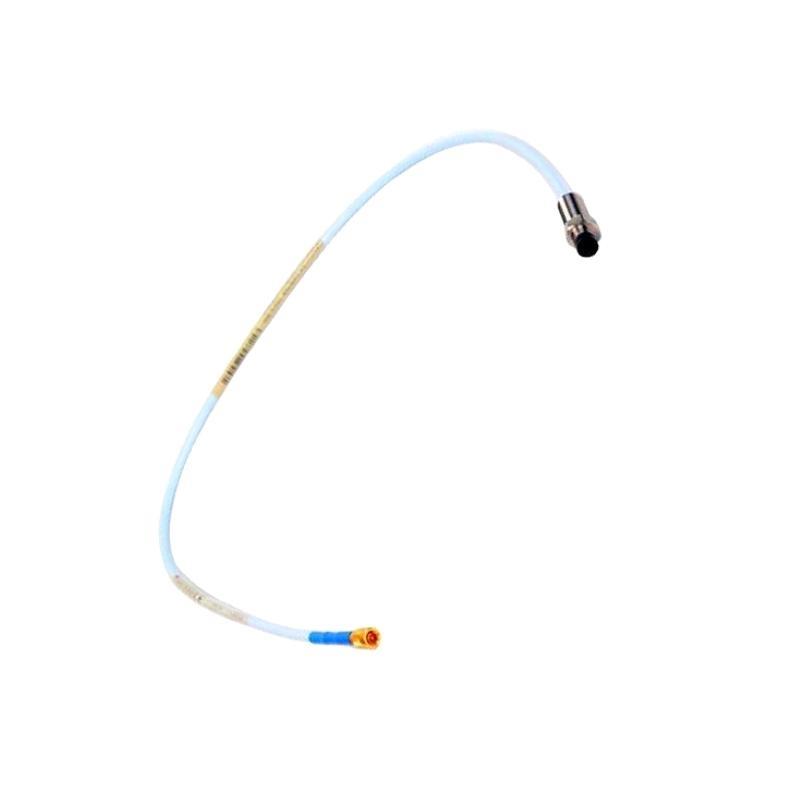

The Bently Nevada 330103-00-08-10-02-05 is a part / the 3300 XL 8mm Proximity Probe System, a flagship solution from Bently Nevada, renowned for its industry-standard performance in vibration monitoring and machinery protection. This probe system is designed to work in combination with a matching extension cable and Proximitor® sensor to provide precise, non-contact displacement measurements for critical rotating machinery.
Designed in compliance with API 670 standards, the 3300 XL 8mm probes /fer robust performance in harsh industrial environments. These probes are primarily used for shaft vibration, axial position, and radial vibration measurements in turbines, compressors, pumps, and other high-speed rotating assets.
The model 330103-00-08-10-02-05 specifies a probe with an 8mm tip diameter, armored cable length / 8 feet, connector proximity / 10 feet, and a standard reverse mount configuration. It is widely used in oil & gas, power generation, petrochemical, and heavy machinery industries.
Technical Specifications
| Parameter | Details |
|---|---|
| モデル Number | 330103-00-08-10-02-05 |
| Series | Bently Nevada 3300 XL 8mm |
| Sensing Principle | Non-contact eddy current displacement measurement |
| Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF-2A |
| Case Material | AISI 303 Stainless Steel |
| Total Length | 1 meter |
| Connector Type | Miniature coaxial connector |
| Mounting Thread | Reverse mount |
| Operating Temperature | -35°C to +177°C (-31°F to +351°F) |
| Frequency Response | DC to 10 kHz |
| Linearity Range | 0.25 to 2.0 mm (10 to 80 mils) |
| System Accuracy | ±0.076 mm (±3 mils) or ±7.5% |
| Environmental Sealing | Hermetically sealed |
| 重量 | 0.323 kg |
| Compliance Standards | API 670, CE, RoHS |
Applications
The Bently Nevada 330103-00-08-10-02-05 proximity probe is suitable for a wide range / industrial applications, including:
-
Steam and Gas Turbines: For shaft vibration and thrust position monitoring
-
Centrifugal Compressors: Used in rotor dynamics measurements and condition monitoring
-
Industrial Pumps: To detect imbalance, misalignment, and bearing issues
-
Motors and Generators: For real-time condition-based monitoring
-
Gearboxes and Blowers: Ensures continuous performance and predictive maintenance
-
Nuclear and Fossil Power Plants: As part / safety and asset integrity programs
-
Oil and Gas Refineries: For API 670-compliant vibration and position monitoring
Product Advantages
-
High Accuracy: Delivers consistent displacement measurements in microns or mils with minimal signal noise.
-
Robust Design: Stainless steel construction and hermetically sealed body provide superior reliability in harsh environments.
-
API 670 Compliance: Meets industry standards for condition monitoring and machinery protection.
-
Interchangeability: Fully compatible with other 3300 XL series components, ensuring ease / maintenance and upgrades.
-
Wide Operating Temperature Range: Ideal for both low and high-temperature industrial environments.
-
Shielded Cable Assembly: Reduces electromagnetic interference (EMI) and radio frequency interference (RFI).
-
Custom Configurations 対応可能: Cable length and mounting thread options support flexible installations.
よくある質問 (FAQ)
-
What does the part number 330103-00-08-10-02-05 signify?
-
It indicates a Bently Nevada 3300 XL 8mm probe with extension total length (1 meter), and connector/mounting configuration.
-
-
Is this proximity probe API 670 compliant?
-
Yes, it is designed to fully comply with API 670 standards for machinery protection systems.
-
-
Can this probe be used in high-vibration environments?
-
Absolutely. The probe is specifically engineered for high-vibration and high-temperature environments like turbines and compressors.
-
-
What type / measurements does it support?
-
It supports displacement, vibration (radial and axial), and phase reference measurements.
-
-
Does the product require a matching extension cable and Proximitor® sensor?
-
Yes. For proper operation, the probe should be used with its designated extension cable and Proximitor® sensor.
-
-
What is the typical service life / the probe?
-
When installed correctly, the probe can last several years in continuous operation, subject to environmental conditions.
-
-
Can I replace only the probe if it is damaged?
-
Yes. Bently Nevada components are modular, allowing individual replacement / probe, cable, or sensor.
-
-
How should the probe be mounted?
-
This model uses a reverse mount with a 3/8-24 UNF-2A thread, and should be installed per OEM torque specifications.
-
-
Is the cable armored?
-
Yes, the cable is armored for additional mechanical protection against abrasion and wear.
-
-
Is this product compatible with other Bently Nevada systems?
-
Yes, it is compatible with most Bently Nevada monitoring systems, especially those supporting 3300 XL 8mm probes.
Related モデルs (Same Series)
| モデル | Tip Diameter | Cable Length | Extension Length | Mounting |
|---|---|---|---|---|
| 330103-00-05-10-02-05 | 8 mm | 5 ft | 10 ft | Reverse Mount |
| 330103-00-10-10-02-05 | 8 mm | 10 ft | 10 ft | Reverse Mount |
| 330103-00-12-10-02-05 | 8 mm | 12 ft | 10 ft | Reverse Mount |
| 330103-00-08-05-02-05 | 8 mm | 8 ft | 5 ft | Reverse Mount |
| 330103-00-08-15-02-05 | 8 mm | 8 ft | 15 ft | Reverse Mount |
| 330103-00-08-10-01-05 | 8 mm | 8 ft | 10 ft | Forward Mount |
Popular Bently Nevada モデルs
| モデル | 説明 | Application |
|---|---|---|
| 330180-91-05 | 3300 XL NSv Proximity Probe | Small target applications |
| 330104-00-09-10-02-00 | 3300 XL 11mm Proximity Probe | High-temperature machinery |
| 3500/22M | Transient Data Interface Module | Data collection & diagnostics |
| 3500/42M | Proximitor® Seismic Vibration Monitor | Seismic & shaft vibration monitoring |
| 330130-040-00 | Extension Cable for Proximity Transducer | Probe cable extension |
| 3500/40M | Proximitor® Monitor | General-purpose vibration monitoring |
