Product 説明

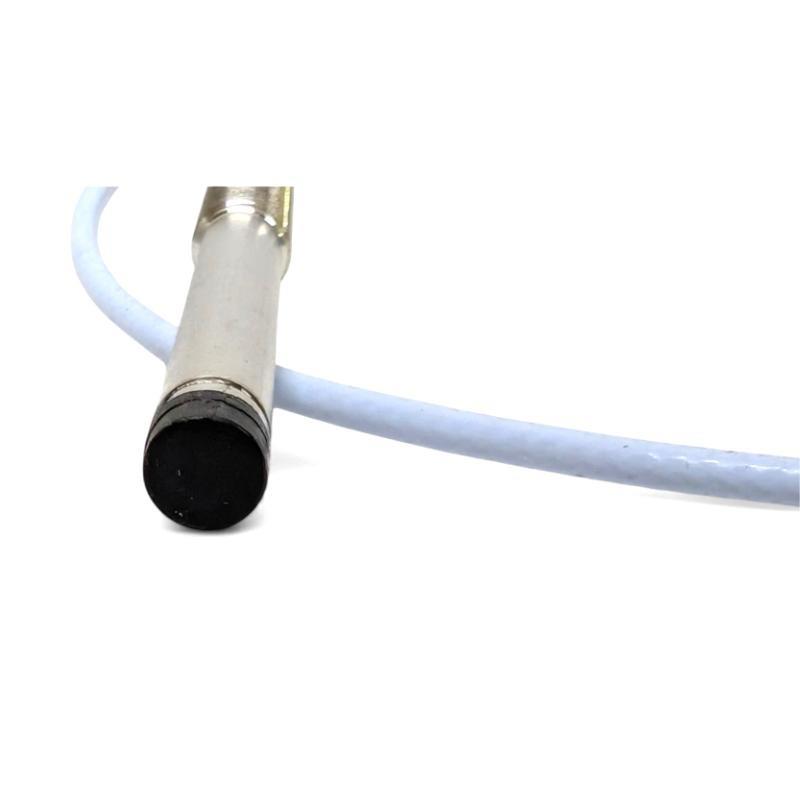

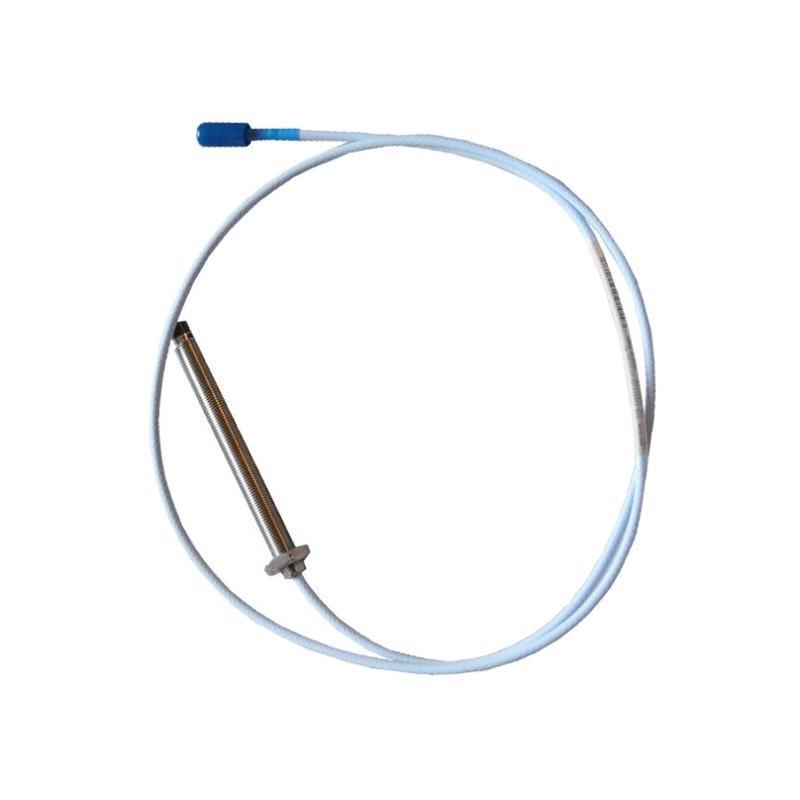

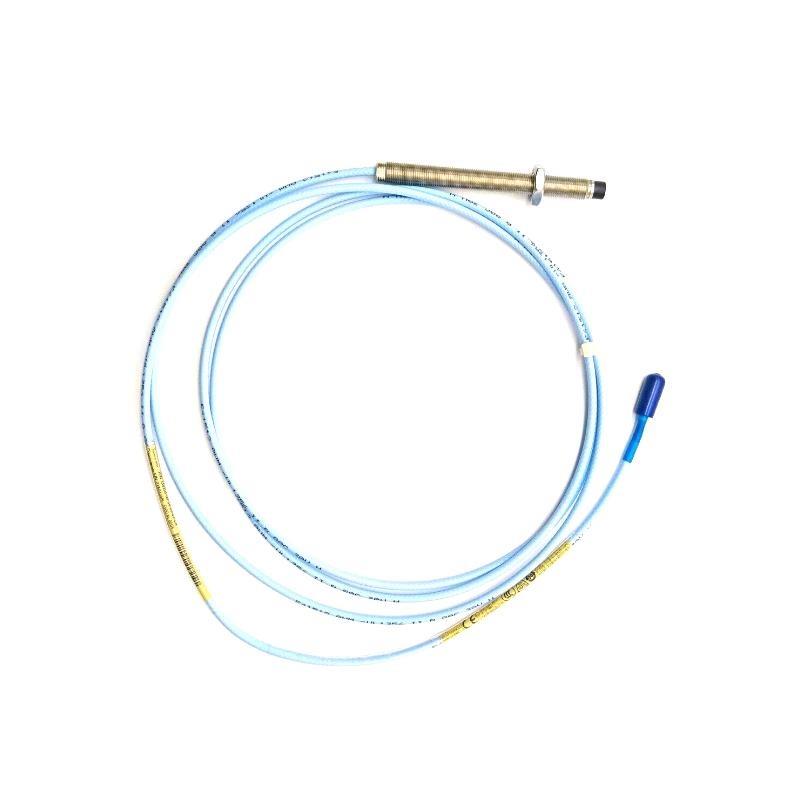

The Bently Nevada 330103-00-07-50-02-05 is part / the 3300 XL 8 mm Proximity Transducer System. It measures static (position) and dynamic (vibration) displacement / conductive surfaces. Designed to meet API 670 standards, it ensures high accuracy, temperature stability, and interchangeability. Its robust design with improved RFI/EMI imm台y and easy installation features makes it ideal for fluid-film bearing machines and Keyphasor speed measurements.
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 5.0 m (16.4 ft) |
| 重量 | 1.615 kg |
| Probe Tip Diameter | 8 mm |
| Probe Thread | M10 x 1 |
| Linear Range | 0.25–2.3 mm (10–90 mils) |
| Operating Temperature | -52°C to +177°C (standard) |
| Extended Temperature Range | Up to +218°C (probe tip) |
| Output Scale Factor | 200 mV/mil ±5% |
| Frequency Response | 0–10 kHz (+0/-3 dB) |
| Minimum Target Size | 15.2 mm diameter |
| Recommended Shaft Diameter | ≥76.2 mm |
| Compliance | API 670, CE, RoHS, SIL 2/3 |
Applications
-
Vibration monitoring / rotating machinery
-
Shaft position and displacement measurement
-
Keyphasor reference signals
-
Overspeed protection systems
-
High-density installations in industrial environments
Advantages
-
Full API 670 compliance
-
High robustness with improved bonding and pull strength
-
Backward and cross-compatibility with older systems
-
優良 RFI/EMI imm台y, reducing installation costs
-
SpringLoc connections for fast, reliable wiring
-
Extended temperature options available
-
Environmentally protected connectors
よくある質問 (FAQ)
Q1: What is the linear range / the 330103 probe?
A1: The linear range is approximately 0.25 to 2.3 mm (10–90 mils).
Q2: Is the probe compatible with older 3300 systems?
A2: Yes, it is electrically and physically interchangeable with non-XL 3300 8 mm and 5 mm components.
Q3: Does this probe meet API 670 standards?
A3: Yes, it fully complies with API 670 mechanical and performance standards.
Q4: What is the standard operating temperature range?
A4: The standard probe operates between -52°C and +177°C.
Q5: What is the minimum recommended shaft diameter?
A5: At least 76.2 mm (3 inches) for accurate vibration measurements.
Q6: Is special shielding required for installation?
A6: No, the probe’s improved EMI imm台y eliminates the need for special shielded conduit.
Q7: Can this probe be used in hazardous areas?
A7: Yes, it has ATEX, IECEx, and CSA approvals for hazardous area applications.
Q8: How is the probe connected?
A8: Using corrosion-resistant, gold-plated ClickLoc connectors with finger-tight torque.
Q9: Is the probe available in extended temperature versions?
A9: Yes, optional ETR versions can handle up to +218°C at the probe tip.
Q10: What is the tensile strength / the probe cable?
A10: The probe-to-lead bond withstands up to 330 N (75 lbf) pull strength.
Related モデルs (Same Series or カテゴリー)
| モデル Number | Thread Type | Length | 重量 |
|---|---|---|---|
| 330101-00-08-05-02-00 | 3/8-24 UNF | 5.0 m | 1.6 kg |
| 330102-00-20-10-02-00 | 3/8-24 UNF (Armor) | 2.0 m | 1.2 kg |
| 330104-00-06-10-02-00 | M10 x 1 (Armor) | 1.0 m | 0.8 kg |
| 330105-02-12-05-02-05 | 3/8-24 UNF (Reverse) | 0.5 m | 0.5 kg |
| 330140-00-50-02-00 | Smooth Case | 5.0 m | 1.6 kg |
| 330191-00-50-05-02-00 | ETR 3/8-24 UNF | 5.0 m | 1.6 kg |
Popular Bently Nevada モデルs
| モデル Number | Product Type | Application | 重量 |
|---|---|---|---|
| 3300/50 | Proximitor Monitor | Vibration Monitoring | 0.9 kg |
| 3500/42M | Proximitor Seismic Monitor | Machinery Health | 1.2 kg |
| 3500/22M | Transient Data Interface | Data Acquisition | 1.0 kg |
| 3500/32M | Relay Module | Alarm/Shutdown Relay | 0.8 kg |
| 330180-51-05 | 3300 XL Proximitor Sensor | Probe Signal 状態ing | 0.9 kg |
| 330130-070-00-00 | 3300 XL Extension Cable | Probe to Sensor Connection | 0.3 kg |
