Product Overview

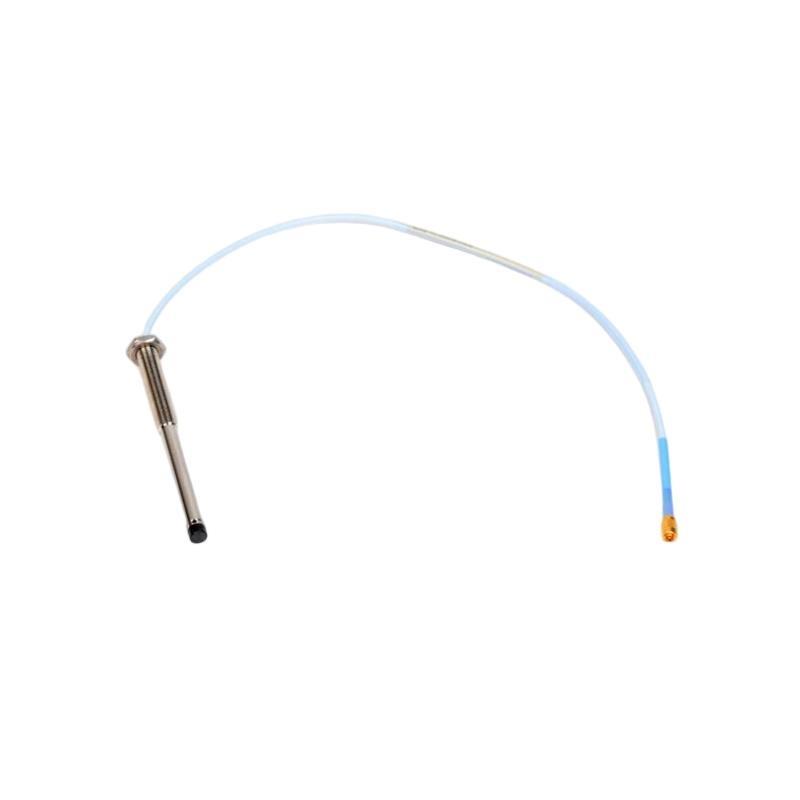

The Bently Nevada 330103-00-06-15-02-CN is a premium 8 mm proximity probe from the trusted 3300 XL series, designed for precise, non-contact measurement / shaft vibration and displacement in critical rotating machinery. This model features a 6-meter integral cable, a 5/8-18 UNF threaded mounting, and a 90° angled connector. The “-CN” suffix indicates a China-specific connector configuration, optimized for regional standards and industrial equipment.
Constructed from stainless steel and designed to withstand harsh industrial environments, the probe is compatible with 3300 XL Proximitor sensors and extension cables, delivering reliable, accurate data to protect machinery health and improve maintenance efficiency.
Key Features
-
8 mm probe tip diameter for accurate displacement and vibration sensing
-
6-meter integral low-noise triaxial cable with shielding
-
90° angled connector for installations with limited space
-
5/8-18 UNF threaded mounting for secure attachment
-
Stainless steel body ensures corrosion resistance
-
IP68 rated for protection against dust, water, and oil ingress
-
Designed for operation in temperatures from -35°C to +177°C
-
Resistant to high shock (5000 g) and vibration (50 g)
-
Compatible with Bently Nevada 3300 XL extension cables and Proximitor sensors
-
Factory calibrated for plug-and-play integration
Technical Specifications
| Specification | Details |
|---|---|
| モデル Number | 330103-00-06-15-02-CN |
| Series | 3300 XL 8 mm |
| Probe Tip Diameter | 8 mm |
| Mounting Thread Size | 5/8-18 UNF-2A |
| Sensing Range | 2 mm (80 mils) |
| Linear Range | 0.25 mm to 2.0 mm (10 to 80 mils) |
| Connector Orientation | 90° angled connector |
| Cable Length | 6 meters (integral) |
| Cable Type | Triaxial coaxial, low noise, CN-certified |
| Probe Material | AISI 304 Stainless Steel |
| Operating Temperature Range | -35°C to +177°C (-31°F to +351°F) |
| Storage Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Environmental Protection | IP68 (fully sealed when installed) |
| Vibration Resistance | 50 g peak, 10 to 2000 Hz |
| Shock Resistance | 5000 g, 1 ms half-sine pulse |
| Insulation Resistance | >10⁹ ohms at 500 VDC |
| Typical Accuracy | ±0.07 mm (±2.8 mils) |
| Compliance | API 670, CE, GB standards |
| Dimensions | Total Length : 1.5 meters |
| 重量 | 0.484 kg |
Industry Applications
-
Power generation turbines and generators
-
Oil and gas compressors and pumps
-
Petrochemical processing equipment
-
Mining and mineral processing machinery
-
Marine propulsion shaft monitoring
-
Industrial HVAC fans and blowers
-
Pulp and paper mill drive shafts
-
OEM machinery in China requiring CN-certified components
Product Advantages
-
Regional CN connector optimizes compatibility with Chinese equipment and standards
-
Durable stainless steel housing withstands corrosive and harsh environments
-
90° booted connector enables neat and flexible cable routing
-
優良 resistance to vibration and mechanical shock ensures signal integrity
-
IP68 sealing for operation in wet, oily, and dusty environments
-
Factory calibration reduces commissioning time and errors
-
Compatible with a wide array / 3300 XL system modules and extension cables
-
Long operational life with minimal maintenance requirements
-
High measurement accuracy and repeatability
-
Meets international and regional certification requirements
よくある質問 (FAQ)
-
What does the “-CN” suffix signify?
It indicates a China-specific connector and certification for regional compliance. -
Is this probe compatible with standard 3300 XL systems?
Yes, it works seamlessly with all 3300 XL Proximitor sensors and extension cables. -
What is the cable length?
The integral cable length is 6 meters. -
Can this probe be installed in tight spaces?
Yes, the 90° angled connector facilitates installation where space is limited. -
What is the operating temperature range?
-35°C to +177°C (-31°F to +351°F). -
Is this probe resistant to moisture and dust?
Yes, it has an IP68 rating when properly installed. -
Does it require field calibration?
No, it comes factory calibrated. -
What industries commonly use this probe?
Power generation, petrochemical, oil & gas, mining, marine, and OEM manufacturing. -
What materials are used in the probe?
AISI 304 stainless steel for corrosion resistance. -
How should the probe be mounted?
Using the 5/8-18 UNF threaded body, ensuring secure and proper alignment.
Related モデルs
| モデル Number | 説明 |
|---|---|
| 330103-00-05-15-02-CN | 5 m cable, 5/8-18 thread, 90° connector, China-specific |
| 330103-00-06-20-02-CN | 6 m cable, 5/8-18 thread, 90° connector, China-specific |
| 330103-00-08-15-02-CN | 8 m cable, 5/8-18 thread, 90° connector, China-specific |
| 330104-00-10-10-02 | 10 m extension cable, straight connector |
| 330130-045-01-00 | 4.5 m standard extension cable |
| 330180-91-05 | Proximitor sensor, 5 m cable, compatible with 8 mm probes |
Popular Bently Nevada モデルs
| モデル Number | 説明 |
|---|---|
| 3500/22M-01-01-00 | Transient Data Interface Module |
| 3500/42M-01-00 | Vibration Monitor Module |
| 330104-00-05-10-02 | 5 m extension cable |
| 330130-045-01-00 | 4.5 m standard extension cable |
| 330180-91-05 | Proximitor sensor compatible with 8 mm probes |
| 1900/65A-00-01-01 | Compact machine monitor for vibration and speed |
