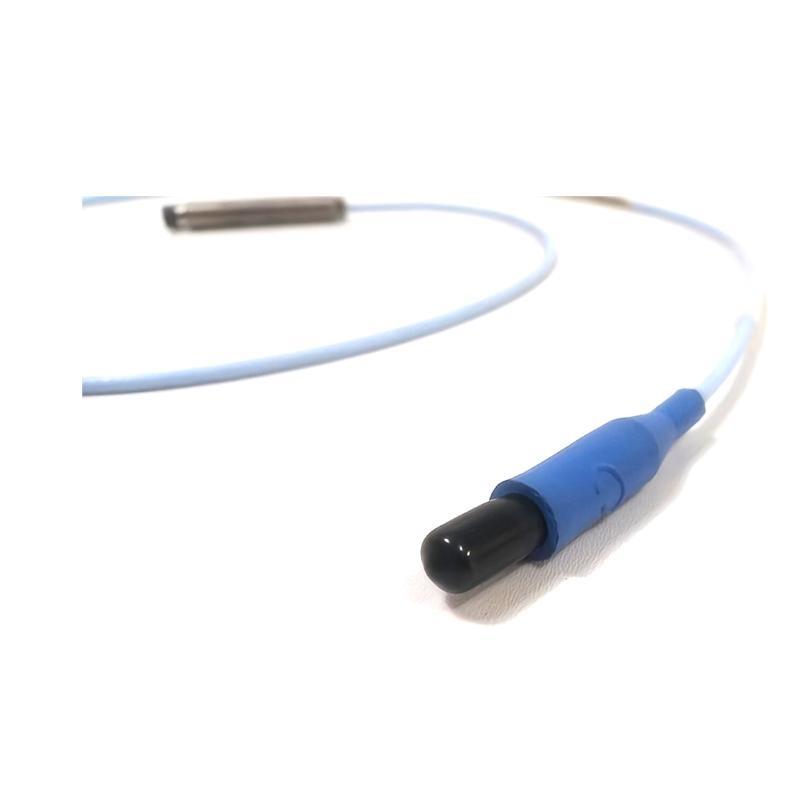

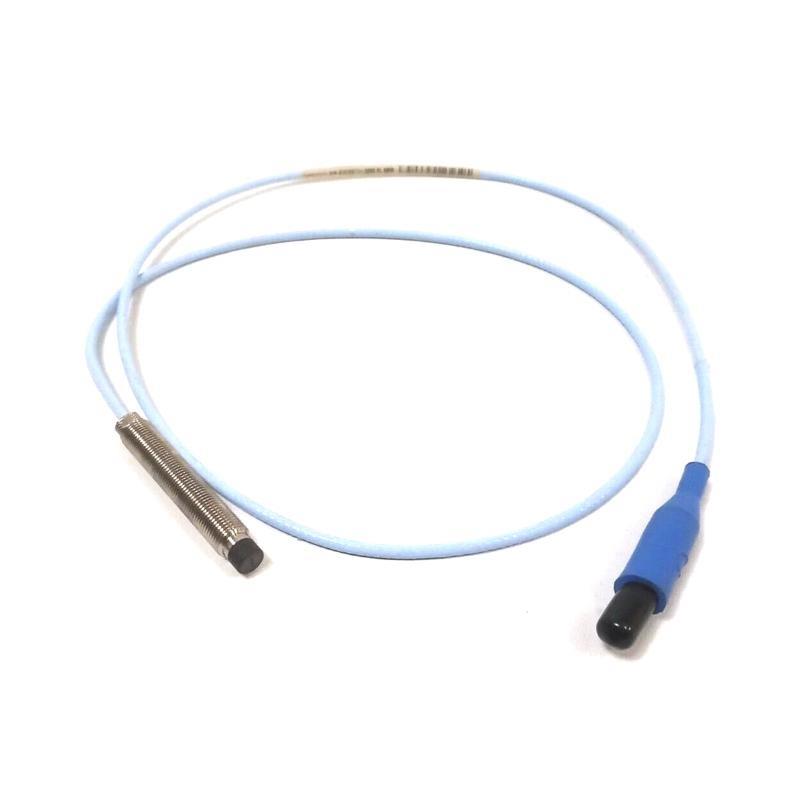

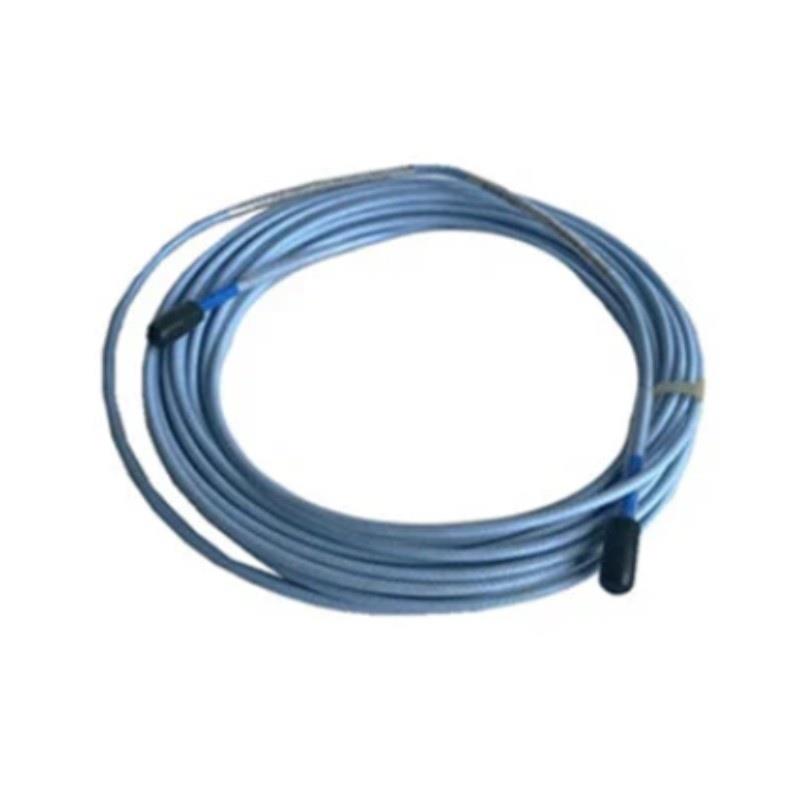

Bently Nevada 330103-00-06-05-02-05 3300 XL 8 mm Proximity Probe

Product Overview

The Bently Nevada 330103-00-06-05-02-05 is a high-precision 8 mm proximity probe from the 3300 XL series, designed for condition monitoring and machinery protection in demanding industrial environments. This probe uses eddy current technology to measure the displacement / rotating machinery and provide real-time feedback on vibration and shaft position.

The model features a 6-meter probe and 5-meter extension cable, ideal for installations requiring longer cable runs while maintaining the performance and reliability expected from Bently Nevada systems. This probe is engineered to operate in harsh conditions, providing high accuracy and long-term reliability in applications like turbines, motors, compressors, and pumps.

Key Features

• 8 mm probe tip for standard industrial shaft displacement measurements

• 6-meter probe and 5-meter extension cable for flexibility in installation

• Non-contact sensing with eddy current technology for accurate gap measurement

• High shock and vibration resistance, withstanding up to 20 g / vibration

• 10-pin Bendix-style connector for reliable electrical connection

• Stainless steel housing for superior durability in harsh environments

• EMI/RFI shielding to ensure clean signal transmission in electrically noisy environments

• Compatible with 3300 XL Proximitor sensors for monitoring systems

Technical Specifications

Typical Applications

• Turbines and Compressors: Monitoring / rotor vibration and axial displacement in turbines, steam, and gas compressors

• Motor Shaft Displacement: Used in power generation, petrochemical, and manufacturing industries to monitor motor shaft displacement

• Pump Monitoring: Detecting misalignment, imbalance, and bearing wear in pumps and other rotating equipment

• 状態 Monitoring: Integrates with 3300 XL Proximitor Sensors for real-time monitoring and diagnostics

• Preventive Maintenance: Identifying early signs / mechanical faults before they lead to failures or downtime

• Vibration Diagnostics: Essential in the diagnostics / machinery that operates under high-speed or extreme load conditions

Advantages

• High-Accuracy Measurement: Linear output with low temperature sensitivity ensures consistent, reliable data for condition monitoring

• Extended Cable Length: The combination / a 6-meter probe and 5-meter extension cable makes it ideal for hard-to-reach installations

• Robust Design: Resistant to high vibration and shock, providing long-term durability in demanding environments

• Modular and Replaceable Components: Easy to replace or upgrade parts without disrupting system operations

• Electromagnetic Imm台y: EMI/RFI shielding ensures the probe functions reliably in environments with high electrical noise

• Compatibility: Works seamlessly with Bently Nevada 3300 XL and 3500 machinery protection systems

• Non-お問い合わせ Sensing: Reduces mechanical wear and tear, ensuring long service life and reliability

よくある質問 (FAQ)

1. What does the “06-05” refer to in the model number?
   It refers to the 6-meter probe and 5-meter extension cable, providing flexibility in installation.

2. What is the linear measurement range / this probe?
   The probe has a linear measurement range / ±1.0 mm (total displacement / 2.0 mm).

3. Can the extension cable be replaced separately?
   Yes, the extension cable is modular and can be replaced independently from the probe.

4. What is the operating temperature range / the probe?
   The probe can operate in environments with temperatures ranging from -40 °C to +120 °C.

5. How is the probe mounted?
   The probe features an M10 × 1 mm threaded body, allowing secure mounting on a variety / equipment.

6. What is the weight / the probe?
   The probe weighs approximately 0.18 kg, including the cable and connector.

7. Can this probe be used in hazardous environments?
   The probe itself is rugged and sealed, but use in hazardous areas depends on the overall system certification.

8. What type / signal does the probe output?
   The probe outputs an analog voltage signal that is proportional to the gap distance between the probe and the target.

9. Is this probe compatible with legacy Bently Nevada systems?
   Yes, it is compatible with 3300 XL Proximitor sensors and other Bently Nevada monitoring systems.

10. What is the shock limit for this probe?
    The probe can withstand up to 500 g / peak shock, ensuring reliable performance in high-impact environments.
