製品紹介

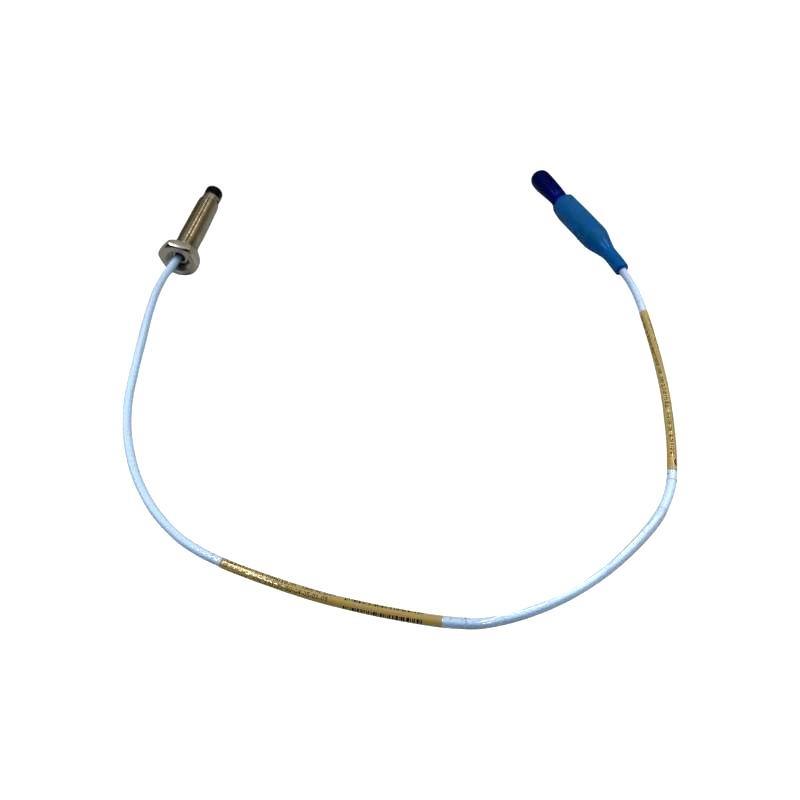

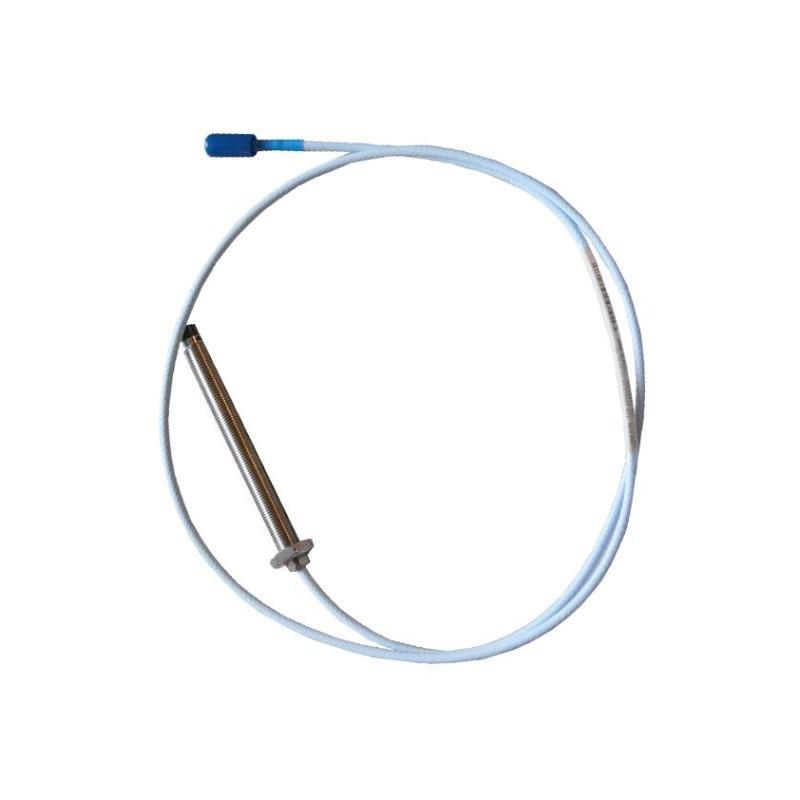

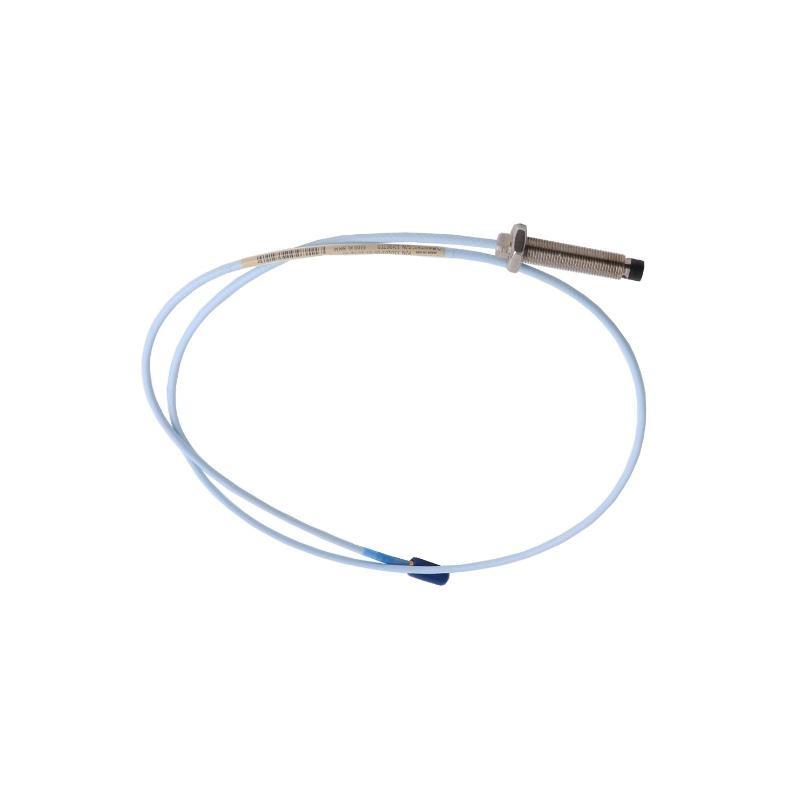

The Bently Nevada 330103-00-05-10-01-00 is a precision-engineered 3300 XL 8mm Proximity Probe, designed specifically for high-reliability machinery condition monitoring in industrial environments. As part / the 3300 XL series, this probe provides accurate, non-contact displacement and vibration measurements, essential for the health assessment / rotating equipment such as turbines, compressors, and generators.
Featuring a robust design, the 8mm sensing tip allows for precise measurement in tight or challenging spaces, ensuring reliable data capture under harsh operating conditions. The probe’s compatibility with the Bently Nevada 3300 XL monitoring system makes it an ideal choice for users seeking to optimize predictive maintenance and reduce unexpected downtime. Its rugged construction and proven reliability in the field have made it a preferred choice among power generation, oil and gas, and heavy industry operators worldwide.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | 330103-00-05-10-01-00 |
| Product Series | 3300 XL |
| Probe Type | Proximity Probe |
| Sensing Tip Diameter | 8 mm |
| Total Length | 1.0 meter |
| Operating Temperature | -40°C to +120°C |
| 重量 | 0.323 kg |
| Tip Material | Hardened Stainless Steel |
| Cable Type | Shielded, high-flexibility coaxial cable |
| Maximum Vibration | Up to 100 g (shock resistant) |
| Output Signal | AC variable frequency signal proportional to gap |
| Mounting Thread | 1/2-20 UNF standard probe mounting thread |
| Environmental Rating | IP65 (weather and dust resistant) |
| Sensitivity Range | 0.5 mm to 5 mm gap distance |
| Connector Type | Bendix PT02E-10-6P (standard) |
| Calibration | Factory calibrated, traceable to standards |
Applications
The 3300 XL 8mm Proximity Probe is engineered to perform critical machinery health monitoring functions in various industrial sectors:
-
Power Generation: Monitoring turbine shaft position, vibration, and rotor dynamics to prevent catastrophic failures.
-
Oil and Gas: Measuring critical rotating equipment such as compressors and pumps in upstream and downstream facilities.
-
Petrochemical Industry: Ensuring safe and efficient operation / large rotating machinery within refineries.
-
Aerospace & Defense: Precision monitoring / engines and high-speed rotating components.
-
Metallurgy: Assessing the condition / large rolling mills, fans, and blowers.
-
Water & Wastewater Treatment: Monitoring pumps and motors for operational reliability.
Product Advantages
-
High Precision and Reliability: Provides highly accurate, stable proximity measurements crucial for predictive maintenance.
-
Robust Design for Harsh Environments: Built to withstand extreme temperatures, vibration, and contaminants, ensuring longevity and reduced maintenance.
-
Compact Sensing Tip: 8mm diameter allows for installation in tight spaces without sacrificing performance.
-
Standardized Mounting and Connection: Compatible with common industrial mounting threads and Bendix connectors, simplifying installation and replacement.
-
Long Cable Options: Standard 1.0 meter cable with flexibility to customize length to suit installation needs.
-
Industry Proven: Trusted worldwide for decades in critical machinery monitoring applications.
-
Shock Resistant: Designed to tolerate high vibration and shock levels without degradation / signal quality.
-
Easy Integration: Seamlessly integrates with Bently Nevada 3300 XL monitoring systems and other condition monitoring platforms.
-
Comprehensive Calibration: Factory calibrated with traceability ensuring accuracy and consistency.
-
IP65 Protection: Resistant to dust and water ingress, suitable for industrial outdoor and indoor environments.
よくある質問 (FAQ)
-
What is the sensing tip diameter / the Bently Nevada 330103 probe?
The probe features an 8mm sensing tip designed for precision measurements. -
What is the typical cable length supplied with this probe?
The standard cable length is 1.0 meter, but custom lengths can be ordered. -
Can the probe operate in extreme temperatures?
Yes, it is rated to operate reliably from -40°C up to +120°C. -
What type / connector does this probe use?
It uses the Bendix PT02E-10-6P connector, a standard in industrial proximity probes. -
Is the probe compatible with the Bently Nevada 3300 XL system?
Absolutely, it is designed specifically for compatibility with the 3300 XL monitoring system. -
What mounting thread does this probe use?
The probe uses a standard 1/2-20 UNF mounting thread for secure installation. -
How does the probe output its measurement signal?
It produces an AC variable frequency signal proportional to the distance between the probe tip and the target. -
Is this probe resistant to vibration and shock?
Yes, it can handle vibration up to 100 g, making it suitable for harsh industrial environments. -
What is the environmental protection rating / the probe?
The probe has an IP65 rating, protecting it against dust and water jets. -
How is the probe calibrated?
The probe is factory calibrated with traceable standards for consistent accuracy.
Related モデルs from the Same Series or Compatible Proximity Probes
| モデル Number | 説明 | Sensing Tip Size | Cable Length | Compatibility |
|---|---|---|---|---|
| 330103-00-05-10-01-00 | 3300 XL Proximity Probe, 8mm tip | 8 mm | 10 m (standard) | Bently Nevada 3300 XL |
| 330103-00-05-20-01-00 | 3300 XL Proximity Probe, 8mm tip, 20 m cable | 8 mm | 20 m | Bently Nevada 3300 XL |
| 330104-00-05-10-01-00 | 3300 XL Proximity Probe, 5mm tip | 5 mm | 10 m | Bently Nevada 3300 XL |
| 330105-00-05-10-01-00 | 3300 XL Proximity Probe, 12mm tip | 12 mm | 10 m | Bently Nevada 3300 XL |
| 330103-00-05-05-01-00 | 3300 XL Proximity Probe, 8mm tip, short cable | 8 mm | 5 m | Bently Nevada 3300 XL |
| 330103-00-05-50-01-00 | 3300 XL Proximity Probe, 8mm tip, 50 m cable | 8 mm | 50 m | Bently Nevada 3300 XL |
Popular モデルs from Bently Nevada ブランド
| モデル Number | 説明 | カテゴリー | Application |
|---|---|---|---|
| 3300 XL System | Machinery protection and condition monitoring system | Monitoring System | Rotating machinery |
| 3300 XL Monitor Module | Modular interface for vibration sensors | Monitoring Module | Signal processing |
| 3300 XL Proximitor | Signal conditioning 台 for proximity probes | Signal 状態er | Probe signal conversion |
| 3300 XL Accelerometer | Vibration accelerometer sensor | Sensor | Vibration measurement |
| 3500 Series Vibration Monitor | Advanced vibration monitoring system | Monitoring System | High precision condition monitoring |
| 3051 Pressure Transmitter | Process pressure measurement sensor | Instrumentation | Process control |
