Product Overview

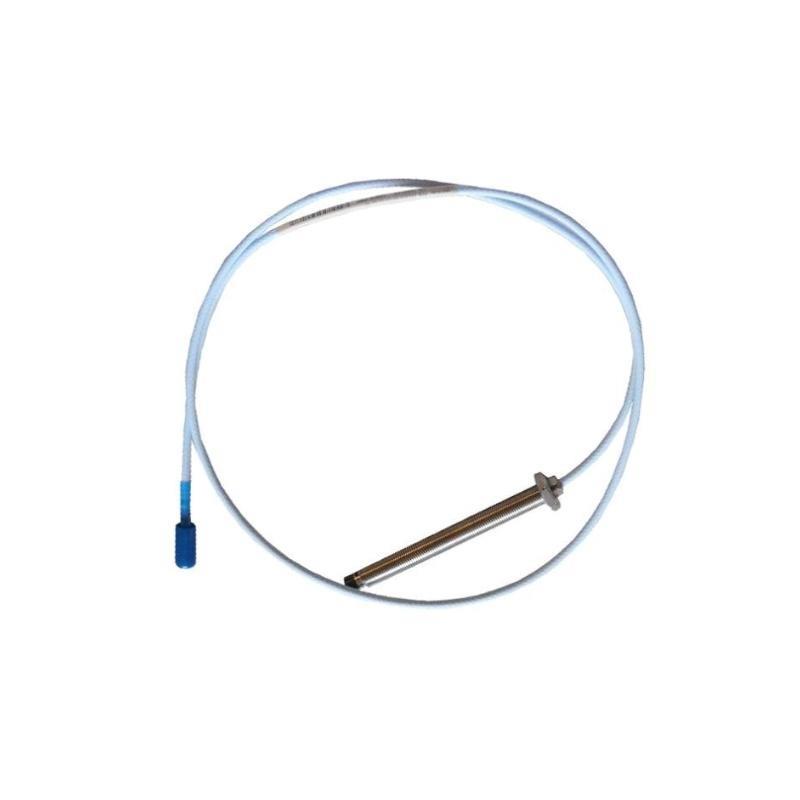

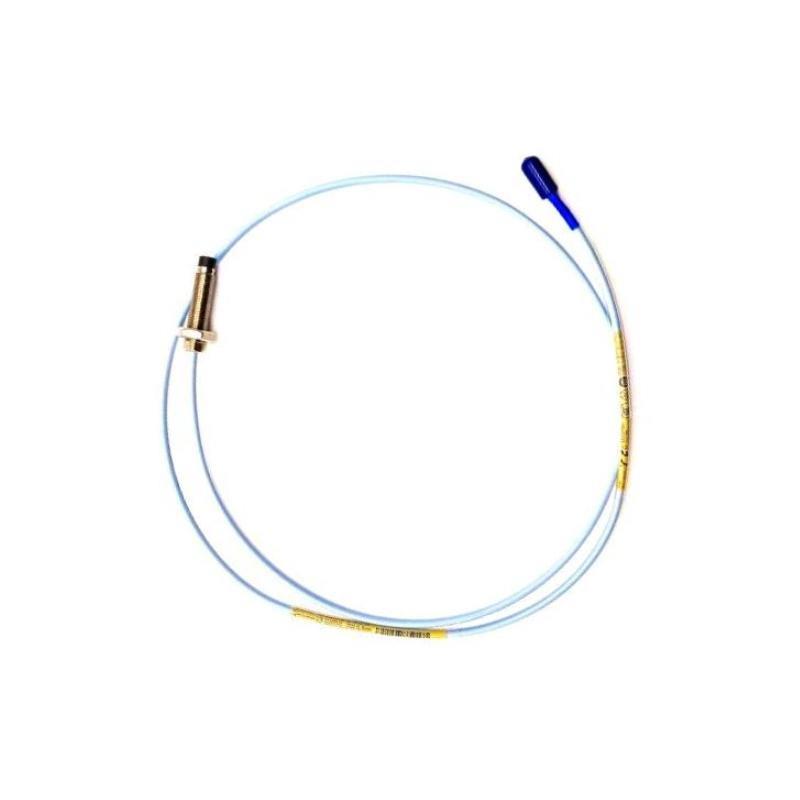

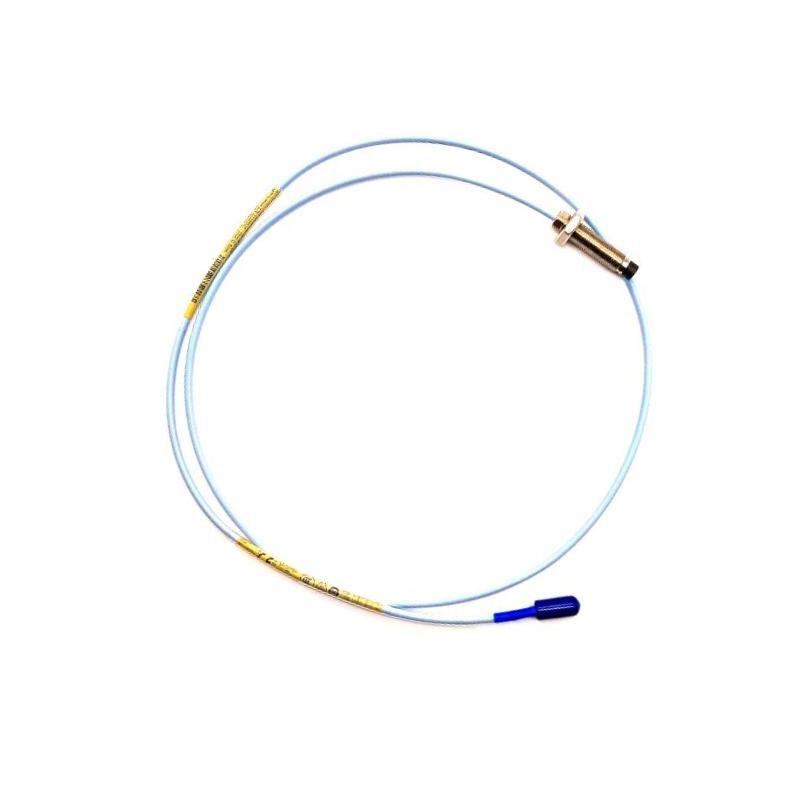

The Bently Nevada 330103-00-05-05-01-05 is a rugged and highly precise 8 mm Proximity Probe designed for use within the renowned 3300 XL series machinery condition monitoring system. It delivers accurate shaft displacement and vibration data essential for early fault detection, reducing unplanned downtime, and extending machinery life.
Engineered with a robust stainless steel probe tip and a shielded coaxial cable, this probe is ideal for harsh industrial environments involving extreme temperatures, mechanical shock, and vibration. It seamlessly integrates with Bently Nevada’s 3300 XL monitoring systems, providing reliable, continuous monitoring / critical rotating equipment.
Key Features
-
8 mm diameter probe tip for precise proximity sensing
-
Compatible with Bently Nevada 3300 XL series monitoring systems
-
Eddy current sensing technology with high sensitivity and broad frequency response
-
Durable stainless steel construction and ruggedized coaxial cable
-
Suitable for extreme industrial conditions, including temperature and vibration
-
Resistant to mechanical shock up to 100 g
-
Provides continuous real-time shaft position and vibration monitoring
-
Industry-standard connectors and flexible mounting options
Technical Specifications
| Specification | Details |
|---|---|
| モデル Number | 330103-00-05-05-01-05 |
| Product Line | 3300 XL |
| Probe Diameter | 8 mm |
| Sensing Method | Eddy current proximity sensing |
| Measurement Range | 0 to 127 mils (0 to 3.2 mm) typical |
| Frequency Response | DC to 20 kHz |
| Operating Temperature | -40°C to +121°C |
| Cable Length | Standard and custom lengths available |
| Connector Type | MIL-C-5015 or equivalent industrial connector |
| Cable Type | Shielded coaxial cable |
| Probe Material | Stainless steel probe tip with ruggedized cable |
| Vibration Resistance | Up to 30 g (10–2000 Hz) |
| Shock Resistance | 100 g, 11 ms half sine pulse |
| 重量 | 0.161 kg |
| Dimensions | Total Length: 0.5 meter |
| Mounting Options | Threaded or welded mounting |
Industry Applications
The Bently Nevada 330103-00-05-05-01-05 Proximity Probe is used extensively in:
-
Power Generation – Turbine and generator shaft condition monitoring
-
Oil & Gas – Compressors, pumps, and rotating equipment monitoring
-
Mining & Metals – Vibration sensing for critical machinery
-
Chemical Processing – Shaft position and vibration monitoring in reactors and agitators
-
Pulp & Paper – Rotating machinery condition monitoring
-
Marine and Offshore – Propulsion and auxiliary shaft monitoring
Product Advantages
-
Provides high accuracy and dependable shaft displacement measurements
-
Ruggedized design ensures reliable performance in extreme environments
-
Enables early fault detection to reduce maintenance costs and downtime
-
Fully compatible with the Bently Nevada 3300 XL condition monitoring platform
-
サポートs continuous real-time monitoring for machinery health
-
Easy installation with industry-standard connectors and mounting options
-
Resistant to high mechanical shock and vibration levels
よくある質問 (FAQ)
1. What output signal does the probe provide?
An analog voltage signal proportional to shaft proximity.
2. Is this probe compatible with all Bently Nevada monitors?
It is designed specifically for the 3300 XL series monitoring systems.
3. Are custom cable lengths available?
Yes, both standard and custom cable lengths are /fered.
4. What is the operating temperature range?
Rated from -40°C to +121°C (250°F).
5. What mounting options are supported?
Threaded and welded mounting configurations.
6. Is it suitable for harsh environments?
Yes, constructed with stainless steel and rugged cables.
7. Can it measure shaft speed?
Indirectly through vibration frequency analysis.
8. What is the probe tip diameter?
The diameter is 8 mm.
9. How resistant is it to shock and vibration?
Up to 30 g vibration and 100 g shock tolerance.
10. What is the expected service life?
Designed for years / reliable industrial use.
