Product Overview

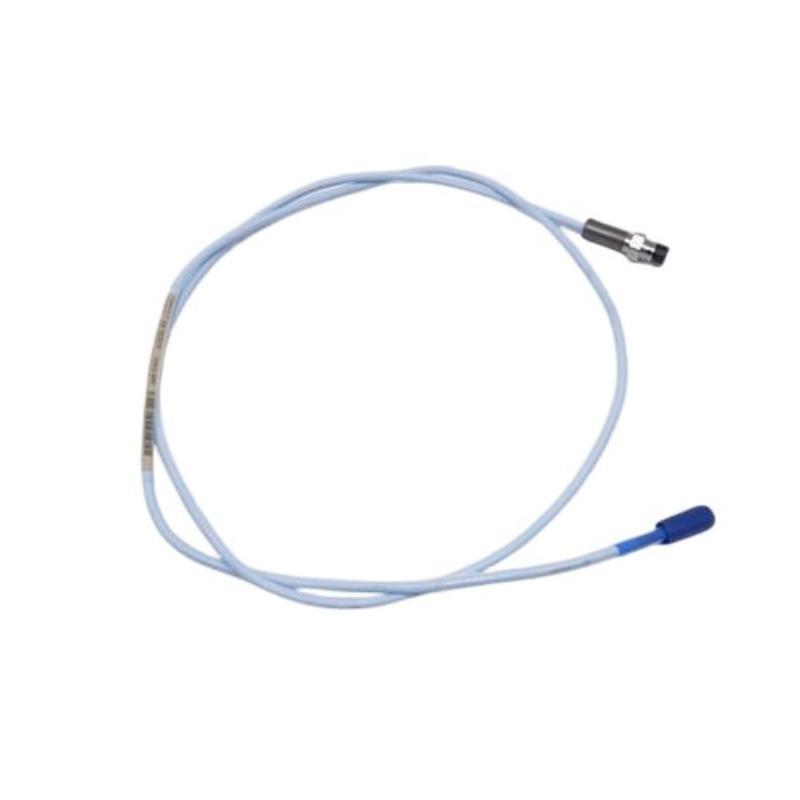

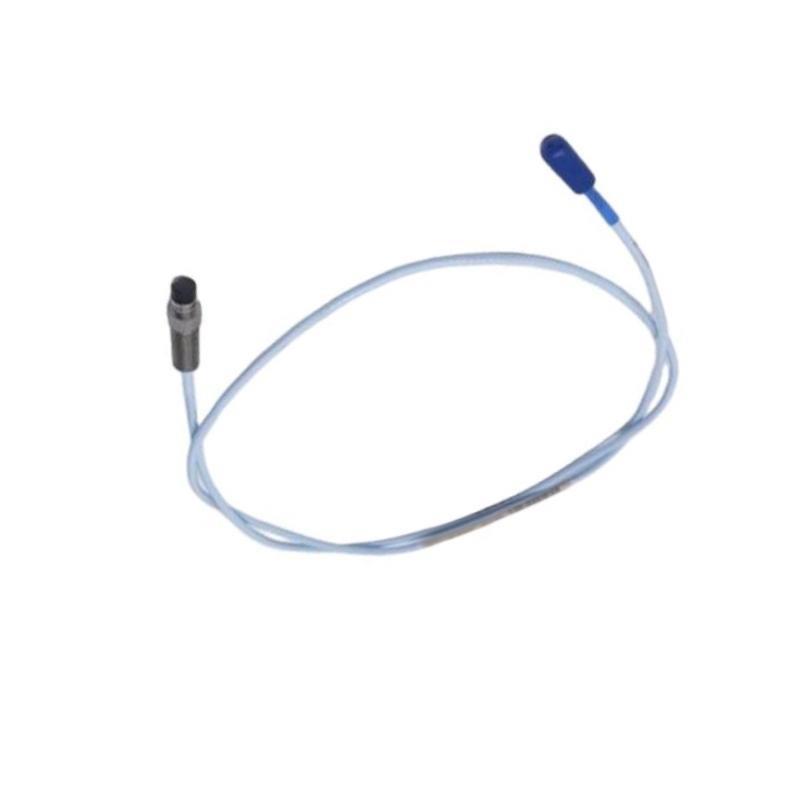

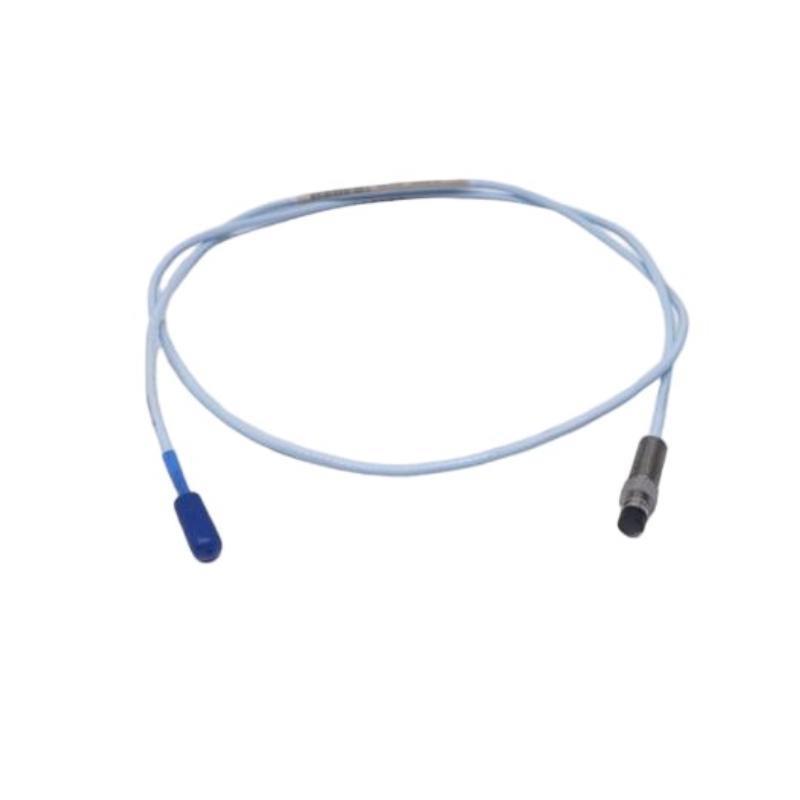

The Bently Nevada 330103-00-04-20-02-00 is a high-precision 8 mm proximity probe designed for non-contact measurement / shaft vibration and axial position in industrial rotating machinery. Part / the well-established 3300 XL series, this probe features a 20-foot (6.2 m) shielded coaxial cable and a shell-style “02” connector, ensuring compatibility with Bently Nevada monitoring and protection systems.
This model is ideal for deployment in demanding environments such as power generation, petrochemicals, and heavy manufacturing, /fering accurate and stable data for predictive maintenance and real-time equipment protection. Its rugged stainless steel design and electromagnetic shielding provide long-lasting performance, even under high vibration and temperature conditions.
Key Features
-
8 mm diameter tip for standard eddy current sensing
-
20-foot (6.2 m) integral shielded coaxial cable
-
Compatible with Bently Nevada 3300 XL Proximitor® systems
-
Shell style “02” connector for secure signal connections
-
High linearity and sensitivity for precise shaft monitoring
-
IP67-rated protection for use in dusty and wet environments
-
Resistant to EMI and harsh industrial conditions
-
Ideal for critical machine protection and condition monitoring applications
Technical Specifications
| Item | Specification |
|---|---|
| メーカー | Bently Nevada (a Baker Hughes company) |
| モデル Number | 330103-00-04-20-02-00 |
| Series | 3300 XL |
| Product Type | Proximity Probe |
| Sensing Technology | Eddy Current |
| Tip Diameter | 8 mm (0.315 in) |
| Sensing Range | 0.15 mm to 5.00 mm (typical) |
| Cable Length | 20 feet (6.2 meters) |
| Connector Type | Shell Style 02 |
| Probe Material | Stainless Steel |
| Frequency Response | Up to 40 kHz |
| Operating Temperature | –40°C to +120°C (–40°F to +248°F) |
| Environmental Rating | IP67 (dust and water resistant) |
| Mounting Thread | 1/4-28 UNF or M8 × 1.0 (depending on configuration) |
| Dimensions | Total Length : 2.0 meters |
| 重量 | 0.646 kg |
| Certifications | CE, RoHS compliant |
| Typical Applications | Shaft vibration, radial displacement, thrust position monitoring |
Industry Applications
-
Power Generation – Monitoring turbines, generators, and gearboxes
-
Oil & Gas – Axial and radial monitoring in pumps and compressors
-
Petrochemical – Critical rotating equipment condition tracking
-
Steel & Mining – Motors, crushers, fans, and heavy-duty rotating assets
-
Marine Engineering – Shaft alignment and thrust detection in ship drives
-
Industrial Machinery – Precision motors, spindles, and rotating tools
Product Advantages
-
High Measurement Accuracy – Delivers consistent, linear readings across full range
-
Long Cable Reach – 20 ft length supports flexible probe placement in large systems
-
Durable Construction – Built to withstand corrosive and high-vibration environments
-
Stable Signal Output – Shielded cable design minimizes electromagnetic interference
-
Global Compatibility – Works with Bently Nevada 3300 XL transducers and monitors
-
Reduced Downtime – Enables predictive diagnostics and machinery health tracking
-
Flexible Mounting Options – Threaded housings simplify installation
-
IP67 Protection – Sealed design ensures probe performance in harsh conditions
よくある質問 (FAQ)
-
Q: What does the “20” in the model number indicate?
A: It refers to the probe’s 20-foot (6.2-meter) cable length. -
Q: What is the purpose / the shell “02” connector?
A: Shell style “02” standardizes electrical and mechanical mating with extension cables and monitoring systems. -
Q: Is this probe compatible with older Bently Nevada systems?
A: It is designed for use with 3300 XL systems but may be compatible with select legacy monitors. -
Q: What’s the probe’s sensing range?
A: Typically 0.15 mm to 5.00 mm, depending on setup and target material. -
Q: What is the environmental rating?
A: IP67 – resistant to dust and water ingress. -
Q: Can it withstand high temperatures?
A: Yes, operating range is –40°C to +120°C. -
Q: What kind / material is used for the probe housing?
A: Stainless steel for durability and corrosion resistance. -
Q: Is the cable shielded against EMI?
A: Yes, the coaxial cable is fully shielded to prevent signal degradation. -
Q: What mounting thread is supported?
A: Typically 1/4-28 UNF or M8 × 1, depending on model configuration. -
Q: Does it require recalibration?
A: It comes pre-calibrated; occasional field verification is recommended as part / routine maintenance.
