製品紹介

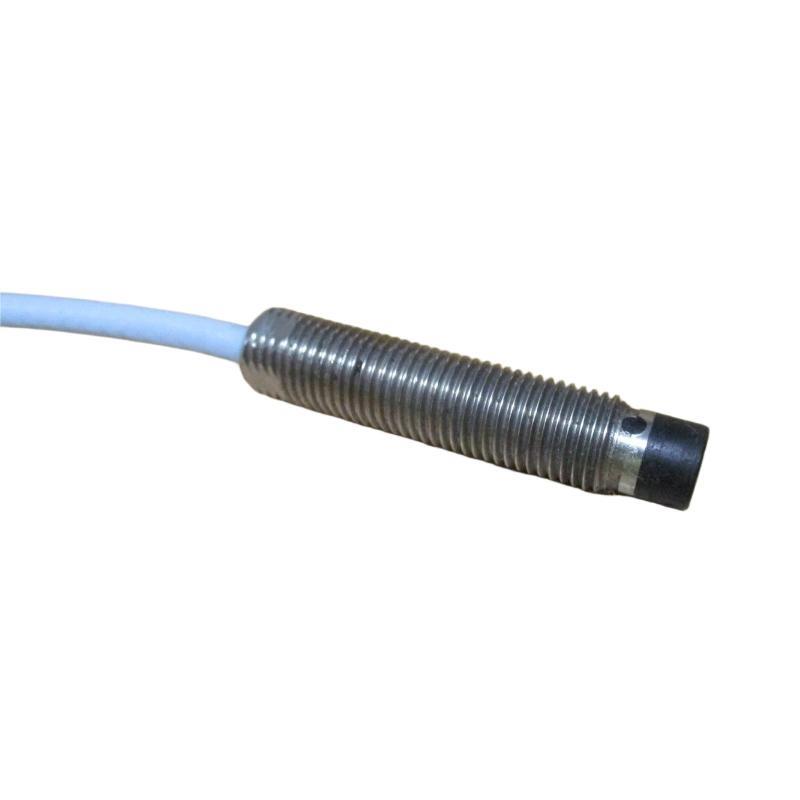

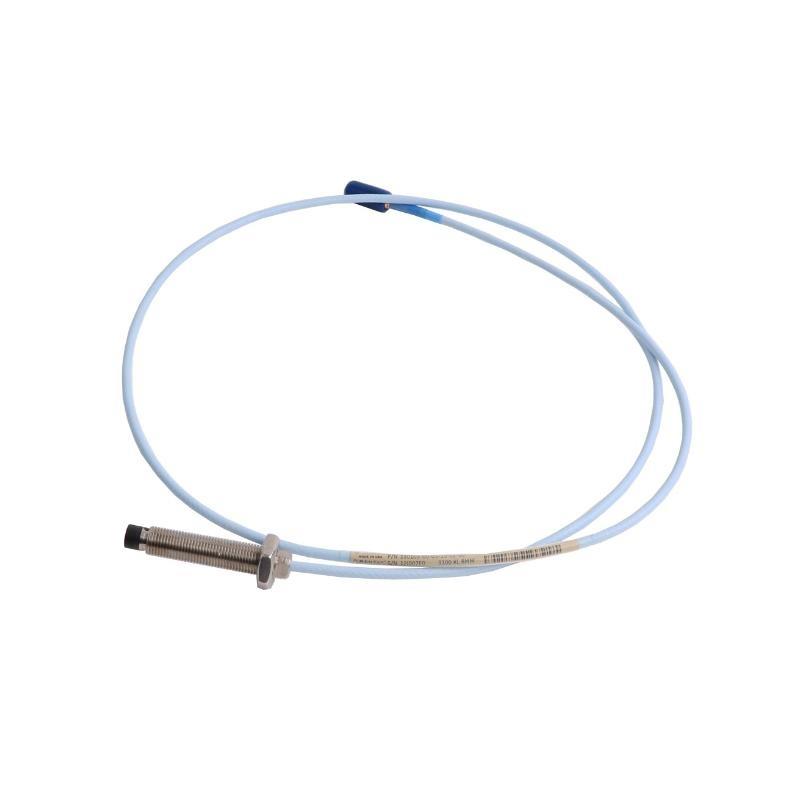

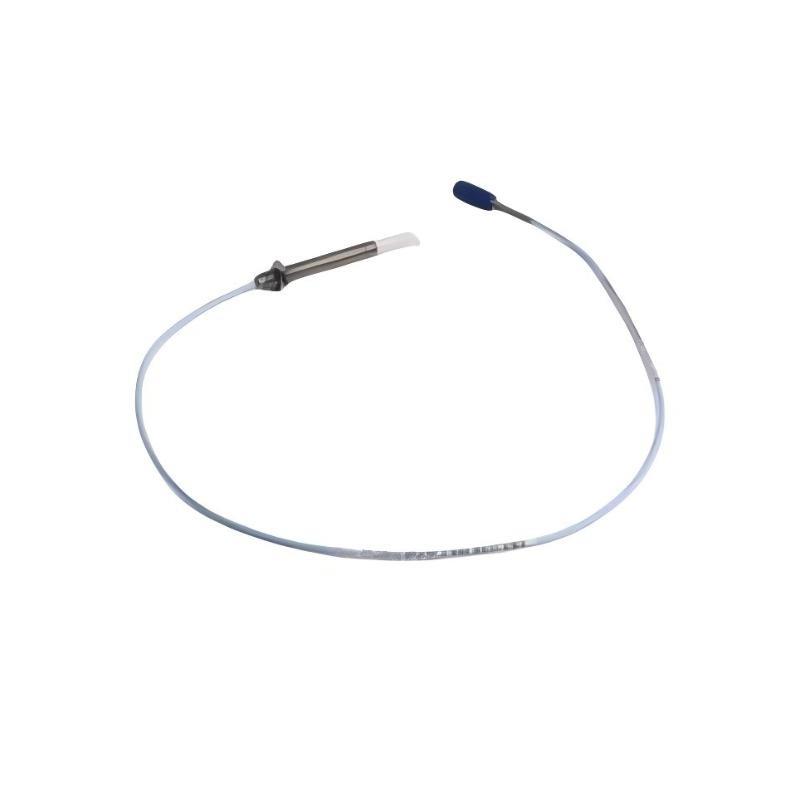

The Bently Nevada 330103-00-03-50-11-00 is an 8 mm proximity probe from the 3300 XL series, designed for non-contact measurement / shaft vibration and displacement in industrial machinery. This model features a 5-meter cable and is equipped with a miniature coaxial ClickLoc™ connector, facilitating easy installation and reliable signal transmission. The probe is constructed with a polyphenylene sulfide (PPS) tip and stainless steel housing, ensuring durability and resistance to harsh industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | 330103-00-03-50-11-00 |
| Measurement Range | 8 mm |
| Total Length | 5.0 meters |
| 重量 | 1.615 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | Stainless Steel (AISI 303/304) |
| Connector Type | Miniature Coaxial ClickLoc™ |
| Cable Type | Standard Industrial Cable |
| Thread Type | M10 x 1.0 |
| Operating Temperature | -40°C to +120°C |
| Target Material | AISI 4140 Steel |
| Compliance | API 670 4th Edition |
Applications
-
Vibration Monitoring: Continuous monitoring / shaft vibrations to detect early signs / mechanical issues.
-
Position Measurement: Accurate measurement / shaft displacement for alignment and balancing purposes.
-
Keyphasor® Pulse Generation: Provides timing signals for control systems to synchronize operations.
-
Harsh Environment Suitability: Designed to operate reliably in high-temperature, humid, and contaminated industrial settings.
Product Advantages
-
High Accuracy: Delivers precise non-contact measurements / shaft position and vibration.
-
Durability: Constructed with materials resistant to wear and environmental factors, ensuring long-term reliability.
-
Easy Integration: Compatible with Bently Nevada 3300 XL monitoring systems, facilitating seamless integration.
-
Standard Compliance: Meets the requirements / API 670 4th Edition, ensuring industry-standard performance.
-
Flexible Installation: The 5-meter cable length allows for versatile installation options in various machine configurations.
FAQ
Q1: How do I adjust the probe gap?
A1: The recommended gap between the probe tip and the shaft is maintained using standard gap gauges to ensure accurate spacing.
Q2: What materials can the probe be calibrated to?
A2: The standard calibration is to AISI 4140 steel. Calibration to other materials can be performed if required.
Q3: Can the probe be used for overspeed protection applications?
A3: Yes, the 3300 XL system is suitable for tachometer and overspeed protection applications.
Q4: Is the probe compatible with non-XL 3300 series components?
A4: Yes, the 3300 XL 8 mm components are electrically and physically interchangeable with non-XL 3300 series components.
Q5: What is the recommended mounting orientation?
A5: The probe should be mounted perpendicular to the shaft to ensure accurate measurements.
Q6: How do I verify the probe’s functionality?
A6: Use the Keyphasor® pulse output and vibration signal to verify the probe’s operation.
Q7: Can the probe operate in humid environments?
A7: Yes, the probe is designed for humid conditions; however, it should not be exposed to direct water immersion.
Q8: What is the maximum cable length supported?
A8: Cable lengths up to 9 meters are supported, depending on application requirements.
Q9: How do I prevent signal interference during installation?
A9: Ensure proper grounding and shielding / the cable, and avoid routing the cable near high-voltage lines or sources / electromagnetic interference.
Q10: Is recalibration required when replacing the probe?
A10: No, the 3300 XL probes are interchangeable without the need for recalibration.
Recommended モデルs (Same Series / Related)
| モデル | 説明 |
|---|---|
| 330101-00-03-50-11-00 | 8 mm probe, M10 thread, 5-meter cable |
| 330102-00-03-50-11-00 | 8 mm probe, M10 thread, 5-meter armored cable |
| 330103-00-03-50-11-00 | 8 mm probe, M10 thread, 5-meter cable, extended temperature |
| 330104-00-03-50-11-00 | 8 mm probe, M10 thread, 5-meter armored cable, extended temperature |
| 330105-00-03-50-11-00 | 8 mm probe, M10 thread, 5-meter cable, reverse mount |
| 330106-00-03-50-11-00 | 8 mm probe, M10 thread, 5-meter armored cable, reverse mount |
Popular モデルs (Bently Nevada)
| モデル | 説明 |
|---|---|
| 330103-00-06-10-02-R0 | Standard module for reliable industrial control systems |
| 330103-00-06-50-02-RU | High-capacity module for enhanced data handling |
| 330103-00-07-10-01-CN | Compact module optimized for low-power applications |
| 330103-00-07-50-03-EU | Multi-protocol module for flexible integration |
| 330103-00-08-10-02-US | Redundant module for critical system operations |
| 330103-00-08-50-01-JP | High-speed module for real-time monitoring and control |
