Product Overview

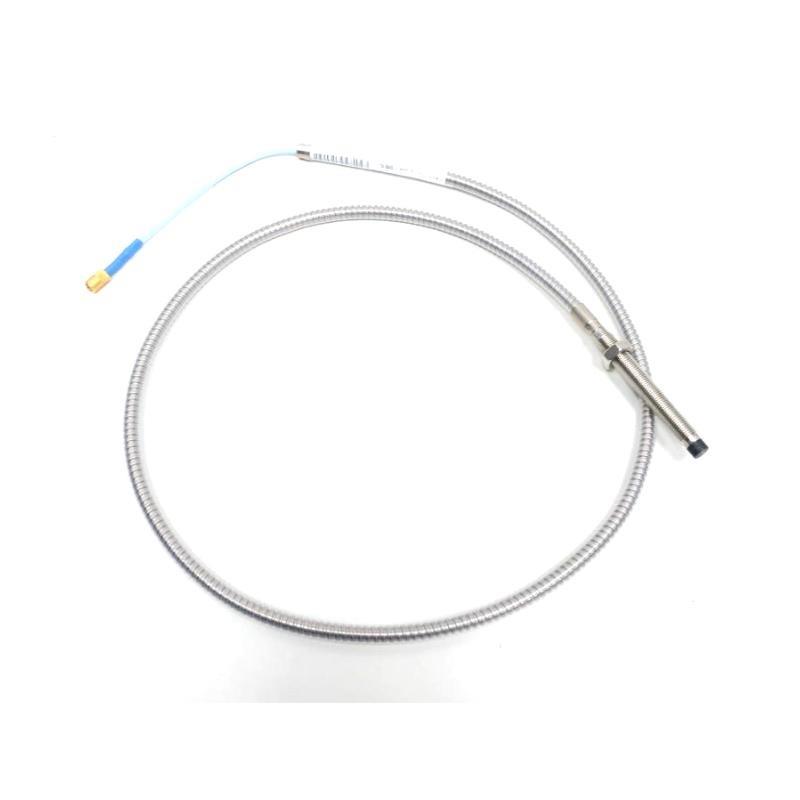

The Bently Nevada 330102-00-80-10-02-00 is a robust proximity probe from the 3300 XL 8 mm series, designed for vibration and position measurements on fluid-film bearing machinery. It provides reliable static and dynamic displacement signals, compliant with API 670 standards, ensuring high accuracy and stability even in harsh environments.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | 330102-00-80-10-02-00 |
| Probe Tip Diameter | 8.0 mm |
| Thread Size | 3/8-24 UNF with armor |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Linear Range | 0.25 mm to 2.3 mm (10–90 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Operating Temperature | -52°C to +177°C |
| Pressure Seal | Viton® O-ring, standard |
| Recommended Gap | 1.27 mm (50 mils), -9 Vdc |

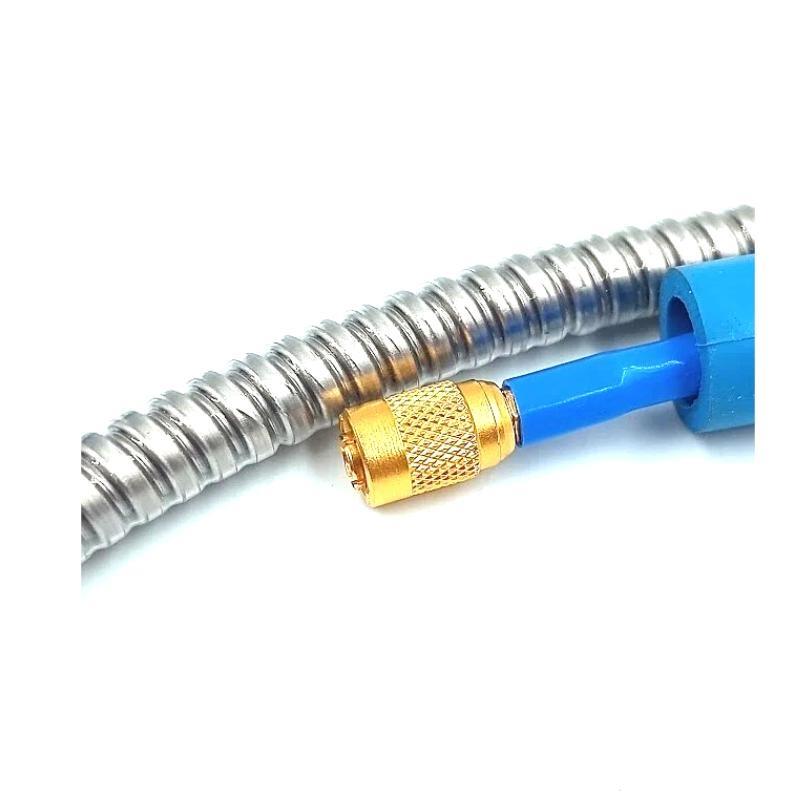

| Cable Type | Armored, miniature coaxial ClickLoc |
| Connector | Finger-tight, corrosion-resistant |
Applications
-
Vibration monitoring / turbines, compressors, and pumps
-
Shaft position and displacement measurements
-
Overspeed protection and Keyphasor signal generation
-
Use in high-density panel or DIN-rail installations
-
Ideal for environments exposed to oil, high temperature, and electromagnetic interference
Advantages
-
API 670 compliance for mechanical and electrical performance
-
Fully interchangeable components, reducing spares inventory
-
Rugged design with armored cable and ClickLoc connectors
-
High imm台y to RFI/EMI, supporting installations in non-metallic enclosures
-
Extended temperature options available for extreme conditions
-
Simple installation and maintenance with no calibration needed
FAQ
Q1: What is the linear measurement range?
A1: The probe has a linear range / approximately 2 mm (80 mils), starting at about 0.25 mm from the target.
Q2: Can this probe operate in high temperatures?
A2: Yes, standard probes can handle up to +177°C, with extended temperature versions up to +218°C.
Q3: Does it comply with API 670?
A3: Yes, it meets API 670 specifications for configuration, accuracy, and stability.
Q4: Are the connectors field-replaceable?
A4: Yes, the ClickLoc connectors are field-serviceable and require no special tools.
Q5: Can I mix XL and non-XL system components?
A5: They are physically interchangeable, but system performance may be limited to the non-XL specifications.
Q6: What is the minimum shaft diameter for radial vibration measurements?
A6: The recommended minimum shaft diameter is 76.2 mm (3 in).
Q7: Is it suitable for hazardous areas?
A7: Yes, it /fers approvals for Class I, Zone 0/2 and ATEX/IECEx environments when installed correctly.
Q8: How is the probe sealed against oil leakage?
A8: It uses a Viton® O-ring to seal pressure between the tip and case, with optional FluidLoc cable for additional protection.
Q9: What is the recommended gap voltage setting?
A9: The recommended gap is set to -9 Vdc, which corresponds to ~1.27 mm (50 mils).
Q10: How is environmental protection enhanced?
A10: Connector protectors and armored cables increase resistance to moisture, oils, and mechanical damage.
Recommended Related モデルs
| モデル Number | 説明 | Length | 重量 |
|---|---|---|---|
| 330101-00-80-10-02-00 | 3300 XL 8 mm Probe, unarmored | 1.0 m | 0.290 kg |
| 330103-00-80-10-02-00 | 3300 XL 8 mm Probe, metric thread, armored | 1.0 m | 0.323 kg |
| 330104-00-80-10-02-00 | 3300 XL 8 mm Probe, metric thread, unarmored | 1.0 m | 0.290 kg |
| 330192-00-80-10-02-00 | 3300 XL 8 mm ETR Probe, armored | 1.0 m | 0.323 kg |
| 330140-00-80-10-02-00 | 3300 XL 8 mm Smooth Case Probe, unarmored | 1.0 m | 0.290 kg |
| 330141-00-80-10-02-00 | 3300 XL 8 mm Smooth Case Probe, armored | 1.0 m | 0.323 kg |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Length | 重量 |
|---|---|---|---|
| 330180-01-00 | 3300 XL Proximitor Sensor, panel mount | 1.0 m | 0.246 kg |
| 3500/42M | Proximitor Seismic Monitor | N/A | 1.2 kg |
| 3500/44M | Aeroderivitive GT Vibration Monitor | N/A | 1.3 kg |
| 3500/22M | Transient Data Interface Module | N/A | 1.1 kg |
| 3500/40M | Proximitor Monitor | N/A | 1.0 kg |
| 330130-030-00-00 | 3300 XL Extension Cable, 3.0 meters | 3.0 m | 0.102 kg |
