製品紹介

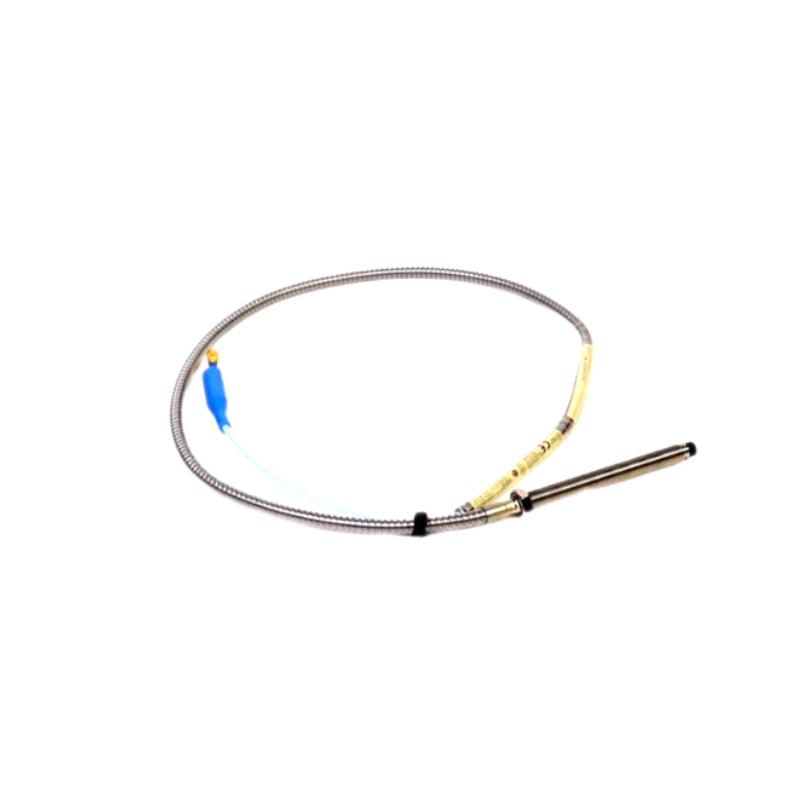

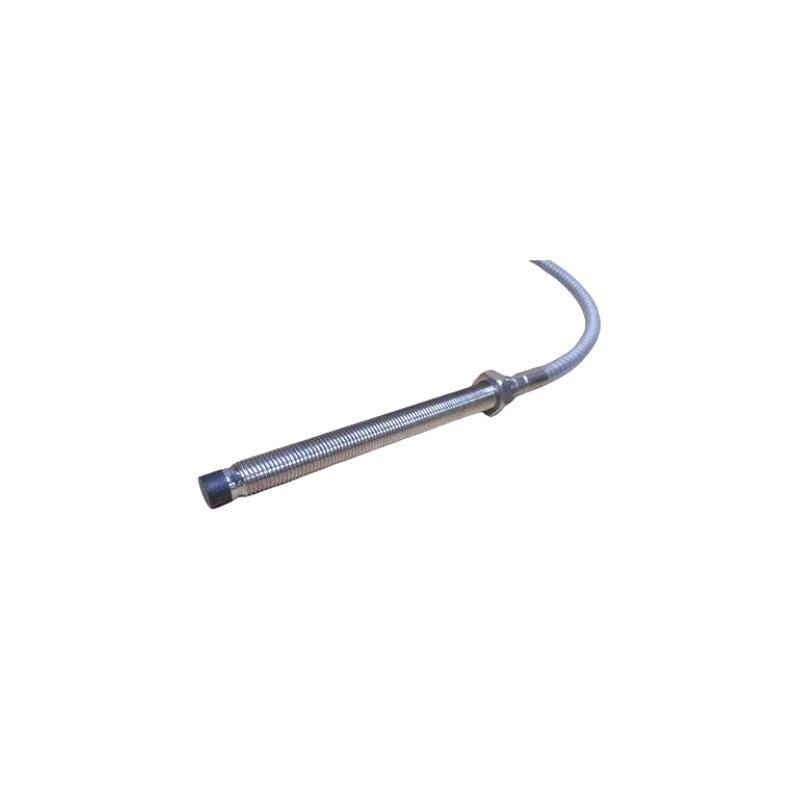

The Bently Nevada 330102-00-40-10-02-00 is part / the 3300 XL 8 mm Proximity Probe Series, designed for accurate, non-contact measurement / shaft displacement and vibration in rotating machinery. This high-performance probe is an essential component in condition monitoring systems, ensuring the reliability and safety / critical industrial equipment.
With advanced signal stability, superior environmental resistance, and robust construction, this probe is ideal for various industrial applications, including power generation, oil and gas, and manufacturing. The probe operates with a 3300 XL Proximitor Sensor, forming a complete transducer system that delivers precise and reliable measurements.
製品仕様
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| モデル Number | 330102-00-40-10-02-00 |
| Sensing Principle | Eddy Current |
| Shaft Measurement Range | 0 to 2.0 mm (80 mils) |
| Linear Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Output Voltage | -2 VDC to -18 VDC |
| Power Supply | -24 VDC Nominal |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Environmental Protection | IP67 (Dust & Water Resistant) |
| Cable Length | 1 meters |
| Connector Type | ClickLoc™ Connector |
| Probe Tip Diameter | 8 mm |
| Thread Size | M10x1 |
| Probe Body Material | Stainless Steel |
| 重量 | 0.323 kg |
| Certification | ATEX, CSA, IECEx for Hazardous Locations |
Applications
The Bently Nevada 330102-00-40-10-02-00 is widely used in industrial environments where precision monitoring / rotating machinery is required. Key application areas include:
-
Gas & Steam Turbines – Ensures optimal operation by detecting vibration and displacement anomalies.
-
Compressors – Monitors bearing conditions and helps prevent failures.
-
Pumps & Motors – Provides early detection / misalignment and wear.
-
Generators – Aids in maintaining power system reliability.
-
Gearboxes – Identifies issues such as gear misalignment or wear before catastrophic failure.
-
Industrial Fans & Blowers – Reduces unplanned downtime by detecting mechanical issues early.
Advantages / the 330102-00-40-10-02-00
-
High Accuracy – Delivers precise measurements with minimal signal drift.
-
Robust Construction – Designed to withstand harsh industrial environments.
-
Extended Temperature Range – Can operate in extreme conditions from -51°C to +177°C.
-
Industry-Leading Reliability – Provides stable signal output with low noise interference.
-
Easy Installation – Threaded design allows for secure mounting.
-

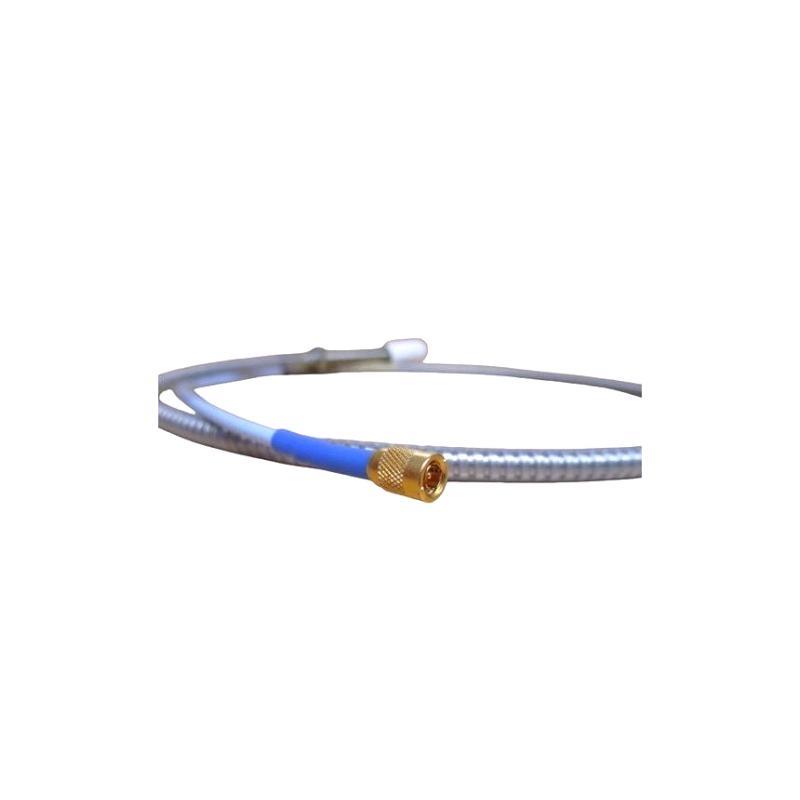

ClickLoc™ Connector – Ensures secure and vibration-resistant cable connections.
-
Backward Compatibility – Works with existing Bently Nevada 3300 monitoring systems.
-
ATEX & CSA Certified – Safe for use in hazardous environments.
Latest 業界ニュース on 3300 XL Proximity Probes
-
Bently Nevada Expands 状態 Monitoring Portfolio with Enhanced Proximity Probe Systems
-
Reliability in Power Generation: How 3300 XL Proximity Probes Improve Predictive Maintenance
-
Advancements in Non-お問い合わせ Vibration Monitoring for Rotating Equipment
-
Oil & Gas Industry Adopts Bently Nevada Proximity Probes for Enhanced Safety
-
Bently Nevada Releases 次へ-Gen Signal Processing Technology for 状態 Monitoring
よくある質問 (FAQ)
-
What is the main function / the Bently Nevada 330102-00-40-10-02-00?
It is used for non-contact measurement / shaft vibration and position in rotating machinery. -
Can this probe be used in hazardous environments?
Yes, it is certified for ATEX, CSA, and IECEx hazardous locations. -
What is the maximum operating temperature for this probe?
It can operate in temperatures ranging from -51°C to +177°C (-60°F to +350°F). -
How is this probe mounted?
It is typically mounted using a threaded sleeve or bracket for secure positioning. -
What type / output does the probe provide?
It provides a voltage output proportional to the measured displacement. -
Is this probe compatible with older Bently Nevada monitoring systems?
Yes, it is fully compatible with the 3300 XL Proximitor Sensor and other legacy Bently Nevada systems. -
Does the probe require calibration?
While factory-calibrated, periodic verification is recommended to maintain accuracy. -
What materials are used in the probe construction?
It features a stainless steel body for durability and resistance to harsh conditions. -
Can the cable length be customized?
Yes, Bently Nevada /fers different cable lengths to suit various application needs. -
How does this probe compare to the 3300 XL 5 mm series?
The 8 mm version provides a larger linear measurement range compared to the 5 mm variant.
Related モデルs from the Same Series
| モデル Number | 説明 |
|---|---|
| 330103-00-05-50-02-05 | 3300 XL 8 mm Proximity Probe with 0.5m cable |
| 330104-00-10-10-02-05 | 3300 XL 8 mm Reverse Mount Probe with 1.0m cable |
| 330130-045-00-05 | 3300 XL 8 mm Probe with 4.5m cable |
| 330180-50-00 | 3300 XL 8 mm High-Temperature Probe |
| 330101-00-40-10-02-05 | 3300 XL 8 mm Probe with 4.0m cable |
| 330105-02-12-10-02-00 | 3300 XL 8 mm Reverse Mount Probe with 1.2m cable |
| 330106-05-30-10-02-05 | 3300 XL 8 mm Probe with 3.0m cable |
| 330108-00-07-10-02-05 | 3300 XL 8 mm Probe with 0.7m cable |
Popular Bently Nevada モデルs
| モデル Number | 説明 |
|---|---|
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3500/22M | Transient Data Interface Module |
| 3500/32M | Relay Module |
| 3500/50M | Tachometer Module |
| 3500/25 | Keyphasor Module |
| 3500/15 | Power Supply Module |
| 330500 | Velomitor Piezoelectric Velocity Sensor |
| 3701/40 | Machinery 状態 Monitoring System |
