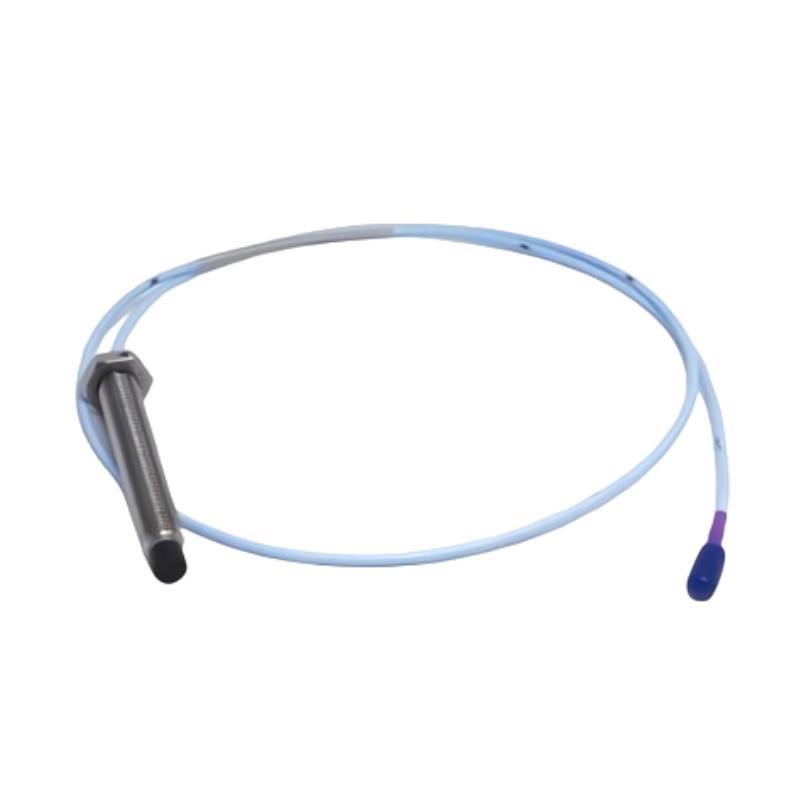

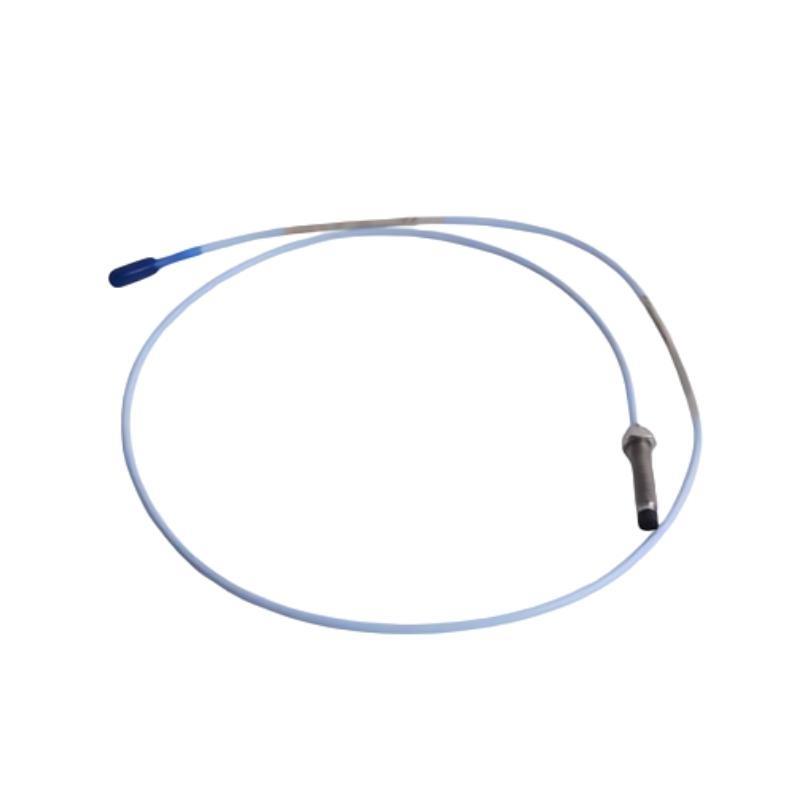

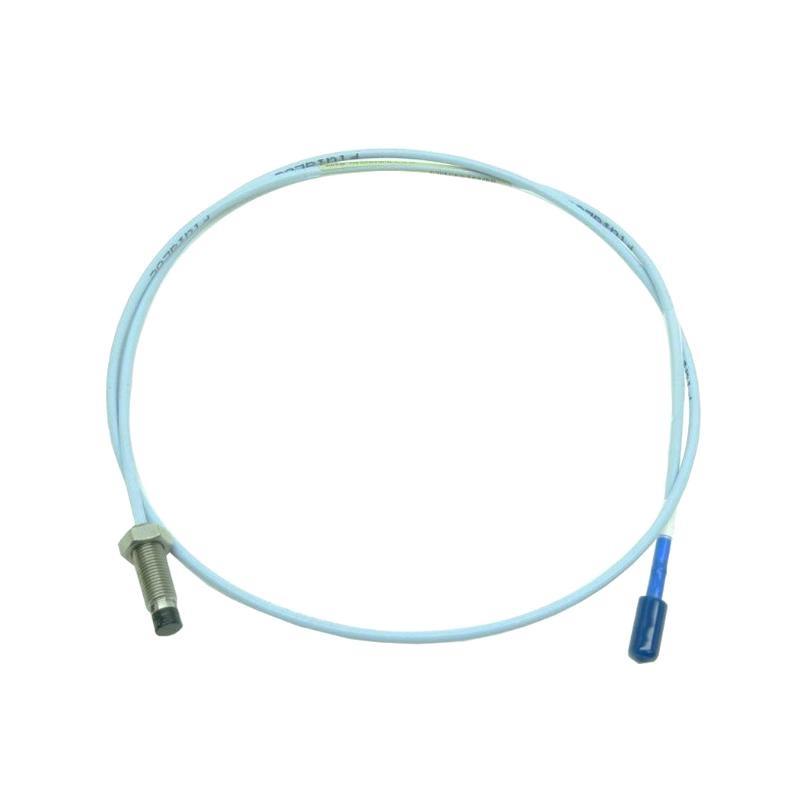

The Bently Nevada 330101-32-70-10-12-05 is a high-precision 8mm proximity probe from the 3300 XL series, engineered for advanced rotor position and vibration monitoring in critical rotating machinery. This probe is designed to deliver accurate measurement / shaft displacement, vibration, and relative movement, enabling early detection / imbalance, misalignment, and bearing wear.
Part / the 3300 XL family, the 330101-32-70-10-12-05 is optimized for industrial environments, capable / withstanding high temperatures, mechanical vibrations, and electromagnetic interference. Its 1-meter cable allows for compact installations while maintaining reliable signal transmission. Lightweight at 0.323 kg, this probe is suitable for machinery with space constraints or retr/itting requirements, providing engineers with a dependable tool for continuous condition monitoring.
製品仕様
| Parameter | Details |
|---|---|
| モデル | 330101-32-70-10-12-05 |
| Series | 3300 XL |
| Probe Type | Proximity Probe / Eddy Current Sensor |
| Tip Diameter | 8 mm |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Operating Temperature Range | -40 °C to +120 °C |
| Vibration Frequency Range | DC to 20 kHz |
| Probe Material | Stainless steel housing, ceramic sensor core |
| Cable Material | Shielded, flexible, durable insulation |
| Mounting Method | Threaded or fixed probe holder |
| Gap Range (Nominal) | 0.25 mm to 2.0 mm (depends on system calibration) |
| Sensitivity | 50 mV/mil (typical, depends on system setup) |
| Output Signal | AC voltage proportional to probe gap |
| Connection | Coaxial cable with BNC or terminal connection to 3300 XL monitoring system |
| Certifications | CE, CSA, ISO 9001 |
| Environmental Protection | IP65 when installed in proper housing |
Product Applications
The 330101-32-70-10-12-05 3300 XL 8mm Proximity Probe is suitable for industries where accurate machinery monitoring is critical:
-
Power Generation – Turbine and generator shaft monitoring for imbalance or misalignment.
-
Oil & Gas – Compressor and pump rotor condition monitoring to prevent unexpected shutdowns.
-
Petrochemical Plants – High-precision monitoring / rotating machinery in harsh environments.
-
Industrial Manufacturing – Vibration and position monitoring for motors, fans, and other critical equipment.
-
Marine & Offshore Equipment – Shaft monitoring for turbines and propulsion systems.
-
Pulp & Paper Industry – High-speed rotor monitoring in paper machines and industrial rollers.
Product Advantages
-
High Precision – Provides accurate measurement / rotor displacement and vibration.
-
Compact and Lightweight – 1-meter cable and 0.323 kg weight for limited-space installations.
-
Robust Construction – Stainless steel housing with shielded cable ensures durability.
-
Seamless Integration – Fully compatible with 3300 XL monitoring systems for continuous data acquisition.
-
Wide Gap Range – サポートs a variety / shaft sizes and clearances.
-
Predictive Maintenance – Enables early detection / misalignment, imbalance, and bearing wear.
-
Reduced Downtime – Reliable performance reduces unplanned maintenance and operational disruptions.
-
Flexible Installation – Suitable for both new installations and retr/its in constrained spaces.
FAQ
-
What is the tip diameter / this proximity probe?
The probe tip diameter is 8 mm, which ensures precise measurement / the rotor-to-probe clearance. -
What is the total cable length / this probe?
The cable is 1.0 meter long, providing flexibility for installation in close or compact machinery setups. -
What is the nominal gap range supported?
The probe operates with a nominal gap range / 0.25 mm to 2.0 mm, adjustable based on system calibration. -
Which monitoring systems is this probe compatible with?
It is designed for Bently Nevada 3300 XL monitoring systems, ensuring reliable data collection. -
What is the operating temperature range?
The probe can operate from -40 °C to +120 °C, suitable for most industrial machinery environments. -
What type / output signal does the probe provide?
The probe outputs an AC voltage proportional to the gap, which is processed by the monitoring system. -
What frequency range can the probe measure?
It measures from DC up to 20 kHz, supporting both low-speed displacement and high-frequency vibration detection. -
What materials are used in the probe construction?
Stainless steel housing, ceramic sensor core, and shielded flexible cable provide durability and reliable signal integrity. -
Is this probe suitable for outdoor or harsh environments?
Yes, with proper installation it meets IP65 protection, guarding against dust and water ingress. -
Can this probe detect both static and dynamic rotor displacements?
Yes, it measures both steady-state and dynamic movements, supporting accurate rotor monitoring and predictive maintenance.
