製品紹介

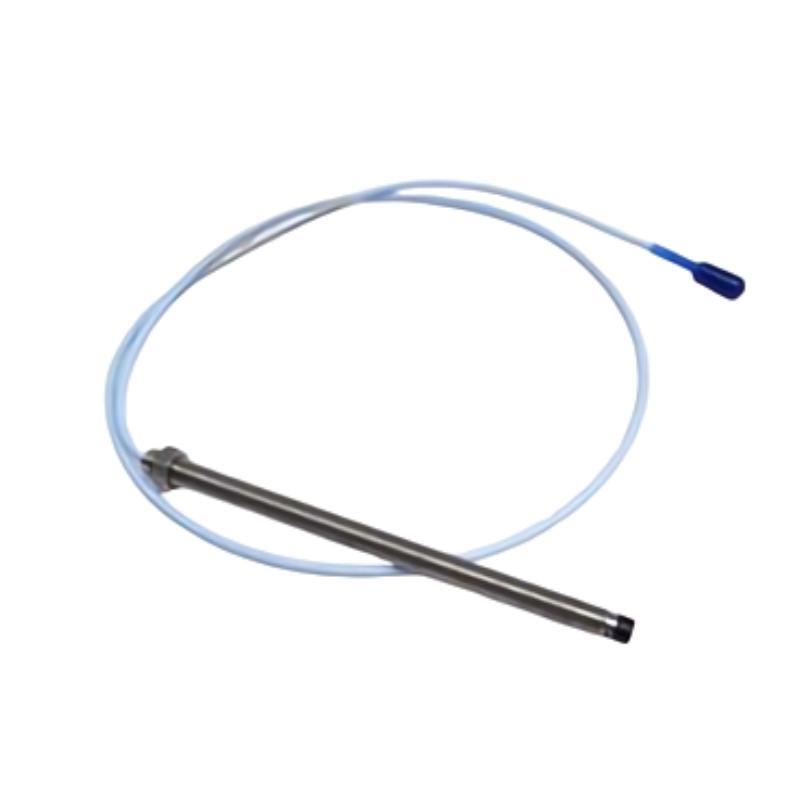

The Bently Nevada 330101-30-60-05-01-05 is an 8mm proximity probe from the 3300 XL Proximity Transducer System, engineered for precise measurement / shaft vibration and displacement in critical rotating machinery. Designed for high reliability and compliance with API 670 standards, this probe enables early detection / mechanical faults such as rotor misalignment, imbalance, and vibration anomalies.
It is widely applied in power generation, petrochemical, oil & gas, and heavy industrial operations, providing operators with accurate real-time data for condition monitoring and machinery protection. Its robust design ensures stable performance even in high-temperature, high-vibration, and industrial environments.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | 330101-30-60-05-01-05 |
| Series | 3300 XL 8mm Proximity Transducer System |
| Probe Tip Diameter | 8 mm |
| Total Length | 0.5 meter |
| Connector Type | Microdot |
| Operating Temperature | -35°C to +177°C |
| Housing Material | Stainless Steel |
| Nominal Gap | 2.0 mm (80 mils) |
| Linear Range | 2.0 mm to 4.0 mm |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Insulation Resistance | > 100 MΩ at 500 VDC |
| Compliance | API 670 |
| Probe Tip Length | 80 mm |
| 重量 | 0.162 kg |
Product Applications
The 330101-30-60-05-01-05 probe is designed for monitoring critical rotating machinery and protecting assets in industrial environments. Applications include:
-
Steam Turbines: Measuring axial displacement and shaft vibration to maintain operational stability.
-
Gas Compressors: Detecting rotor misalignment, imbalance, and dynamic instabilities.
-
Pumps: Monitoring shaft position and vibration to prevent mechanical failures.
-
Generators: Ensuring stable operation and protecting against rotor faults.
-
Industrial Fans and Blowers: Measuring runout and vibration to maintain process efficiency.
-
Oil & Gas and Petrochemical Equipment: Continuous monitoring under high-temperature and hazardous conditions.
Product Advantages
-
API 670 Compliance: Meets global standards for machinery protection systems.
-
Durable Construction: Stainless steel housing resists corrosion and wear.
-
Wide Operating Temperature: Works effectively from -35°C to +177°C.
-
Accurate Signal Measurement: Minimizes noise and provides reliable data for condition monitoring.
-
Seamless Integration: Compatible with 3300 XL Proximitor sensors and monitoring systems.
-
Proven Reliability: Trusted in critical industries for predictive maintenance.
-
Compact Design: Short 0.5 m length allows installation in tight spaces while maintaining accuracy.
FAQ
-
What is the output sensitivity / this probe?
The output sensitivity is 7.87 V/mm (200 mV/mil), providing high-precision measurement / shaft vibration and displacement for machinery protection systems. -
What is the nominal gap for this probe?
The nominal gap is 2.0 mm (80 mils), which is the optimal distance for linear and accurate signal output. -
What is the linear measurement range?
The linear range is 2.0 mm to 4.0 mm, ensuring accurate detection / shaft movements within the recommended operating window. -
What is the frequency response / the probe?
The probe operates from 0 to 10 kHz, allowing it to capture high-speed rotor dynamics and transient vibration signals accurately. -
Can this probe operate in hazardous environments?
Yes, it is API 670 compliant and suitable for critical industrial environments, including petrochemical and oil & gas facilities. -
What type / connector does the probe use?
This probe uses a Microdot connector for secure electrical connections and low-noise signal transmission. -
Is this probe compatible with 3300 XL Proximitor sensors?
Yes, it integrates fully with 3300 XL Proximitor sensors without requiring adapters or modifications. -
What is the insulation resistance / the probe?
The insulation resistance is greater than 100 MΩ at 500 VDC, ensuring reliable operation under varying environmental conditions. -
What is the maximum operating temperature for this probe?
The probe can operate in temperatures up to +177°C, making it suitable for high-temperature industrial machinery. -
Does this probe comply with API 670 standards?
Yes, the 330101-30-60-05-01-05 is fully API 670 compliant, guaranteeing reliable machinery protection and condition monitoring.
