Product 説明

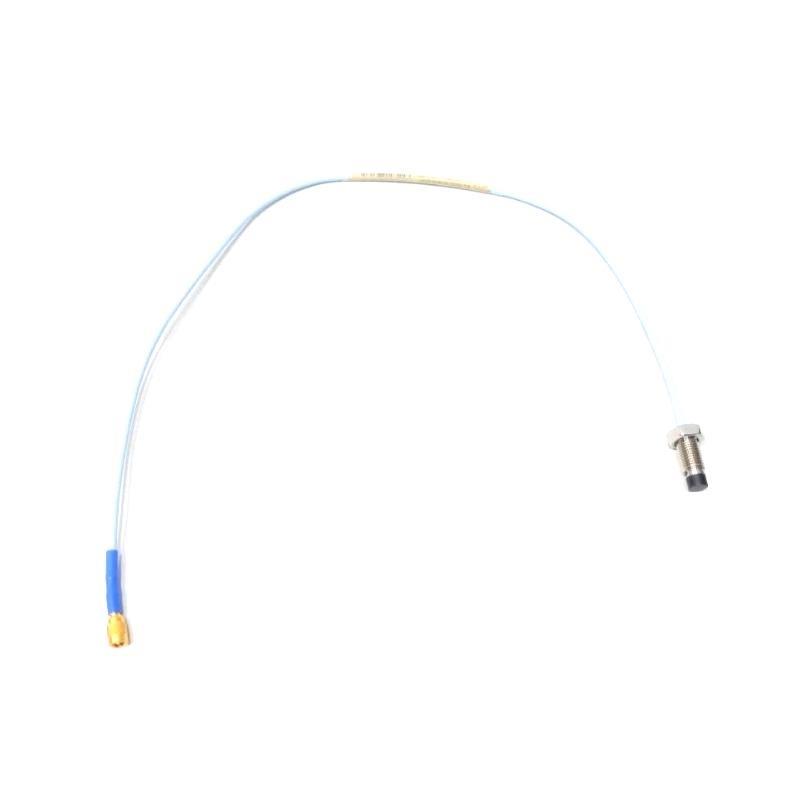

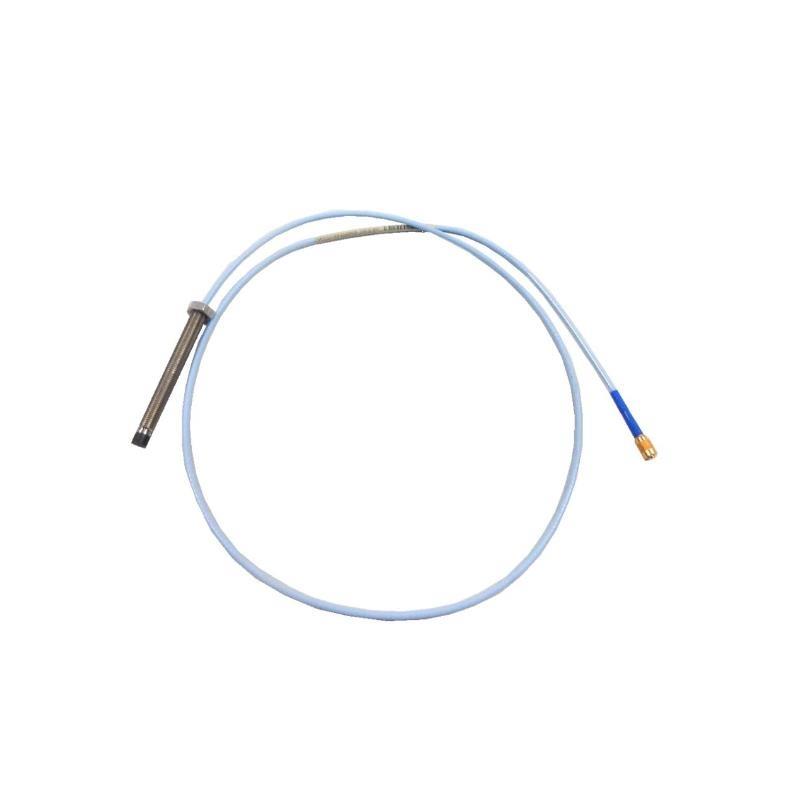

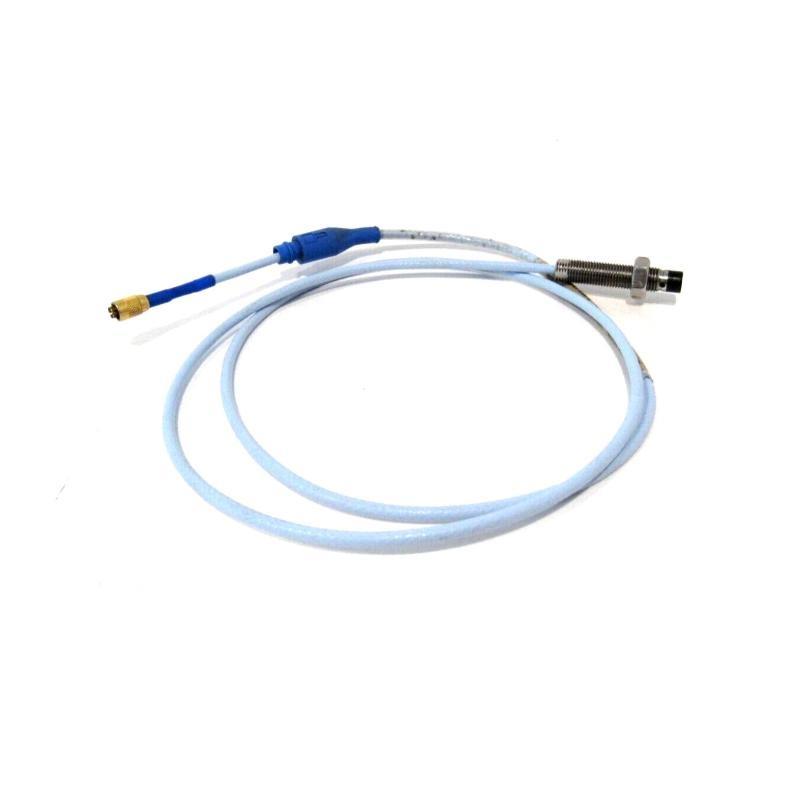

The Bently Nevada 3300 XL 8 mm Proximity Probe is part / the renowned 3300 XL transducer system. It measures static position and dynamic vibration / rotating machinery shafts. Designed for durability, it meets API 670 standards and ensures high reliability for monitoring fluid-film bearing machines.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | 330101-29-50-10-02-05 |
| Probe Tip Diameter | 8.0 mm |
| Case Material | Stainless Steel |
| Tip Material | PPS (Polyphenylene sulfide) |
| Cable Length | Total Length: 1.0 meter |
| 重量 | Approx. 0.323 kg |
| Cable Type | 75 Ω triaxial FEP-insulated |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Minimum Shaft Diameter | 50.8 mm |
| Frequency Response | 0 – 10 kHz |
Applications
-
Shaft vibration monitoring on turbines, compressors, pumps.
-
Shaft position measurement in rotating equipment.
-
Keyphasor reference signal generation.
-
Suitable for use in hazardous areas with proper approvals.
Advantages
-
Fully interchangeable components (probe, cable, sensor).
-
Meets API 670 mechanical and performance standards.
-
優良 linearity and temperature stability.
-
Rugged design with high pull strength and robust connectors.
-
Backward compatibility with earlier 3300 series systems.
FAQ
Q1: What is the linear range / the probe?
A1: The linear measurement range is 2 mm (80 mils).
Q2: Is the probe compatible with older 3300 series components?
A2: Yes, it is fully backward compatible and interchangeable with 5 mm and 8 mm 3300 series parts.
Q3: What are the recommended operating temperatures?
A3: Operating temperature ranges from -52°C to +177°C.
Q4: What shaft diameter is recommended for proper measurement?
A4: Minimum shaft diameter recommended is 50.8 mm.
Q5: Does the system comply with API 670?
A5: Yes, it meets the API 670 standard requirements.
Q6: Can it be used in hazardous locations?
A6: Yes, with the appropriate approvals and installation methods.
Q7: How is the cable terminated?
A7: With a gold-plated ClickLoc connector that provides a secure, tool-free connection.
Q8: What is the probe’s weight?
A8: Approximate weight is 0.323 kg for a 1.0-meter total length.
Q9: Does it require calibration when replacing components?
A9: No, components are fully interchangeable without recalibration.
Q10: What is the recommended gap setting?
A10: The recommended gap is approximately 1.27 mm (50 mils) from the target surface.
Related モデルs (Same Series or Application)
| モデル | 説明 | Length | 重量 |
|---|---|---|---|
| 330101-00-08-05-02-05 | Standard 8 mm probe, armored, 0.5 m | 0.5 m | ~0.2 kg |
| 330101-00-12-10-02-05 | Standard 8 mm probe, armored, 1.2 m | 1.2 m | ~0.3 kg |
| 330102-00-20-10-02-00 | Armored 8 mm probe, standard cable, 2 m | 2.0 m | ~0.4 kg |
| 330103-00-02-10-02-05 | Metric M10 thread probe, armored, 0.2 m | 0.2 m | ~0.2 kg |
| 330104-00-06-10-02-00 | Metric M10 thread probe, armored, 0.6 m | 0.6 m | ~0.3 kg |
| 330105-02-12-10-02-05 | Reverse mount probe, armored, 1.2 m | 1.2 m | ~0.3 kg |
Popular Bently Nevada モデルs
| モデル | 説明 | Length | 重量 |
|---|---|---|---|
| 330104-00-06-10-02-00 | 8 mm Metric probe, armored | 0.6 m | ~0.3 kg |
| 3300/16 | Vibration Monitor Module | N/A | ~1.5 kg |
| 3500/42M | Proximitor Seismic Monitor Module | N/A | ~1.2 kg |
| 3500/44M | Aeroderivative GT Vibration Monitor | N/A | ~1.2 kg |
| 3500/50 | Tachometer Module | N/A | ~1.0 kg |
| 3300/20 | Dual Vibration Monitor | N/A | ~1.4 kg |
